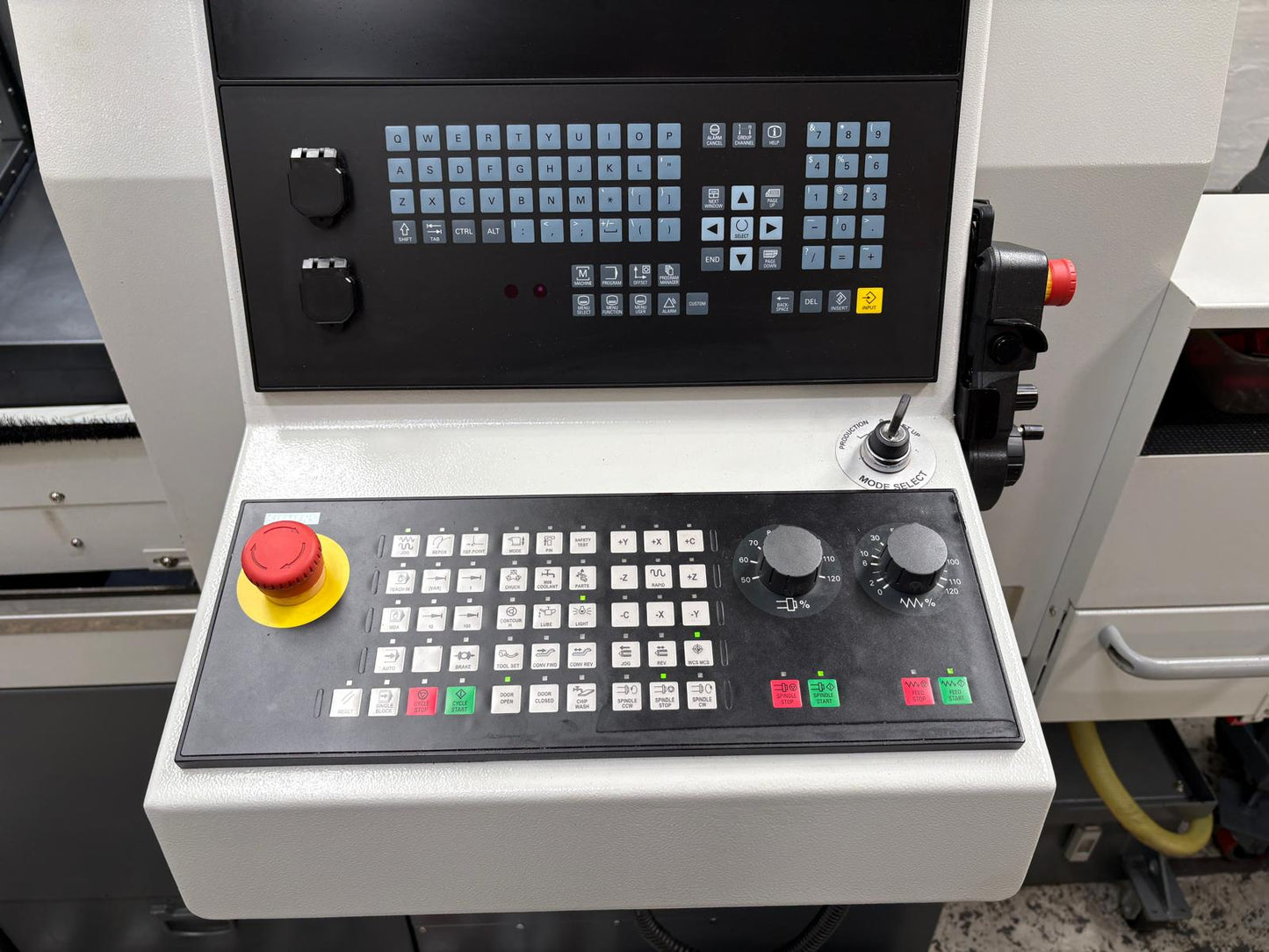

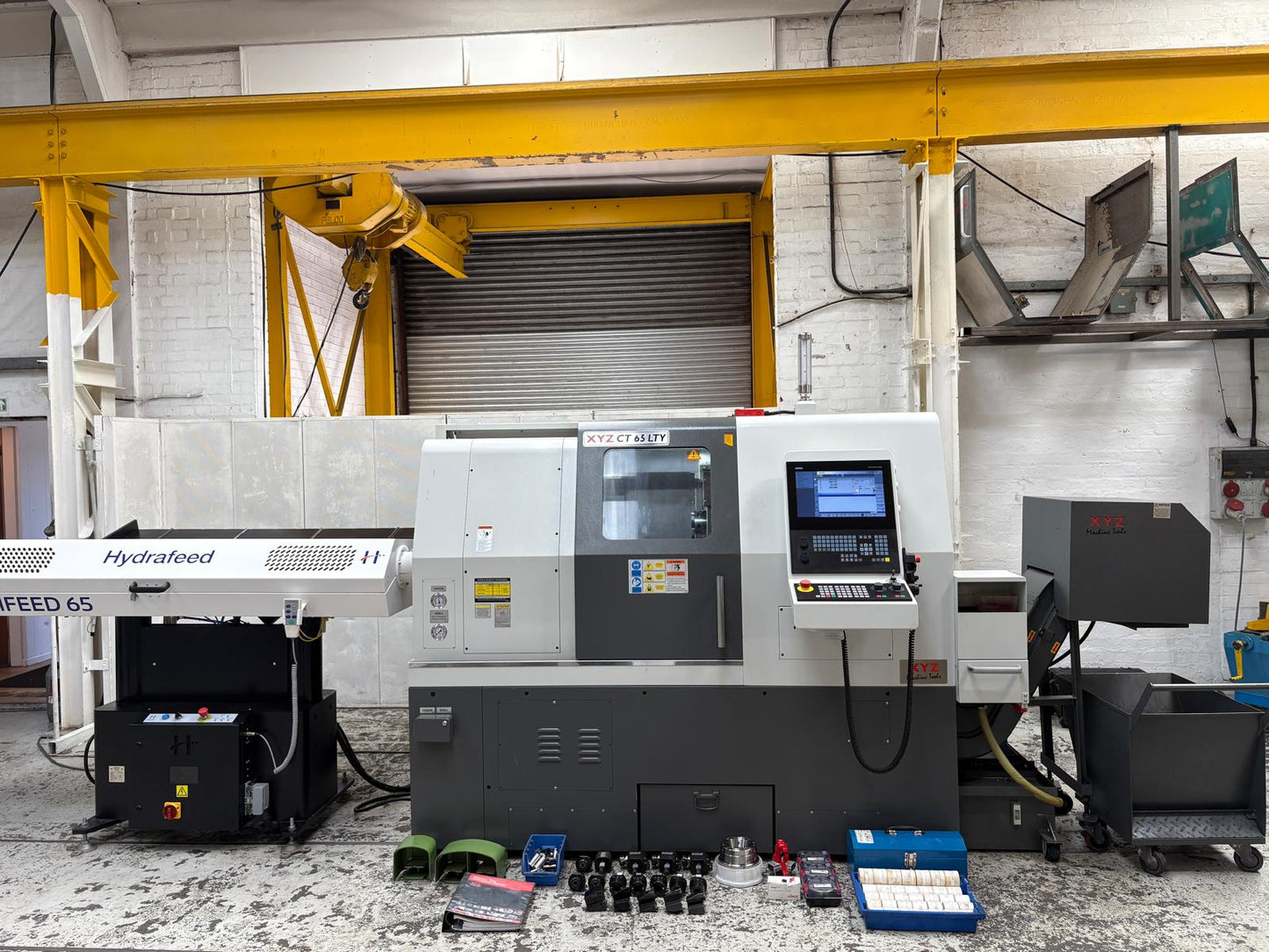

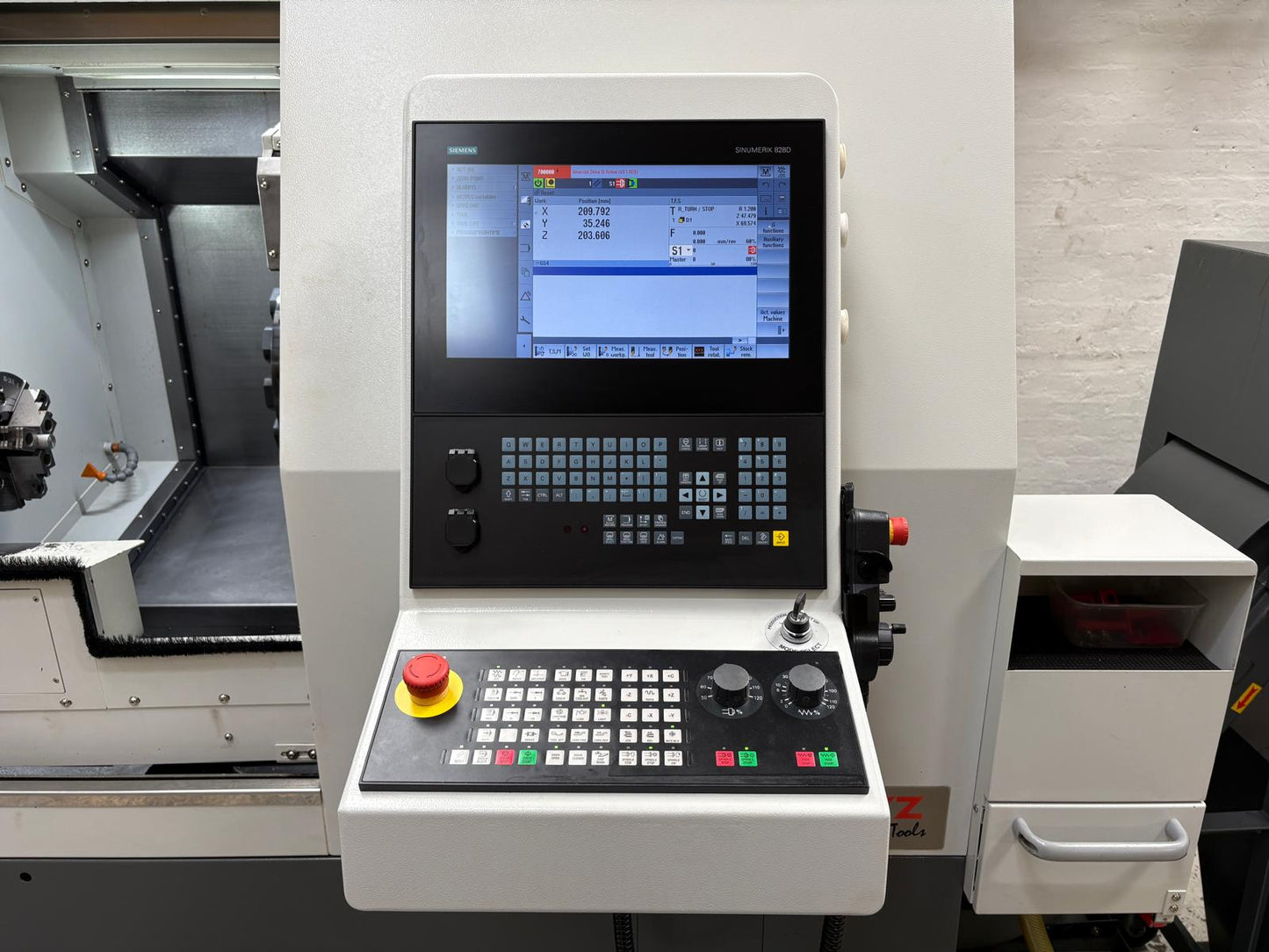

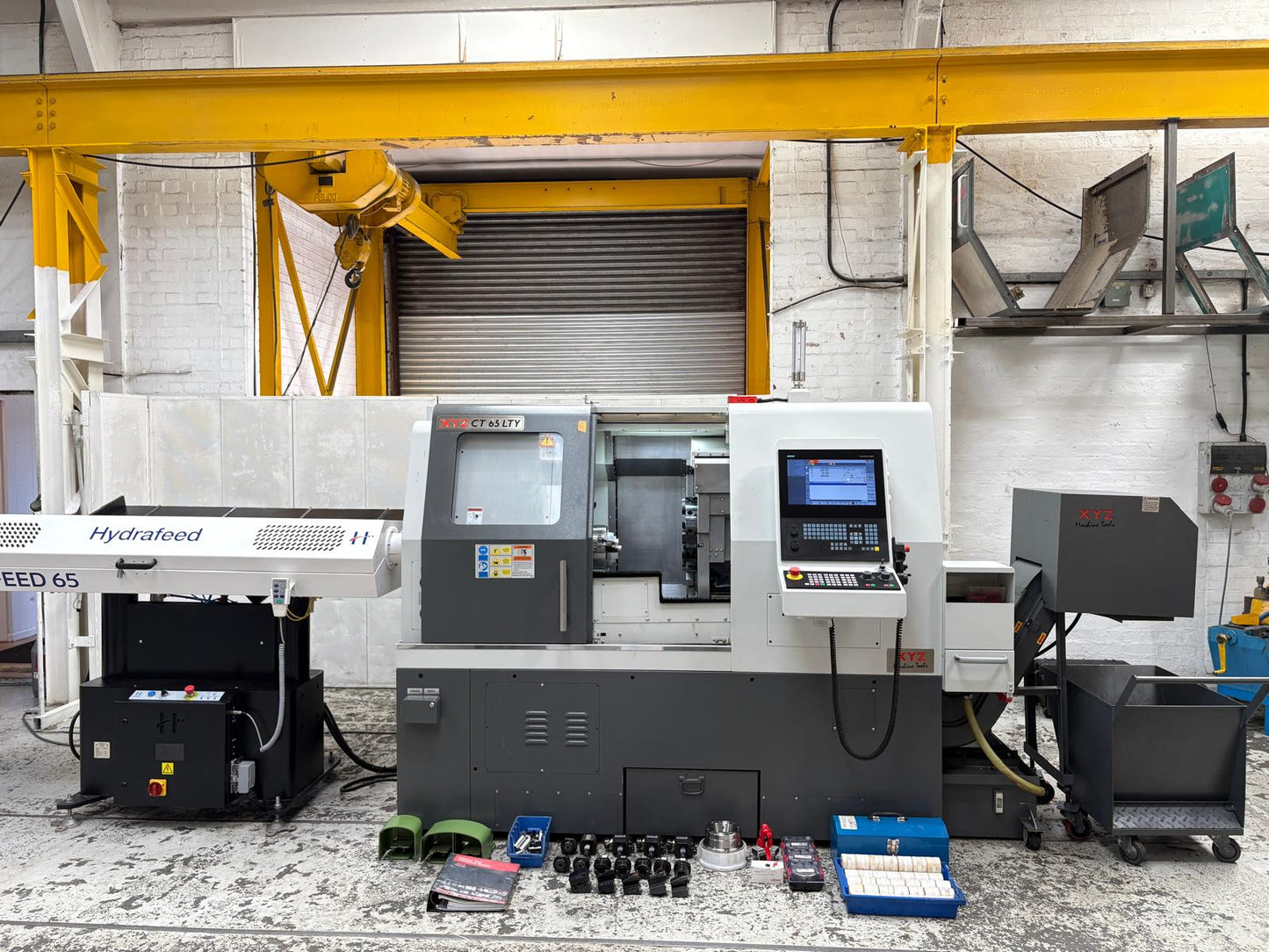

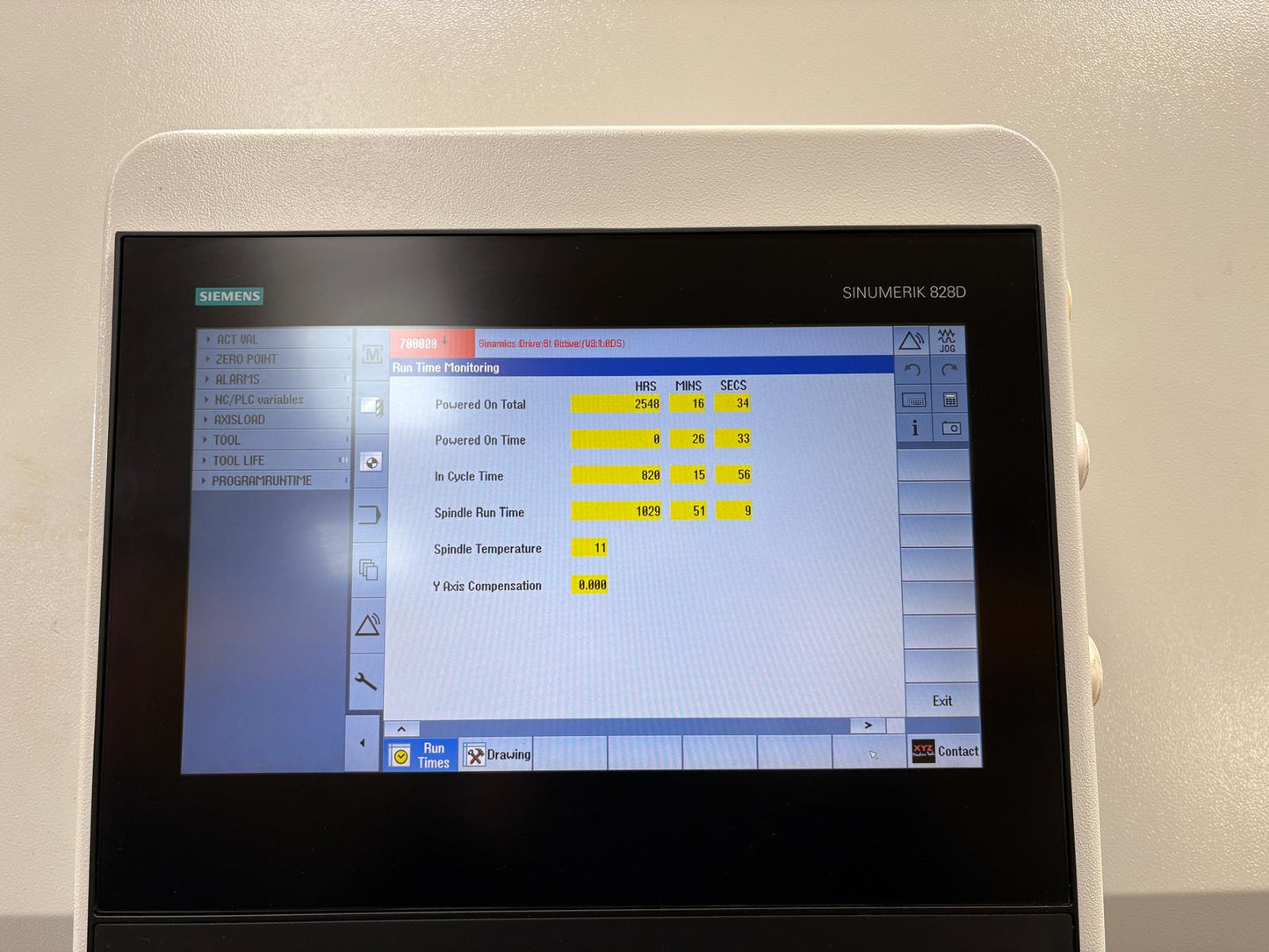

XYZ CT 65LTY (Live Tooling & Y Axis) Siemens 828D Control
Manufactured & Installed in 2022

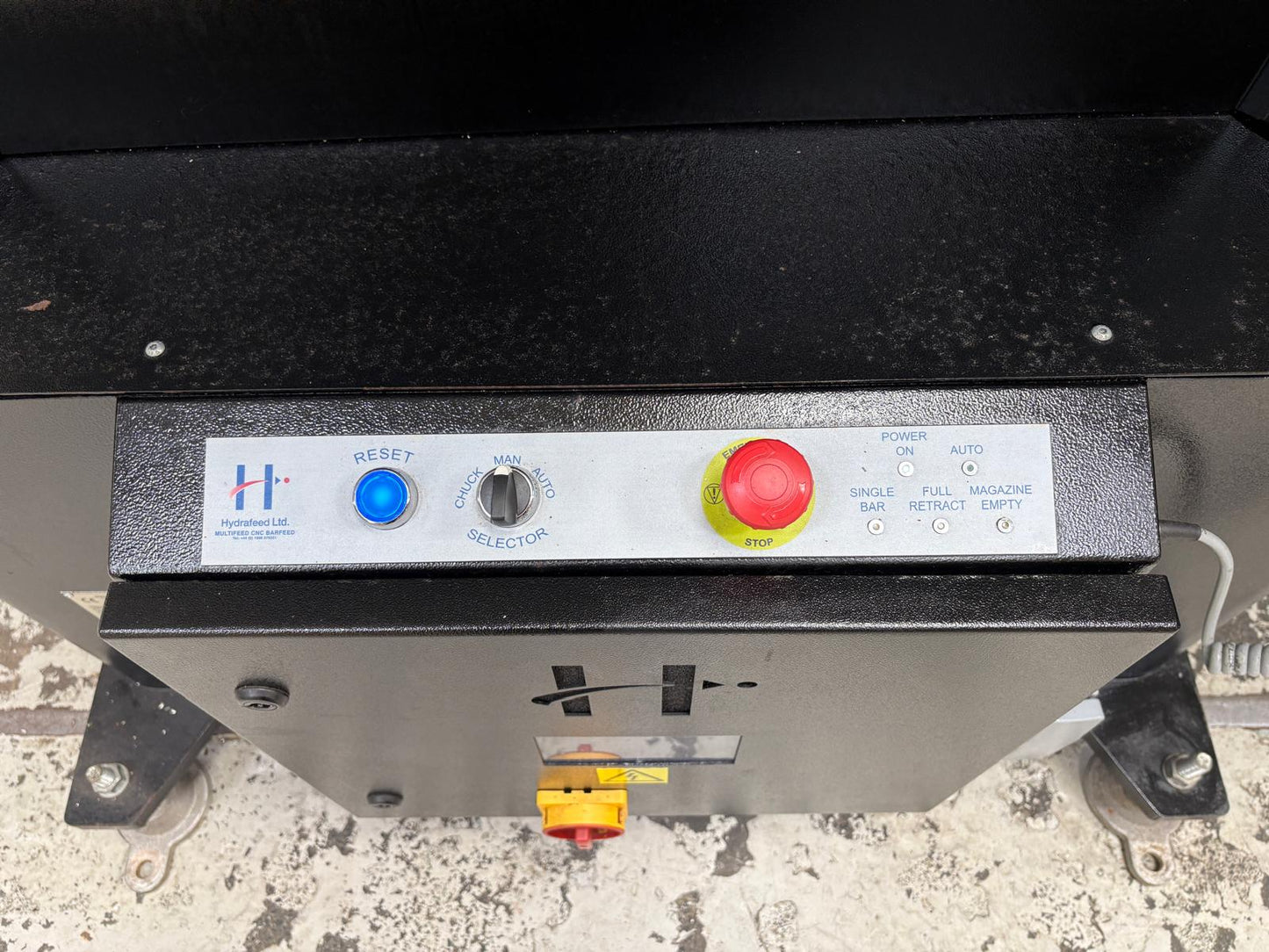

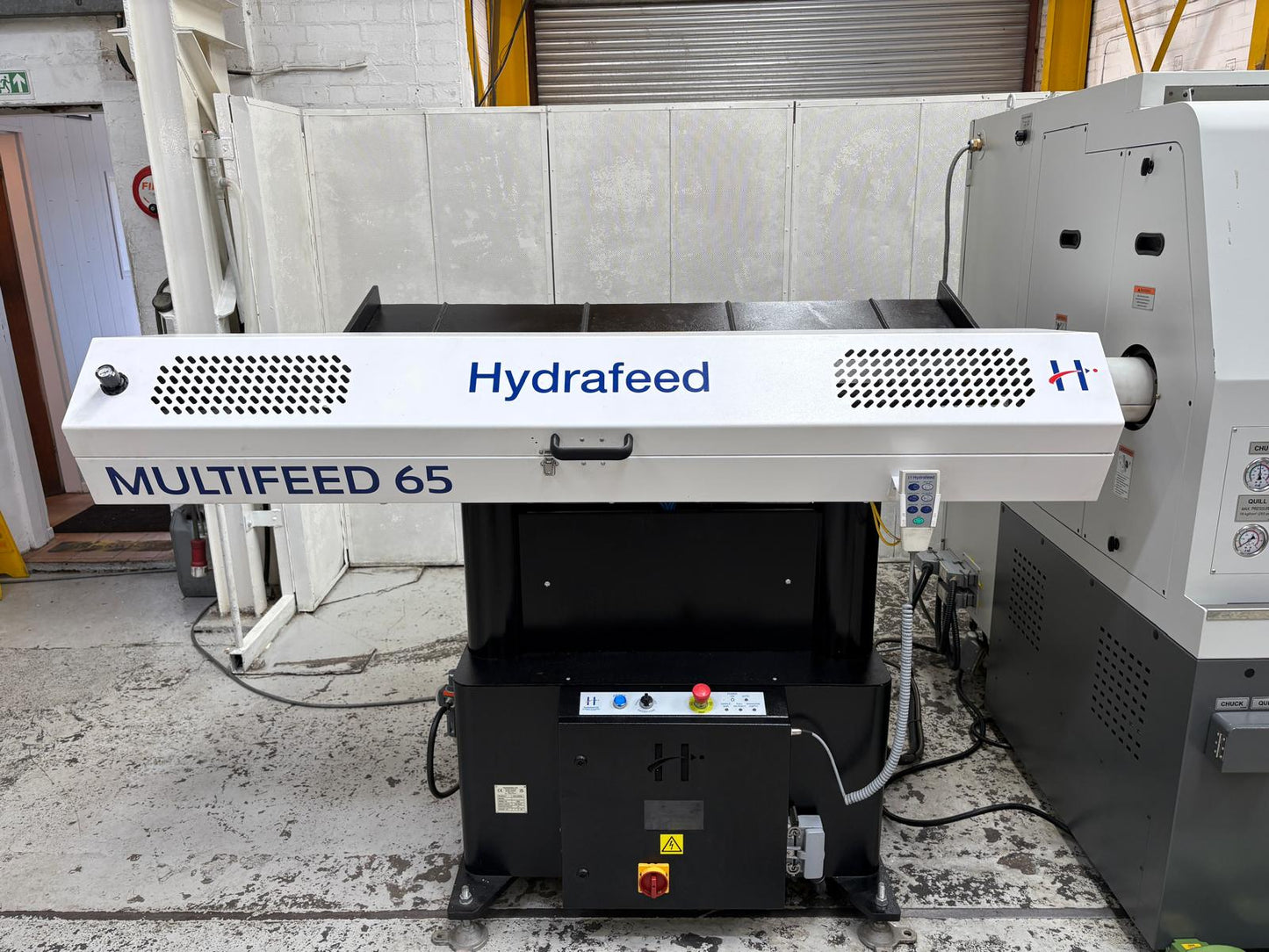

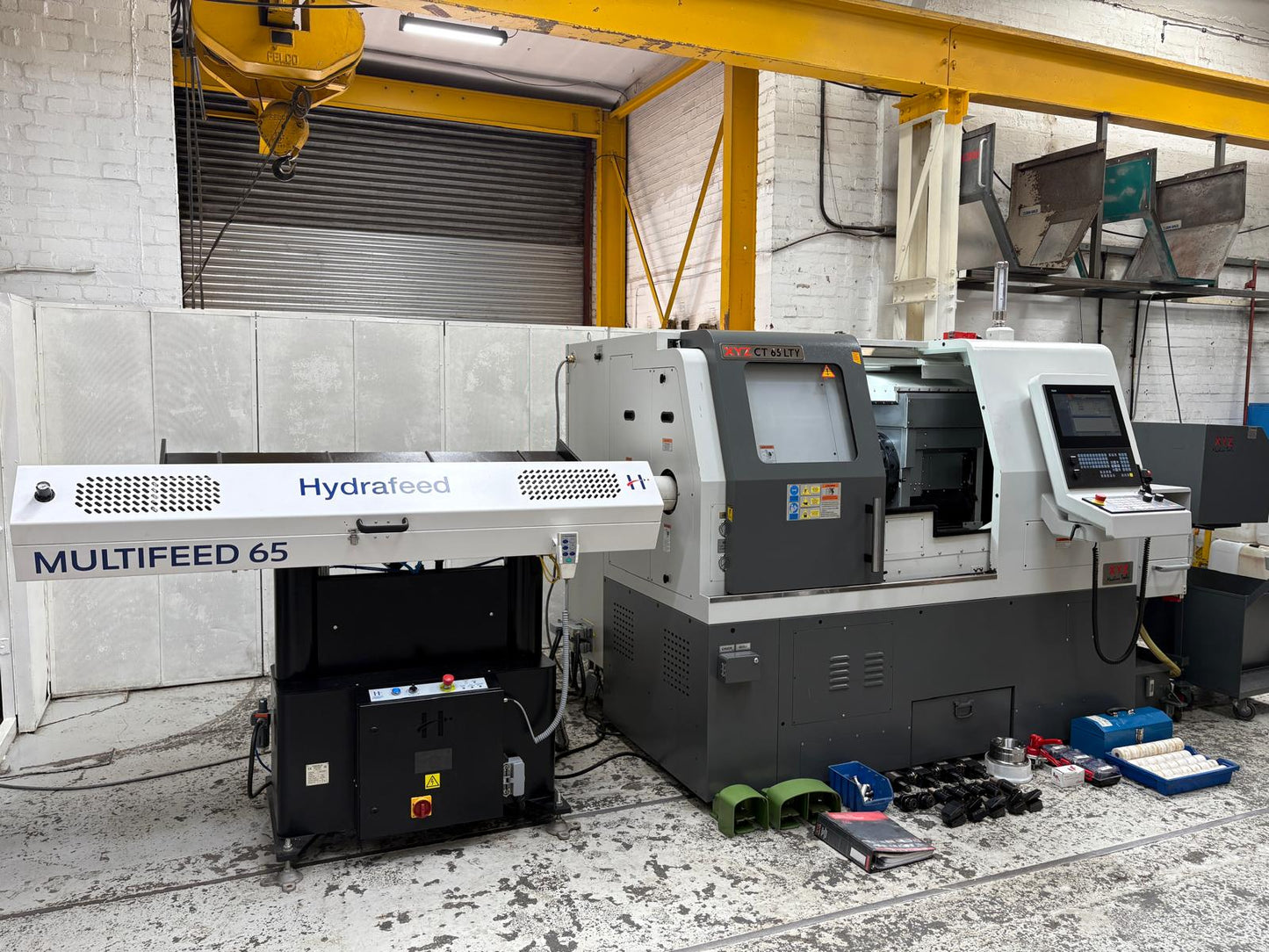

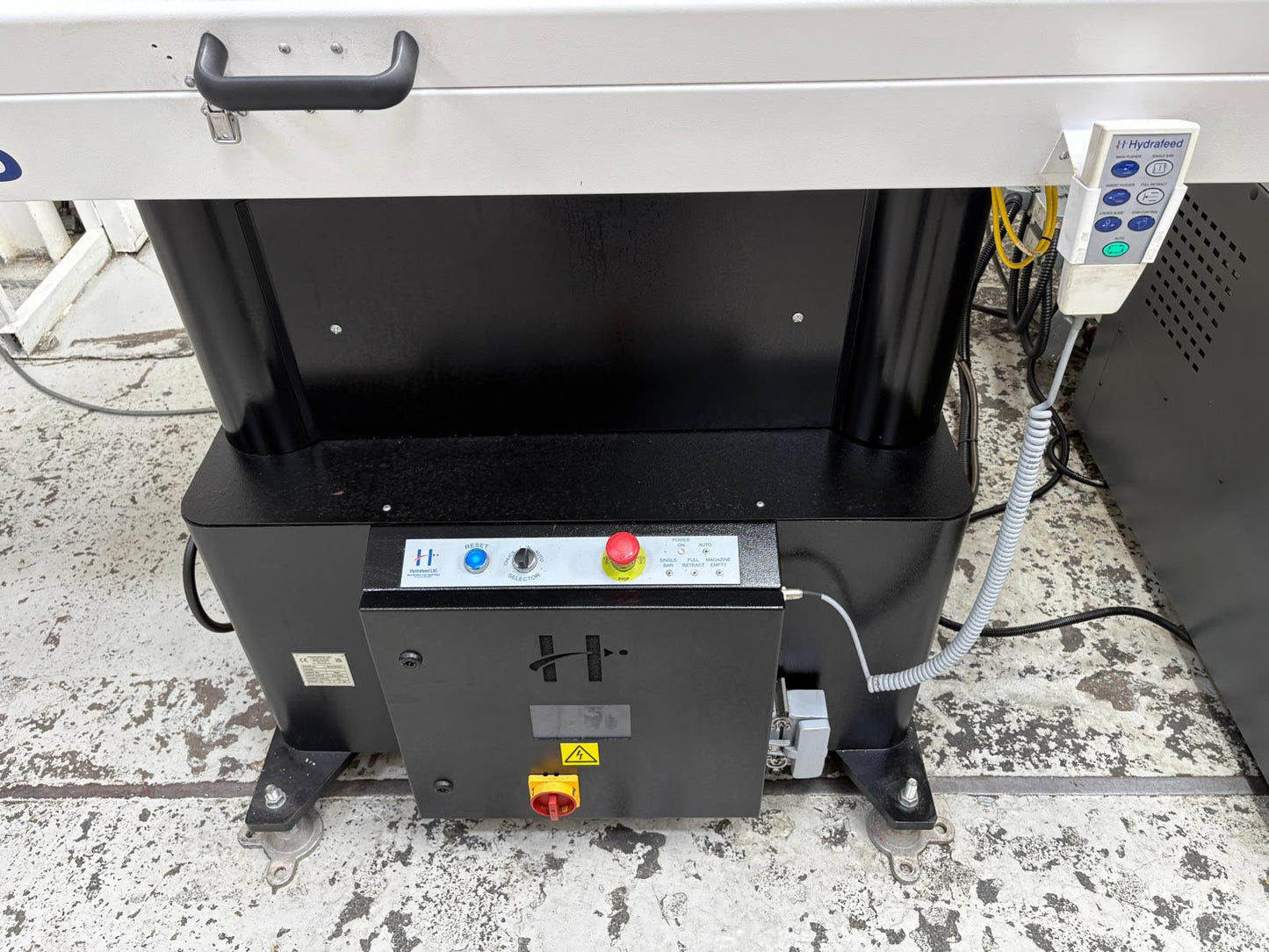

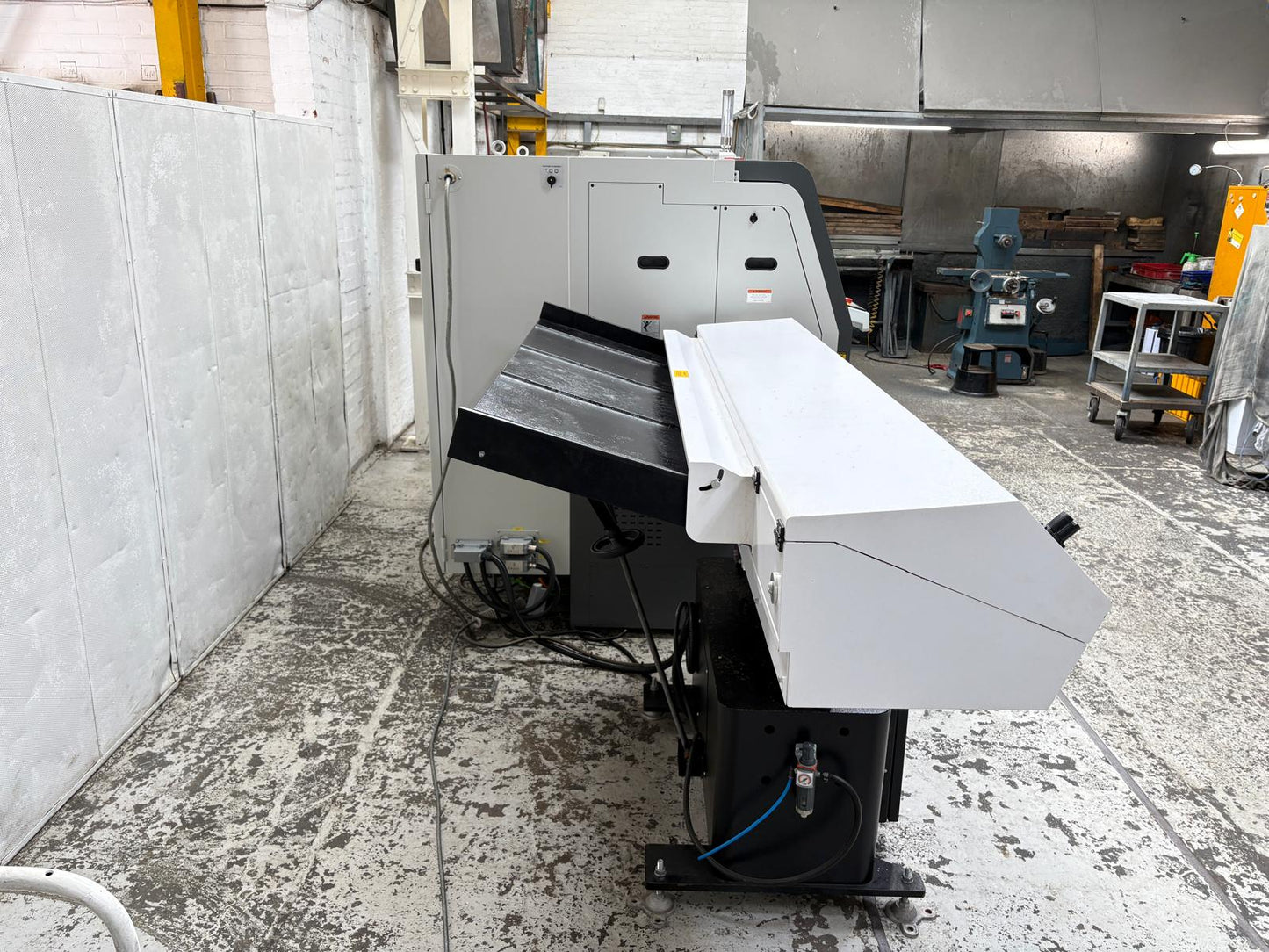

Hydrafeed Multifeed Short Magazine Bar Feed
Bar Support Unit
VDI Live Tooling Holders Supplied
Swarf Bin Supplied
Machine Stroke:
Max’ Swing 400mm
Max’ Turned Dia’ 220mm
Max’ Turned Length 490mm
X Axis Travel 220mm
Y Axis Travel 70mm (+/-35mm)
Z Axis Travel 500mm
Spindle:
Spindle Nose A2-6
Spindle Bore (Drawtube Capacity) 65mm
Spindle Speeds to 4,000rev/min
Spinlde Motor 17kW
Feeds:
Rapids 20m/min
Cutting 10m/min
Slideway Type Hardened Boxways

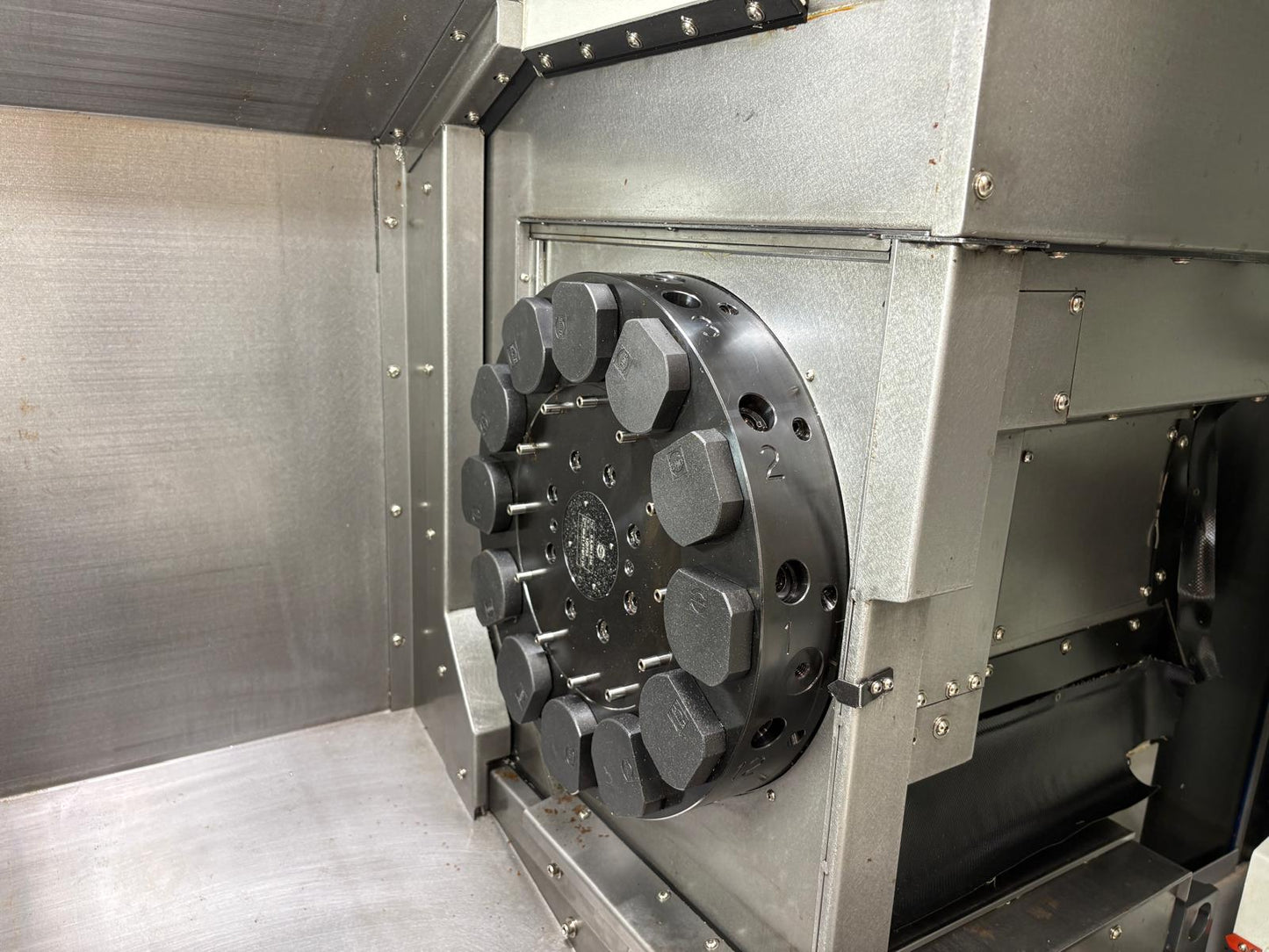

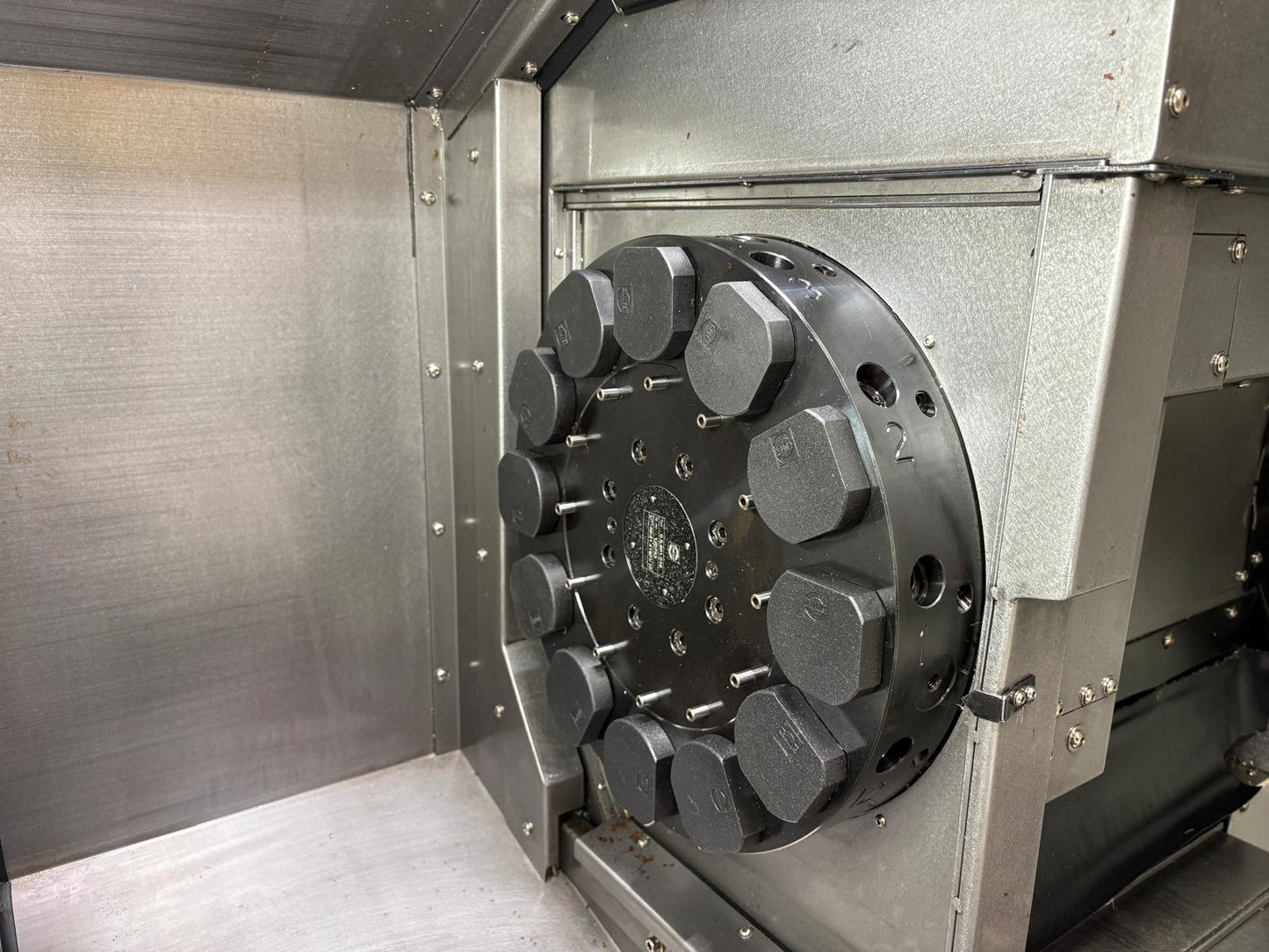

Turret:
Turning Tool Shank 20 x 20mm

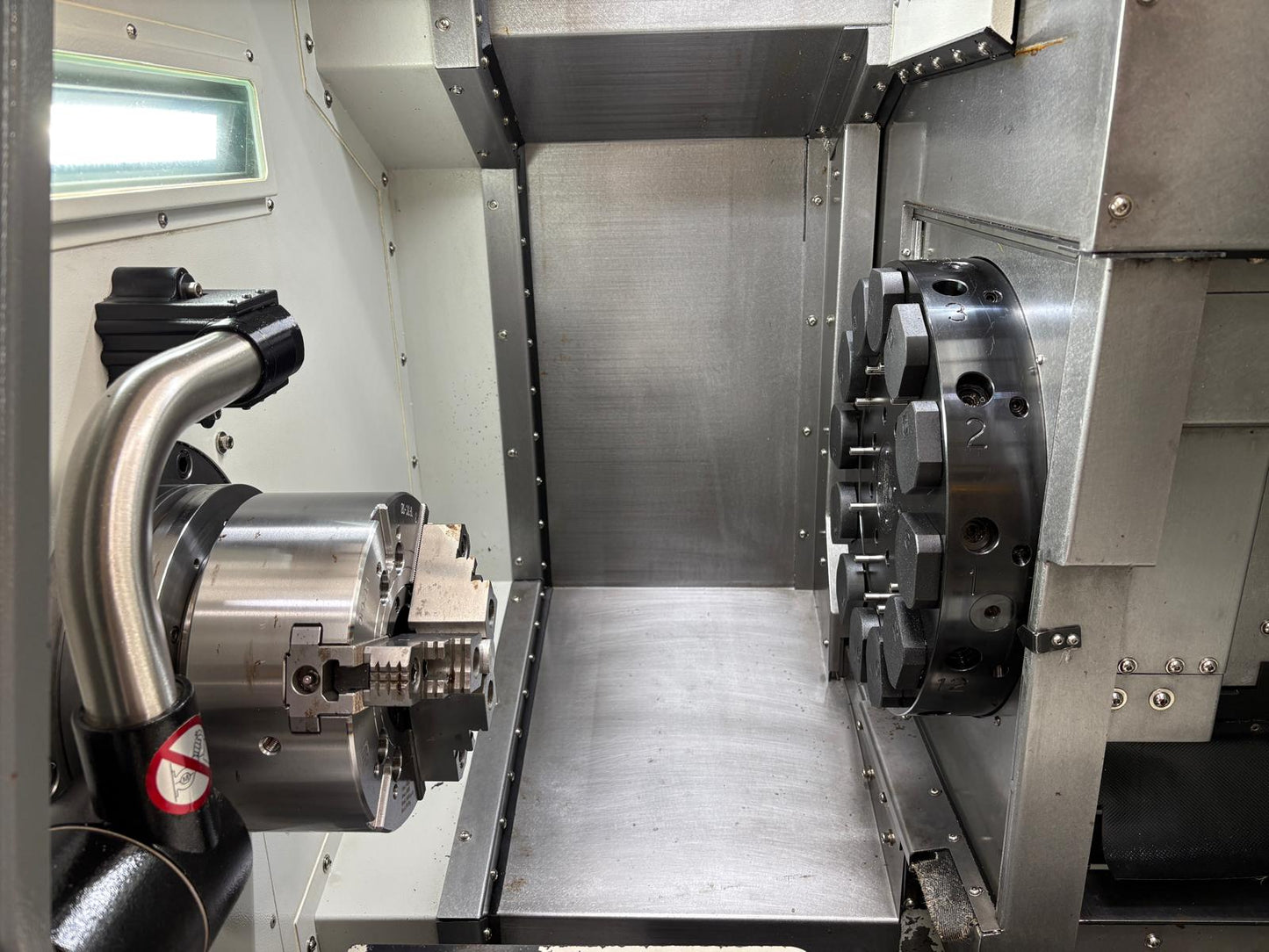

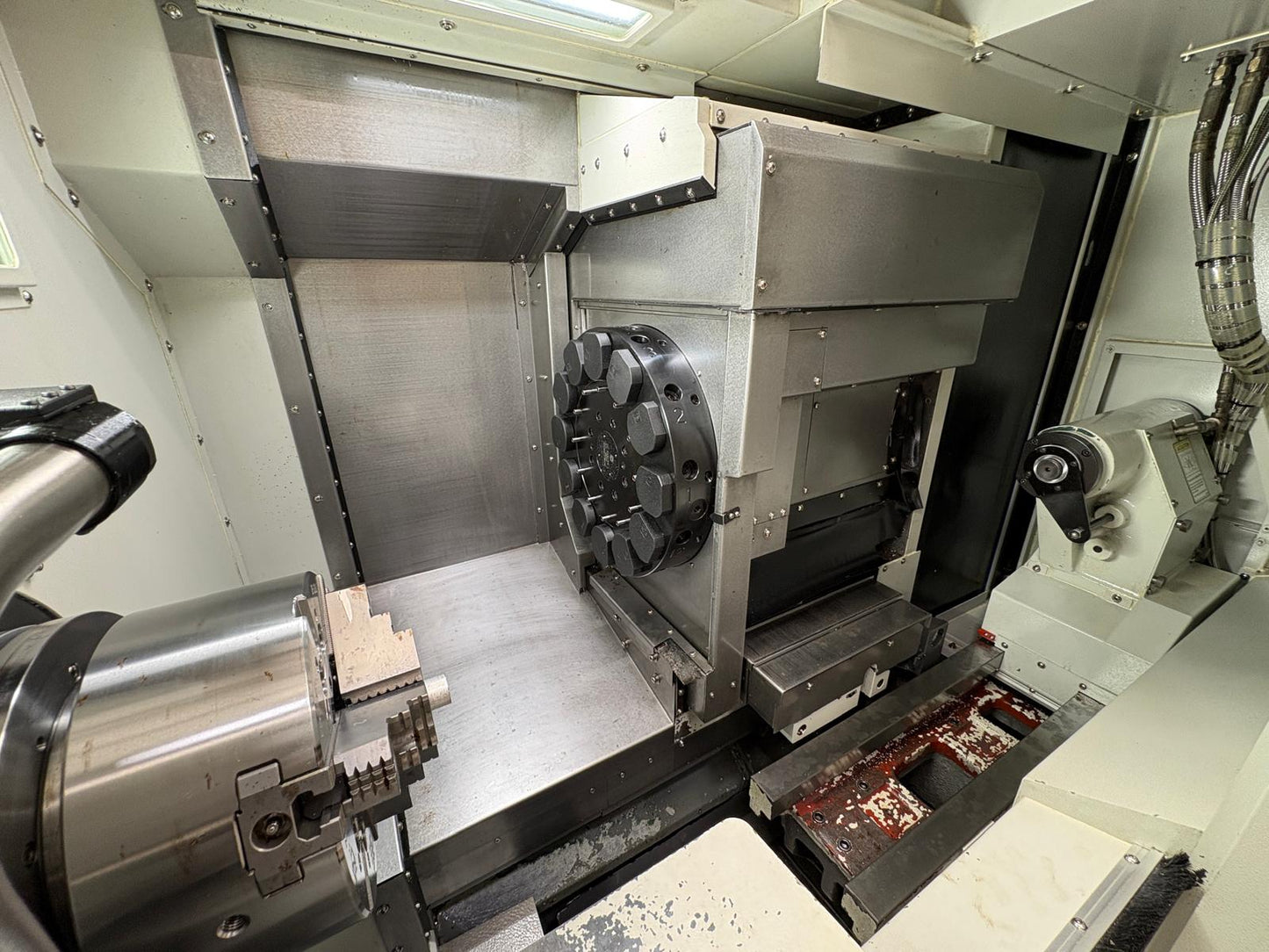

Turret Type VDI 30 Power Turret
No. Of Stations 12
Live Tool Max 4500rev/min
Max’ Borning Bar Dia Ø32mm
General:
Tailstock MT4
Quill Dia’ 75mm
Coolant Tank Capacity 80l
Coolant Pump Delivery 30L/min
Machine weight 4.4ton
Footprint 3,300 x 2,270, 2,270mm/min
Power Requirements 45amp
Supplied with:

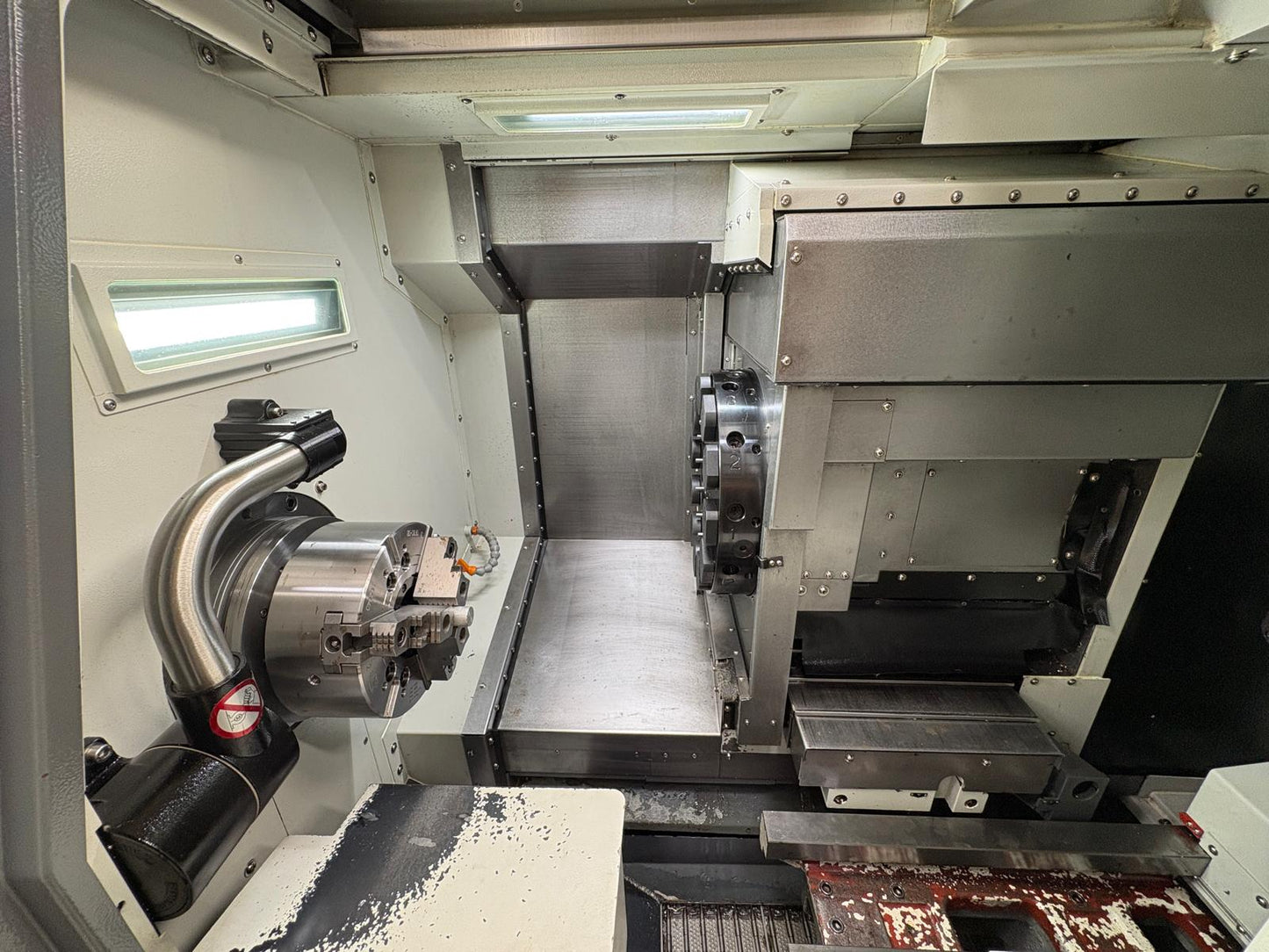

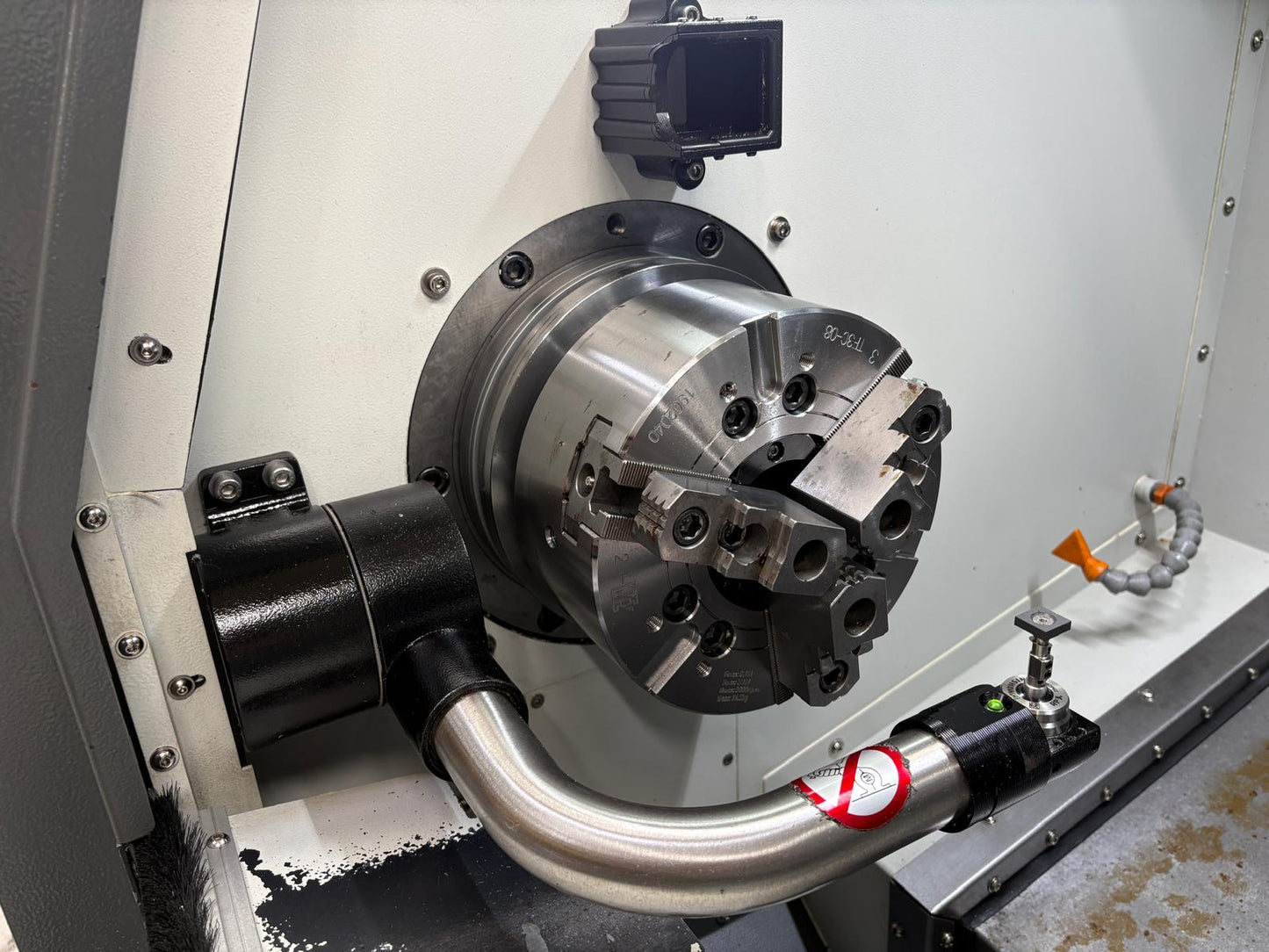

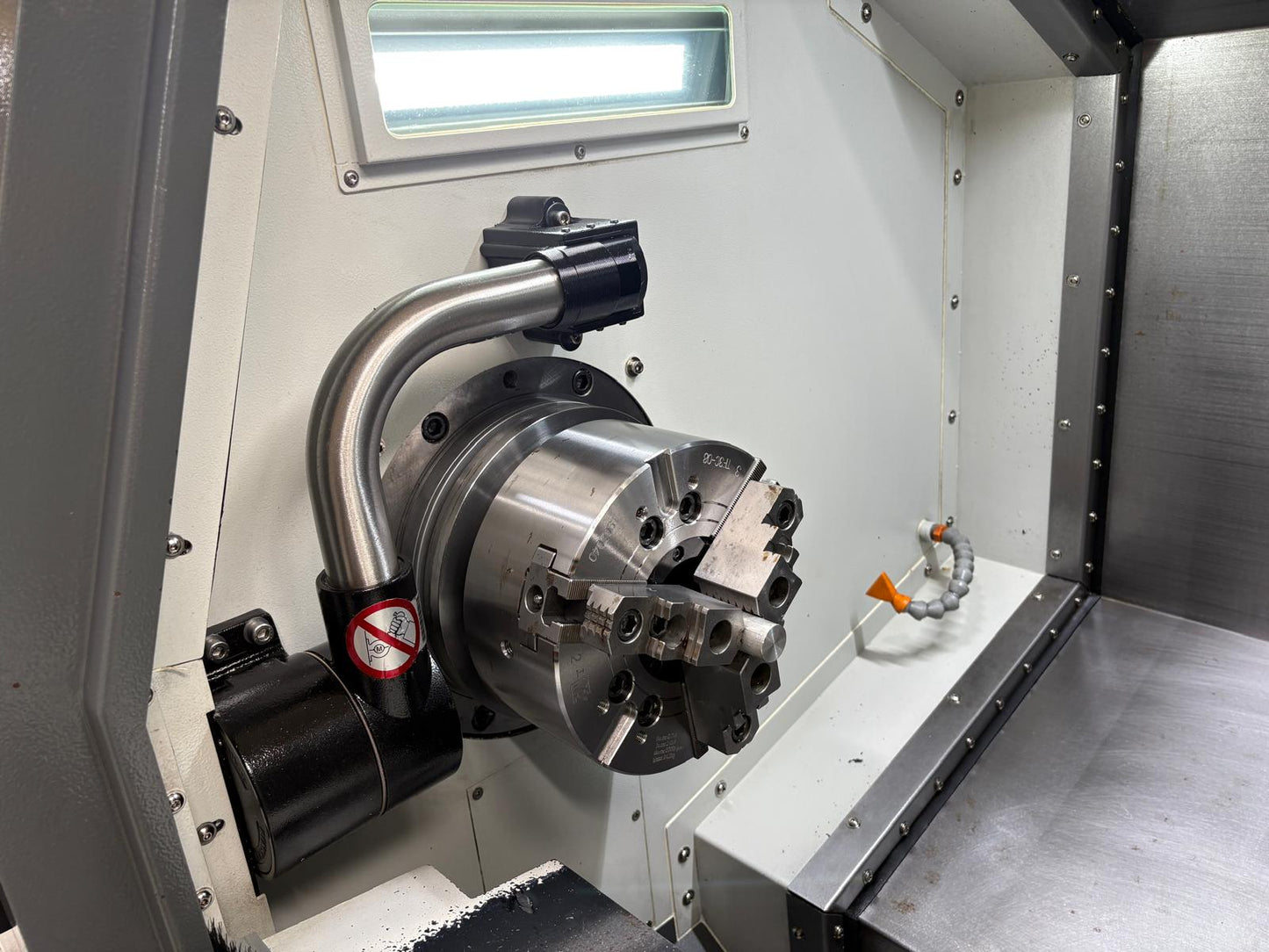

Hydraulic 200mm 3 Jaw Power Chuck
Hainbuch Collet Chuck & Collets
Sauter ‘German’ VDI Turret
Parts Catcher

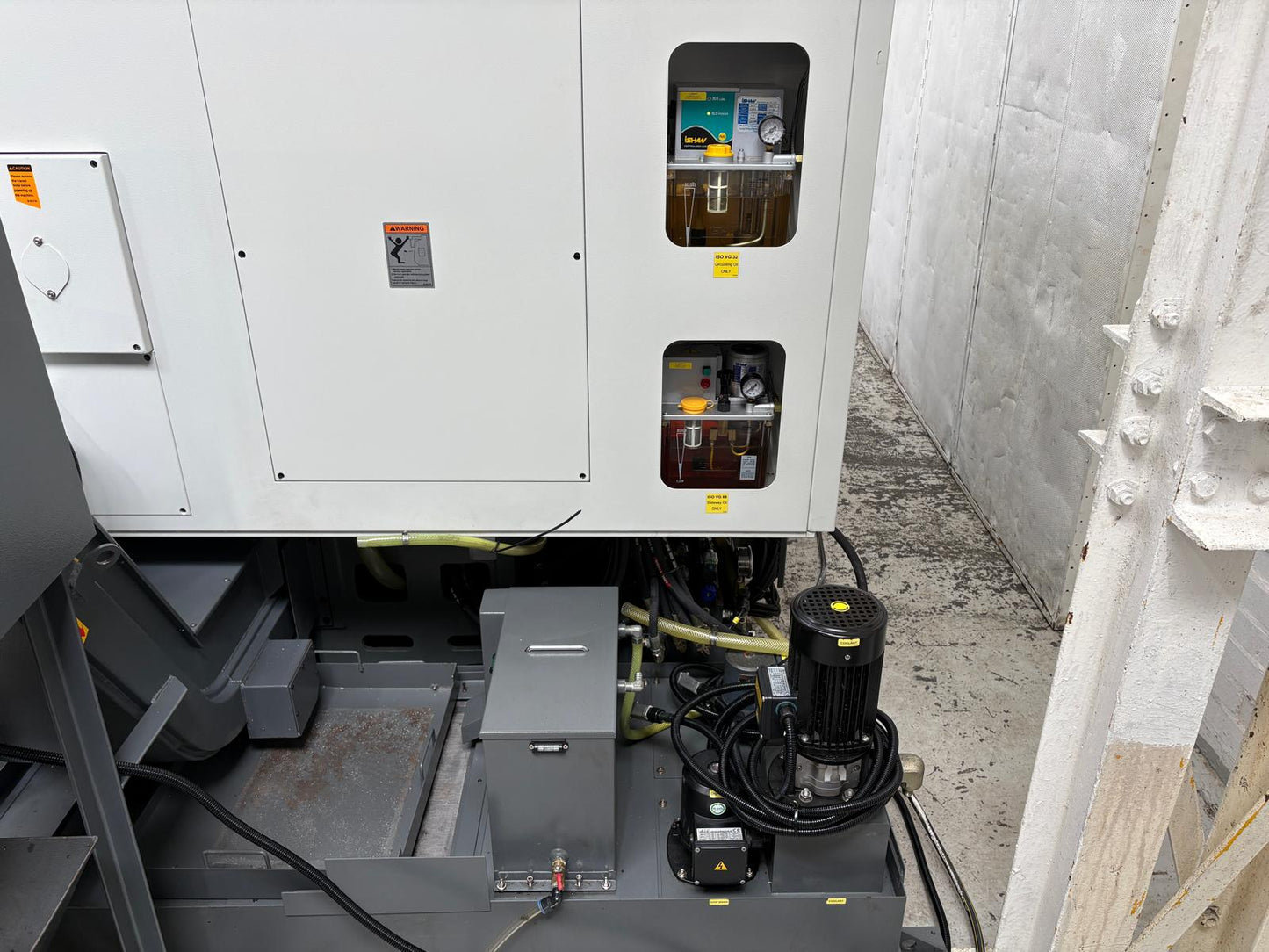

Through Tool & Flood Coolant

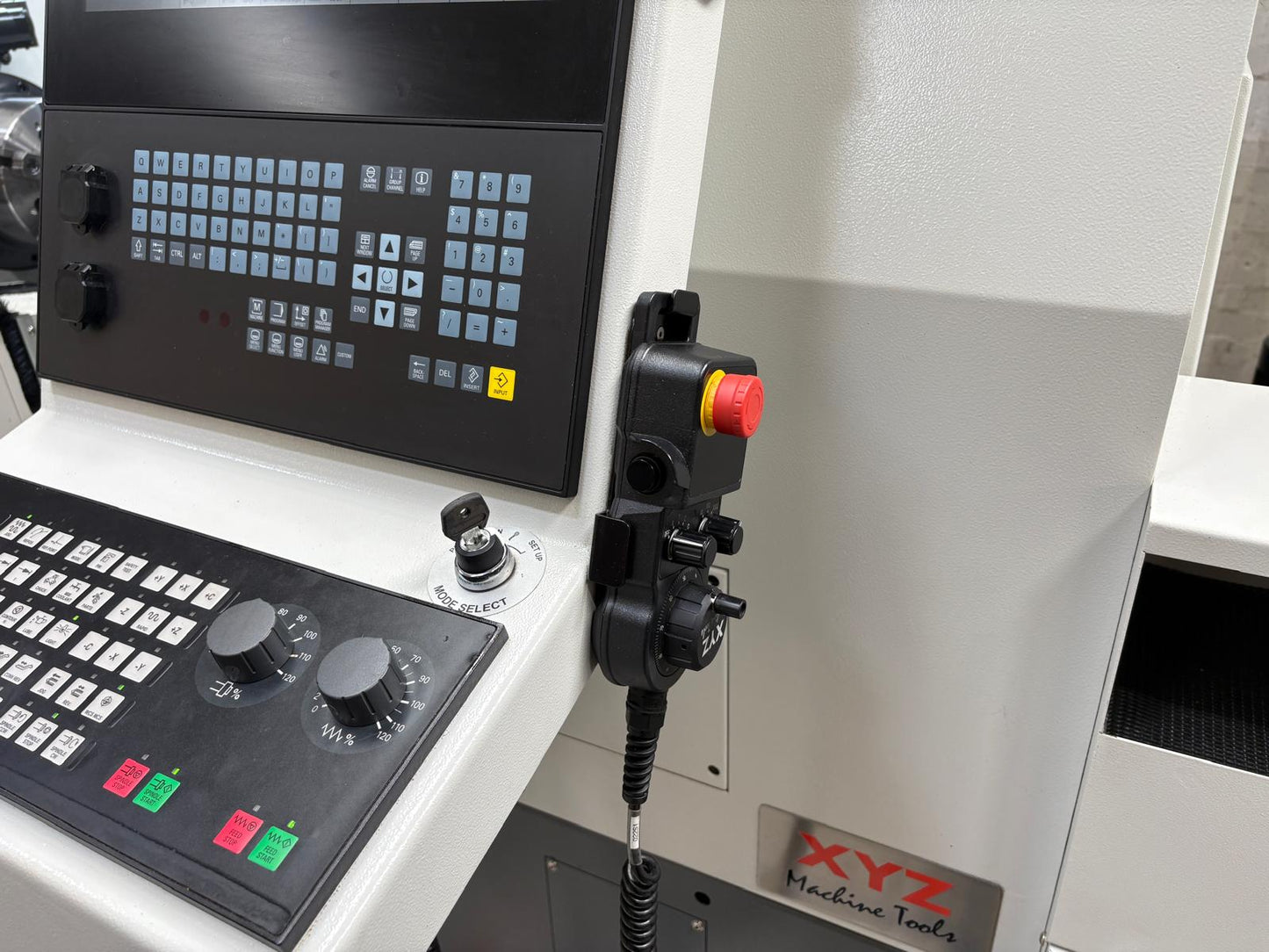

Remote Electronic Handwheels
USB Ports
Networking
Renishaw Automatic Tool Setting Arm

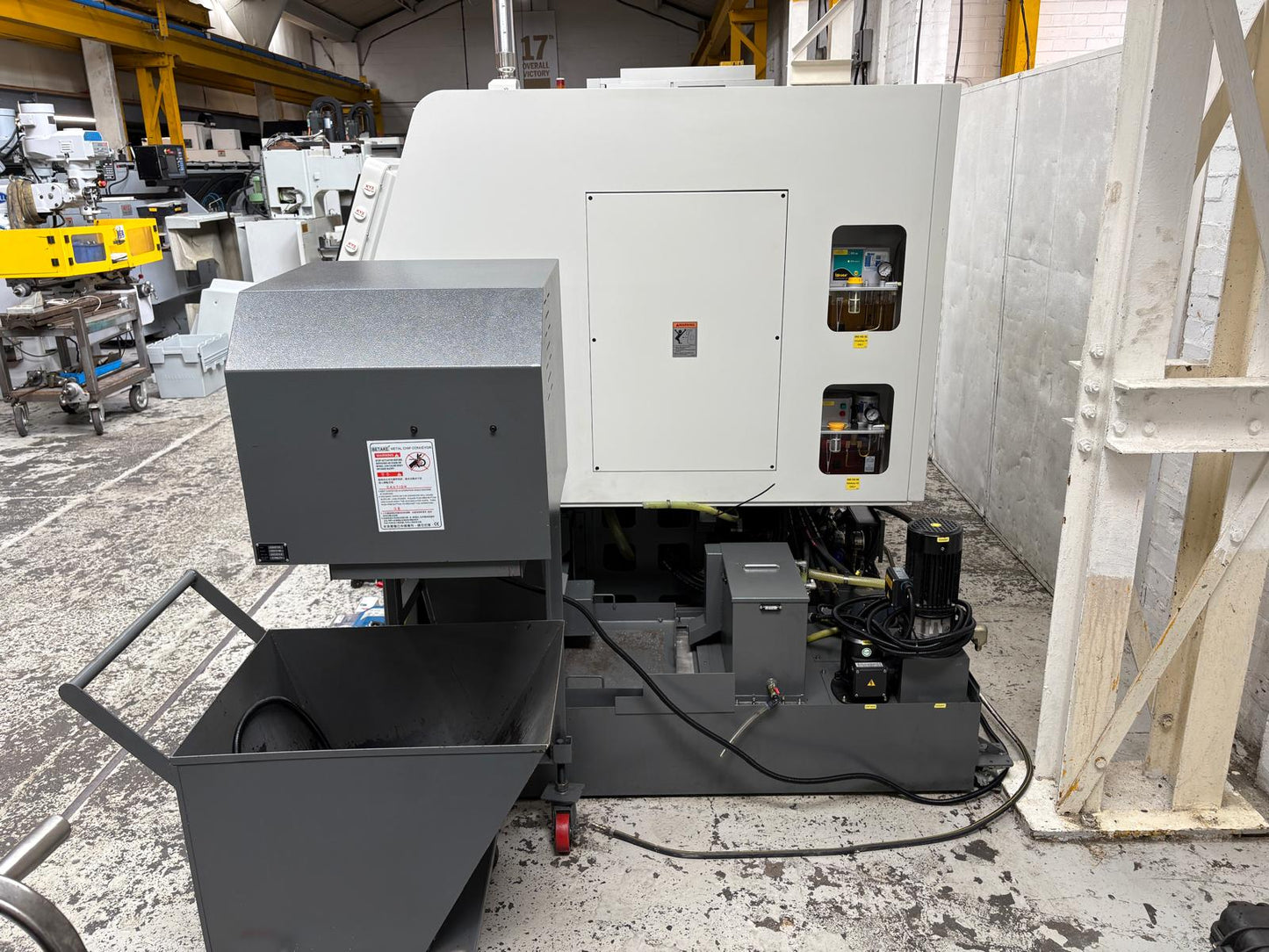

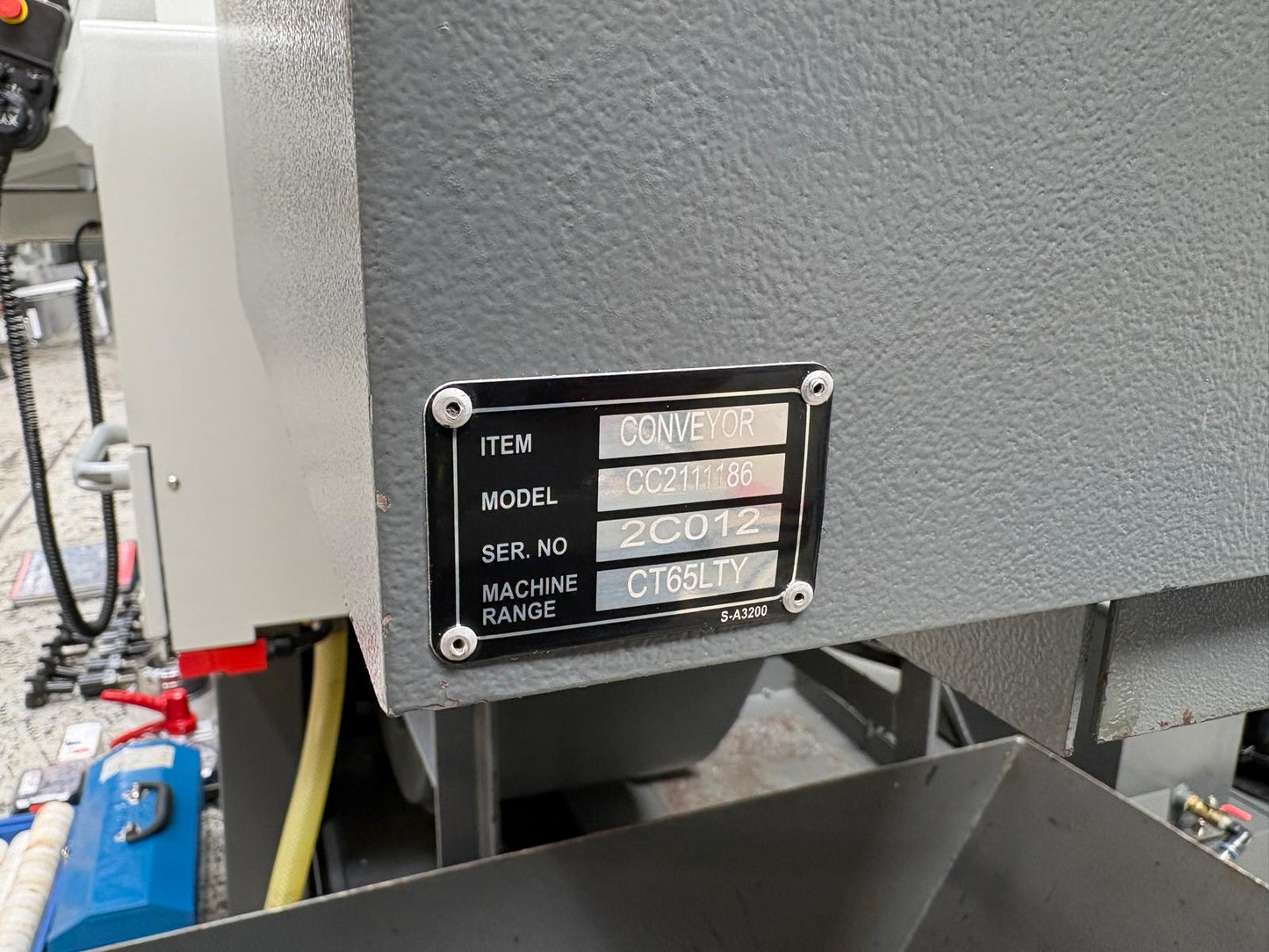

Swarf Conveyor & Bin

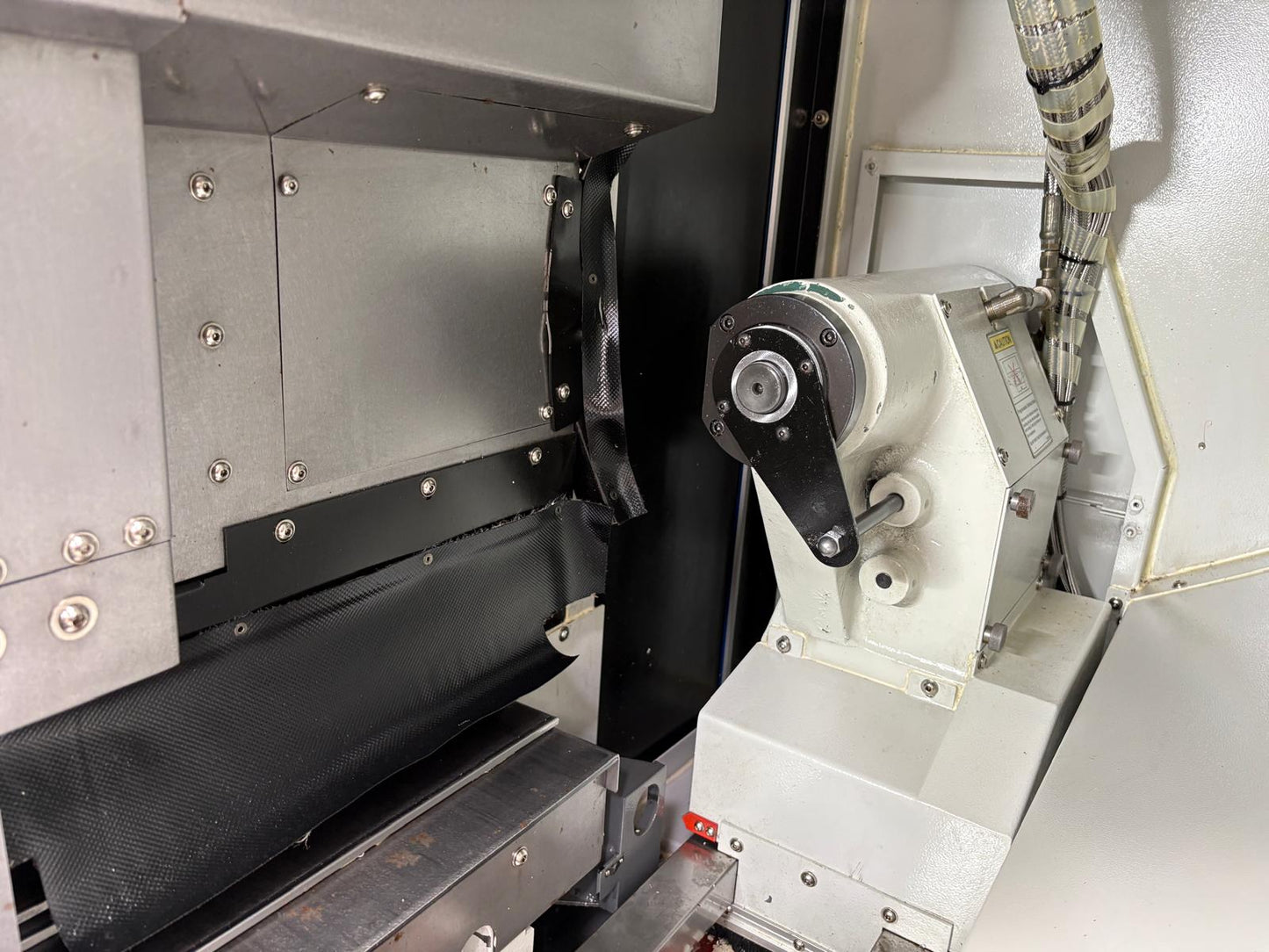

Programmable Hydraulic Tailstock
For Sale Jet Machinery Ltd
Jet Machinery Stock No: #79163
Machine Serial Number: STP20155
Cost: £72,500.00 + VAT
Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details.
Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.
