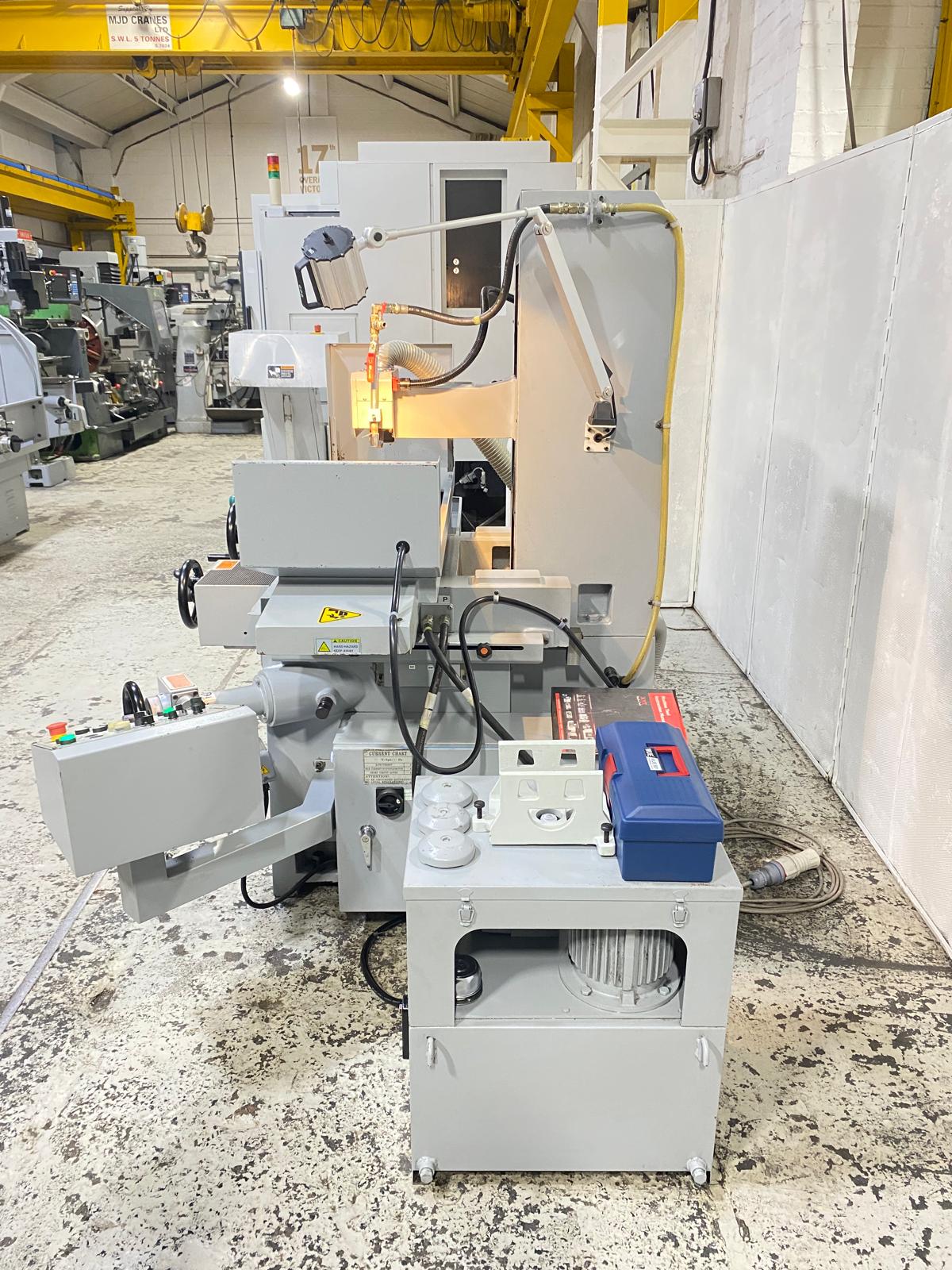

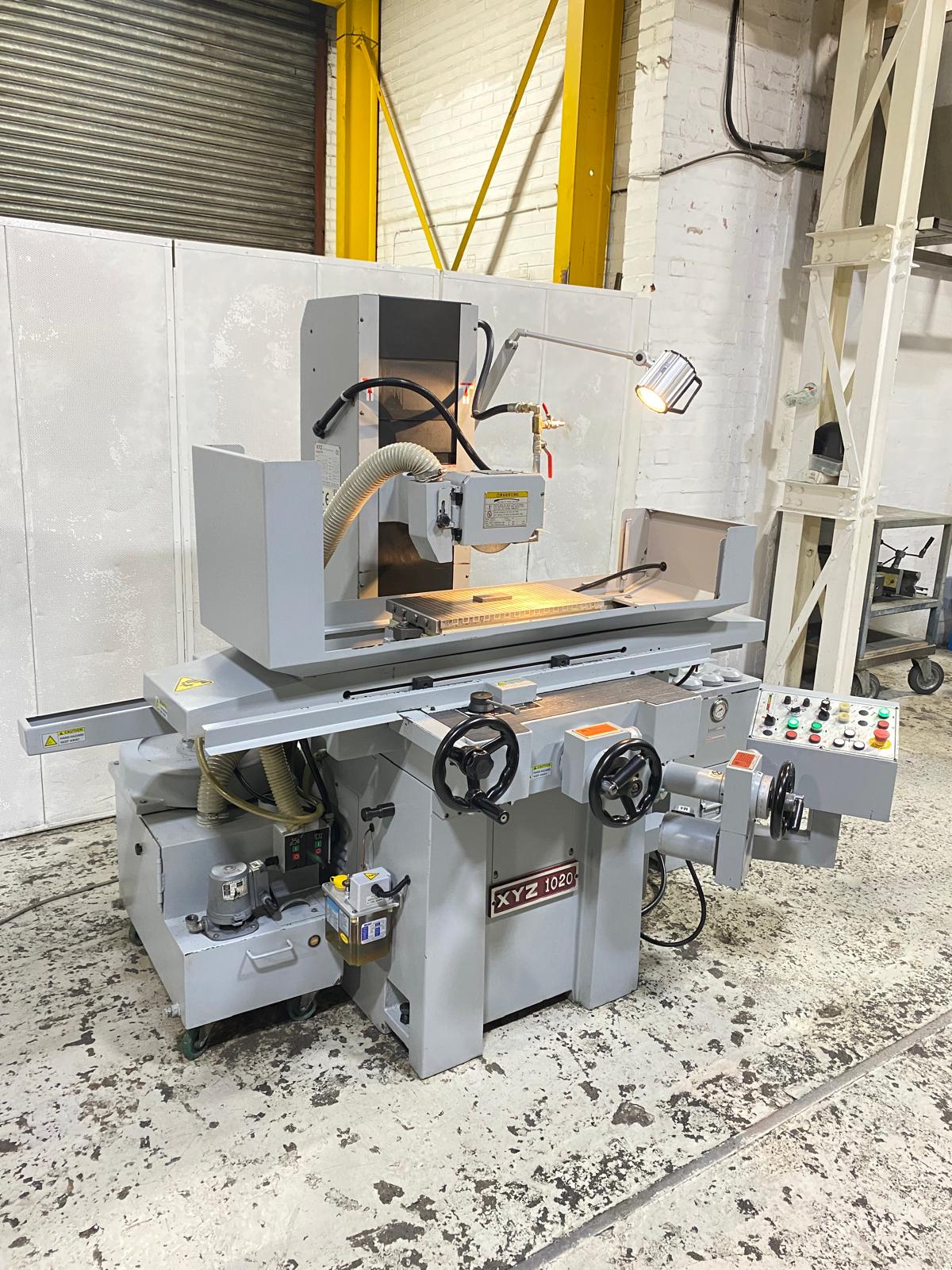

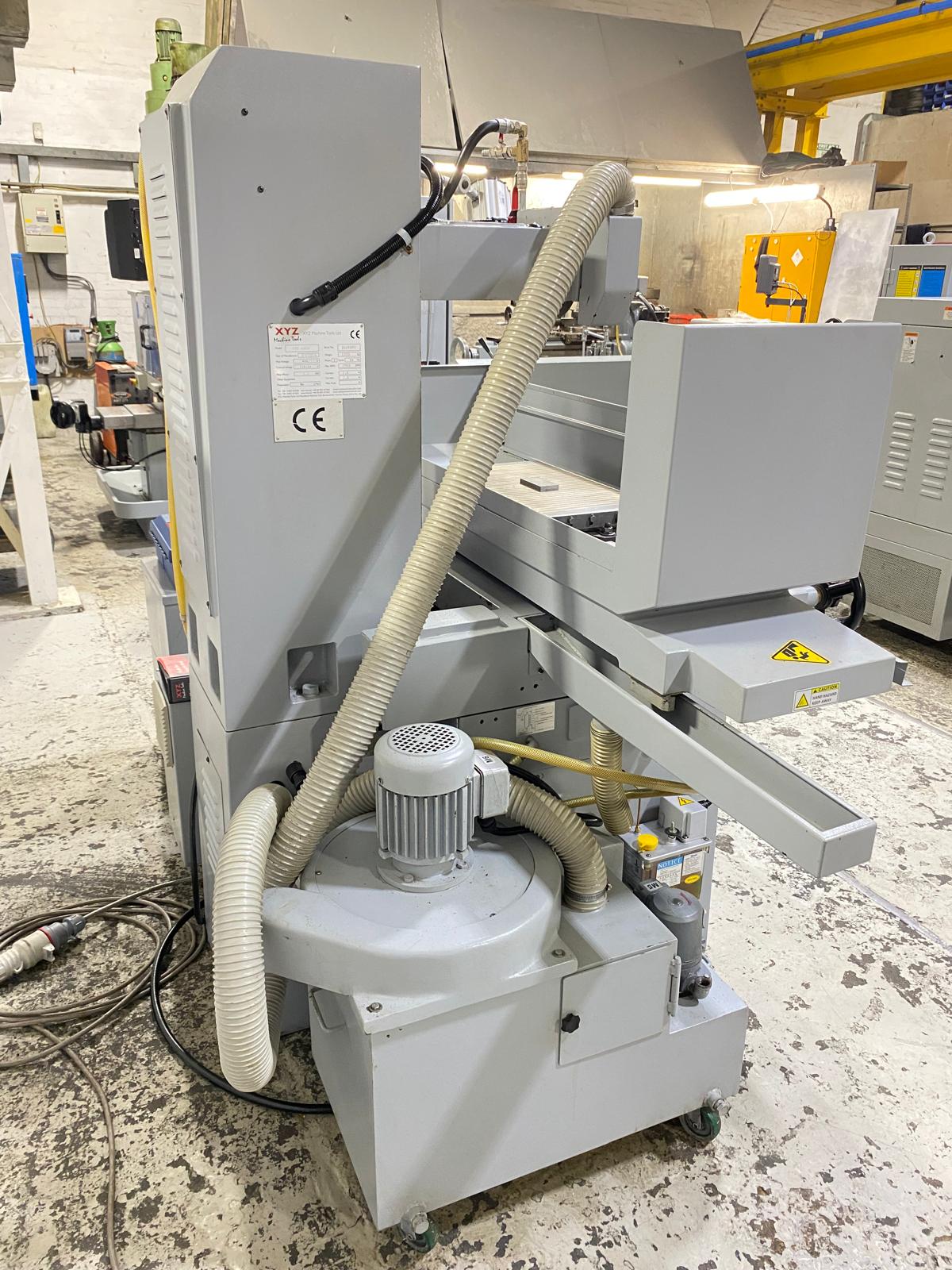

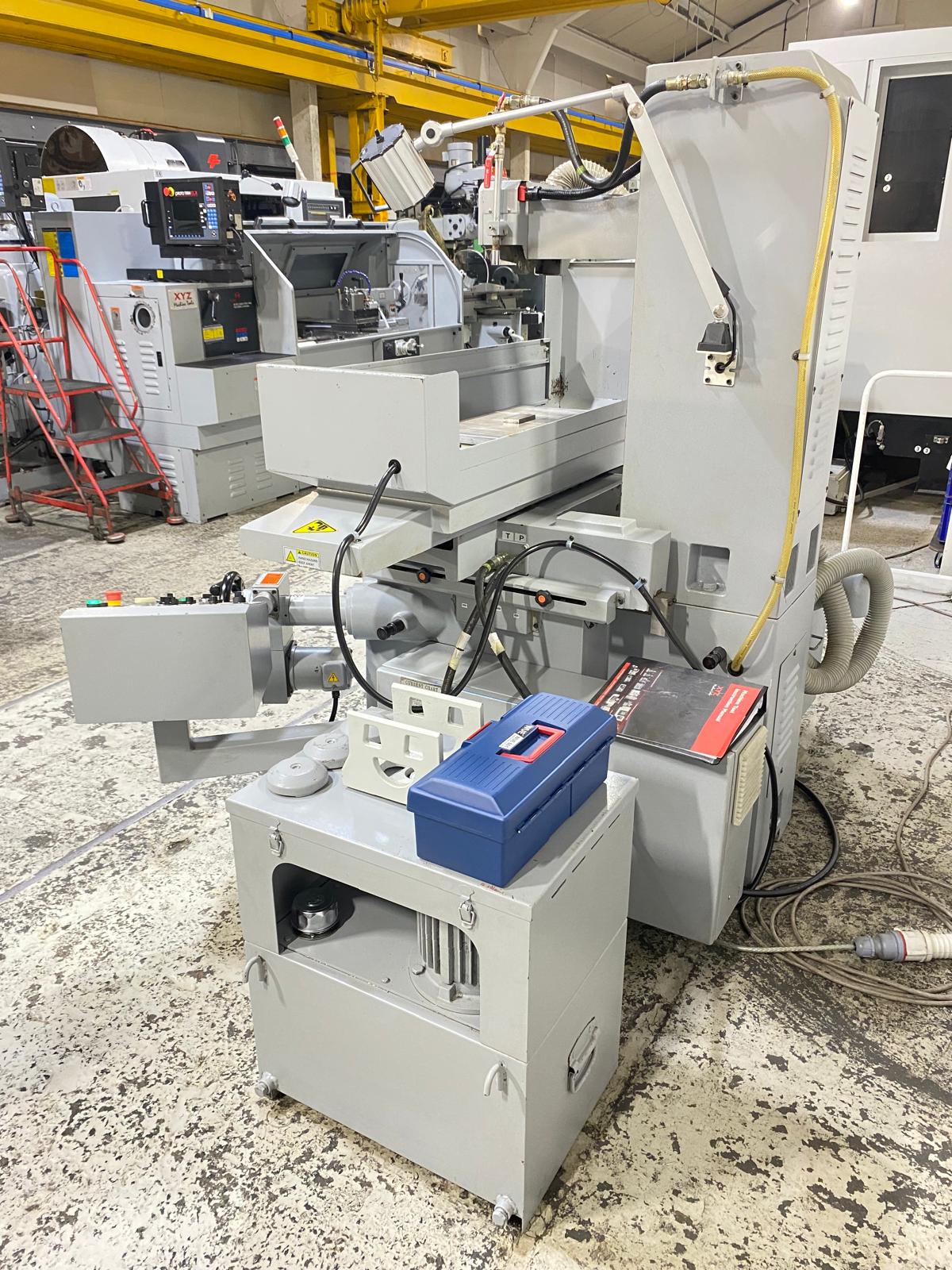

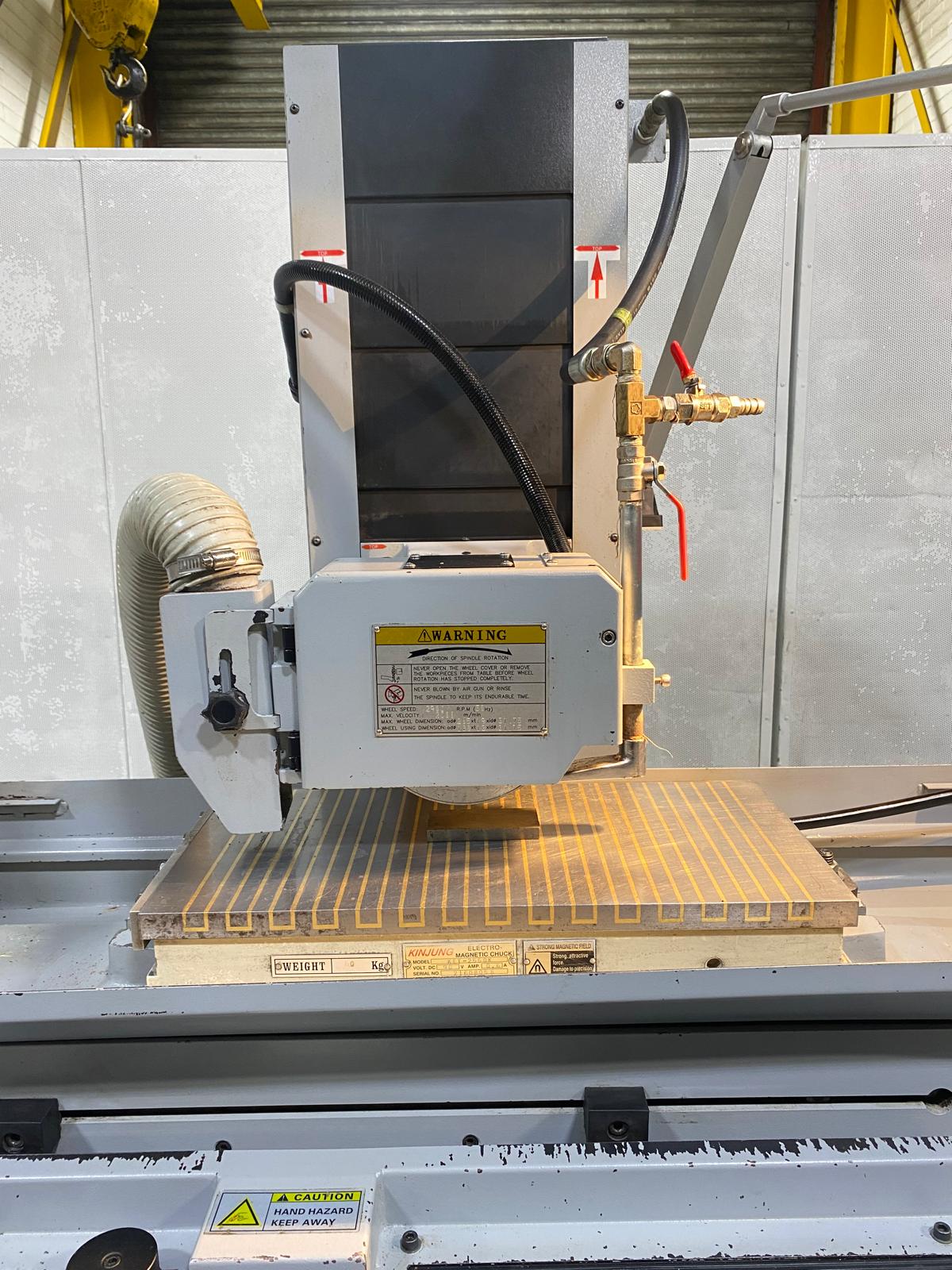

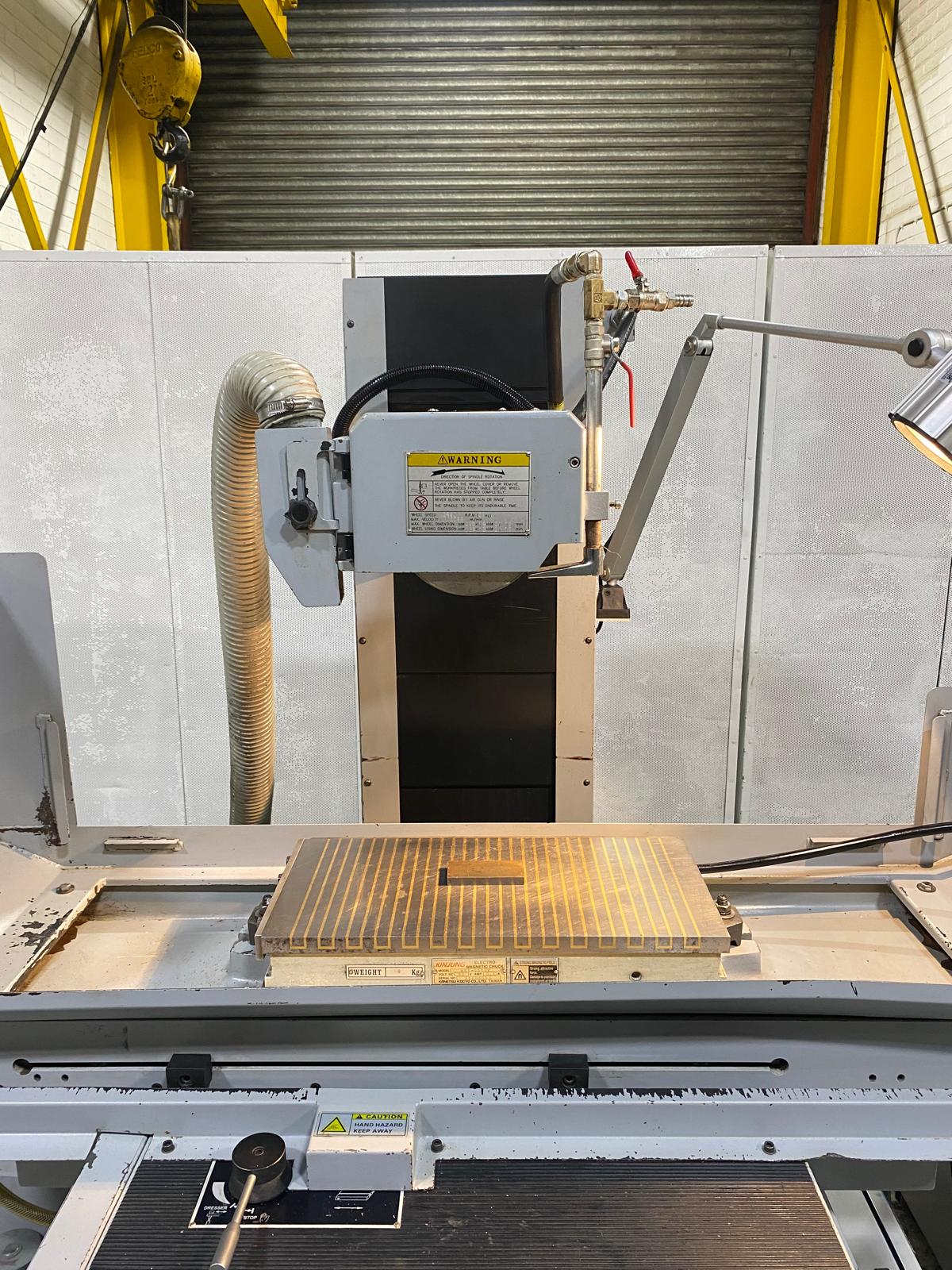

XYZ 1020 Surface Grinding Machine

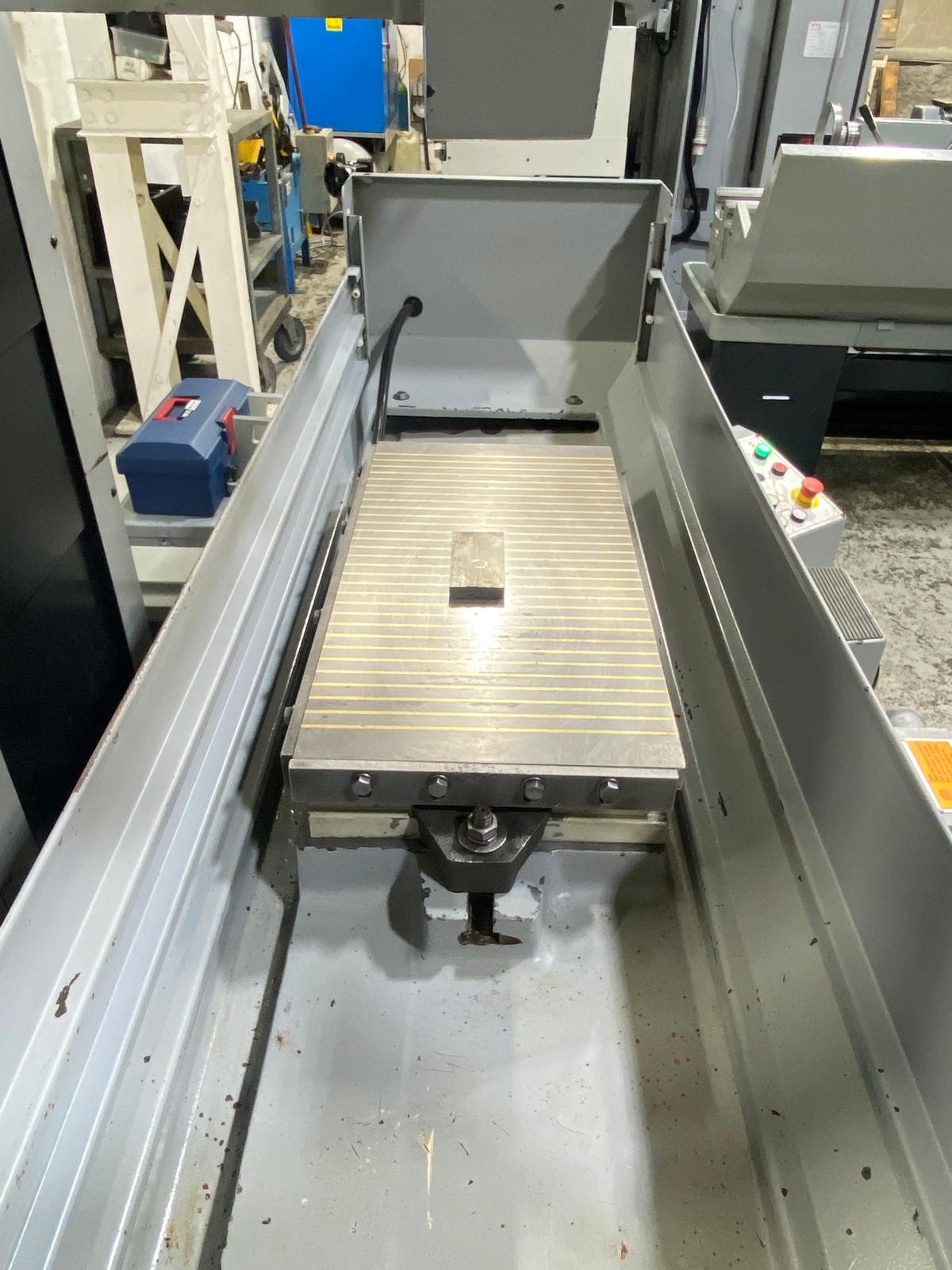

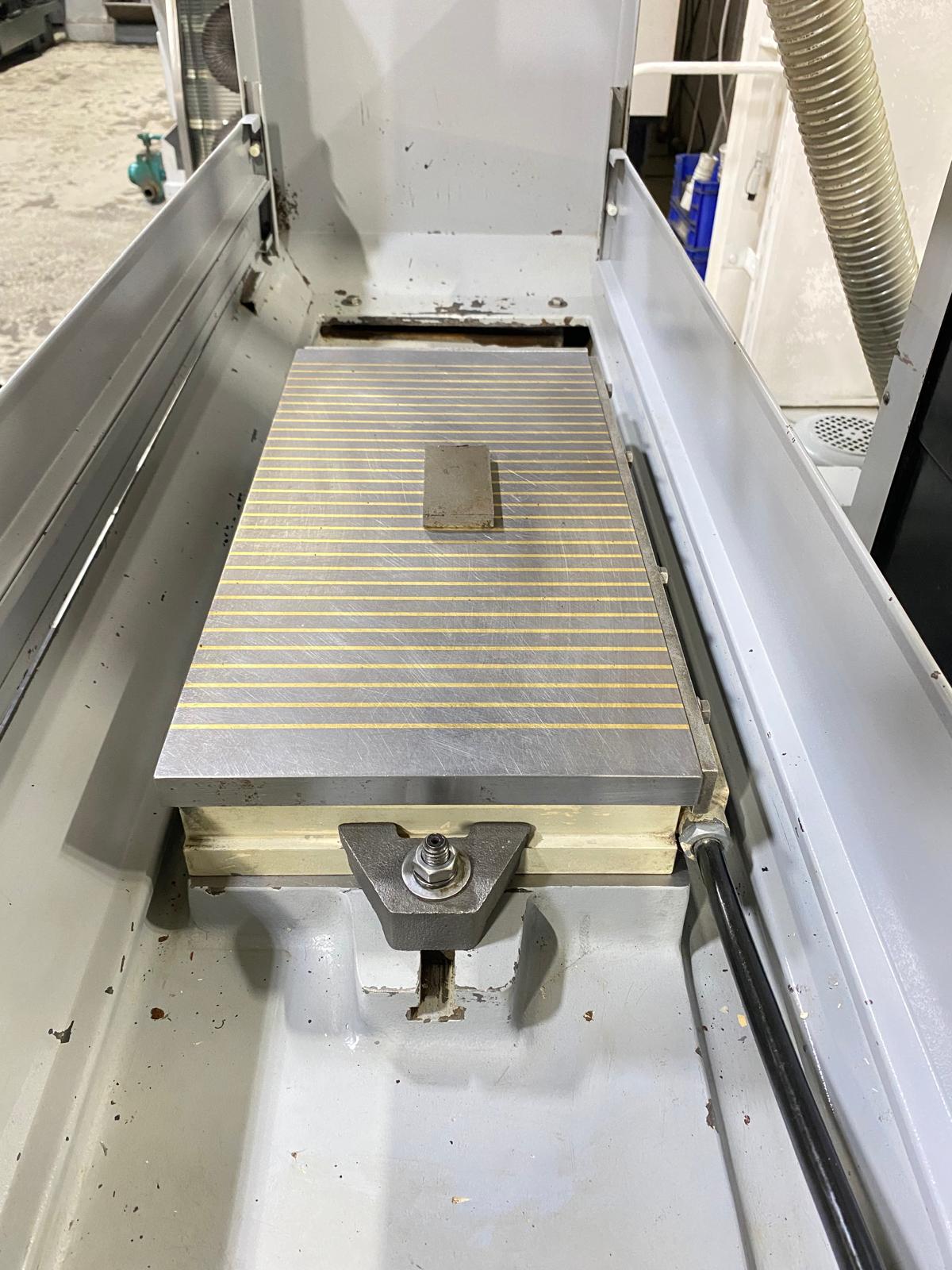

Mag’ Chuck 250 x 500mm
Spindle Speeds 3000rpm
Spindle Motor 2Hp
Standard Grinding Wheel Dia. 180mm
Standard Wheel Bore 31.75mm
Max. Longitudinal Grinding Travel- 500mm
Max. Cross Grinding Travel - 250mm
Max. Distance from Table Surface to Spindle Centre - 500mm
Max. Longitudinal Travel – 558mm
Longitudinal Travel Speed Range 5-25m/min
Cross Travel Increments 0.15 – 15mm

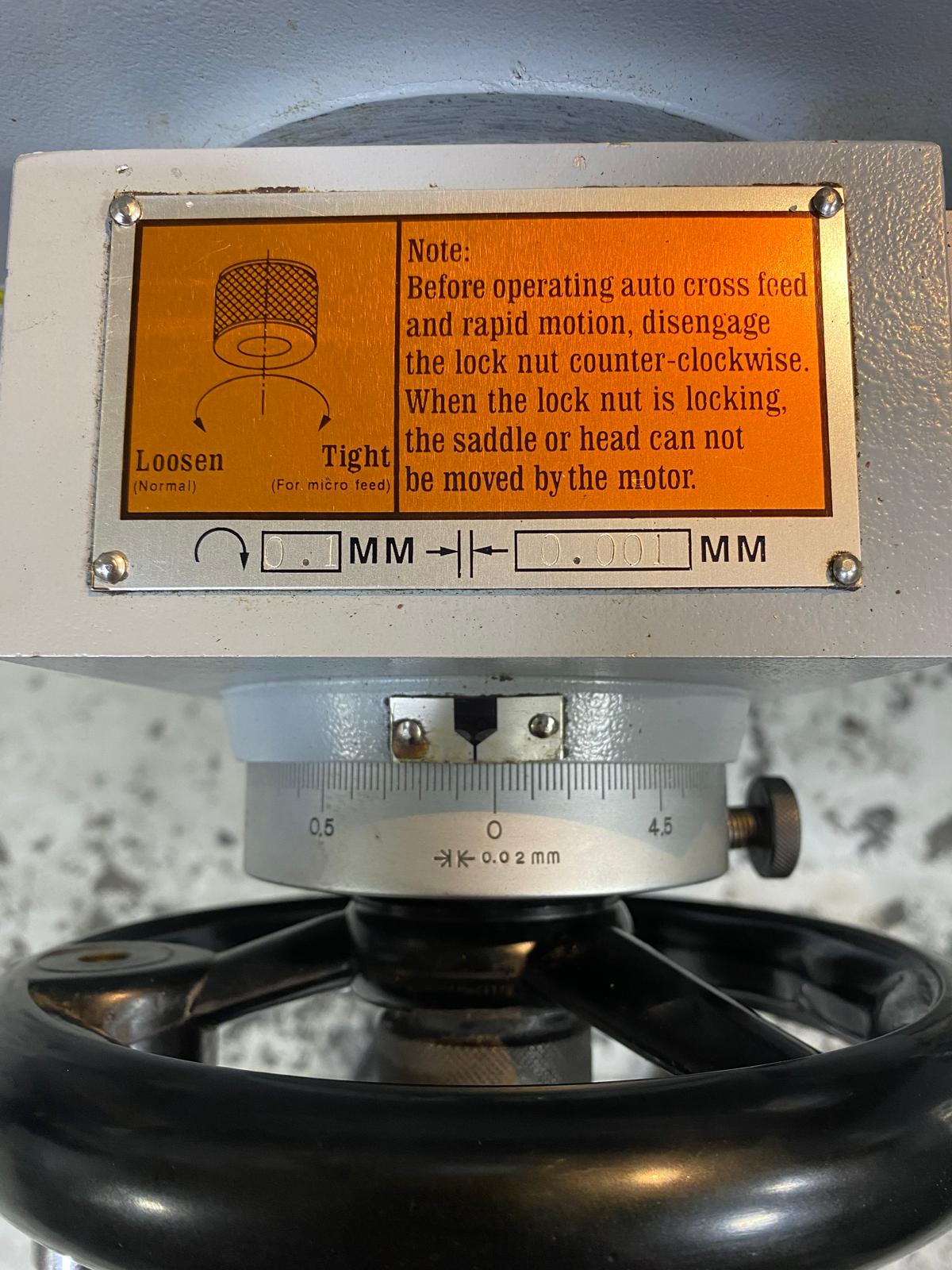

Cross Feed per Handwheel Revolution 4mm
Cross Feed per Handwheel Graduation – 0.02mm
Down Feed Per Handwheel Revolution 2mm
Down Feed Per Handwheel Graduation 0.01mm
*For sale with Jet Machinery Ltd*
Jet Machinery Stock No: #79111

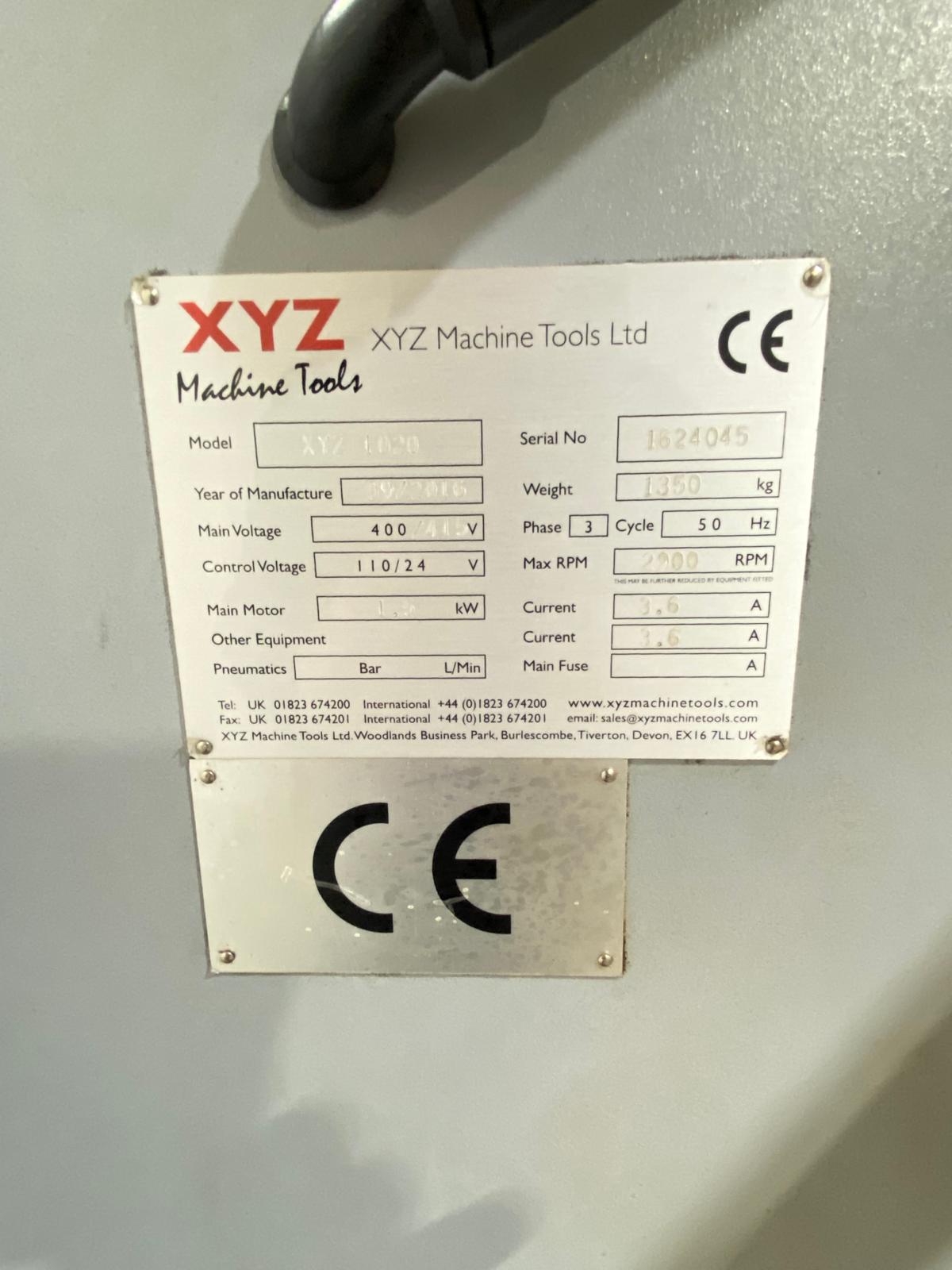

Machine Serial Number: 1624045
Cost: £11,950.00 + VAT
