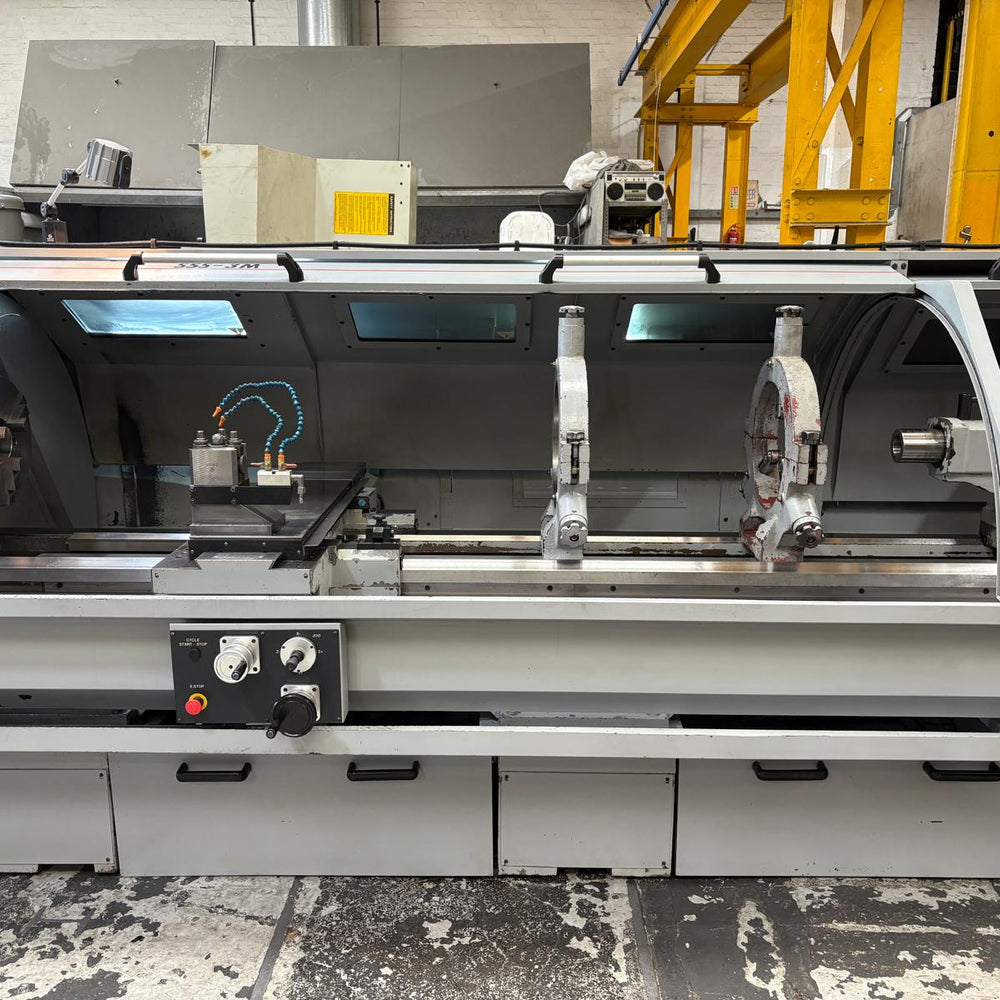

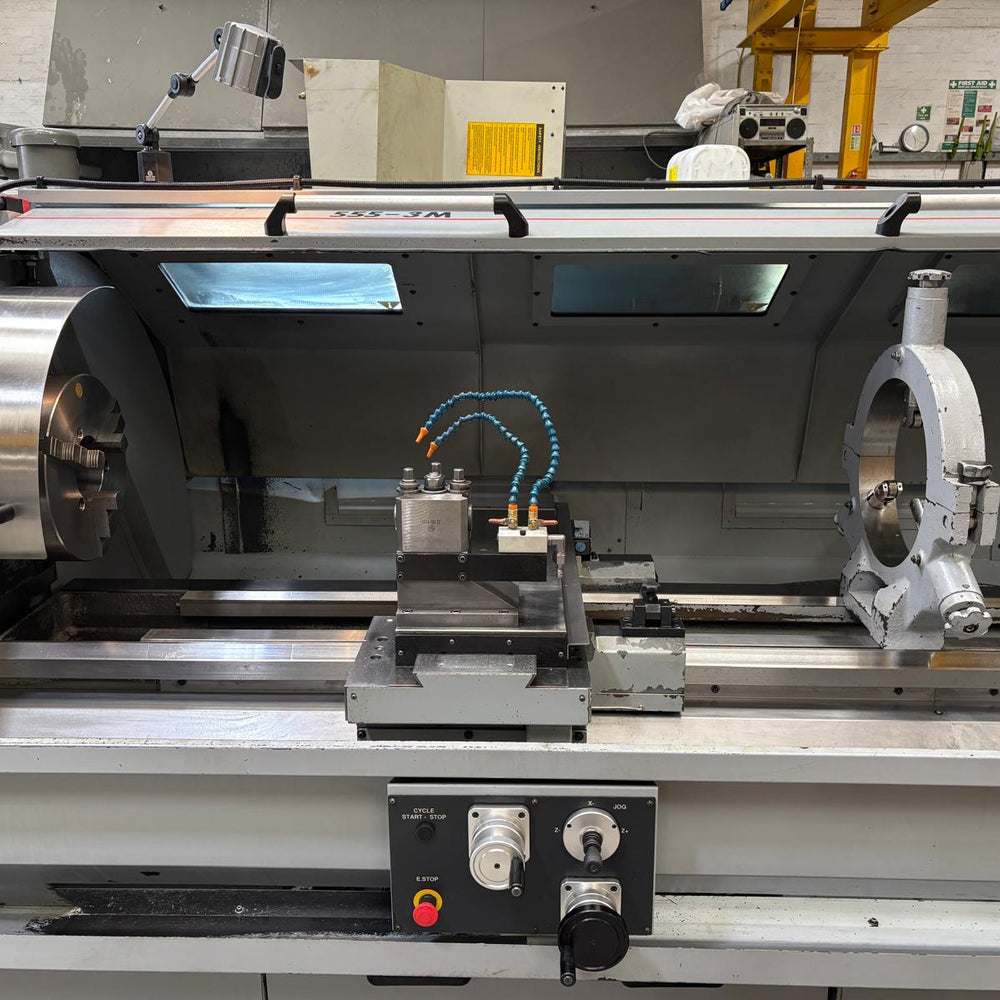

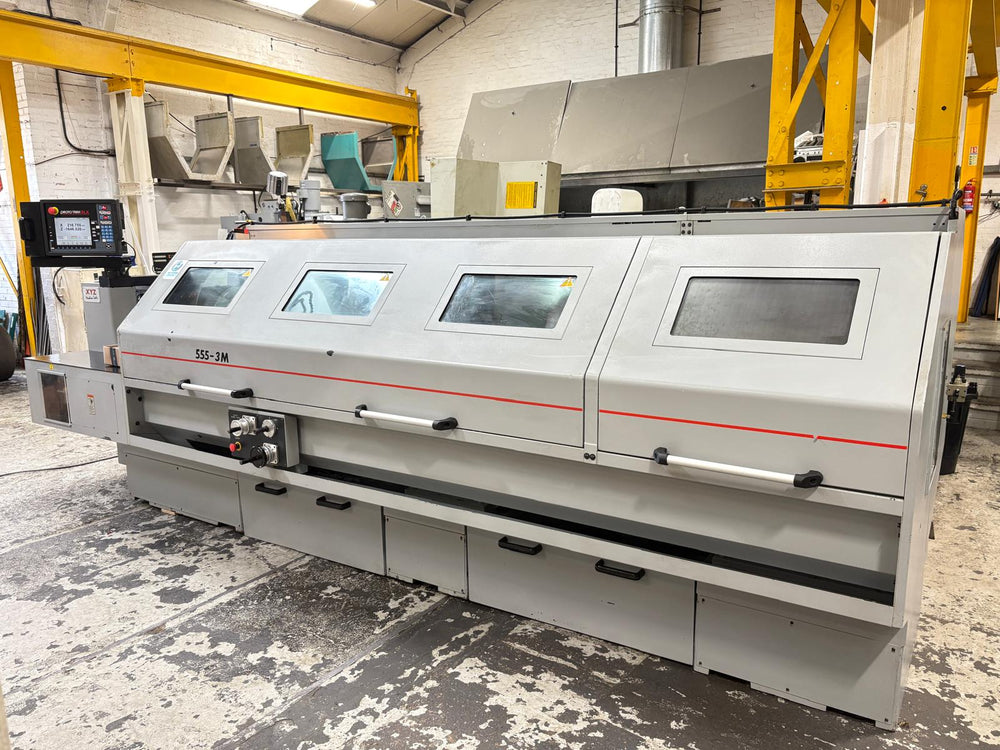

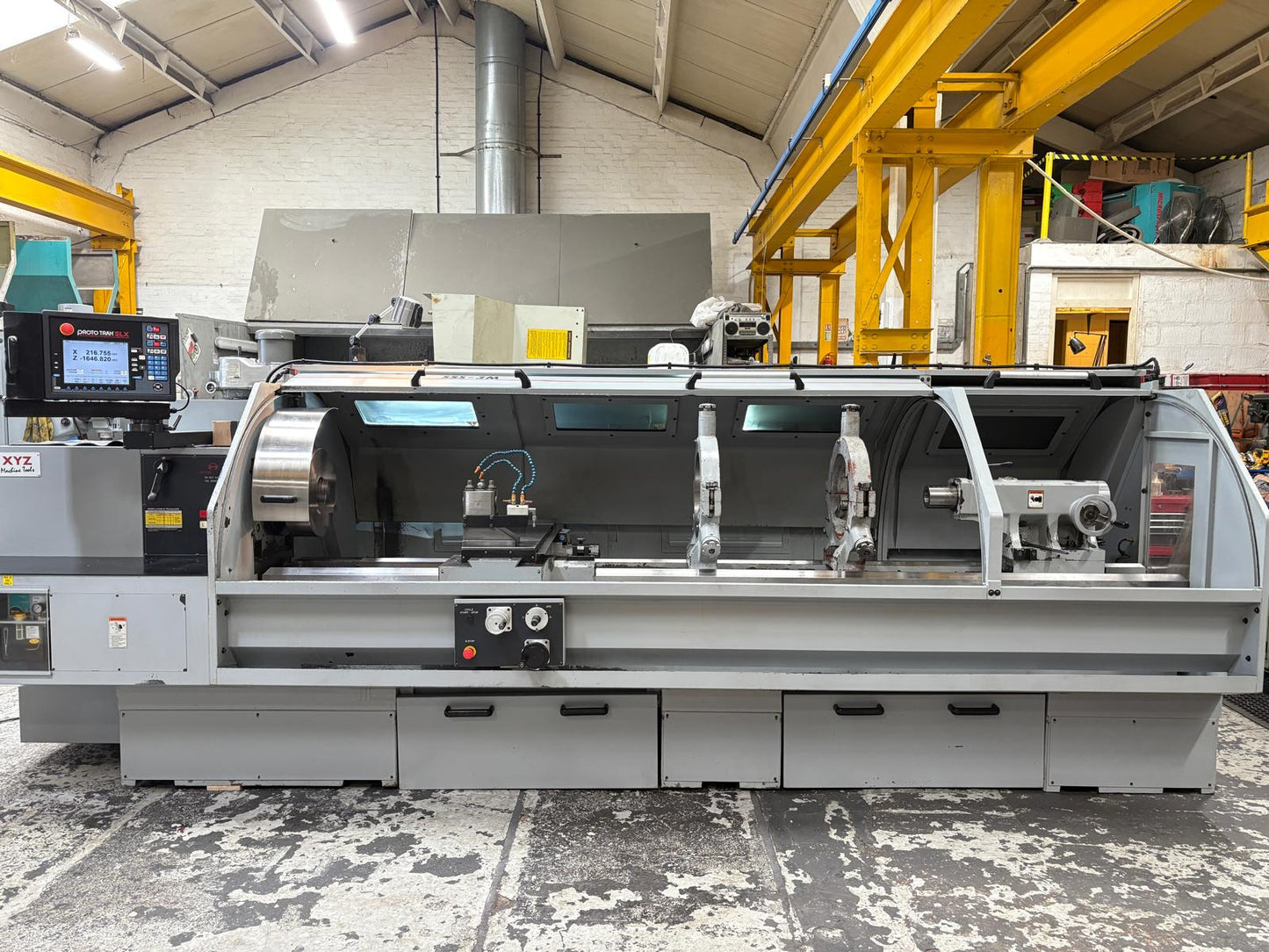

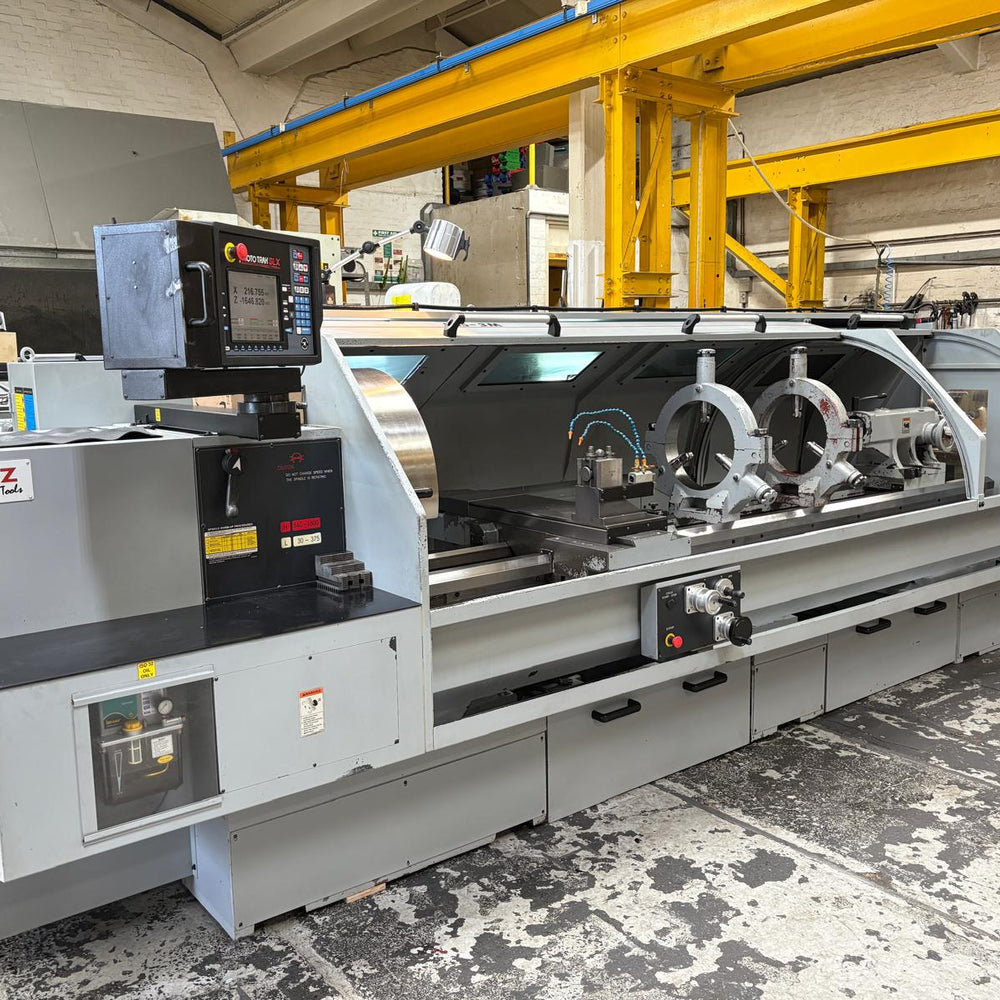

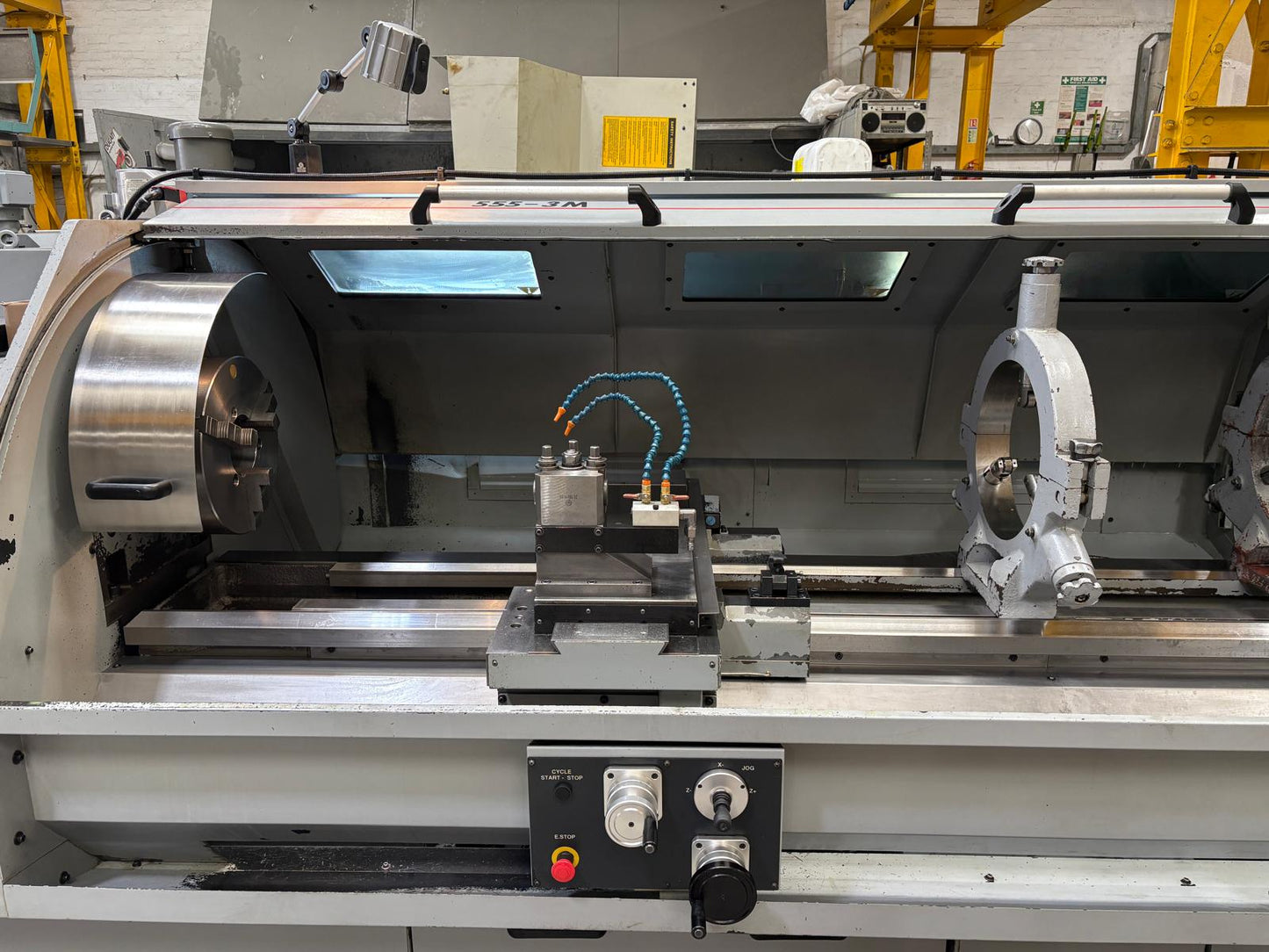

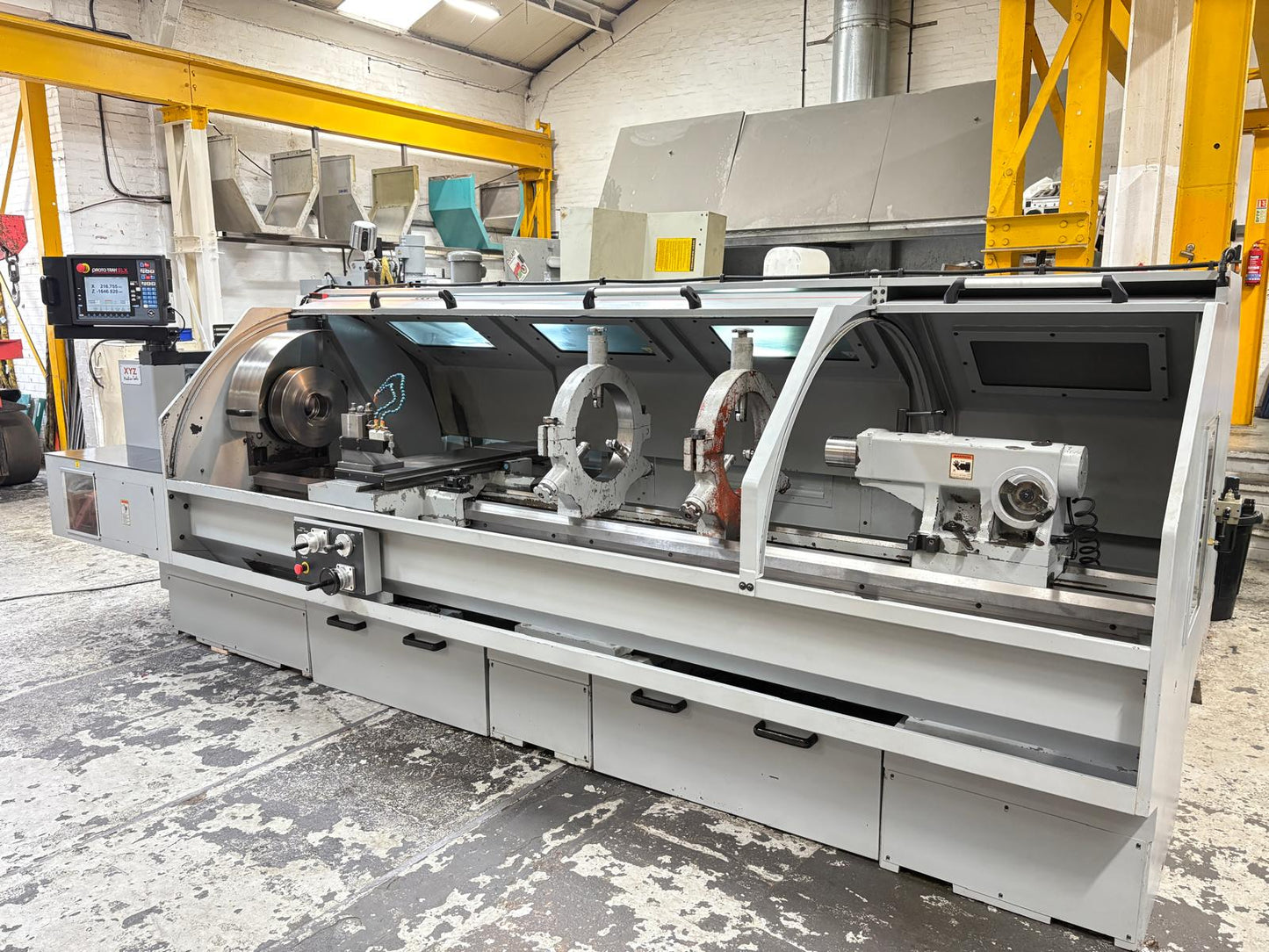

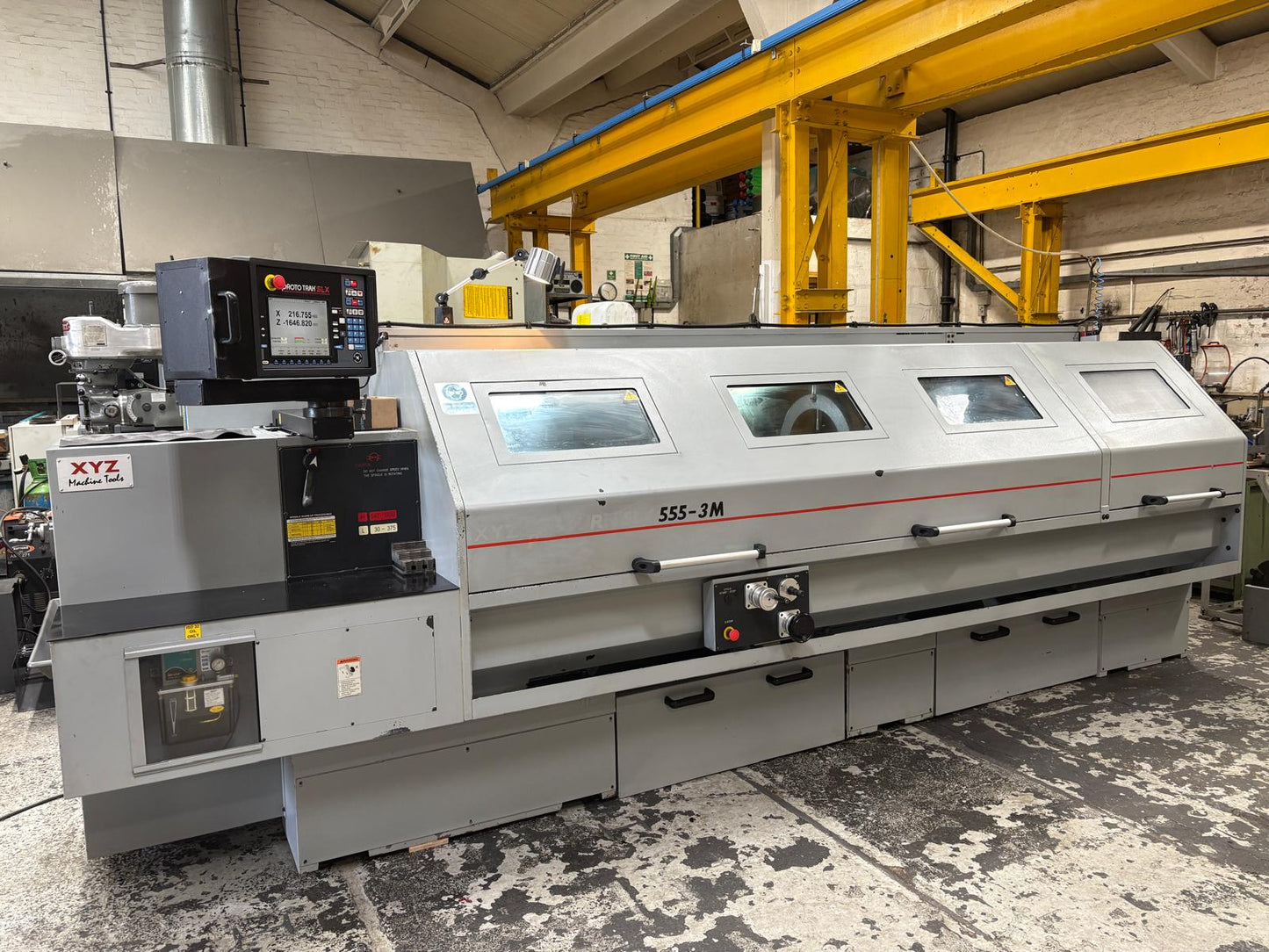

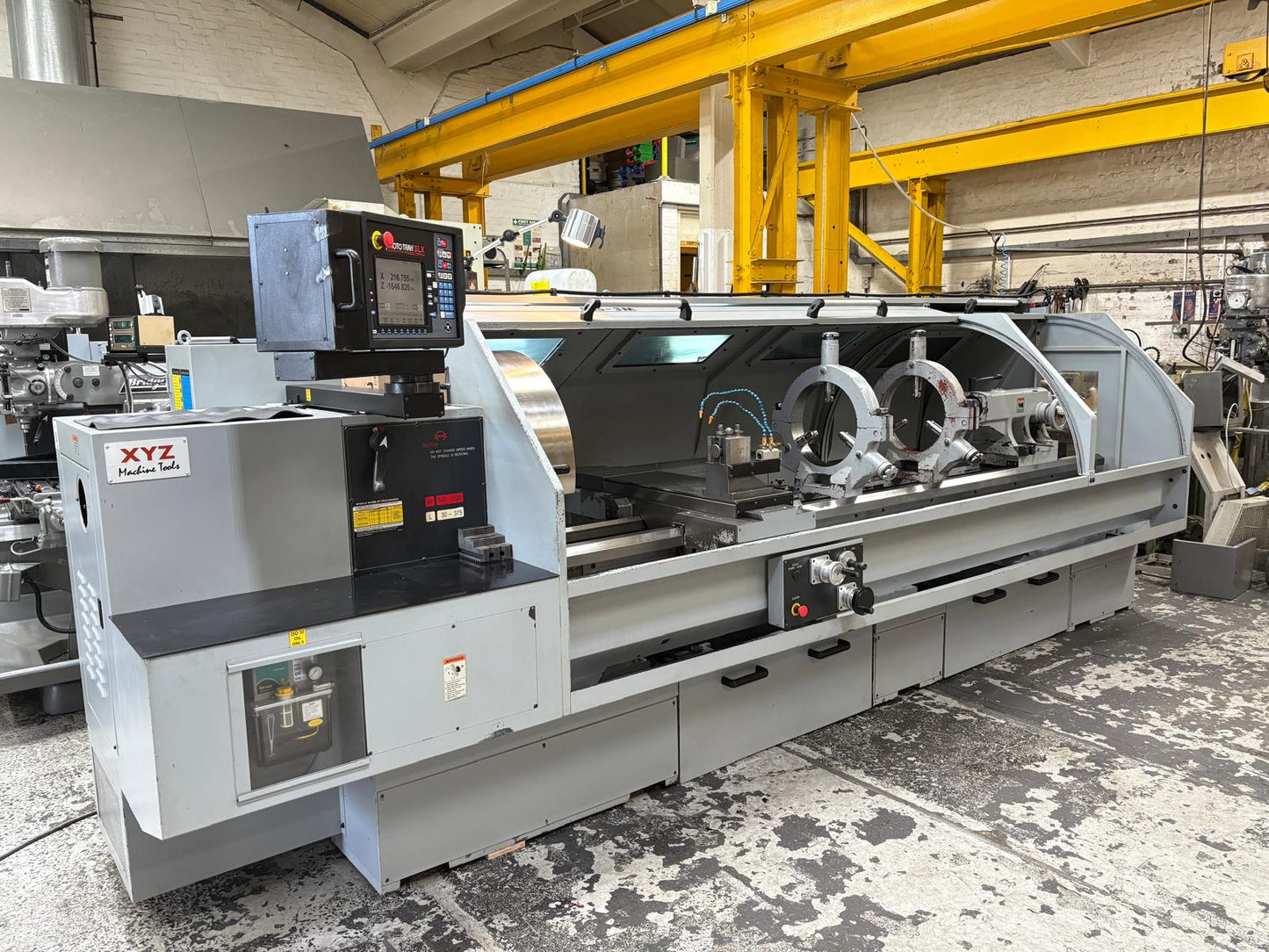

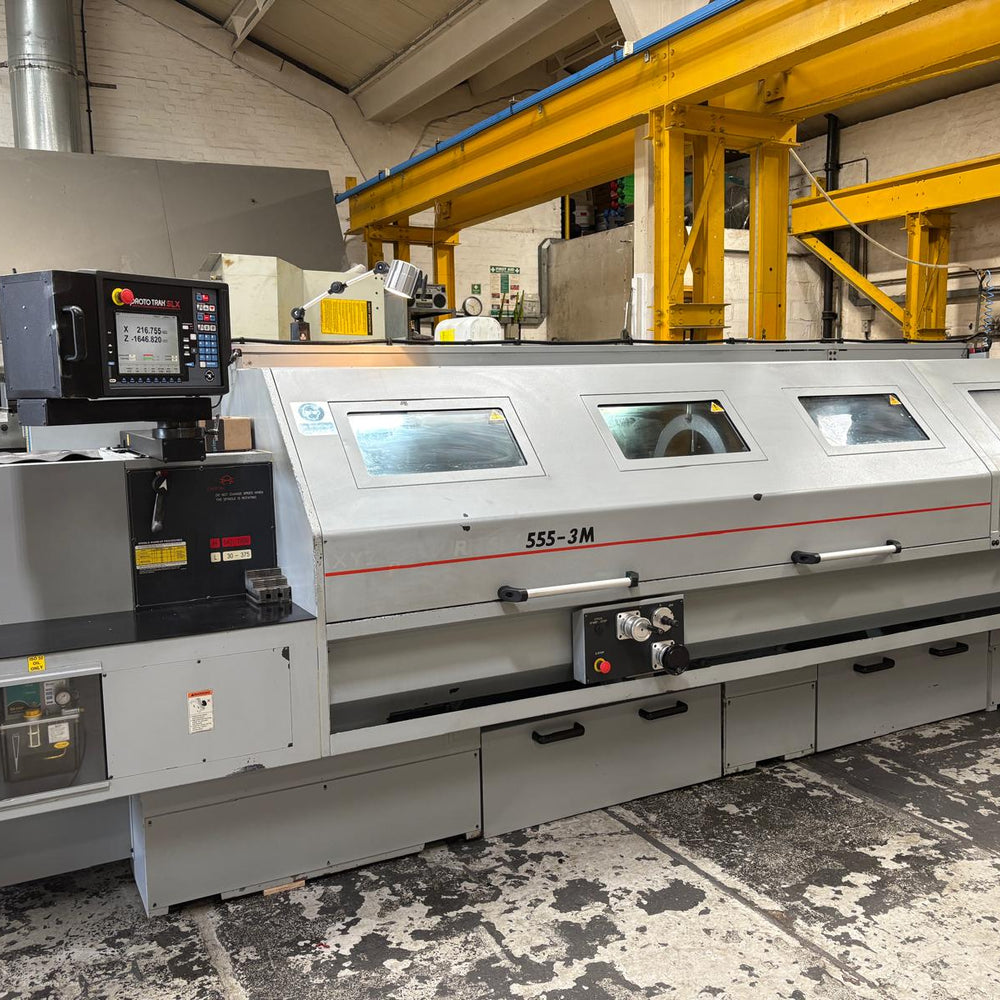

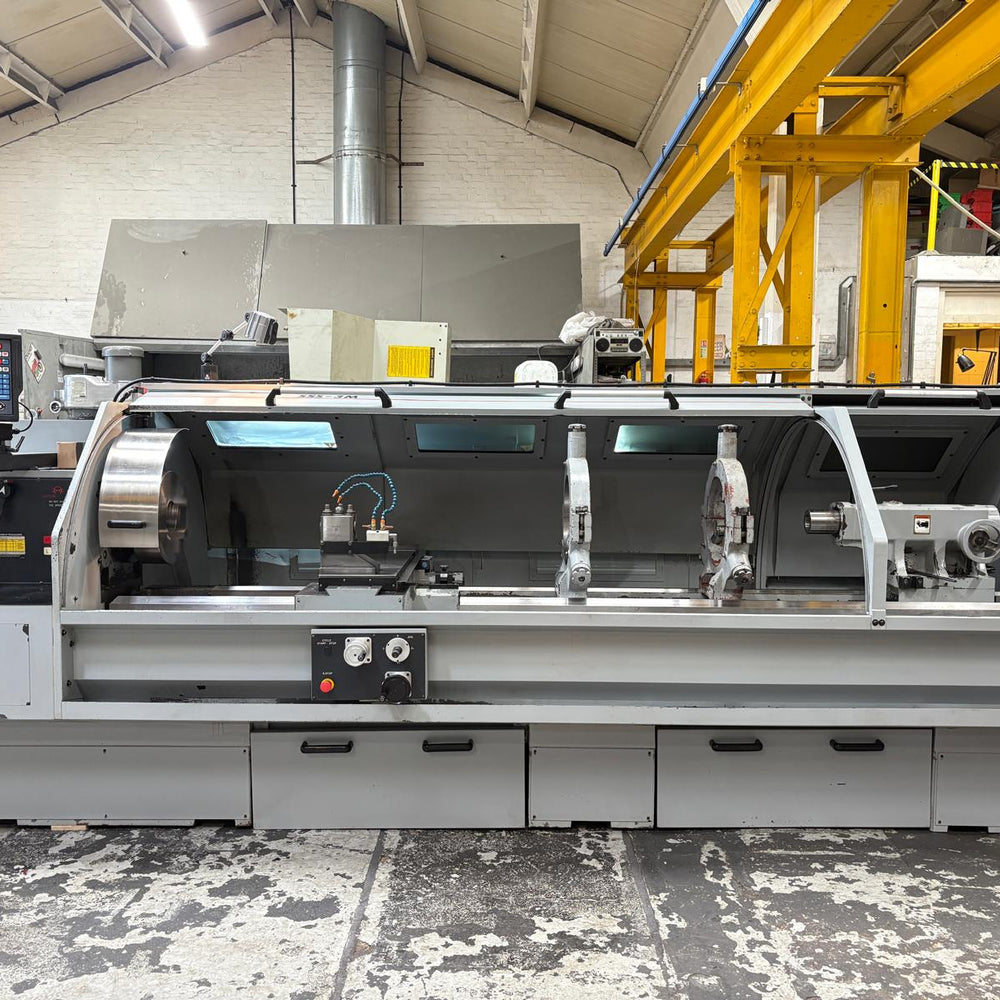

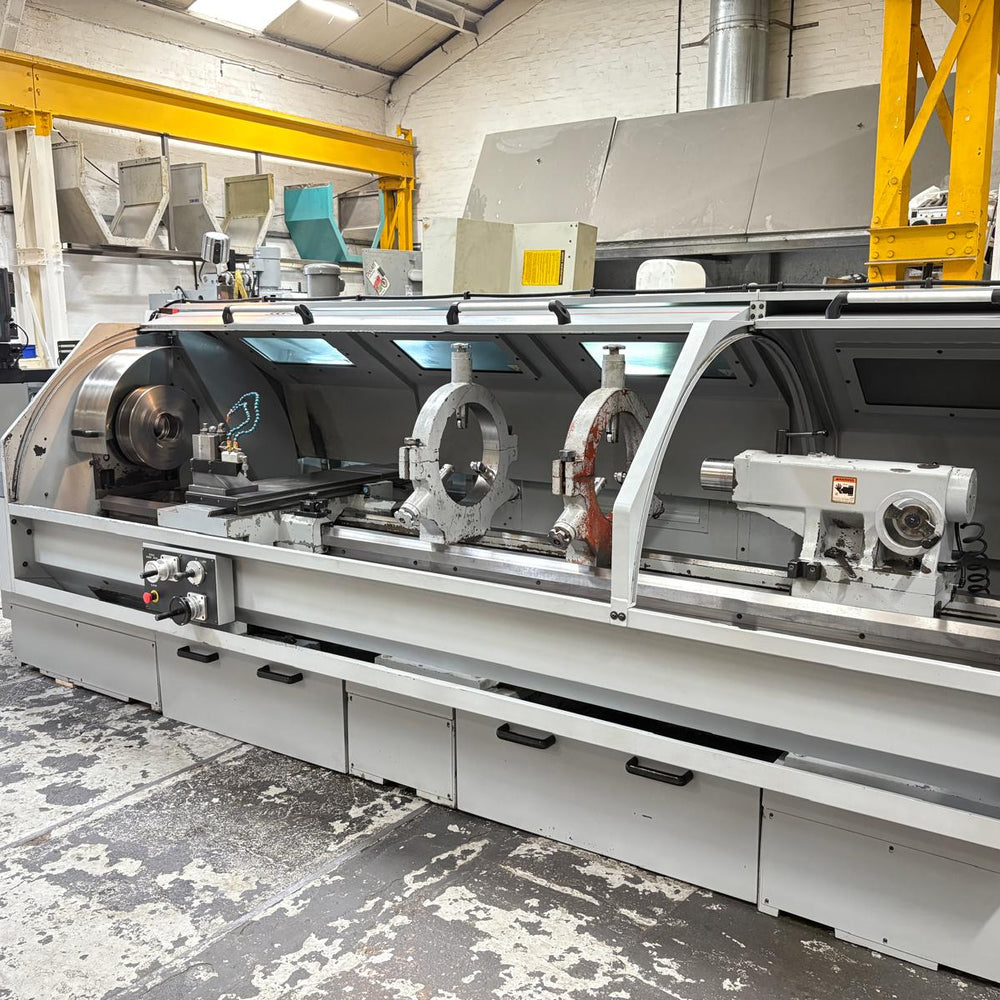

XYZ Proturn SLX555 ProtoTRAK Control Gap Bed Centre Lathe

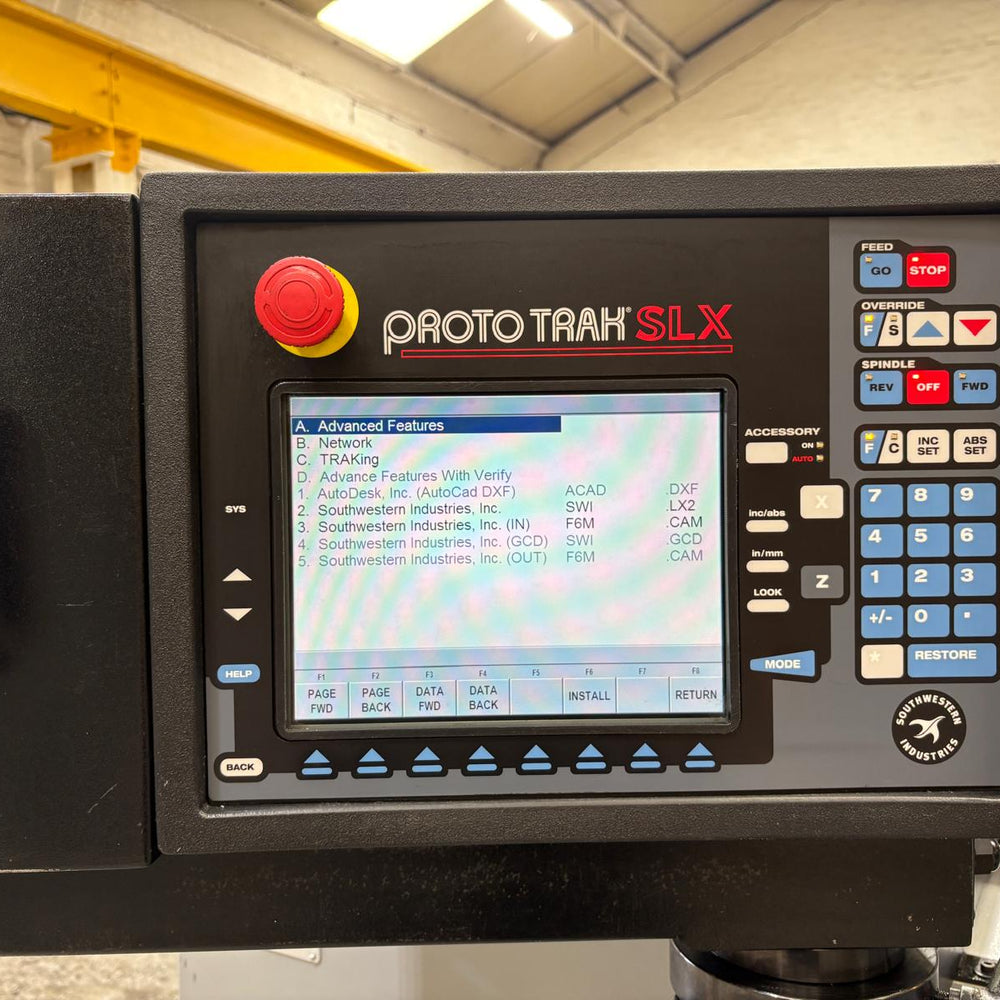

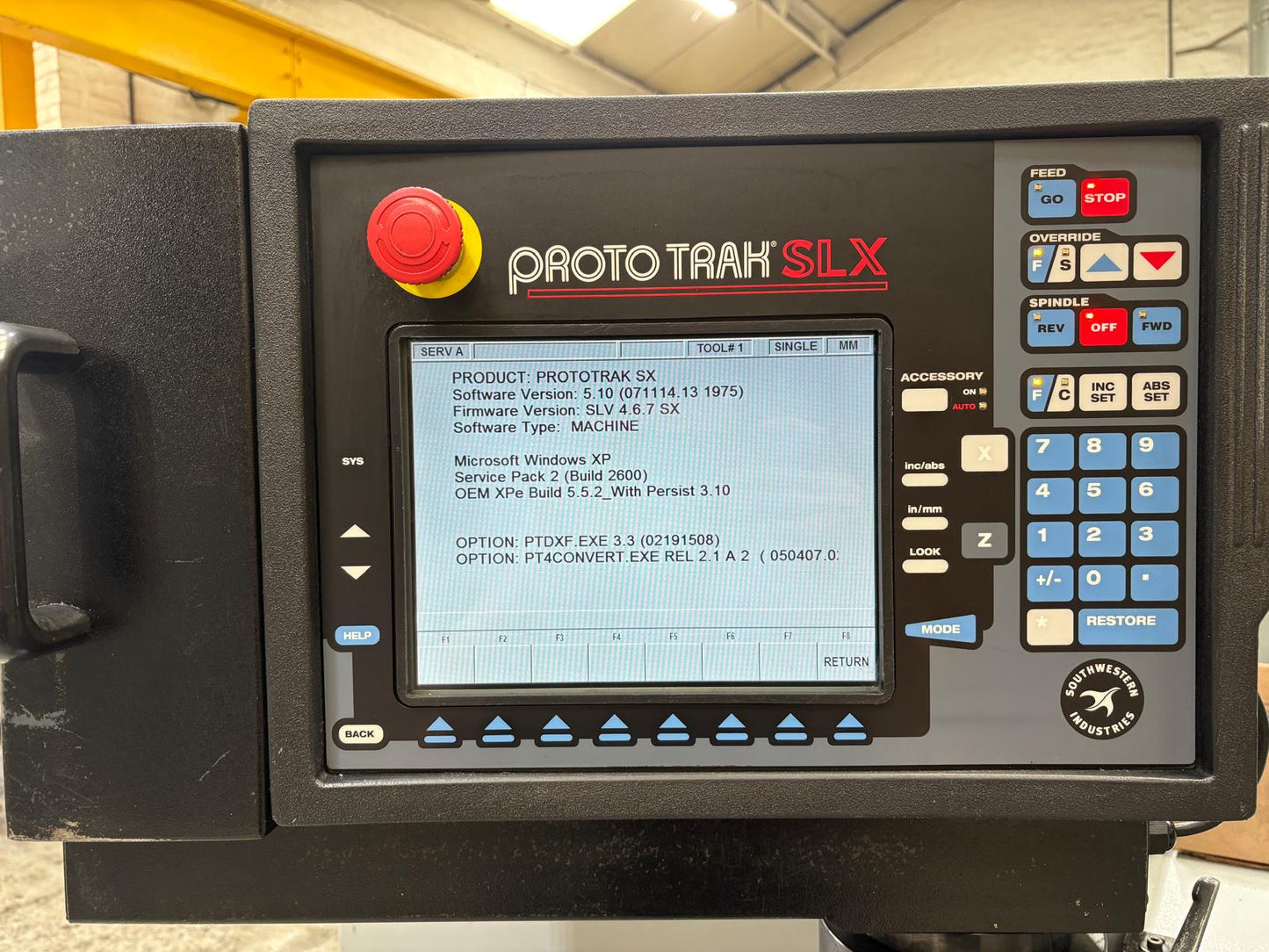

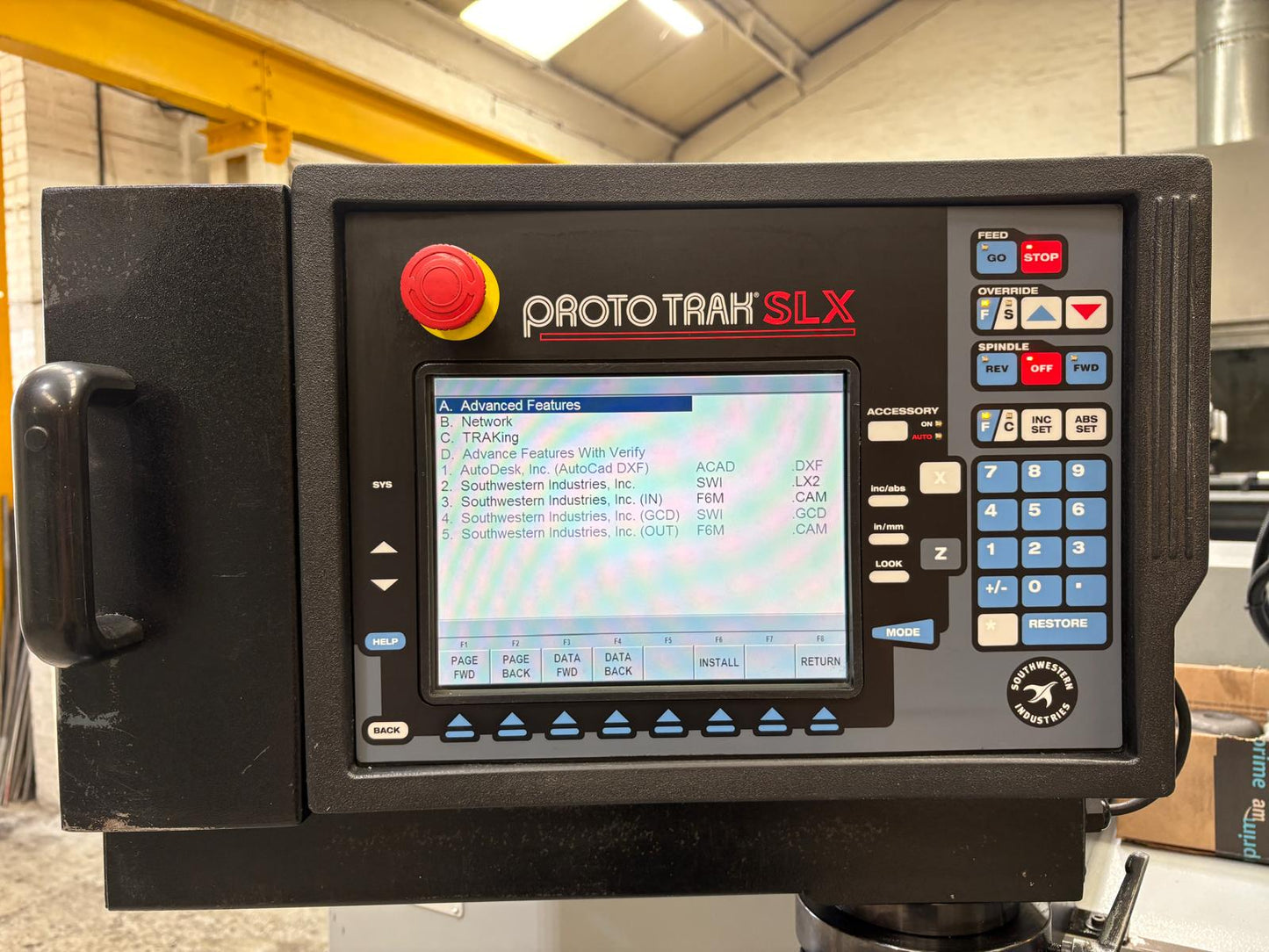

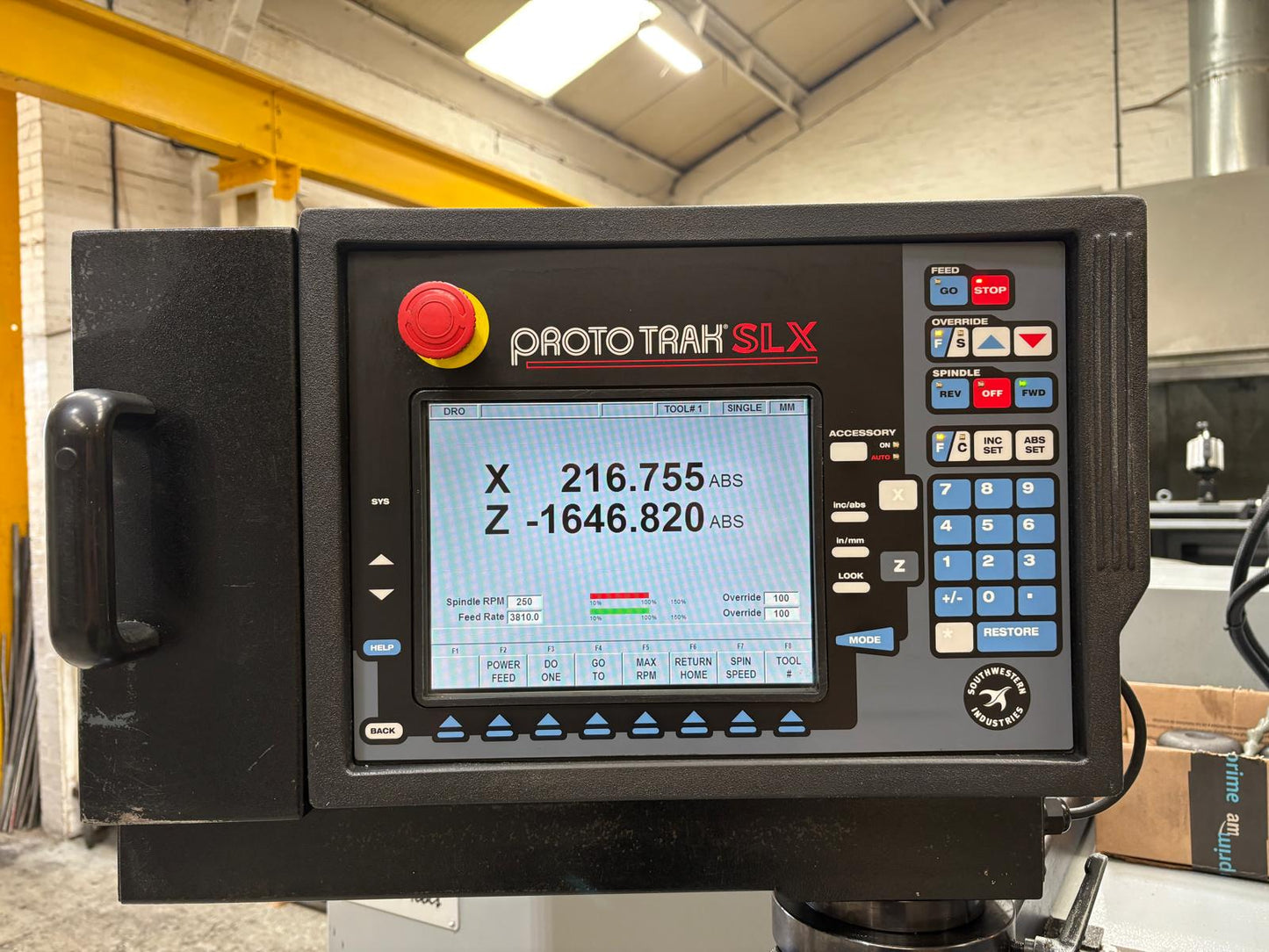

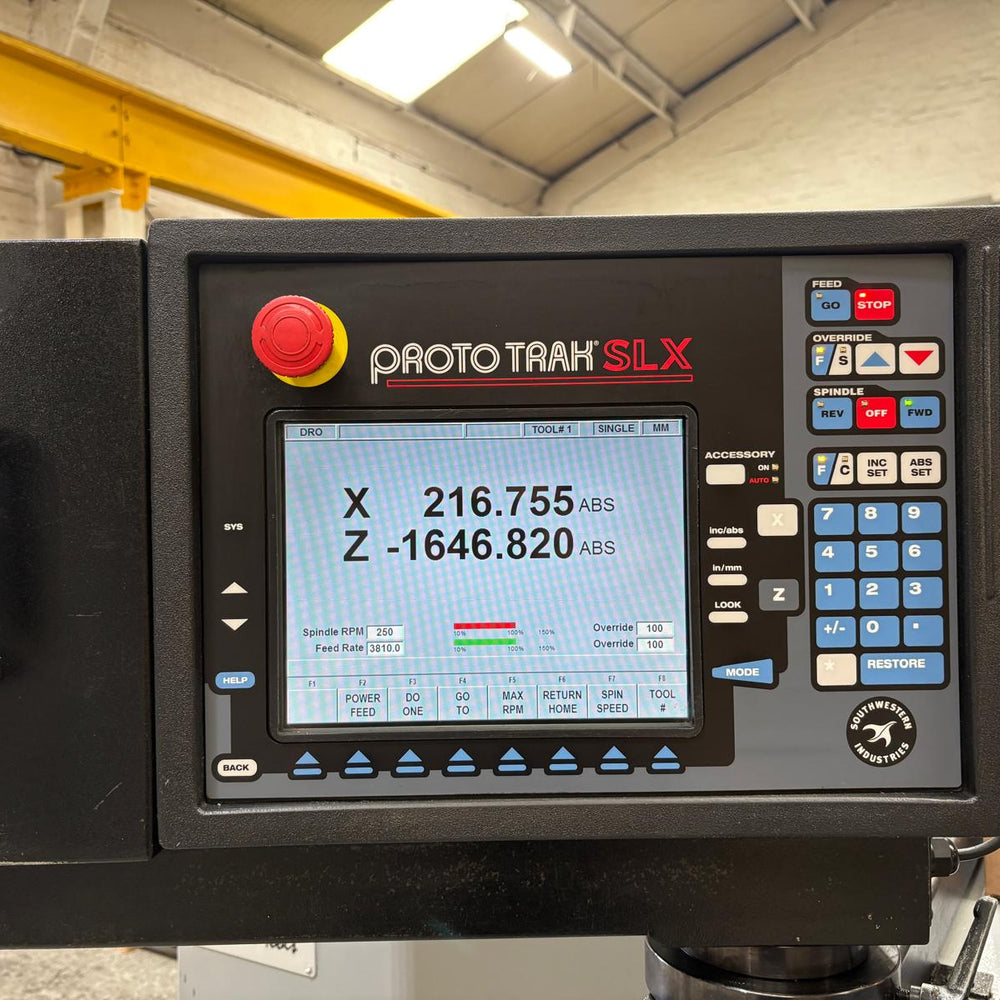

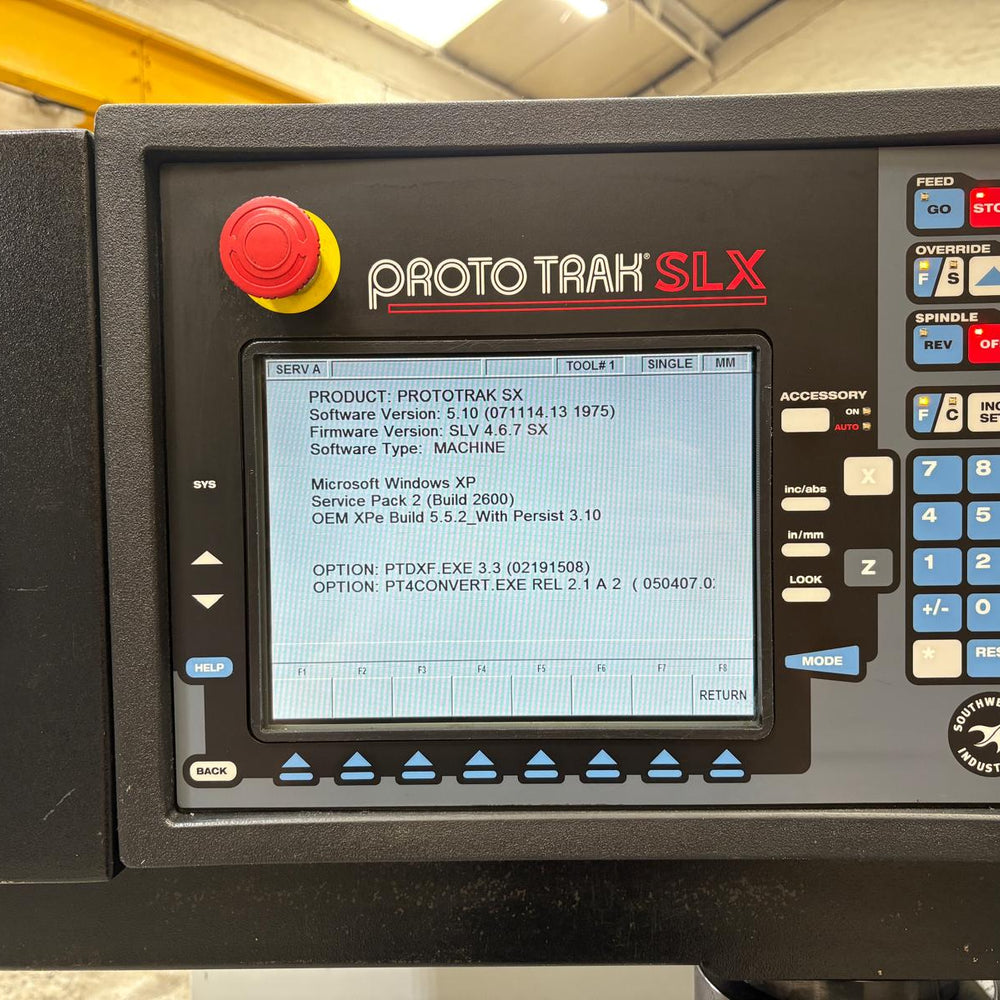

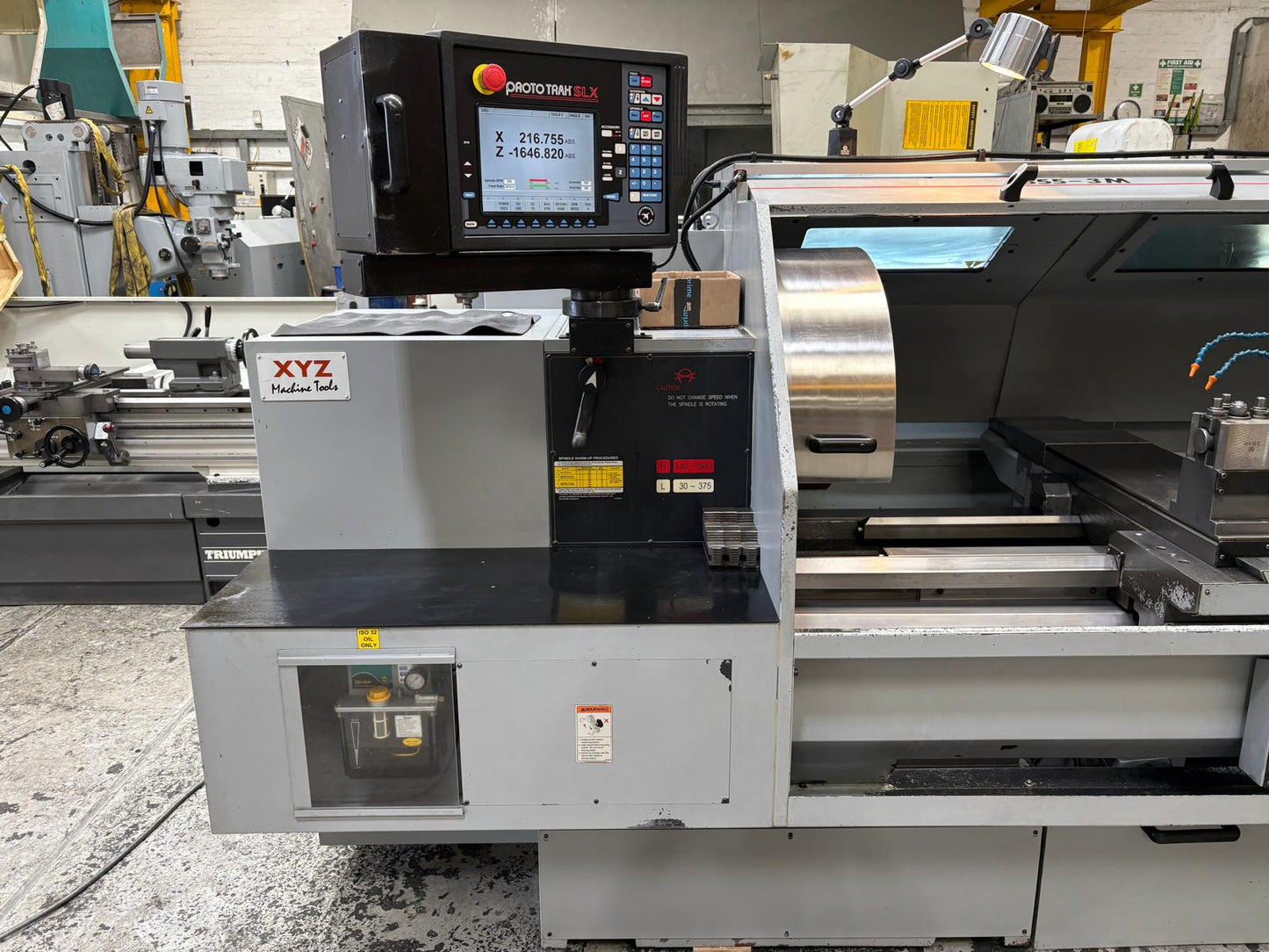

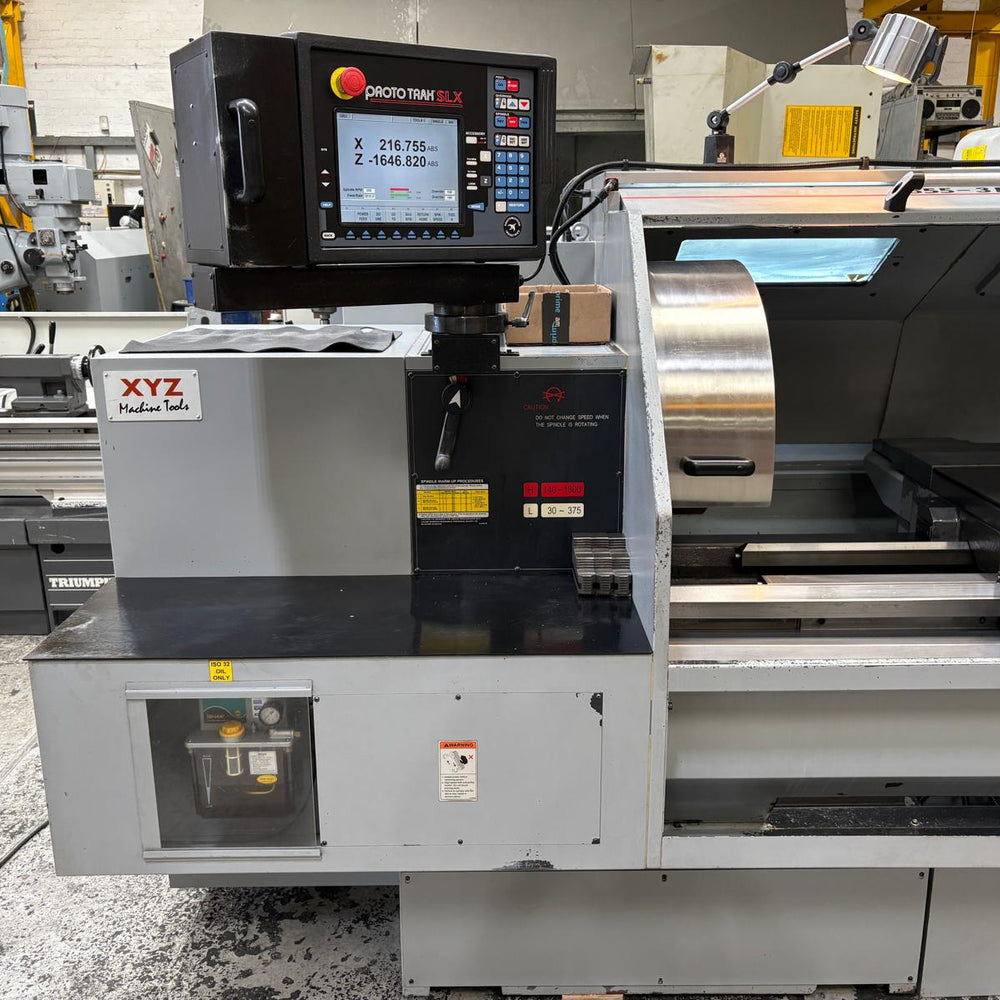

ProtoTRAK SLX Control (2012)
Max. Distance Between Centres 3000mm
Max. Swing over Bed 560mm

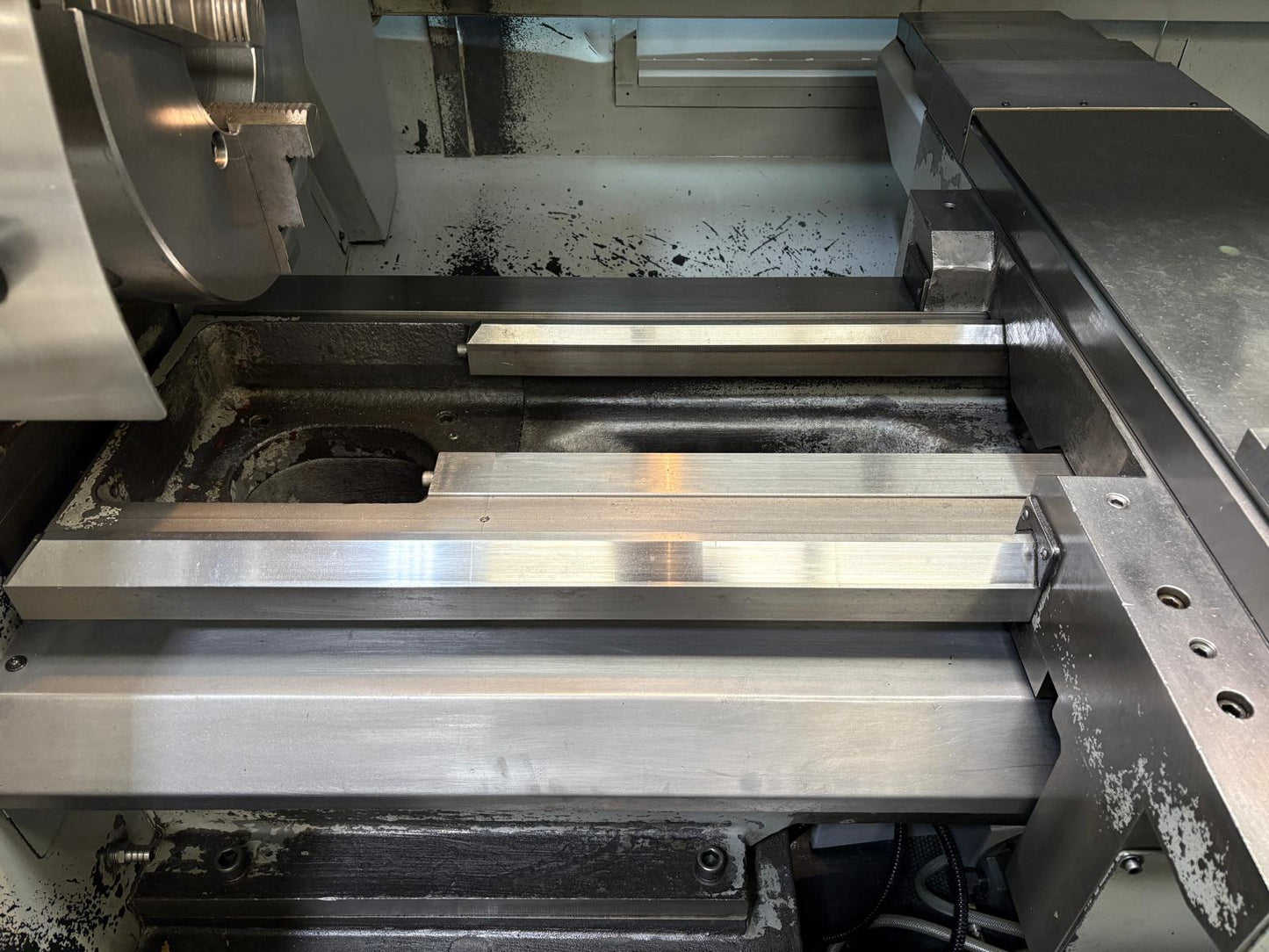

Max. Swing over Gap 935mm
Max. Swing over Cross slides

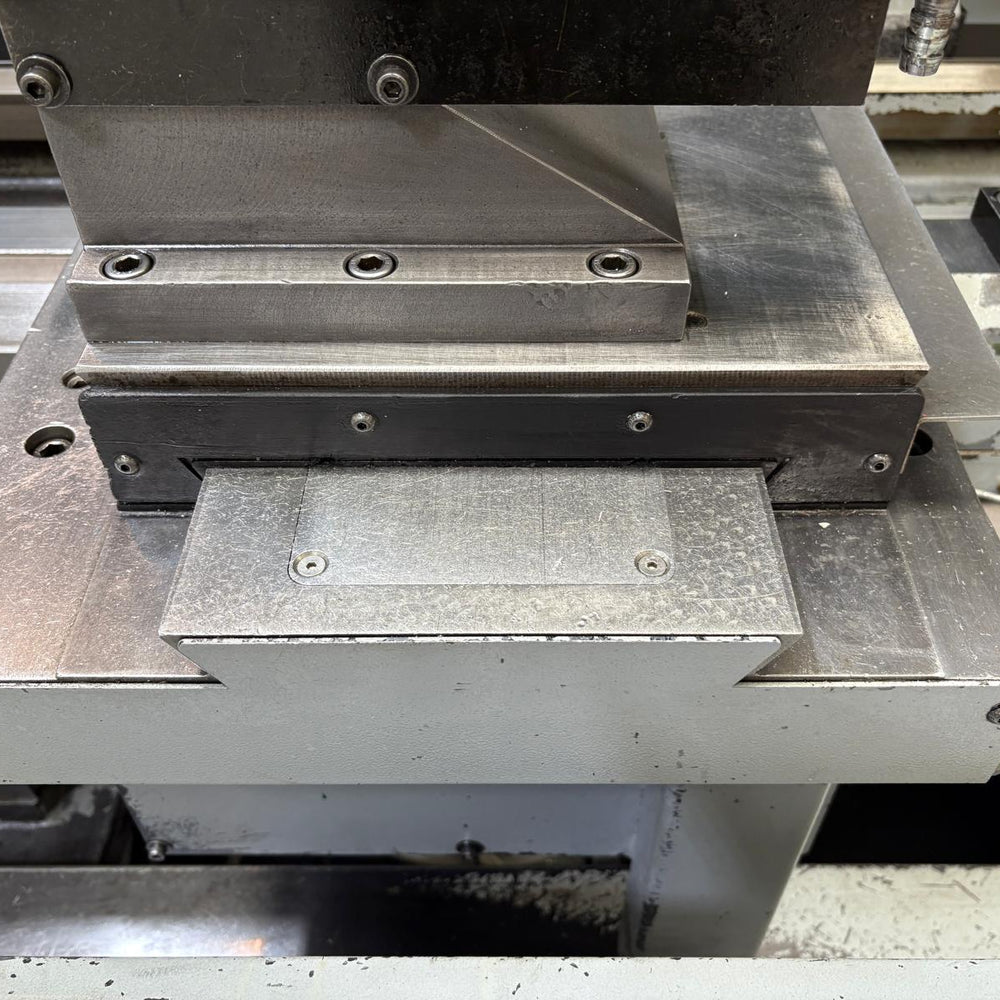

Max. Cross slide Travel 290mm
Spindle Nose D1-11
Spindle Bore 104mm

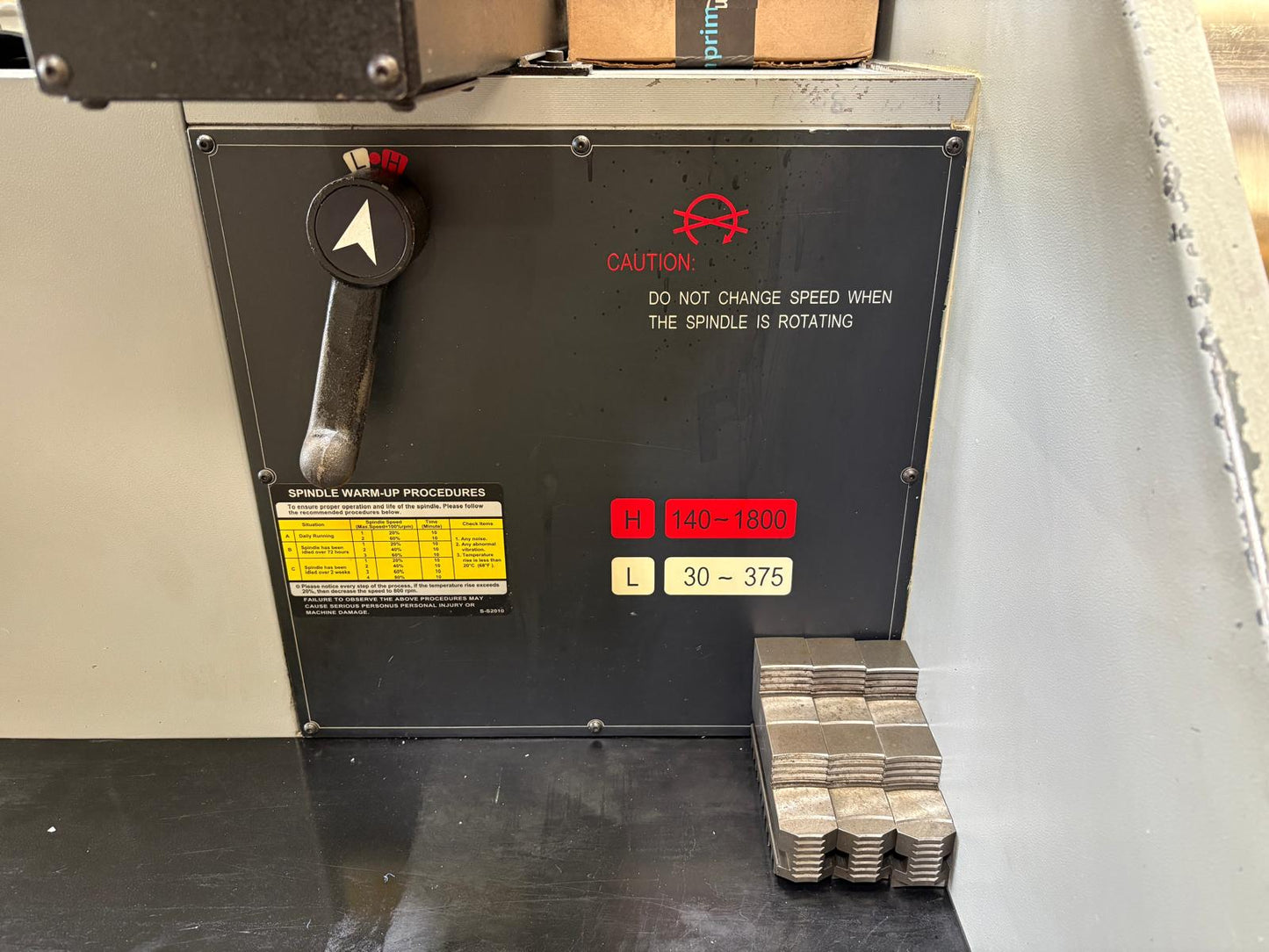

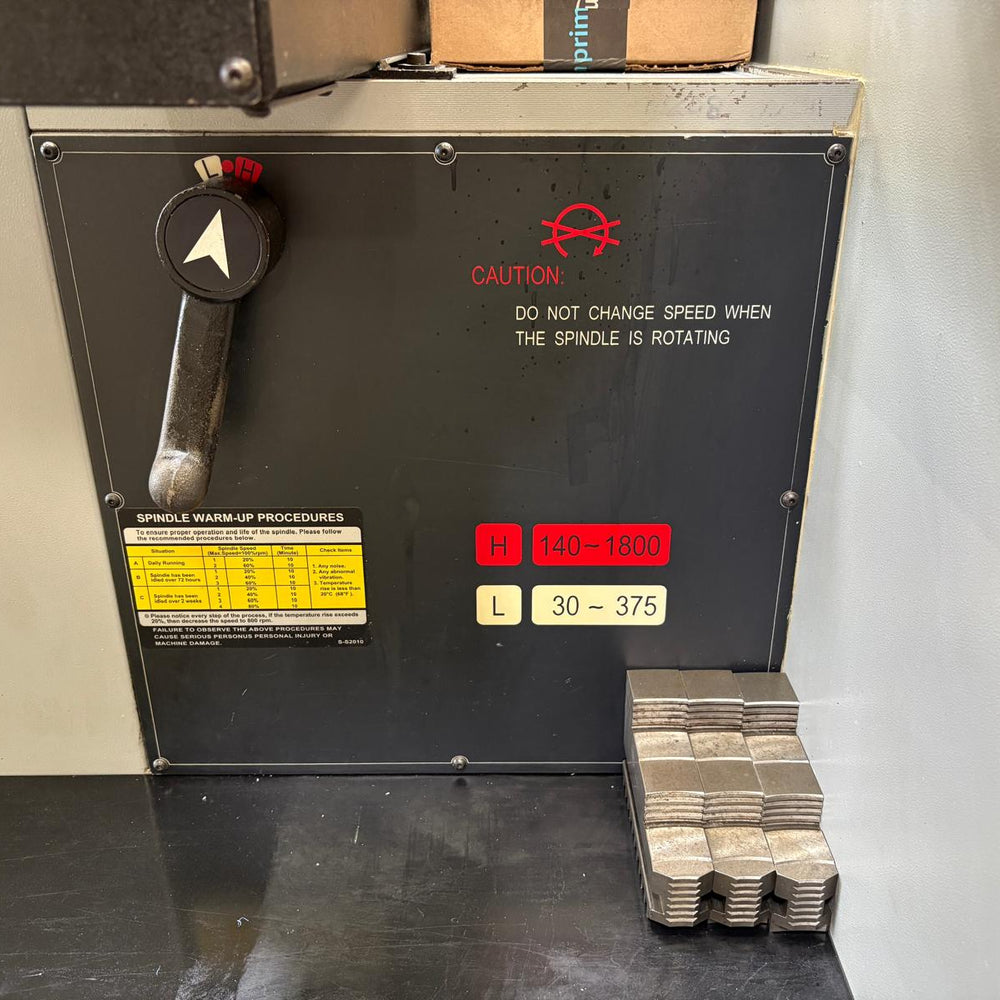

Spindle Speeds 30 – 1800rpm
Spindle Motor 15Hp
Quick Change Tool Post

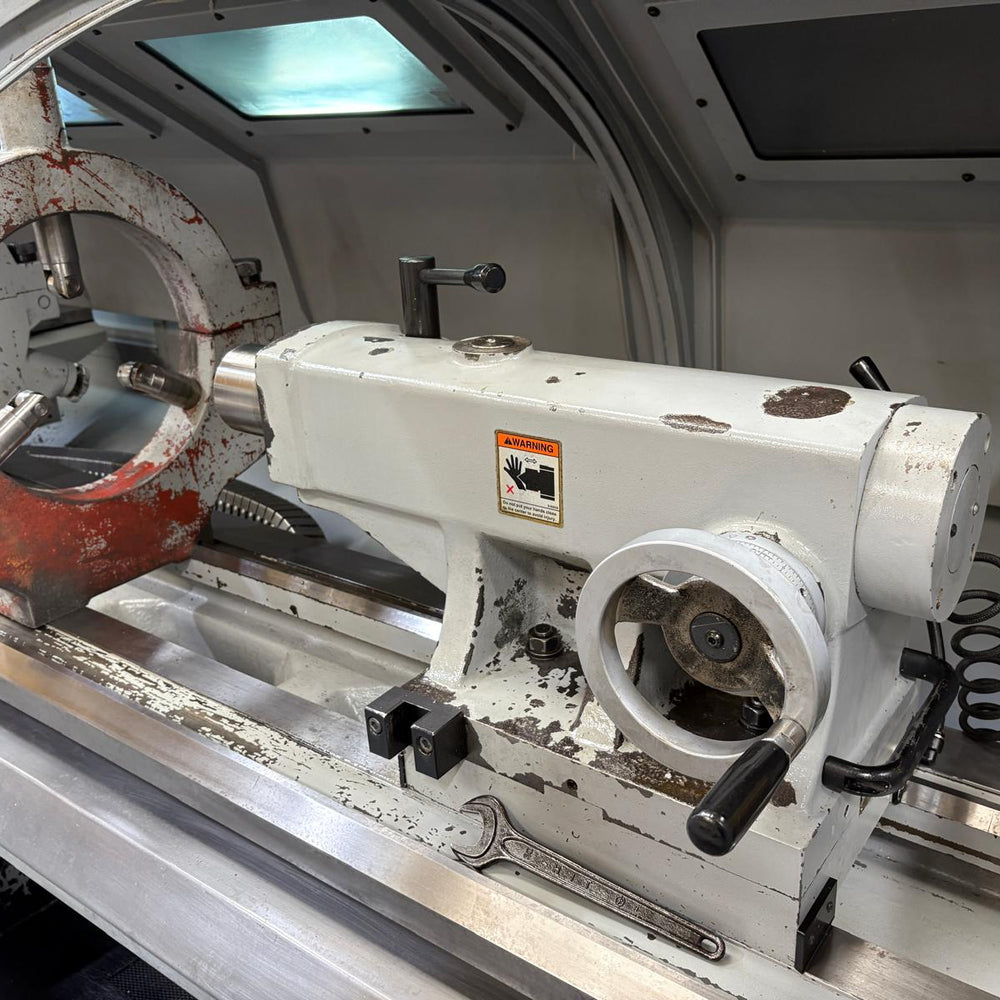

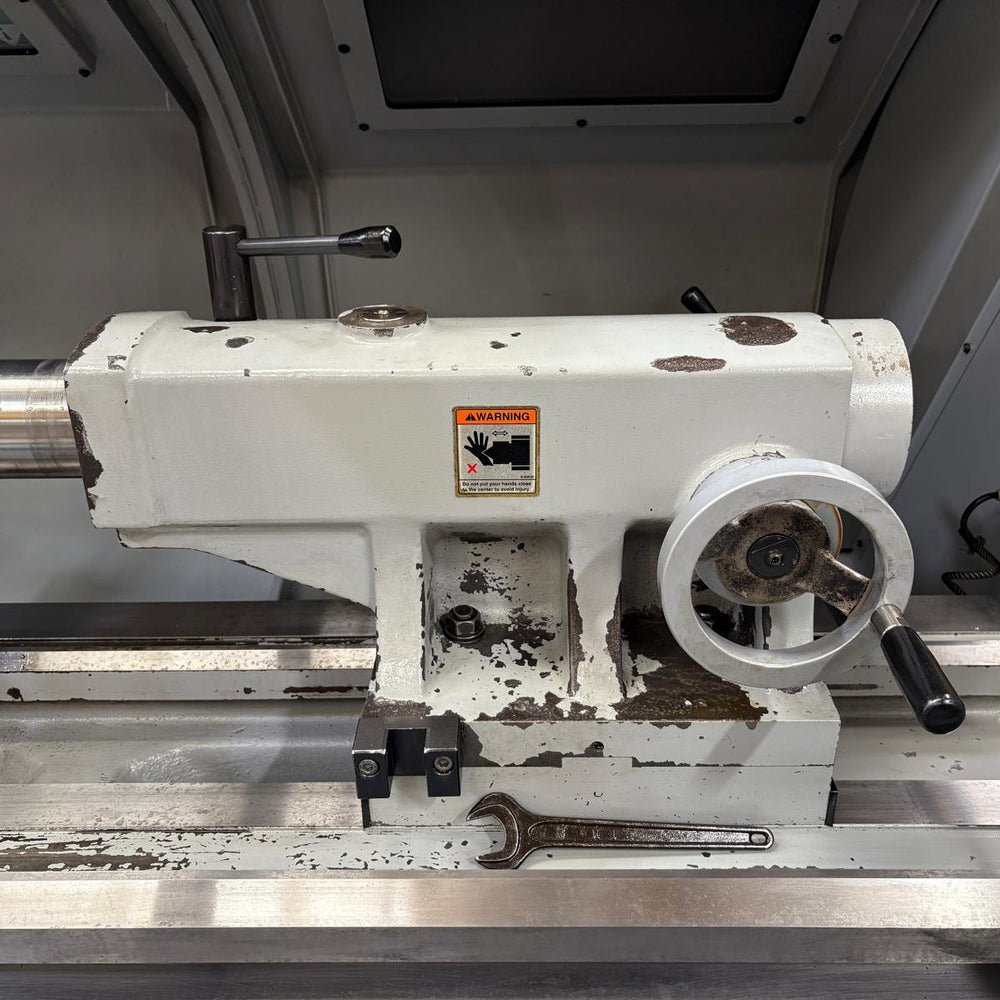

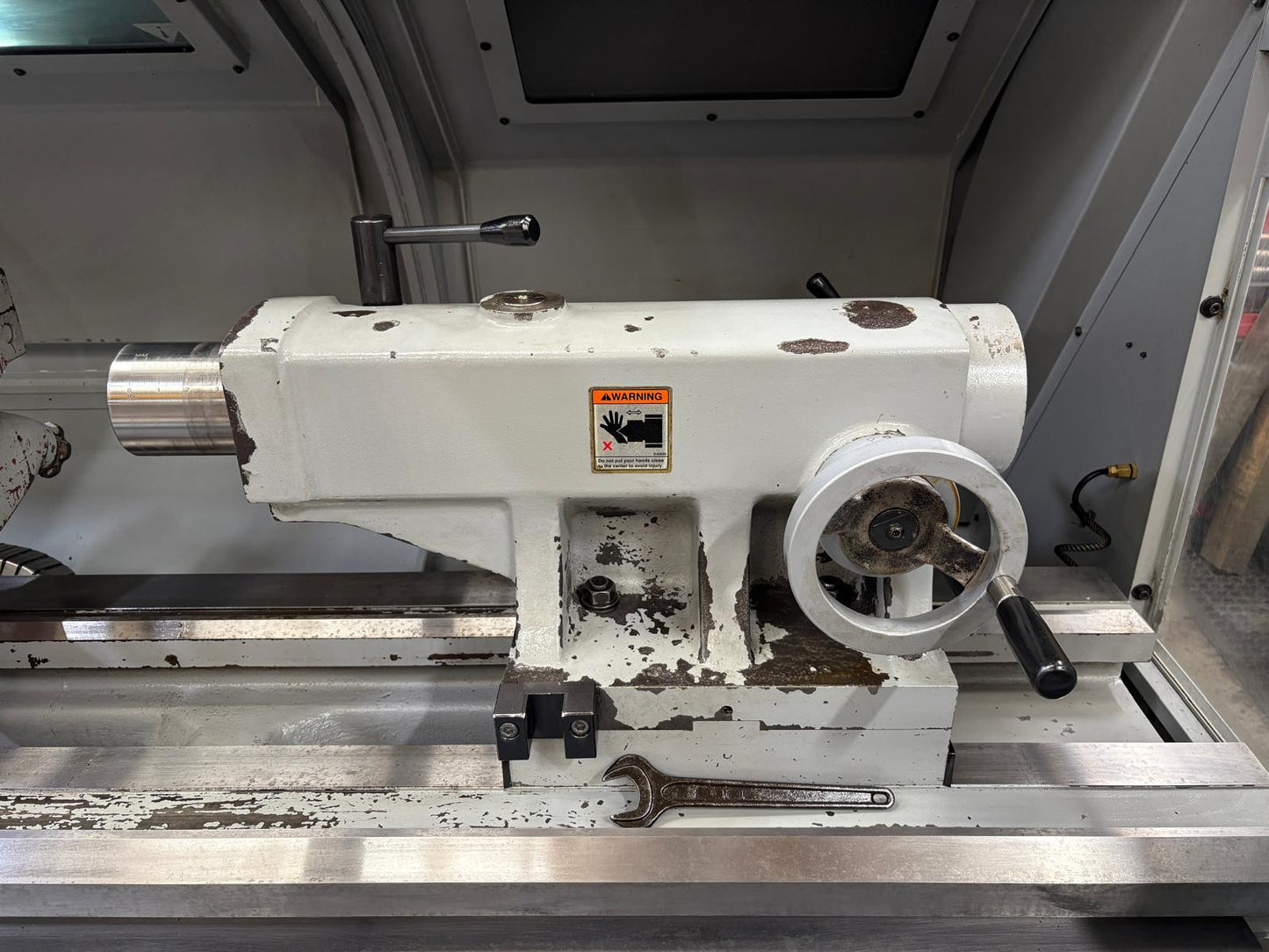

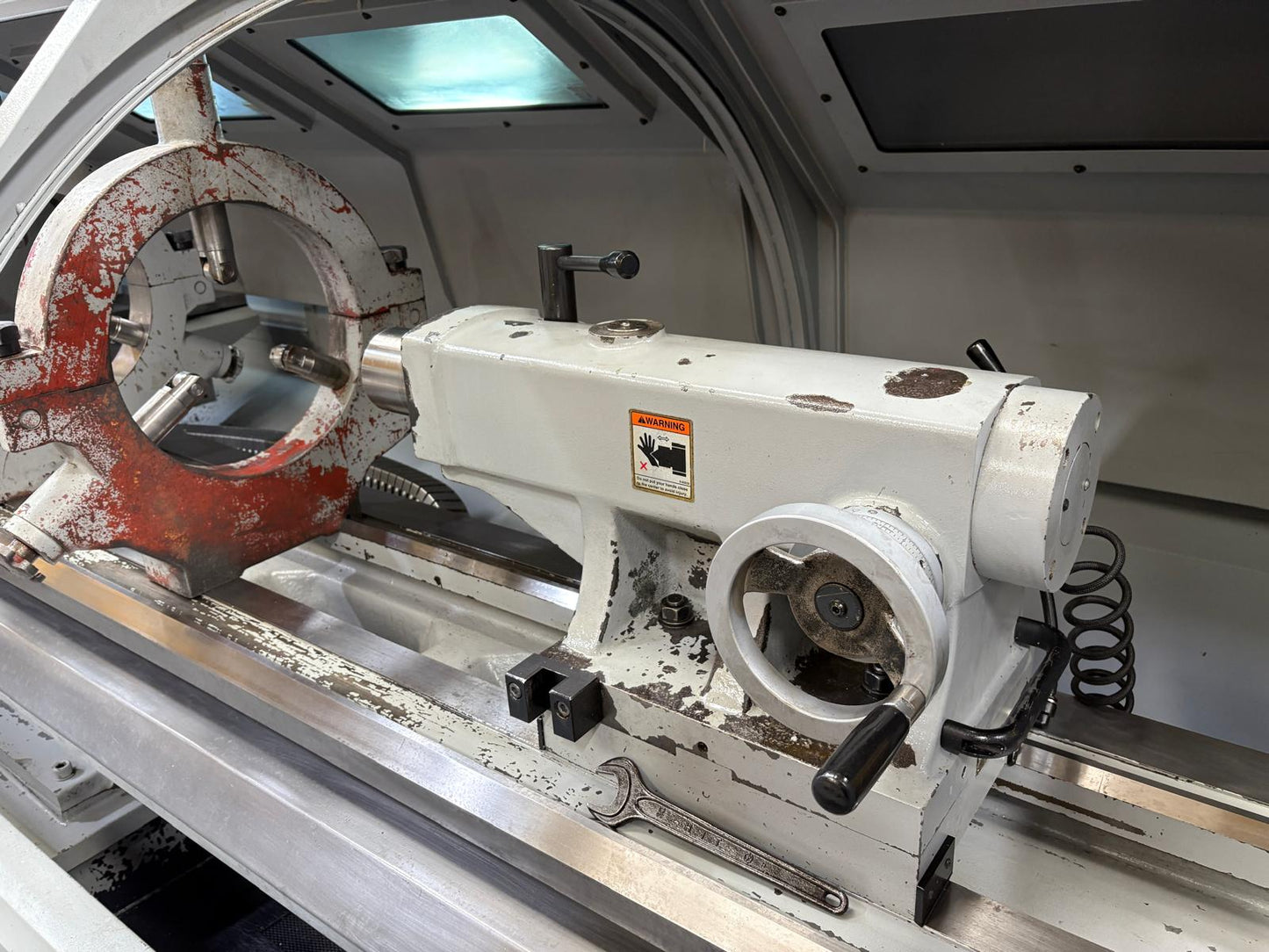

Tailstock MT7
Tailstock Dia’ 75mm
Tailstock Travel 160m
Manufactured | 2012
Dimensions: L x D x H 5220 x 2150 x 1950 mm
Weight 7400 kg
Supplied with:

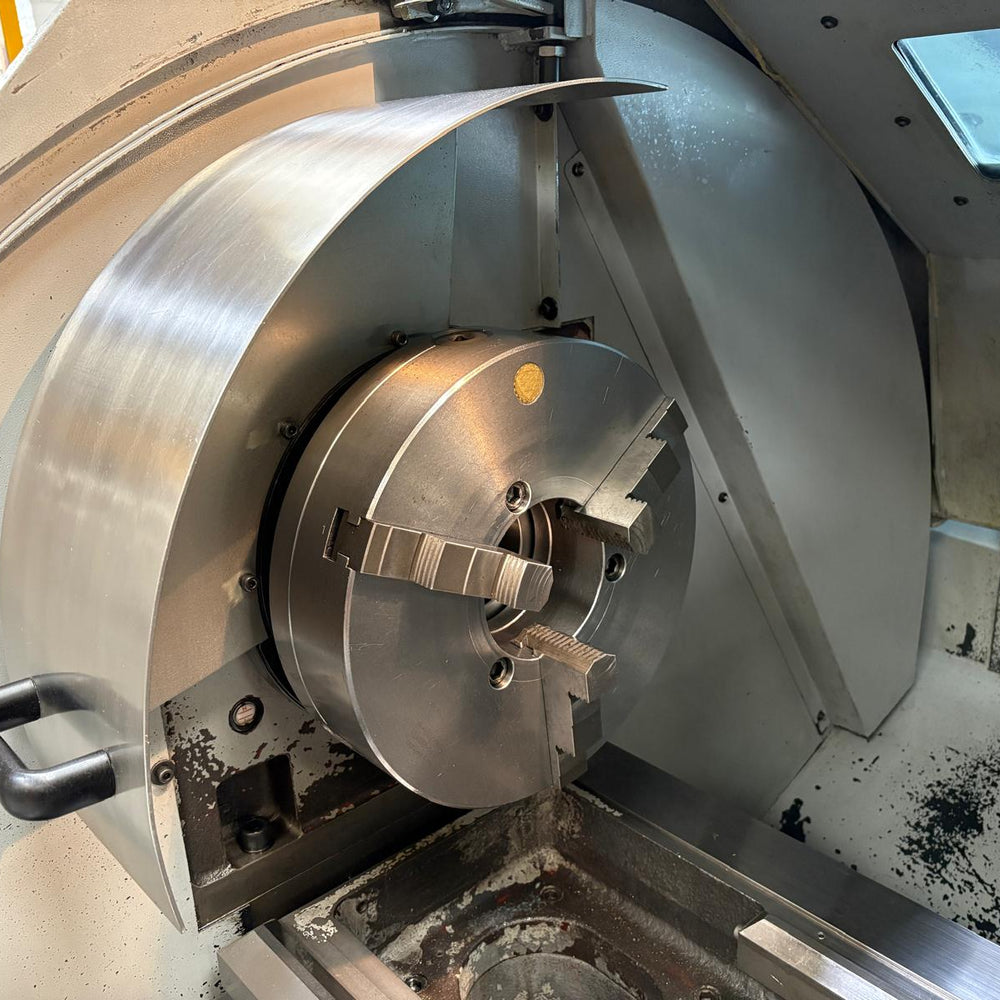

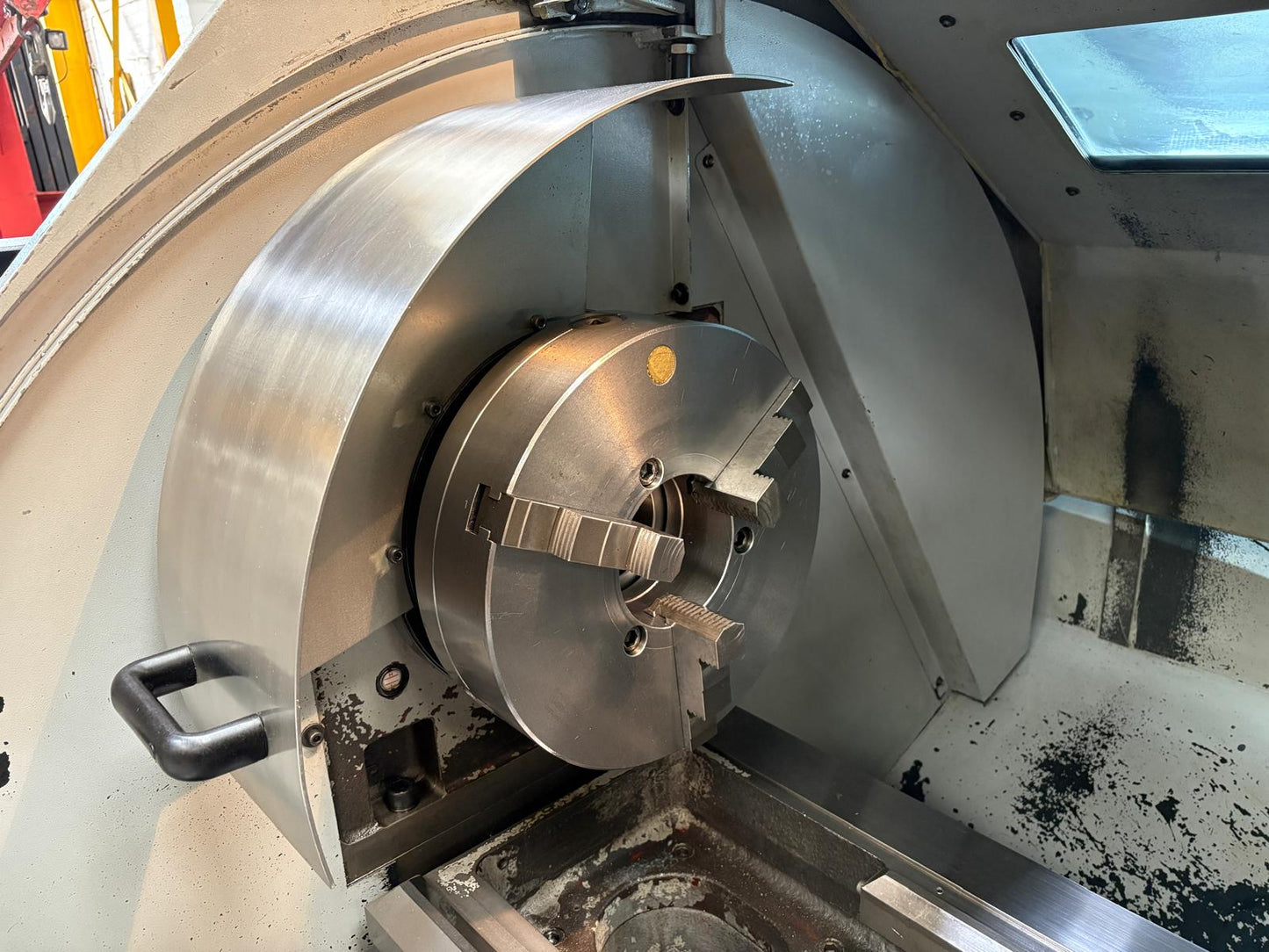

3 Jaw Chuck
Machine Handbooks
TRAKing®.
Constant Surface Speed.
Rapid Traverse with Joy Stick.

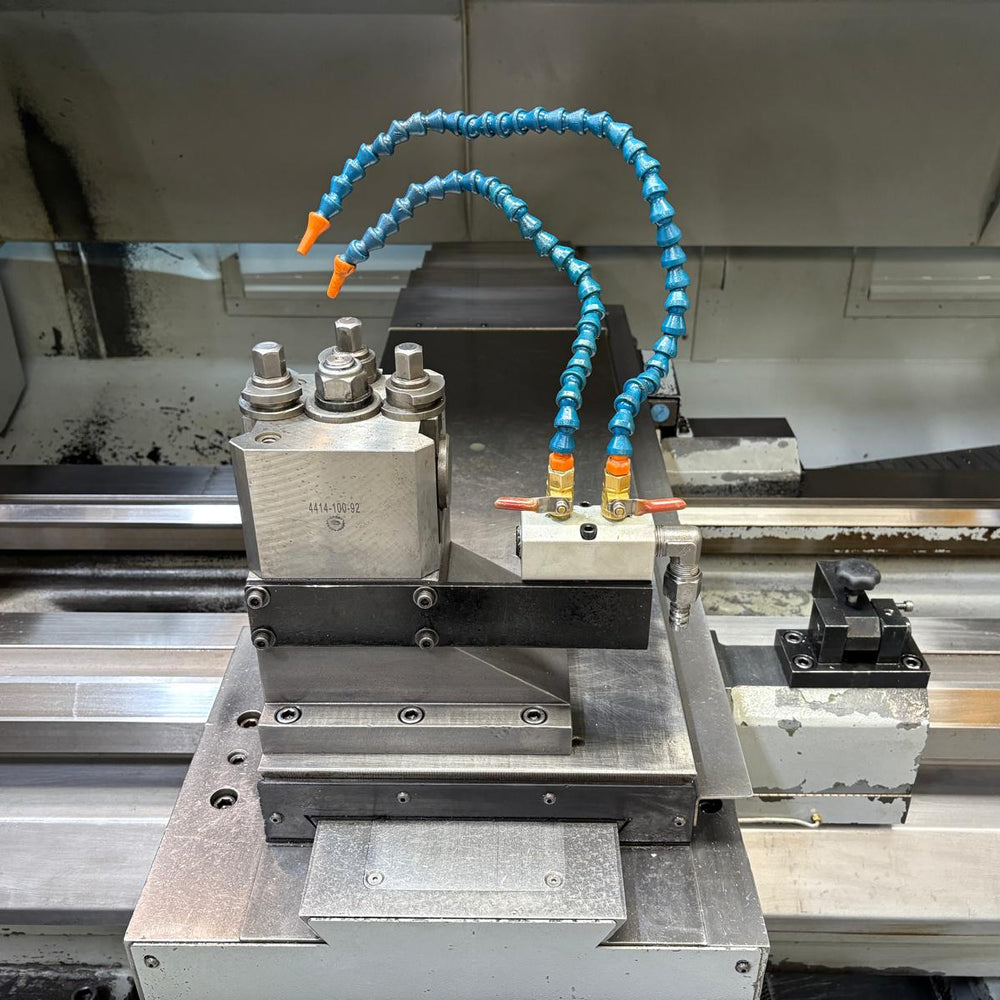

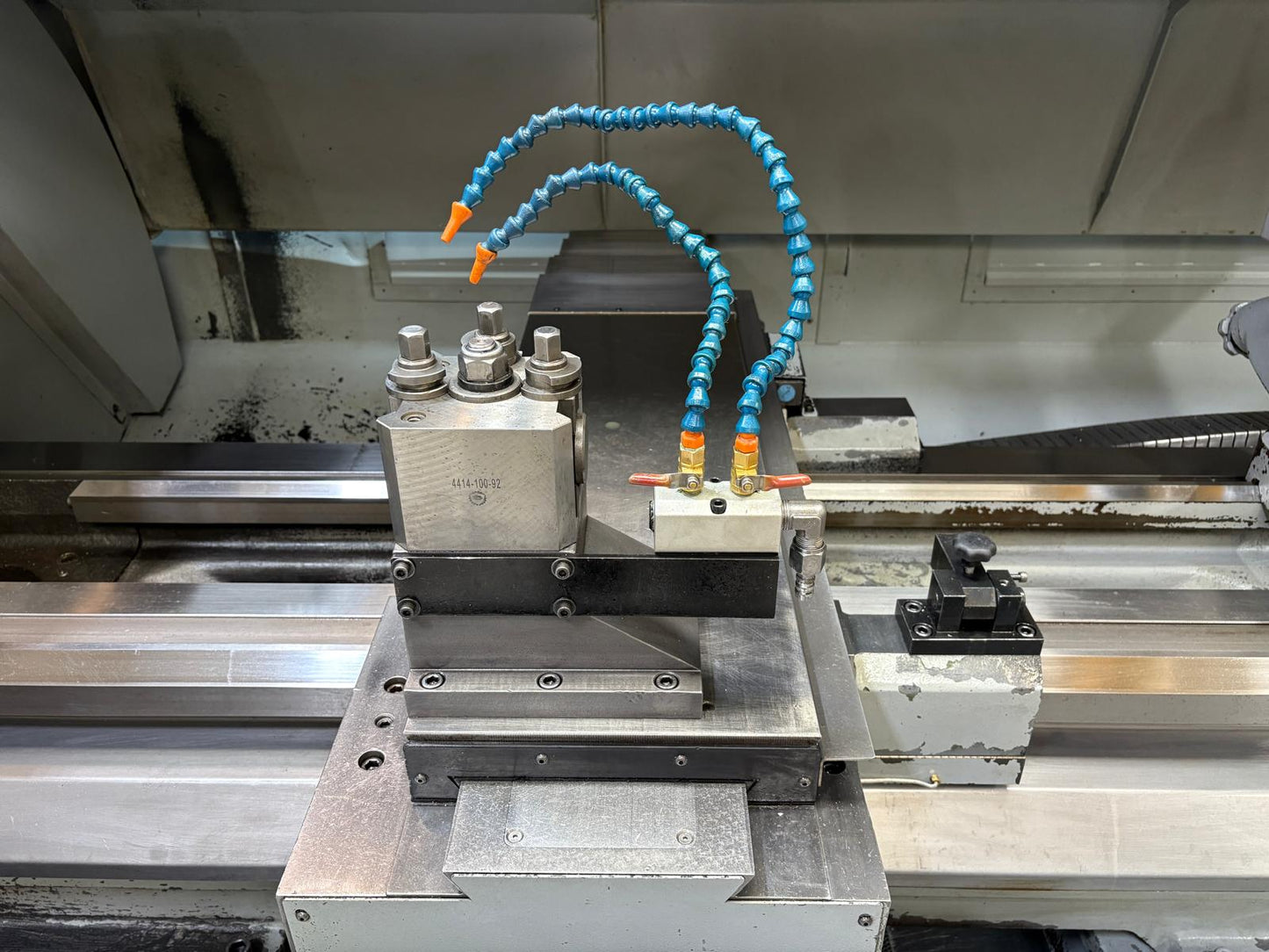

QCTP & Holders

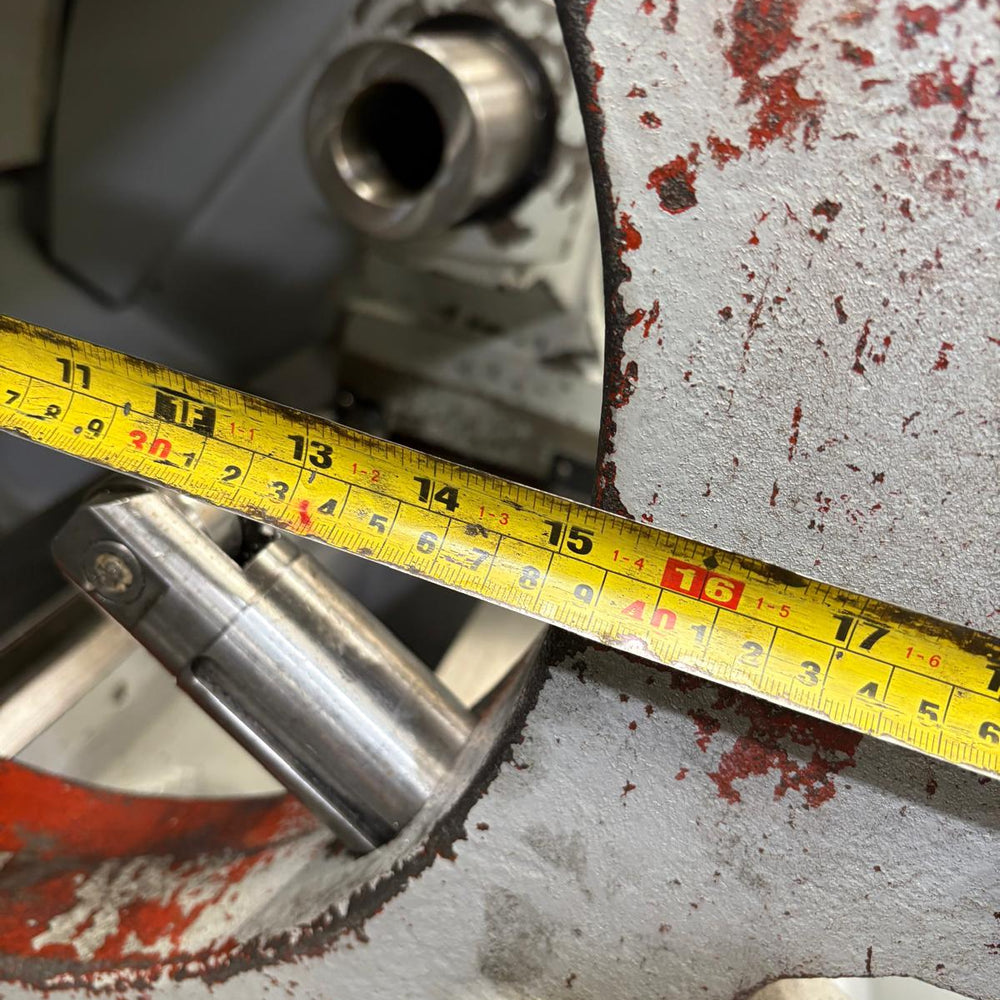

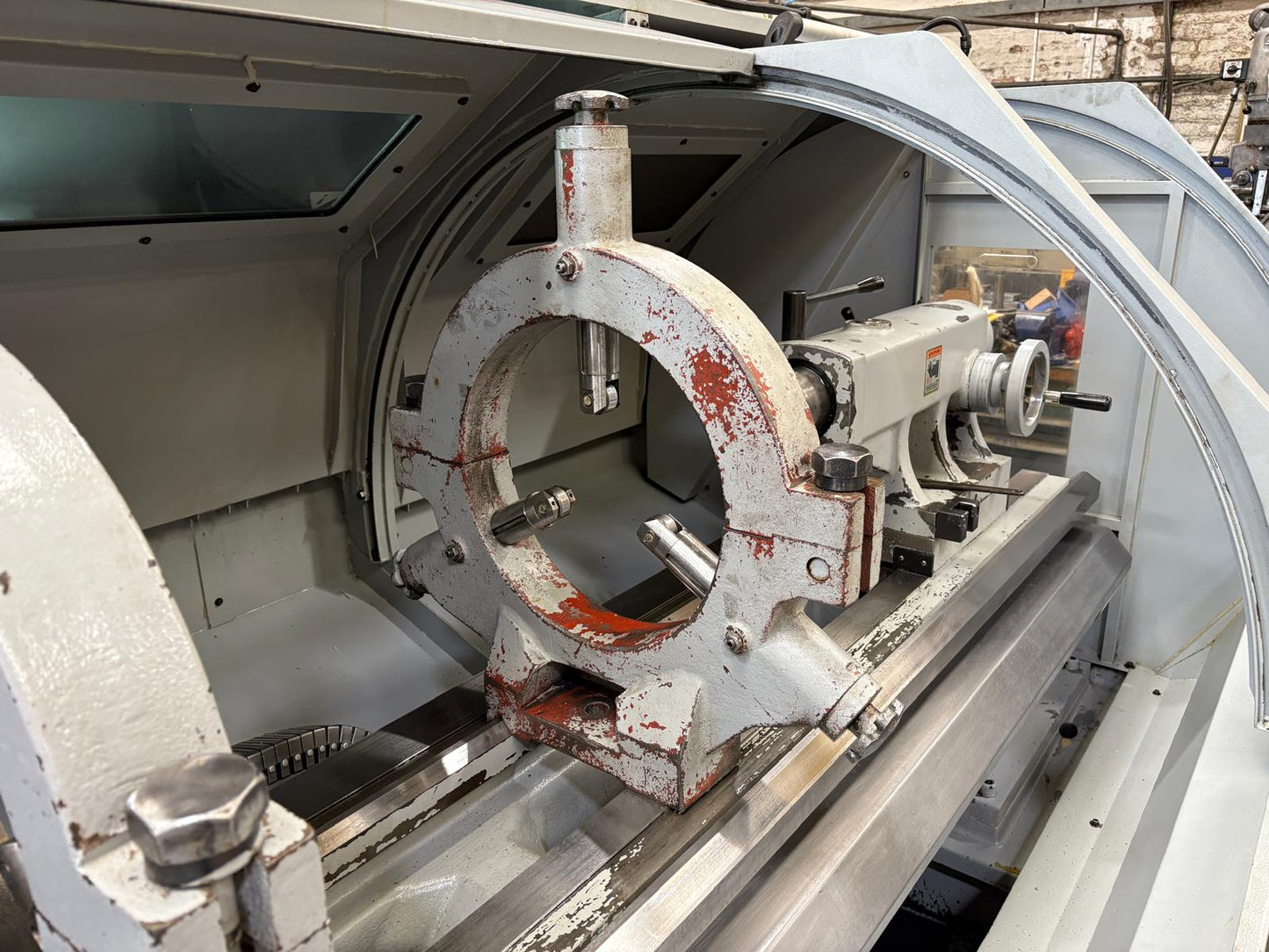

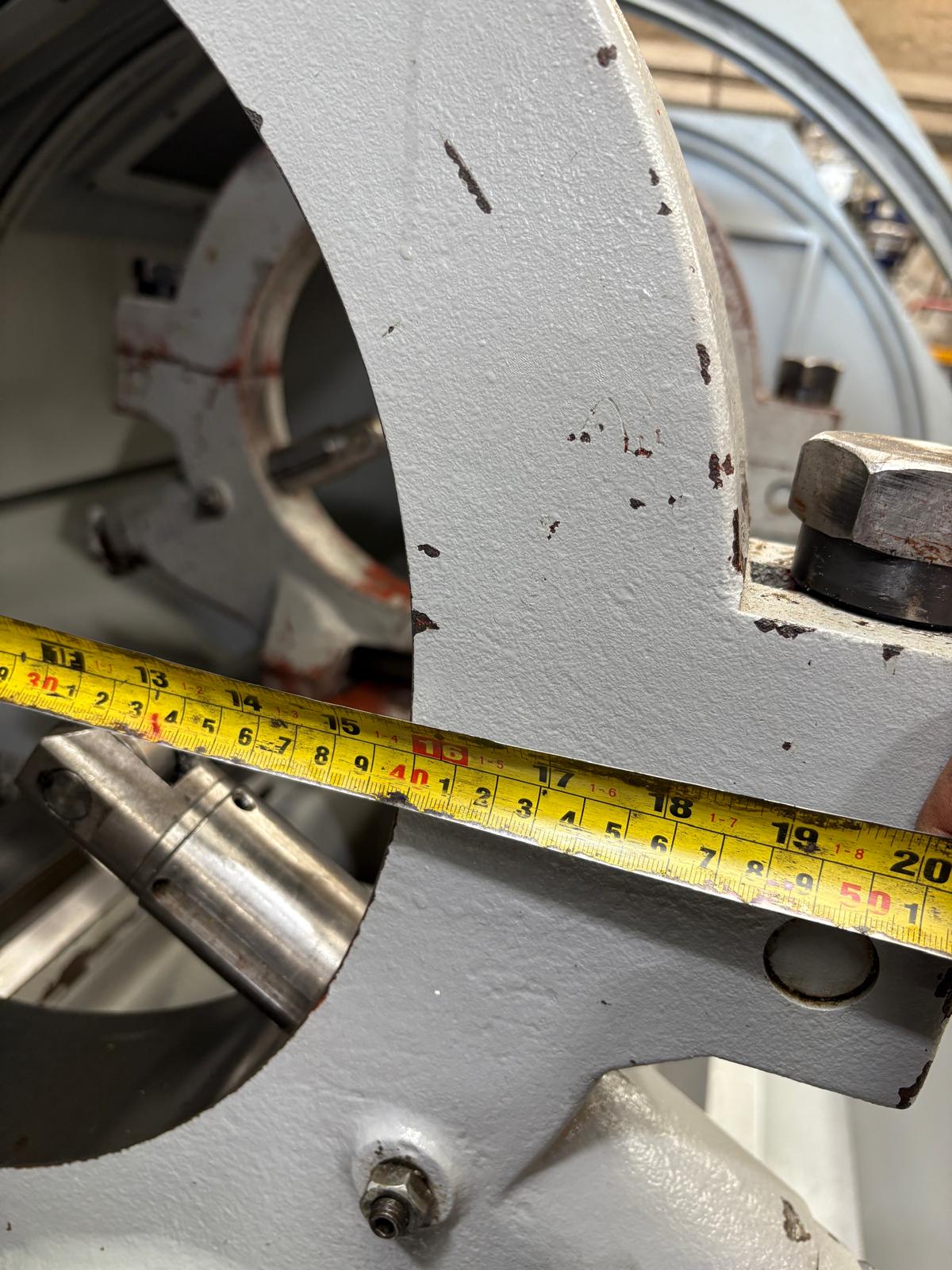

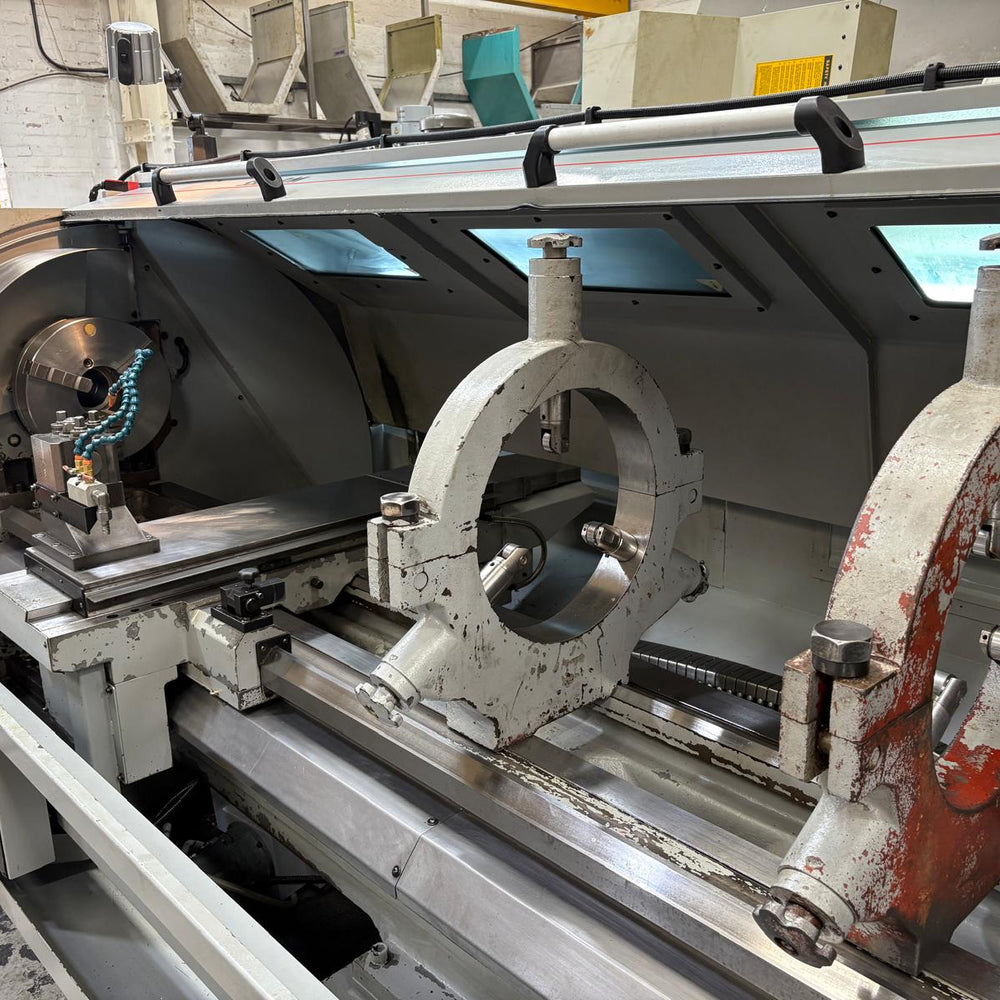

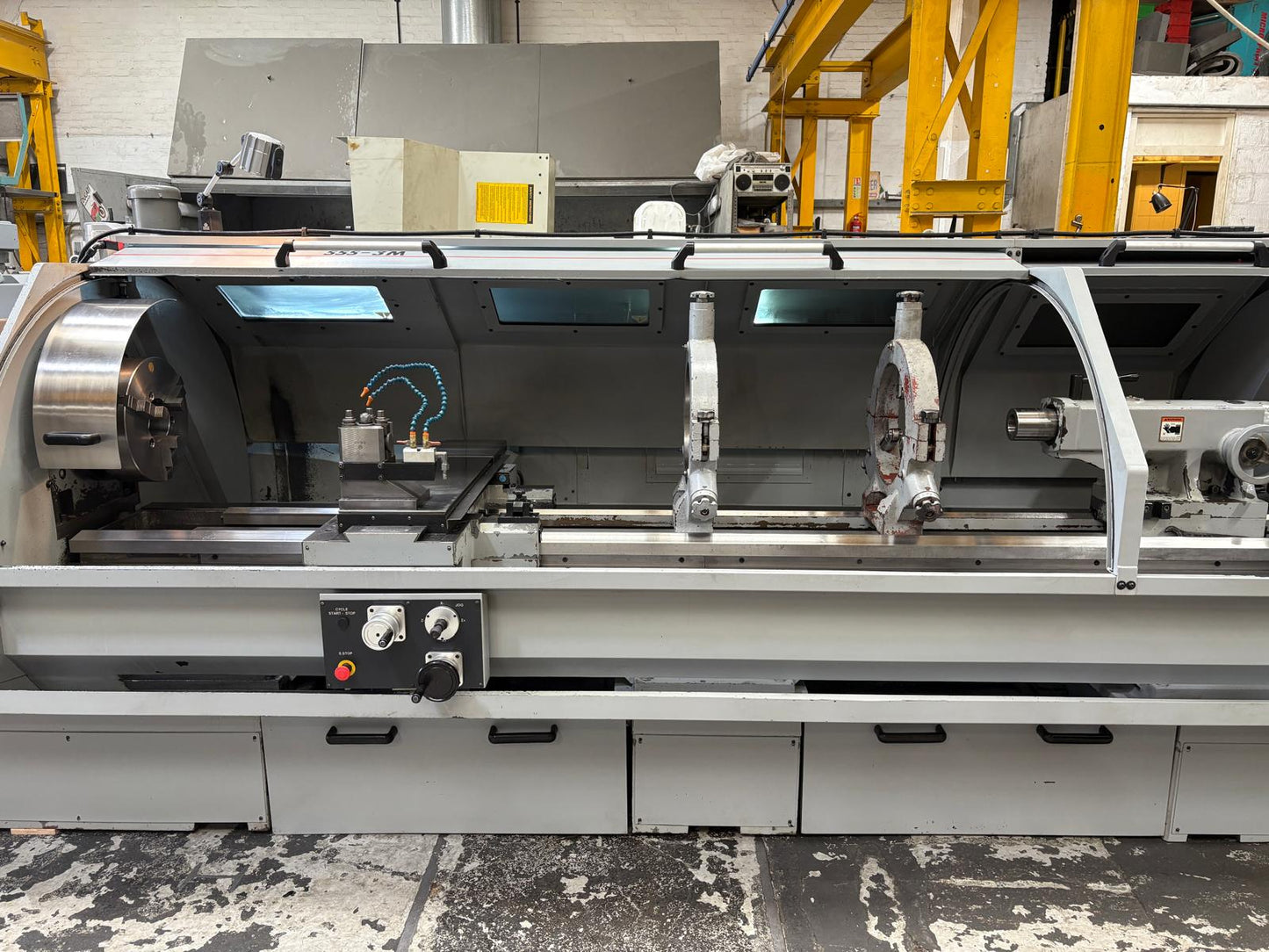

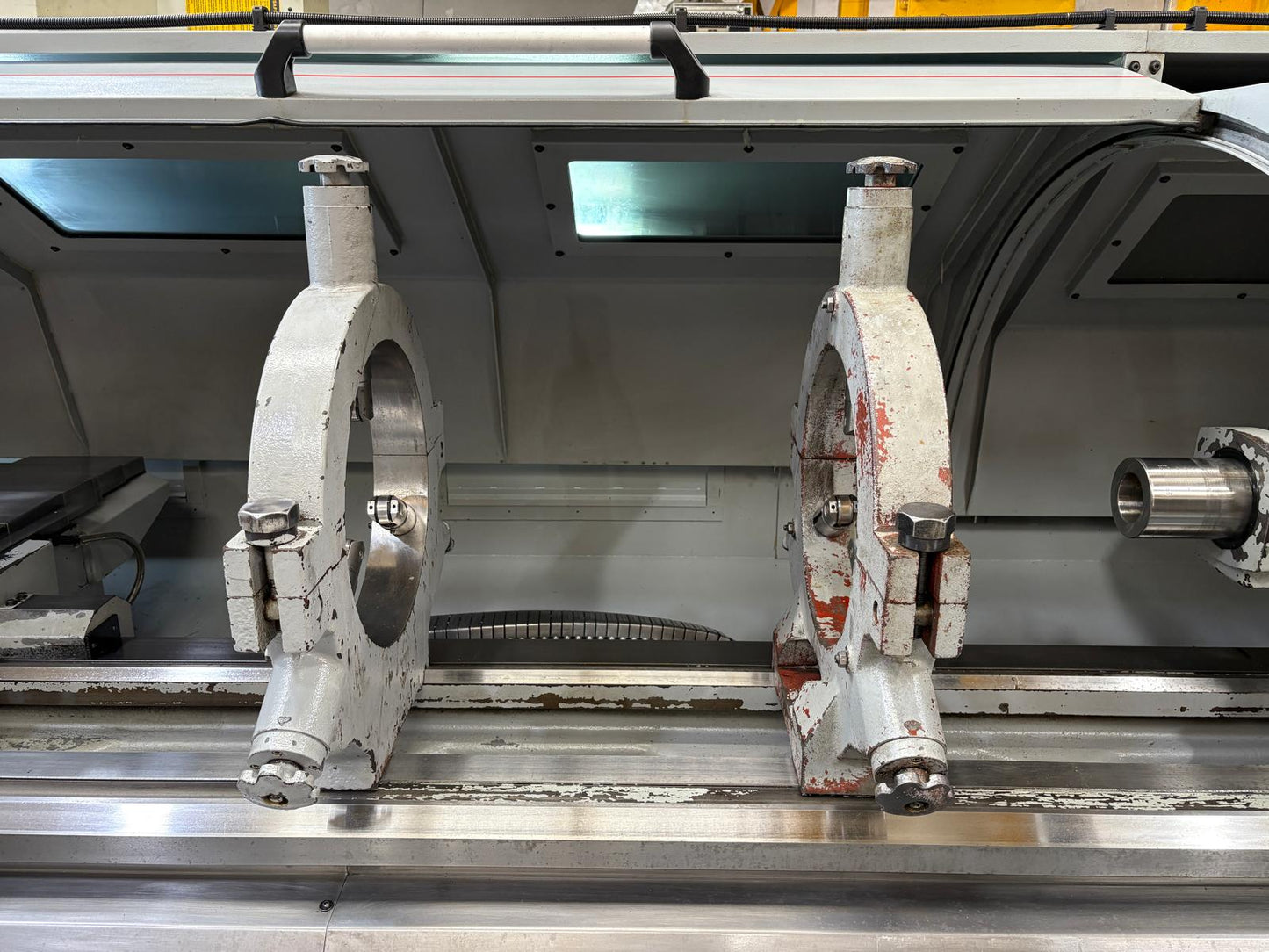

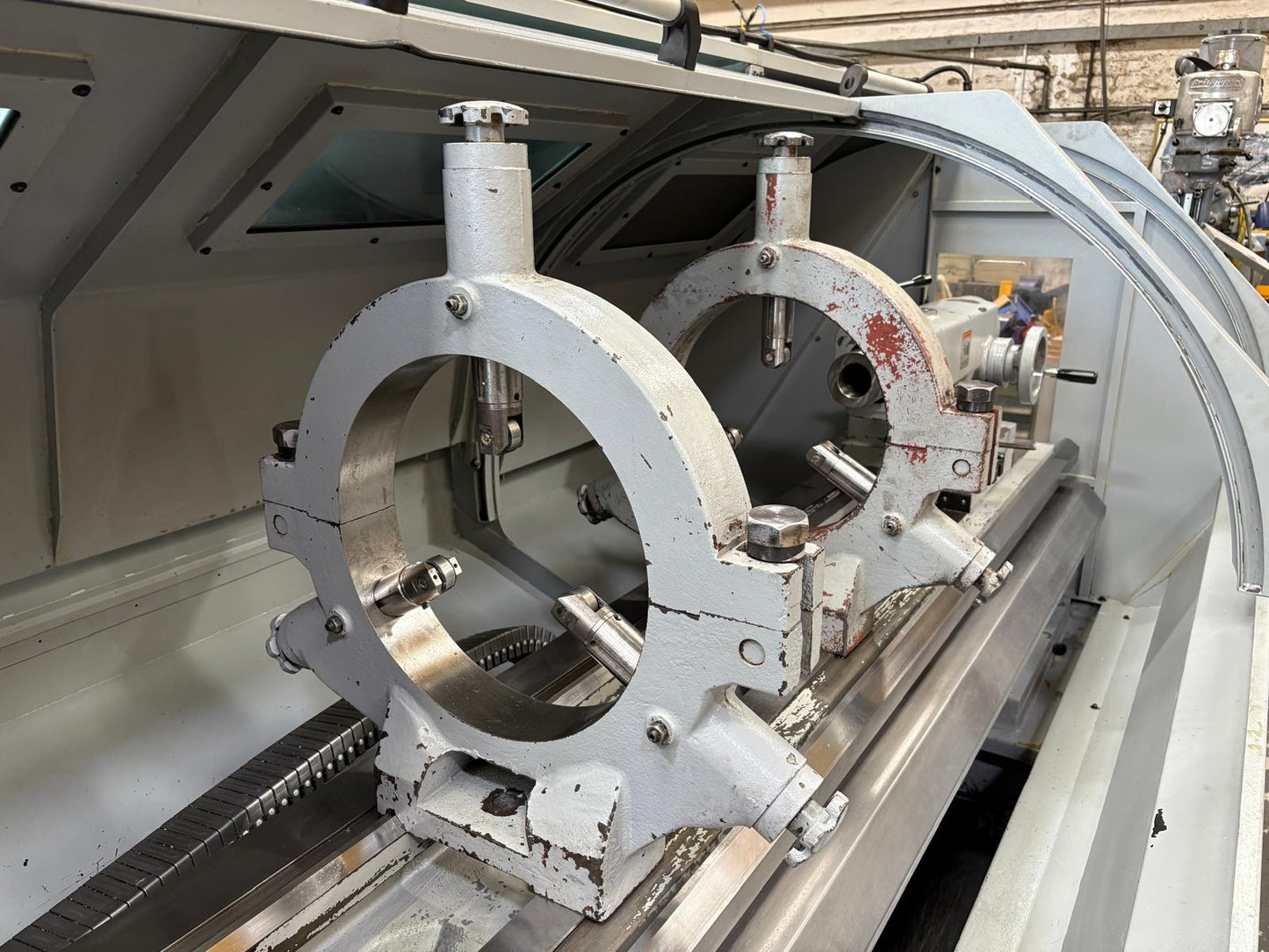

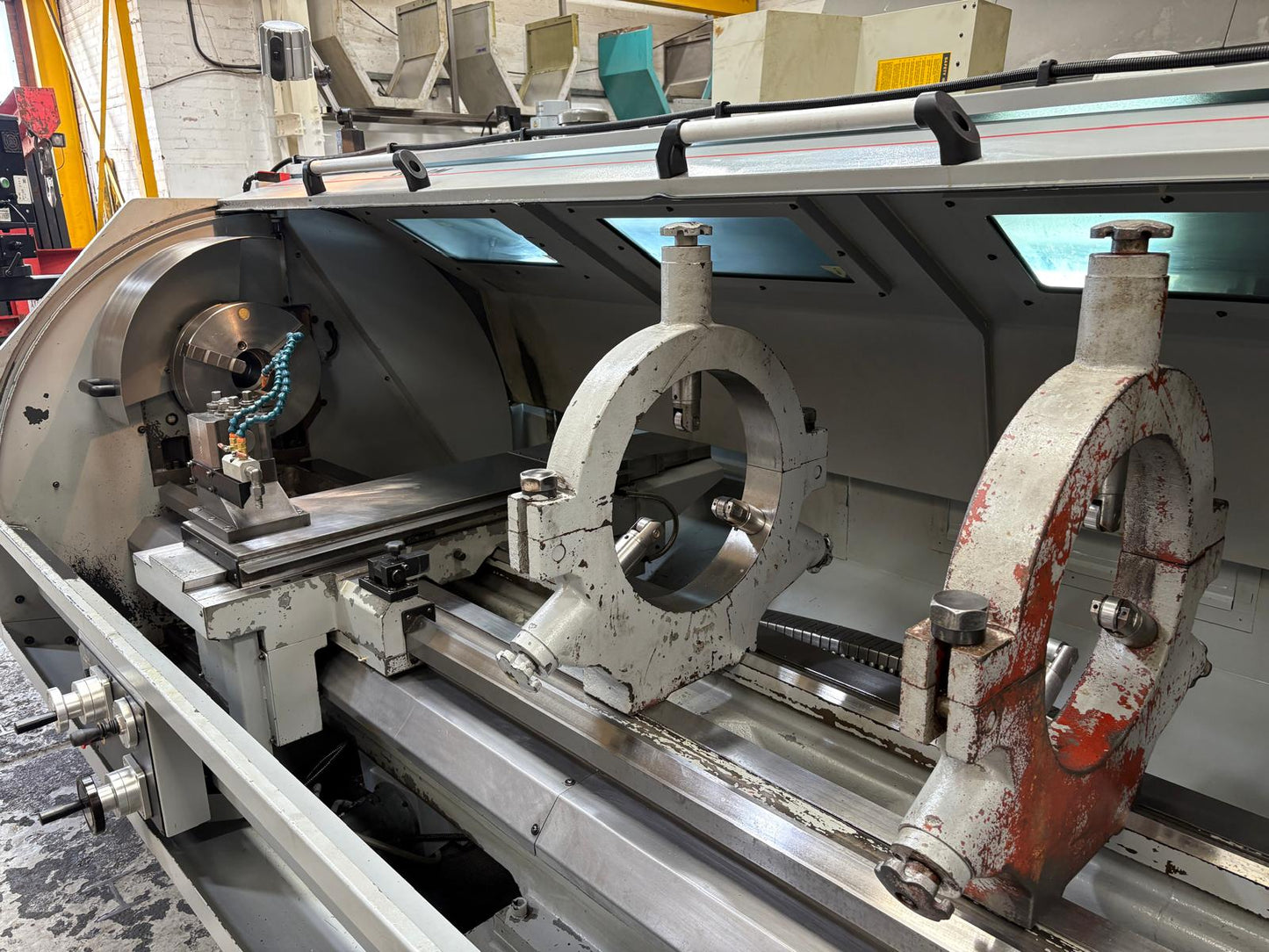

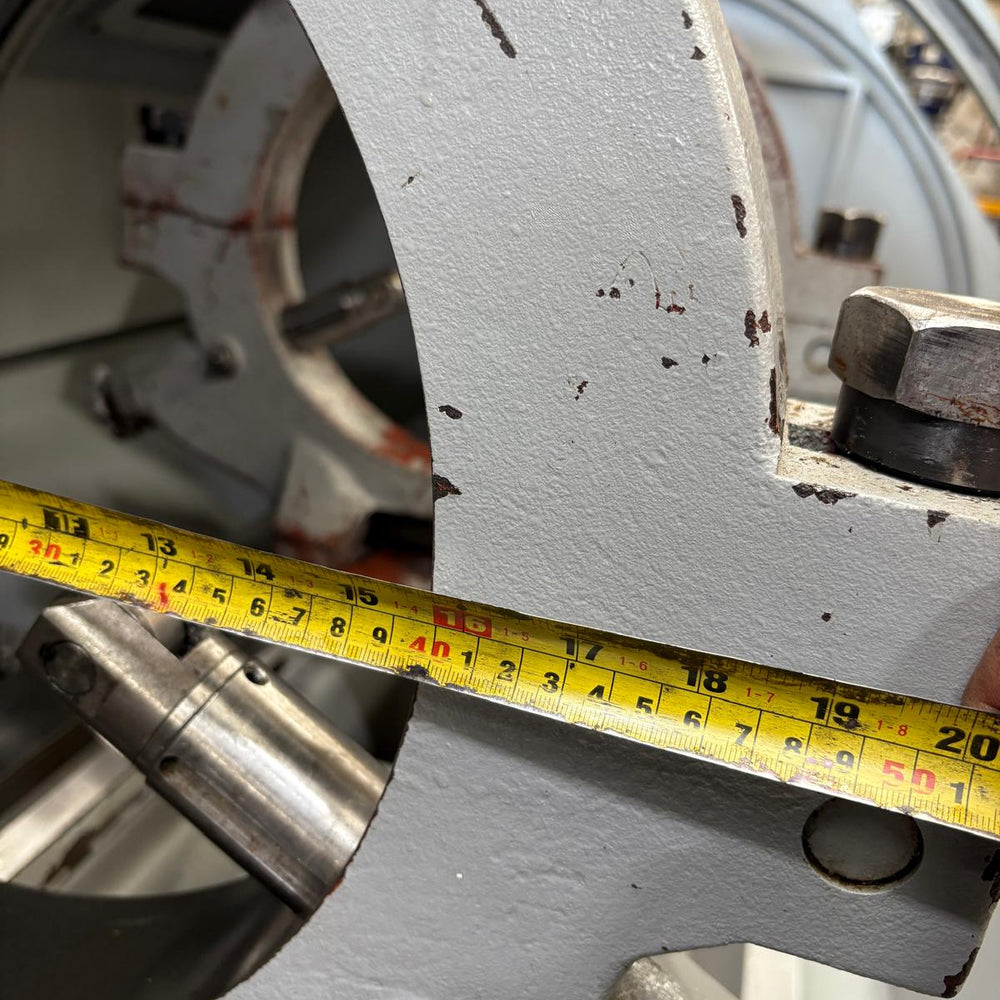

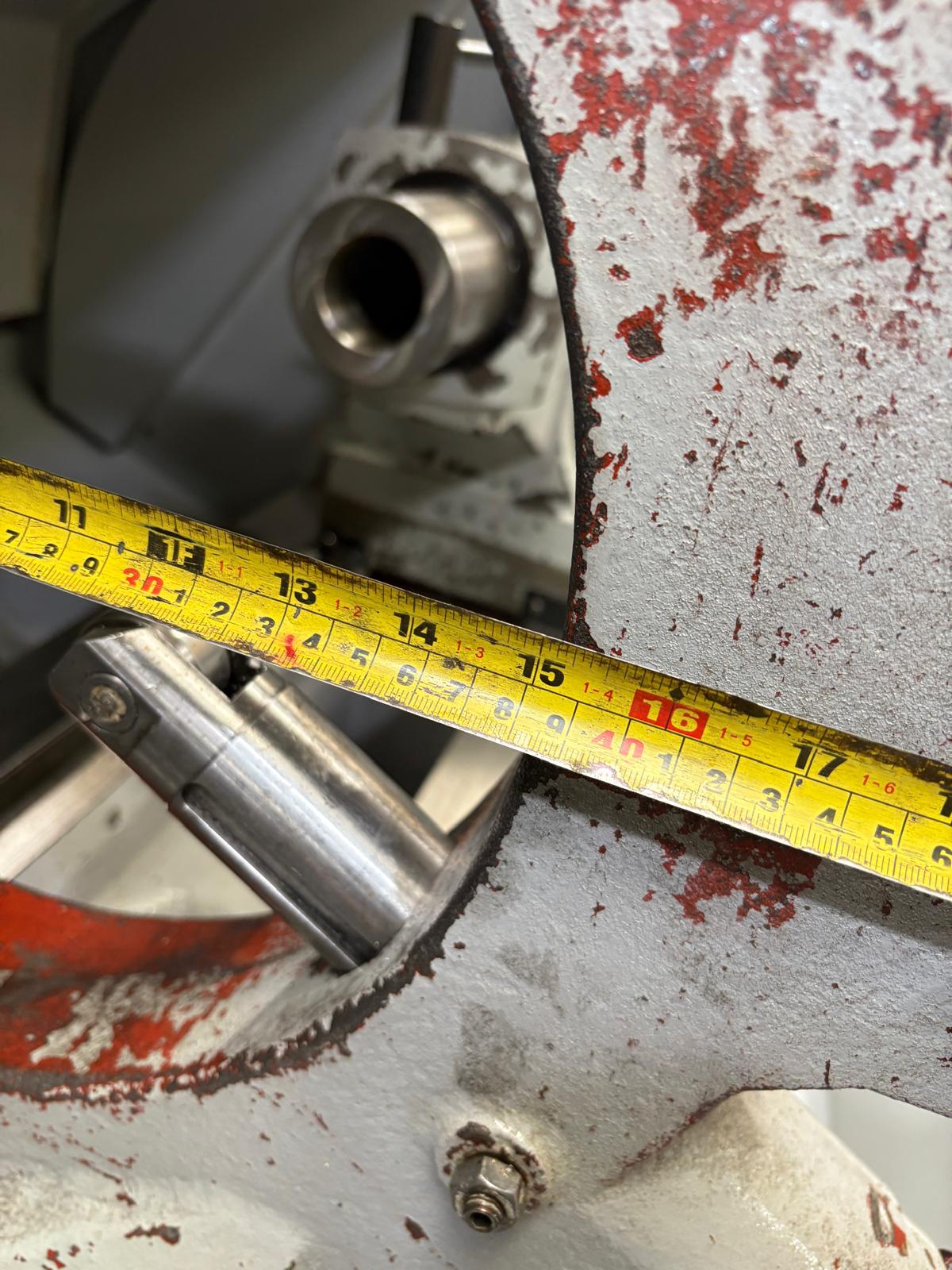

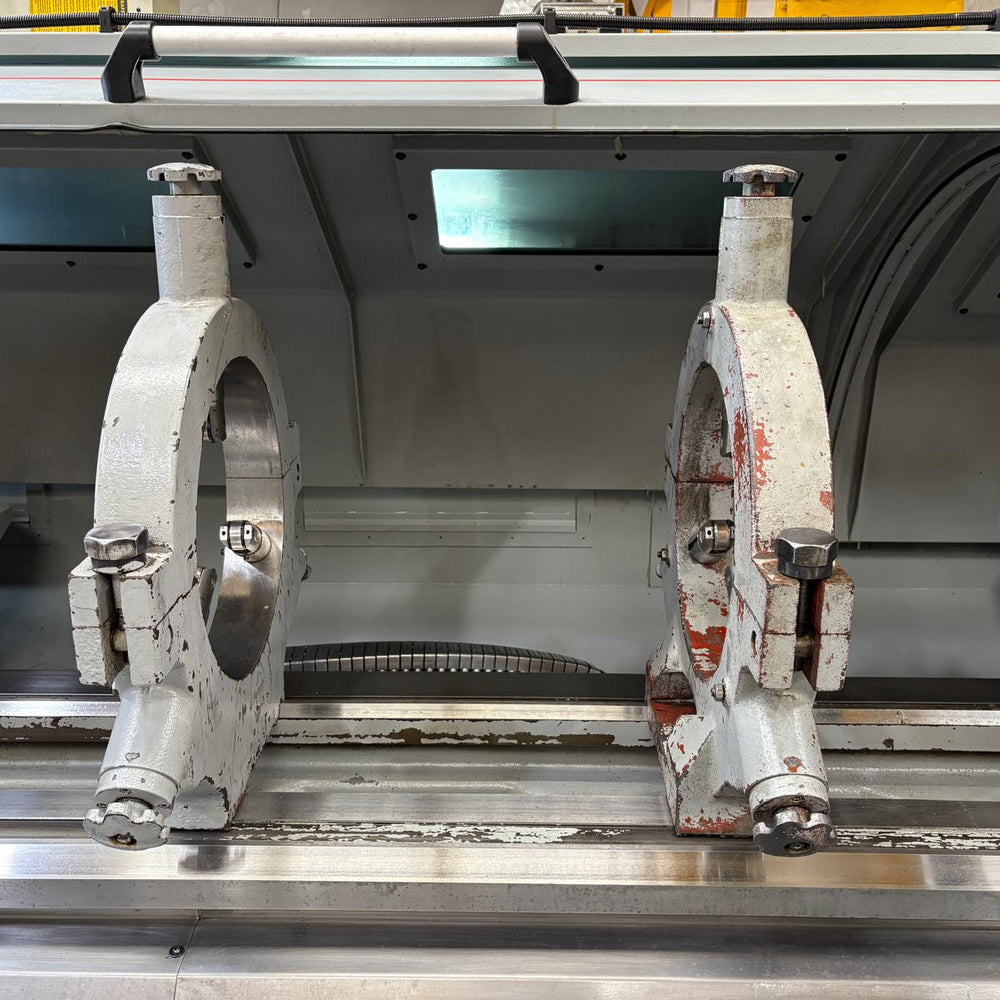

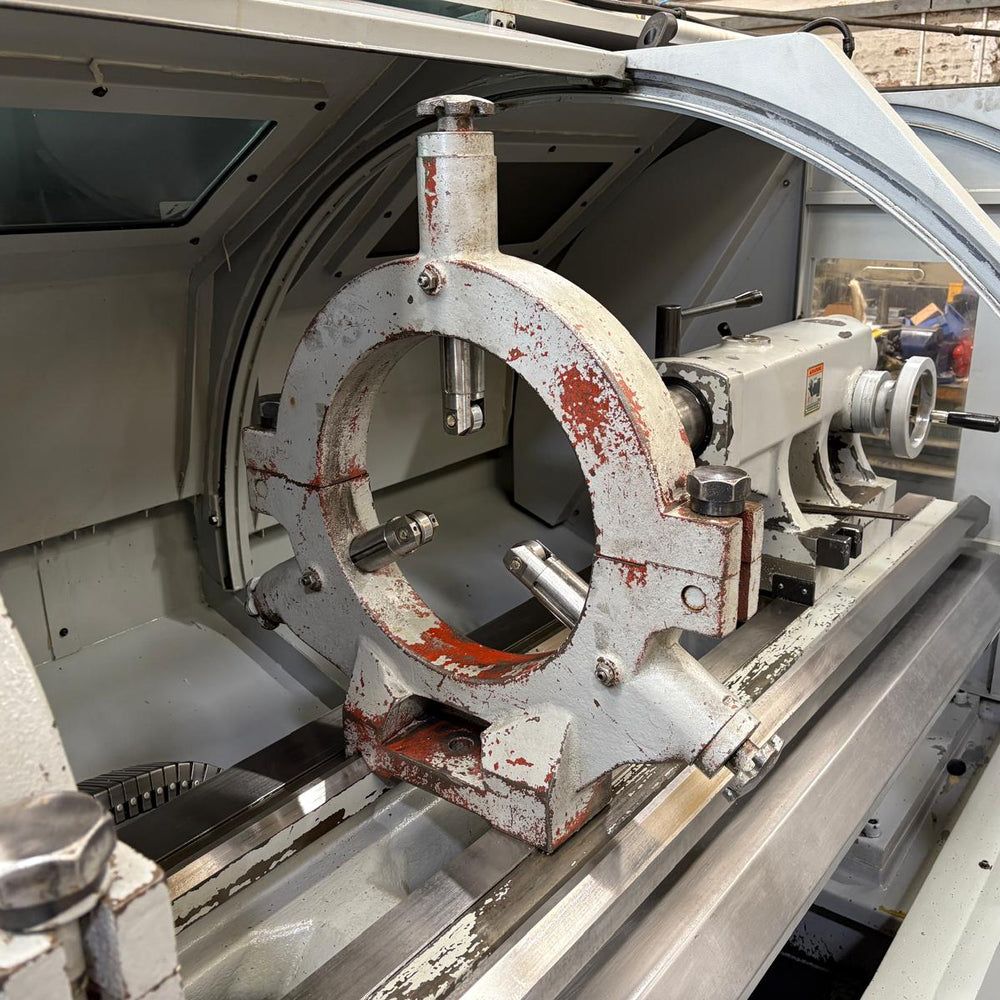

2 x Fixed Stead Rests. 15”.

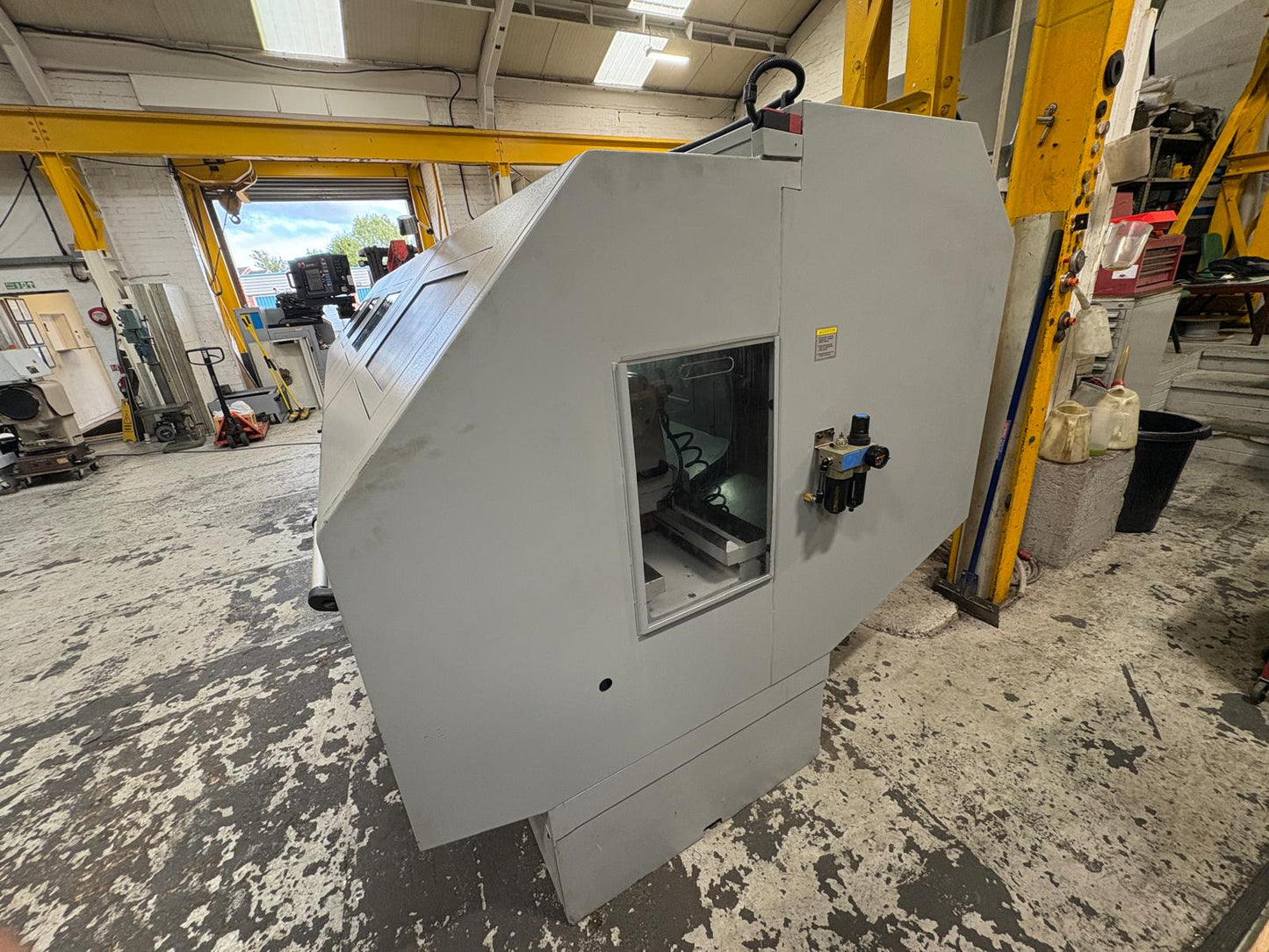

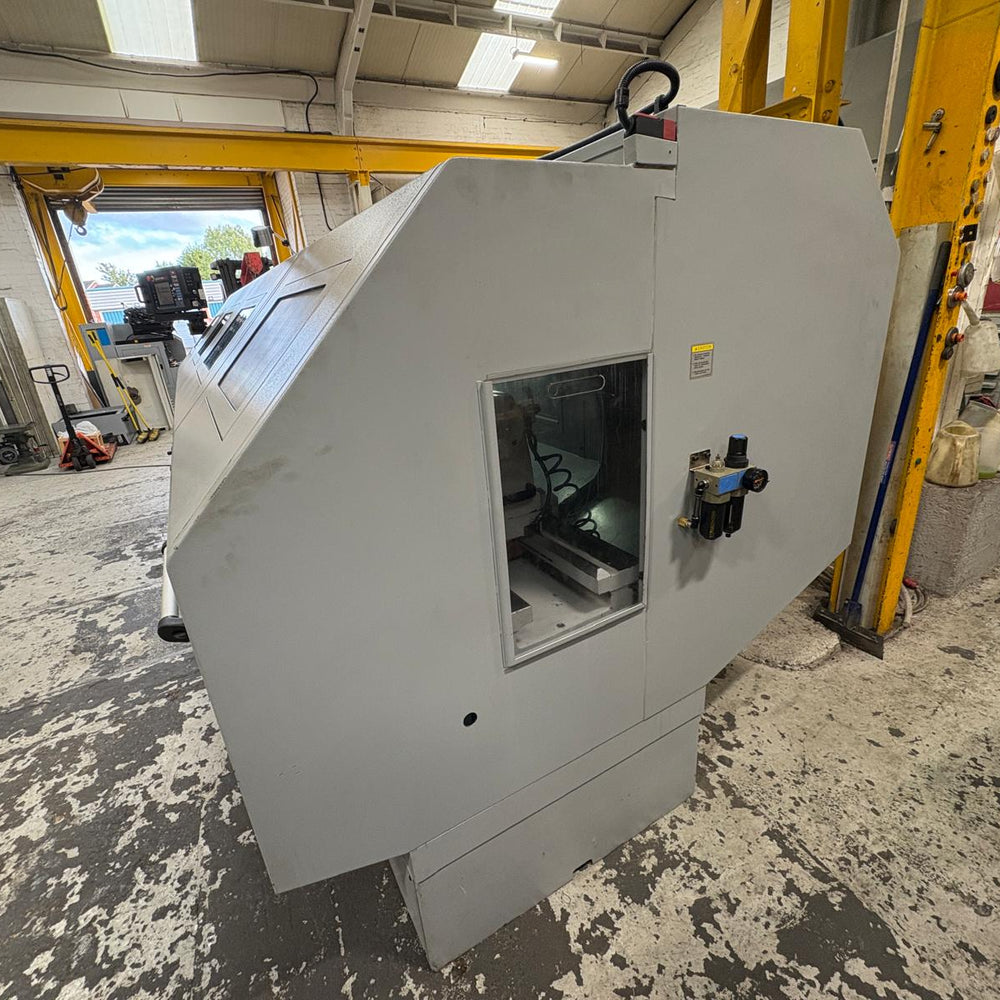

Interlocking Guards
Auto Lubrication.
Coolant.
Worklight
We can offer delivery & installation, operater training and warranties.
*For sale with Jet Machinery Ltd*
Jet Machinery Stock No: #78999
