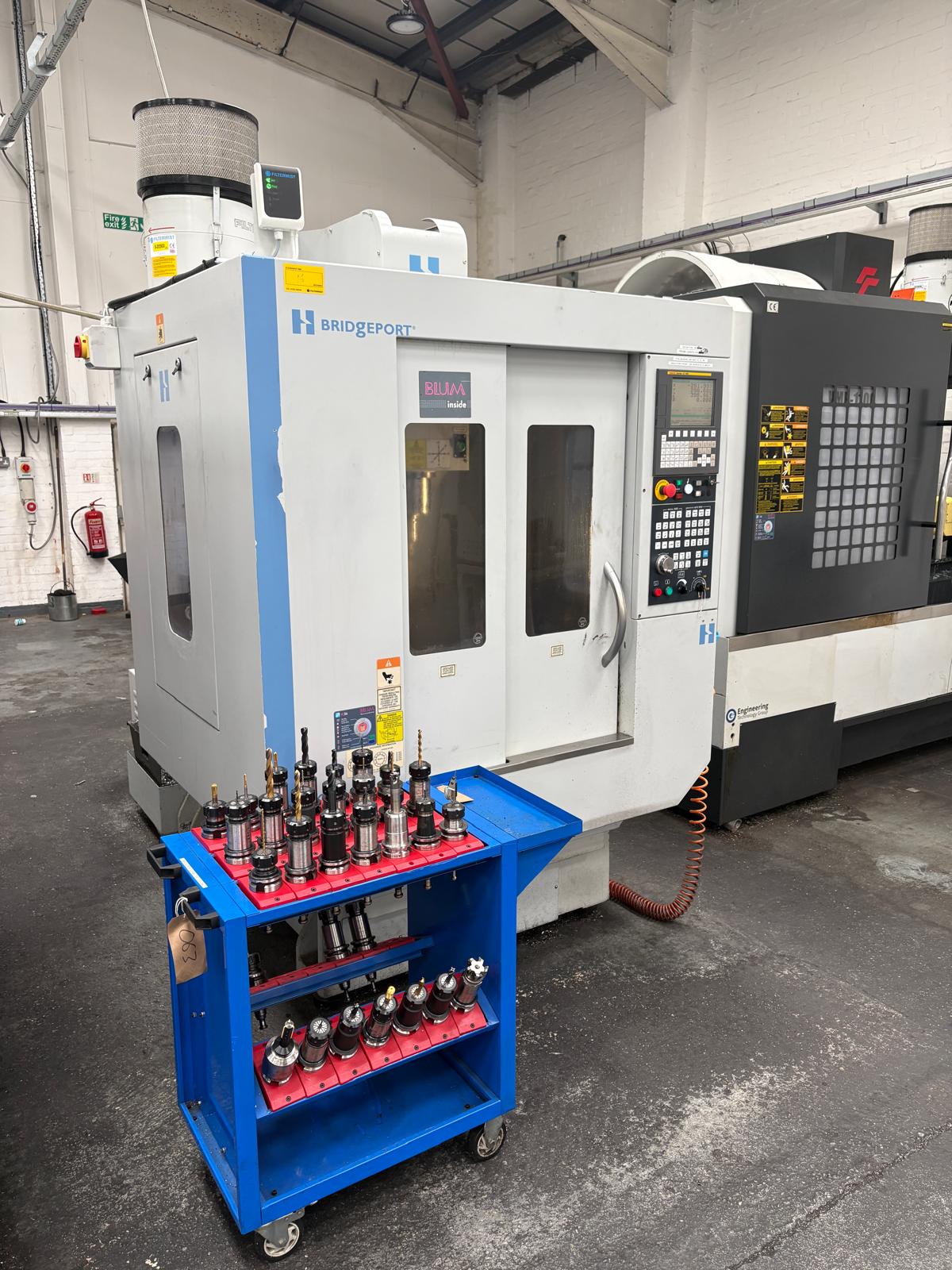

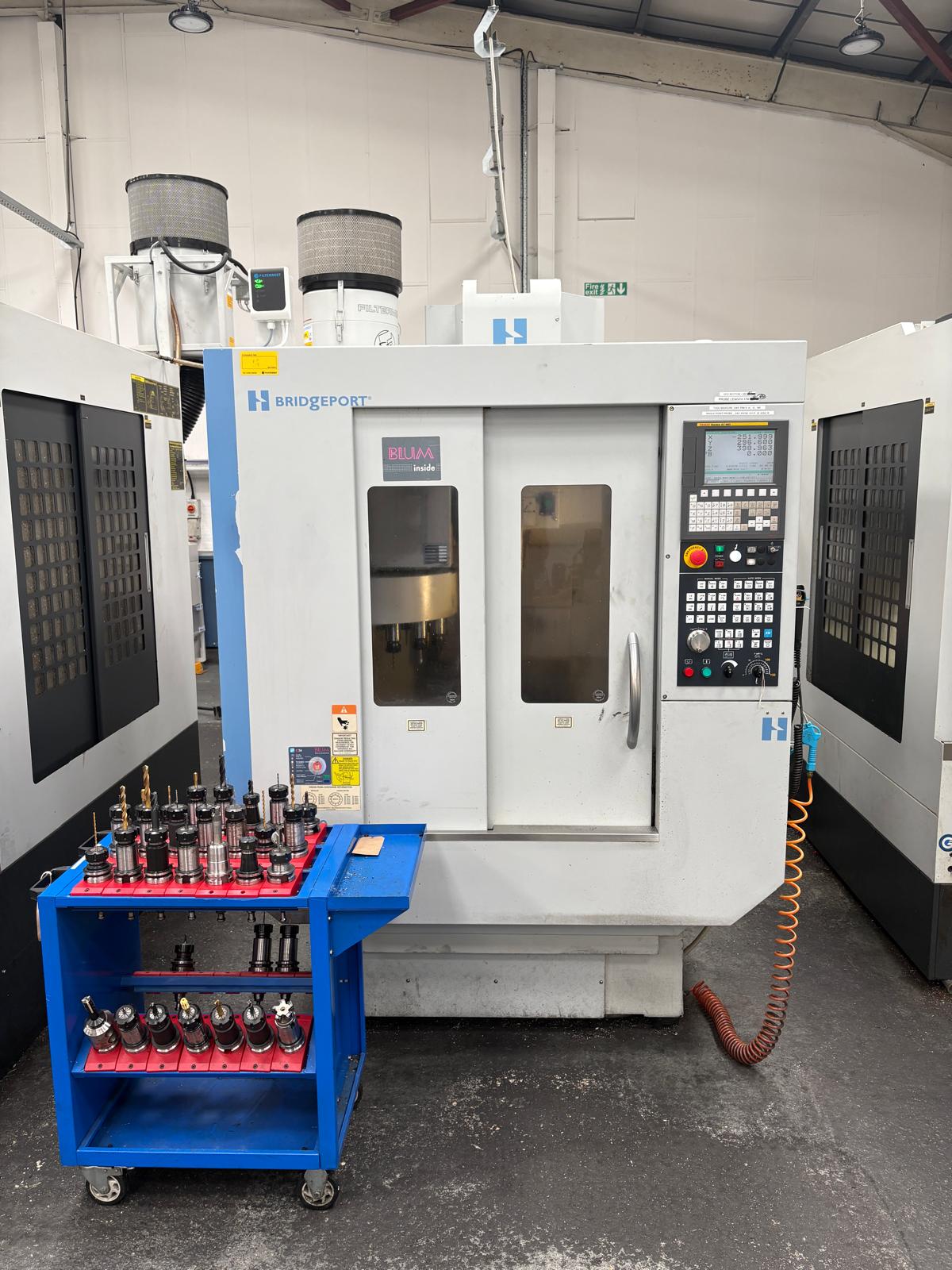

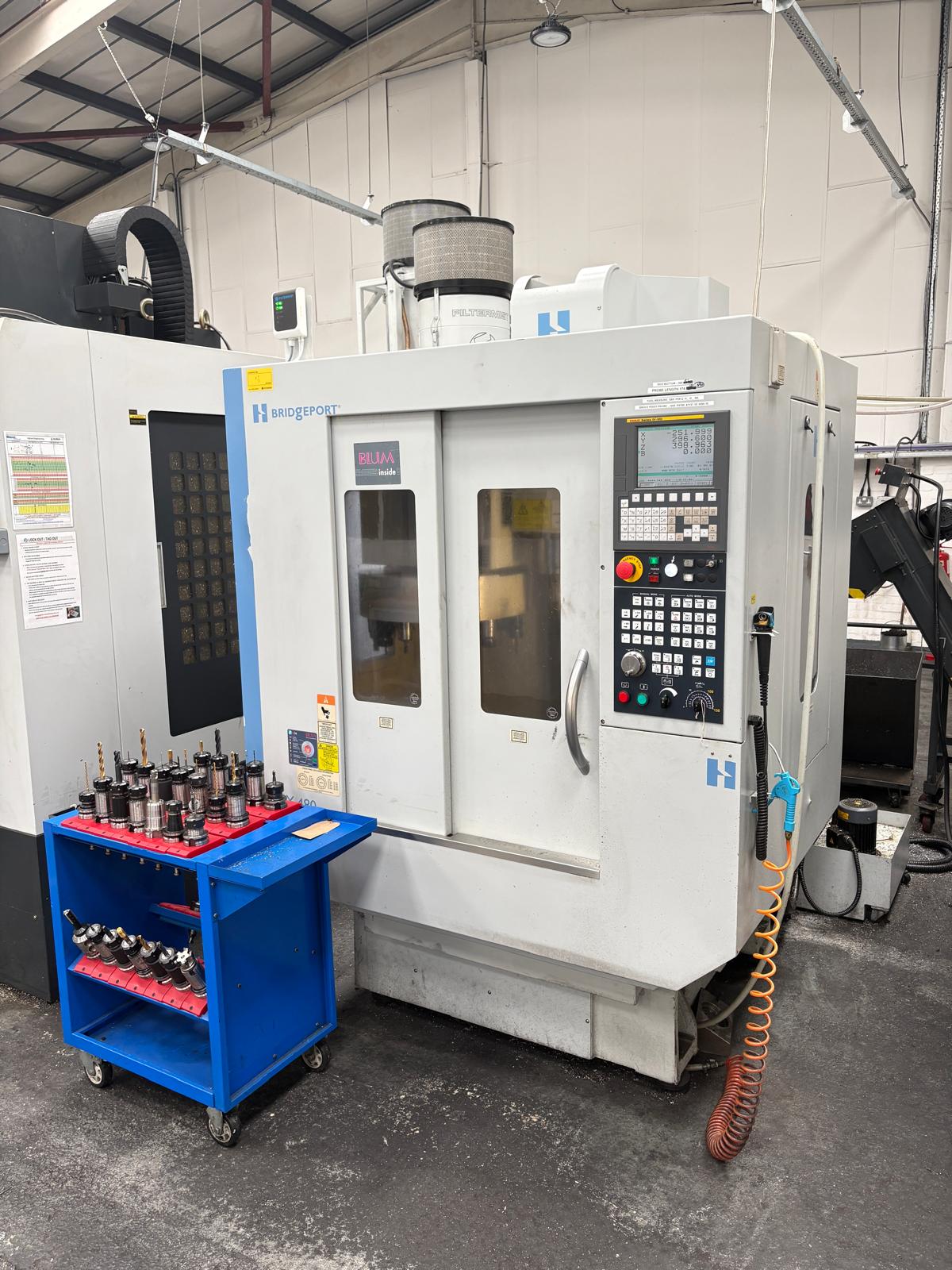

HARDINGE GX 480 CNC Vertical Machining Centre
Year 2015

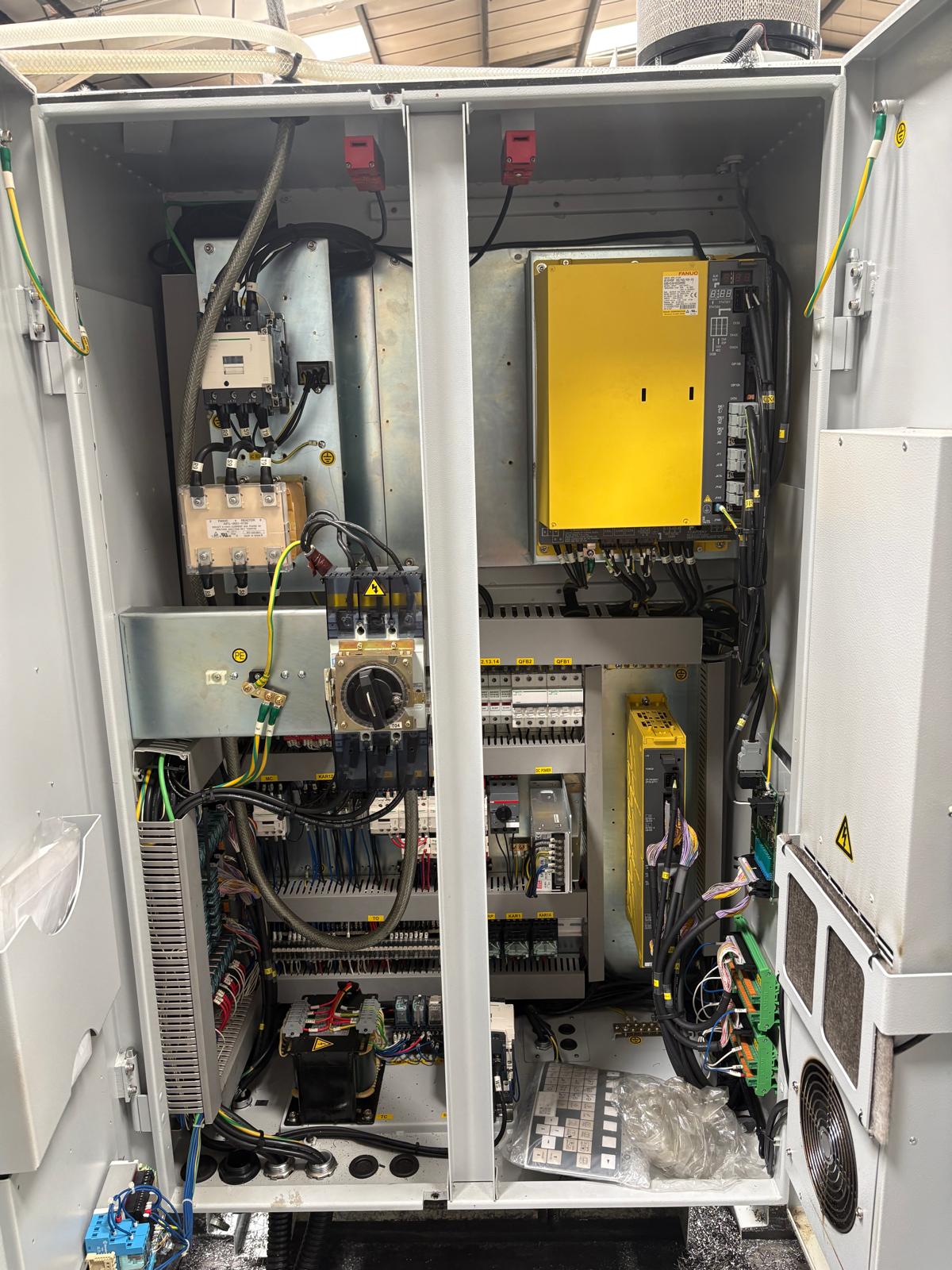

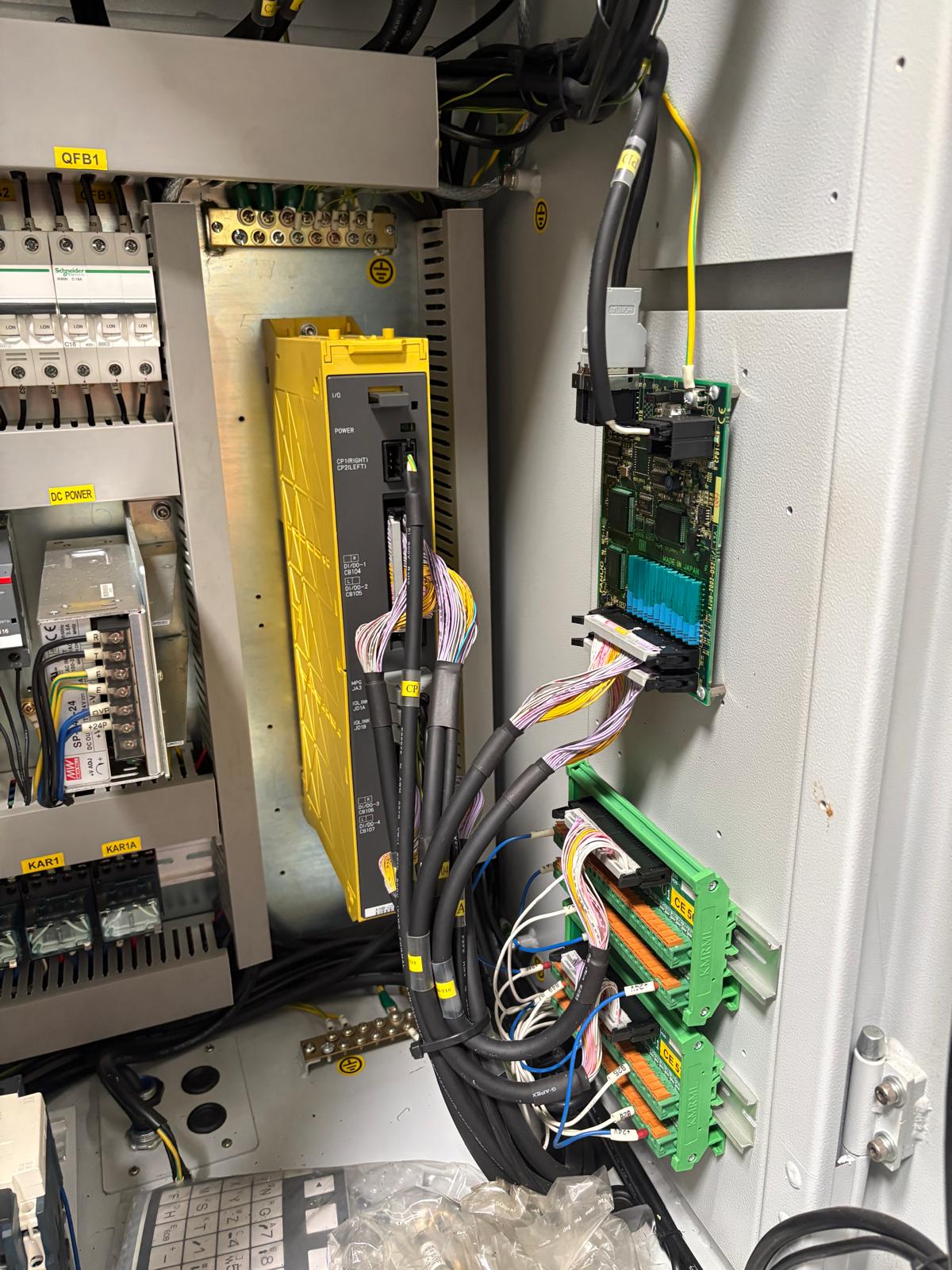

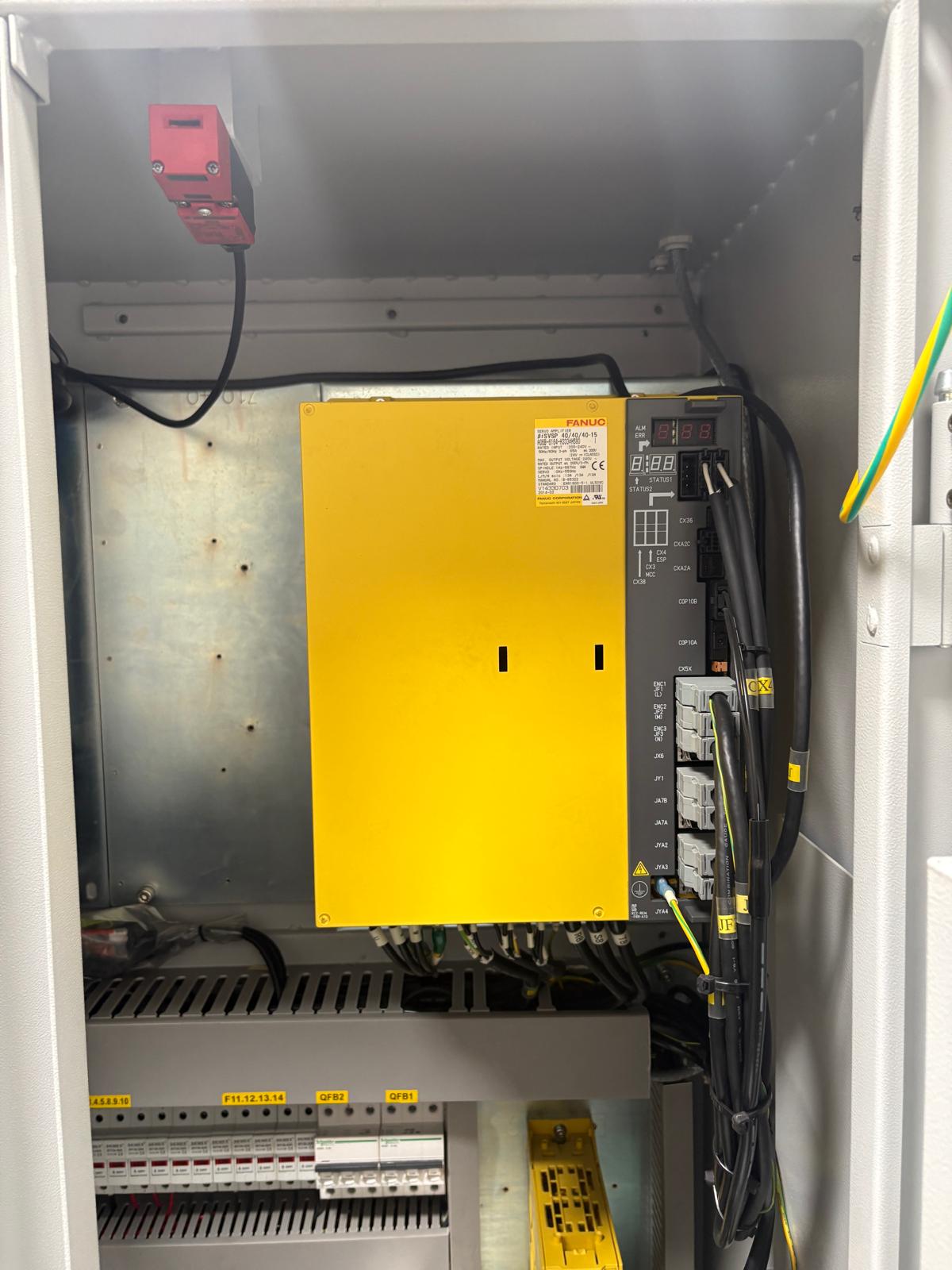

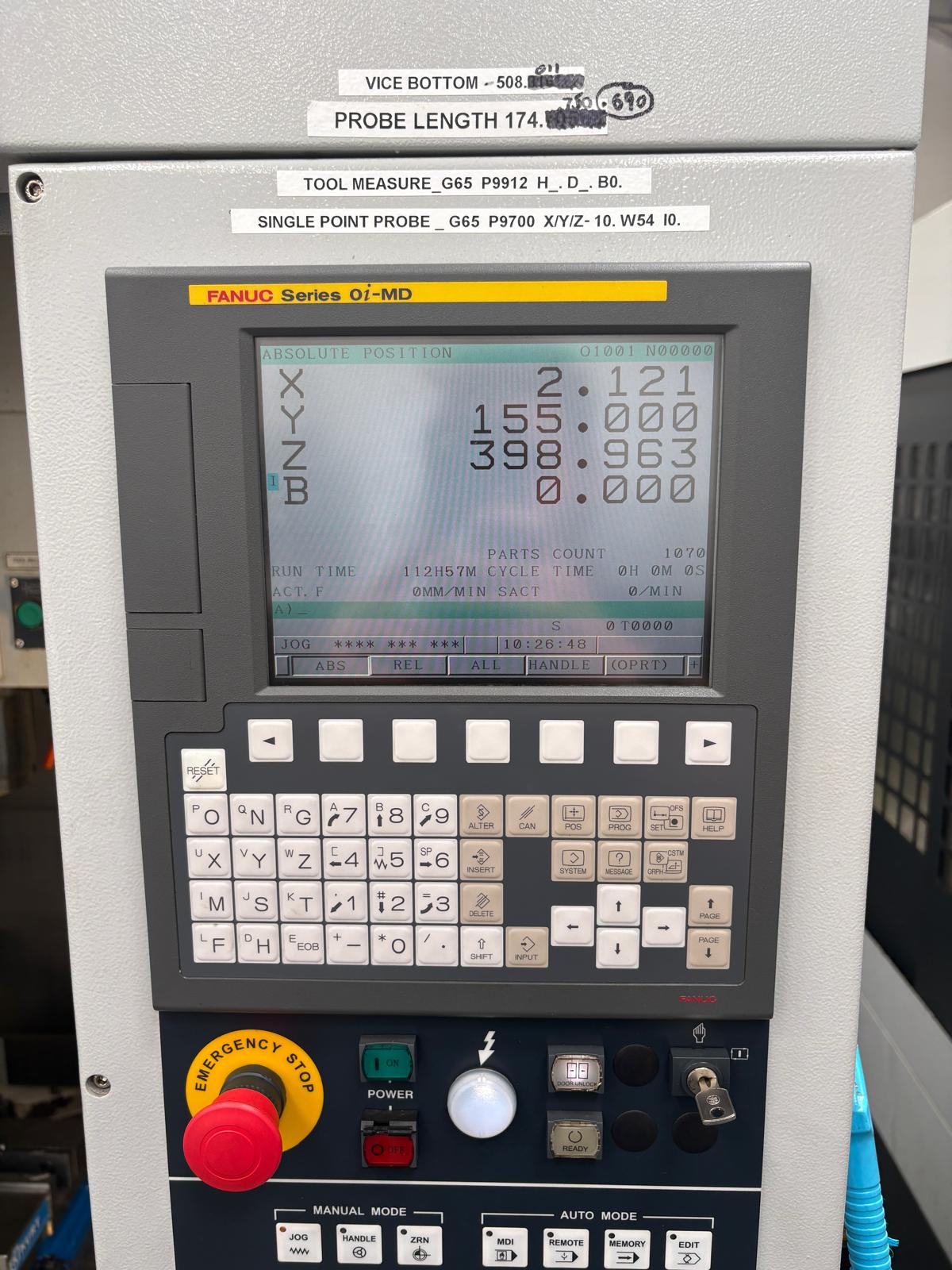

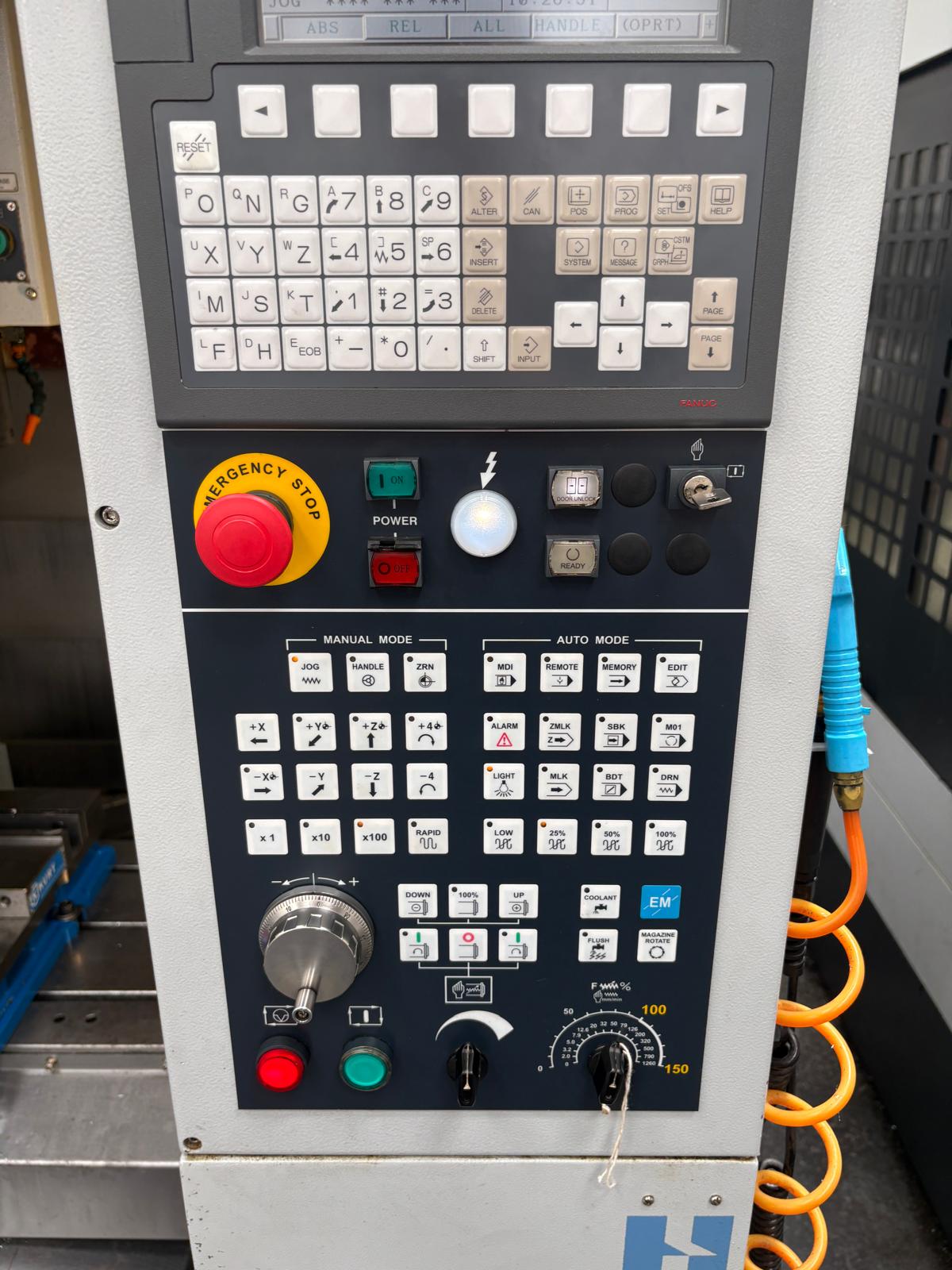

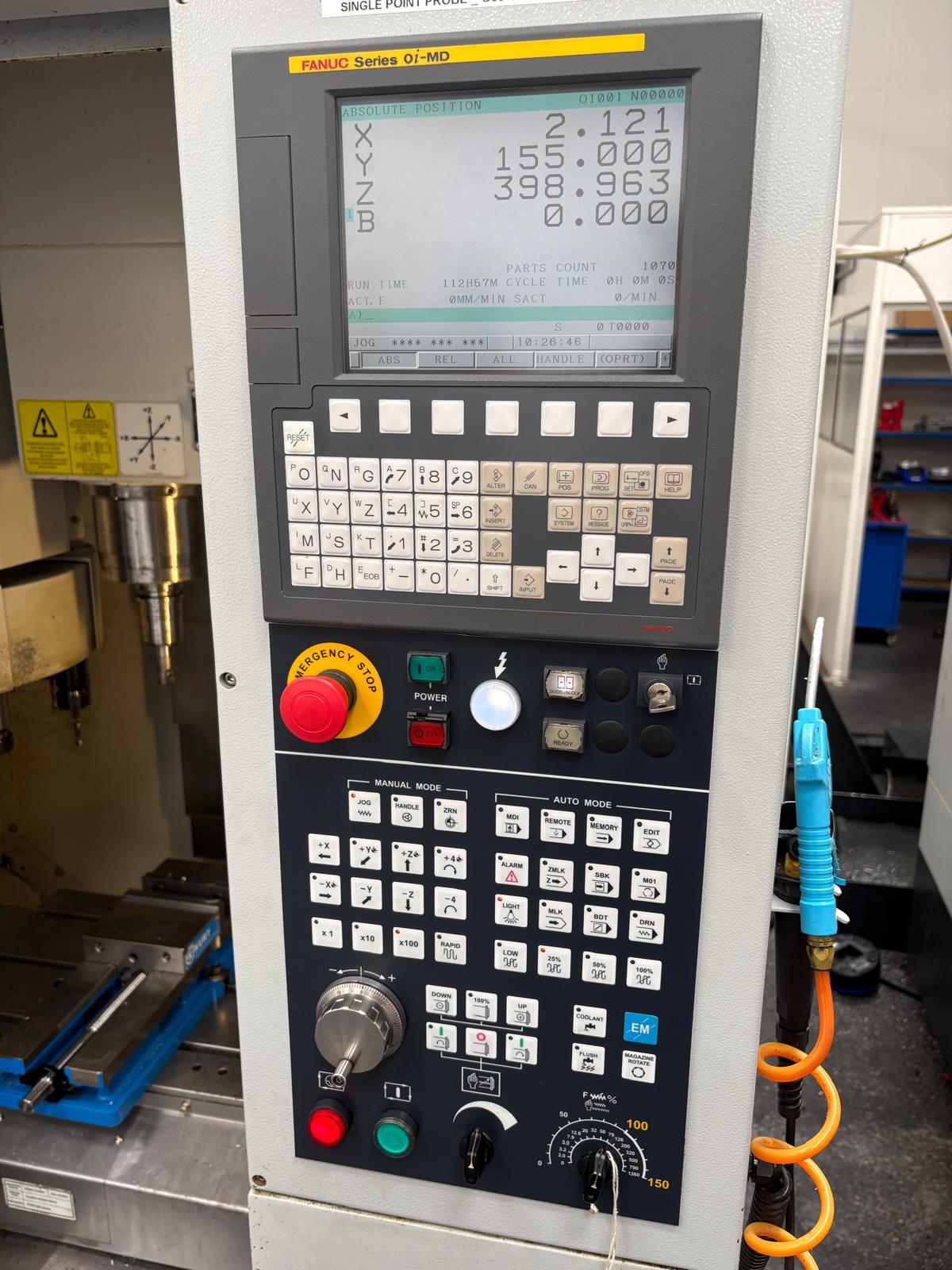

Control FANUC Oi-MD

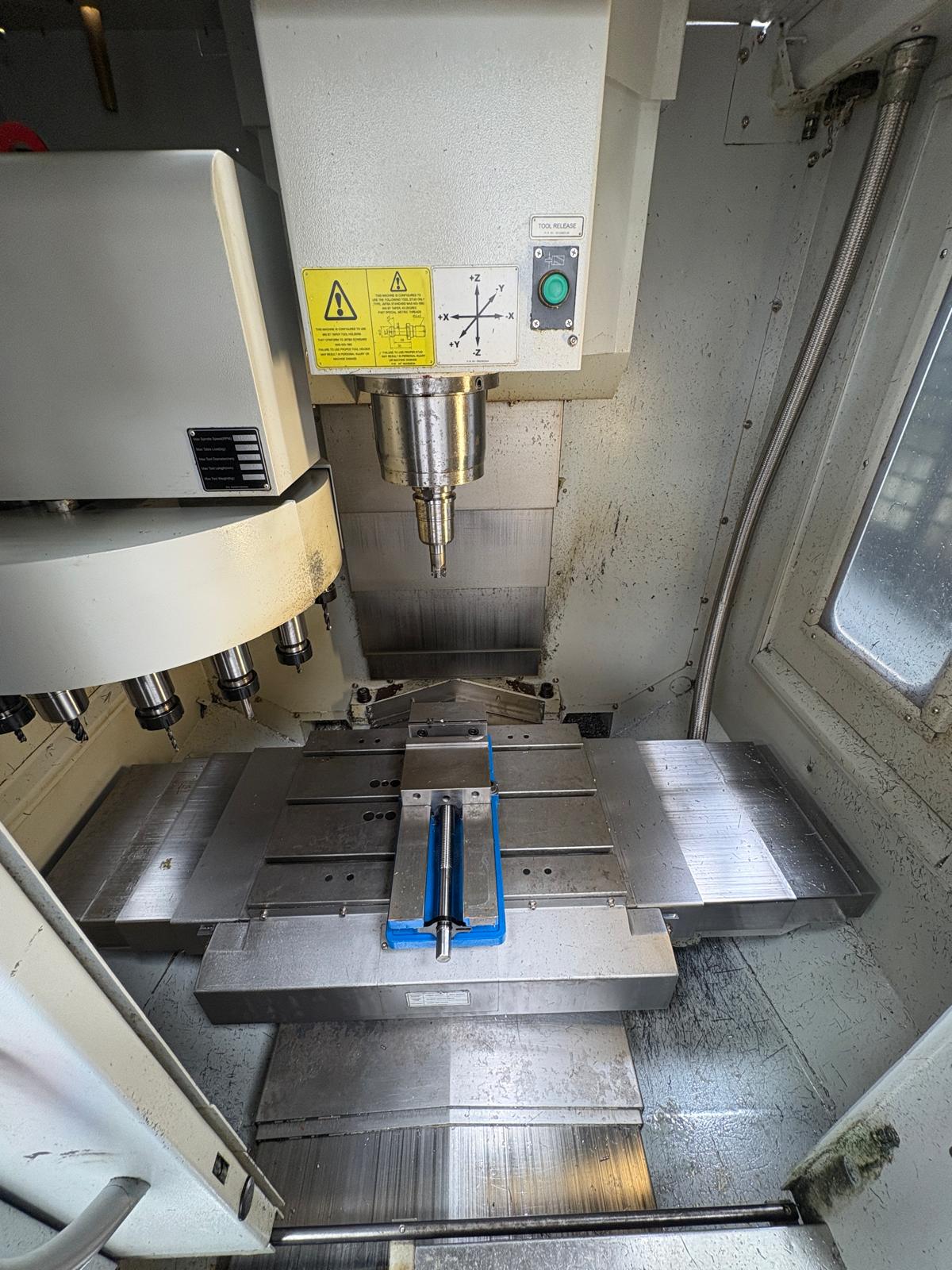

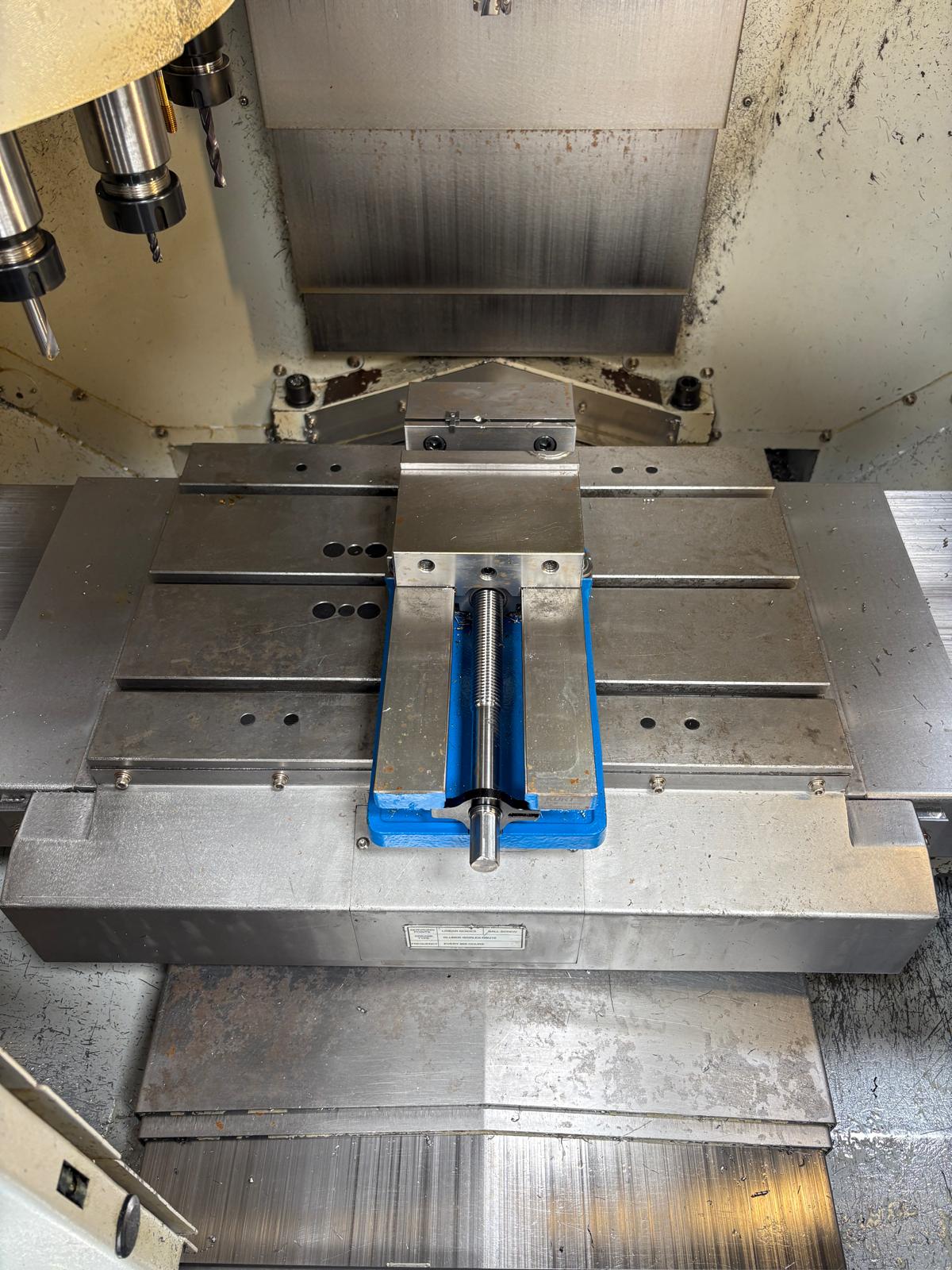

Table size 600 x 400 mm
Table load 300 kg
Travels XYZ 480 x 400 x 430 mm
Spindle nose to table 150 - 580 mm
Spindle speeds to 10000 rpm

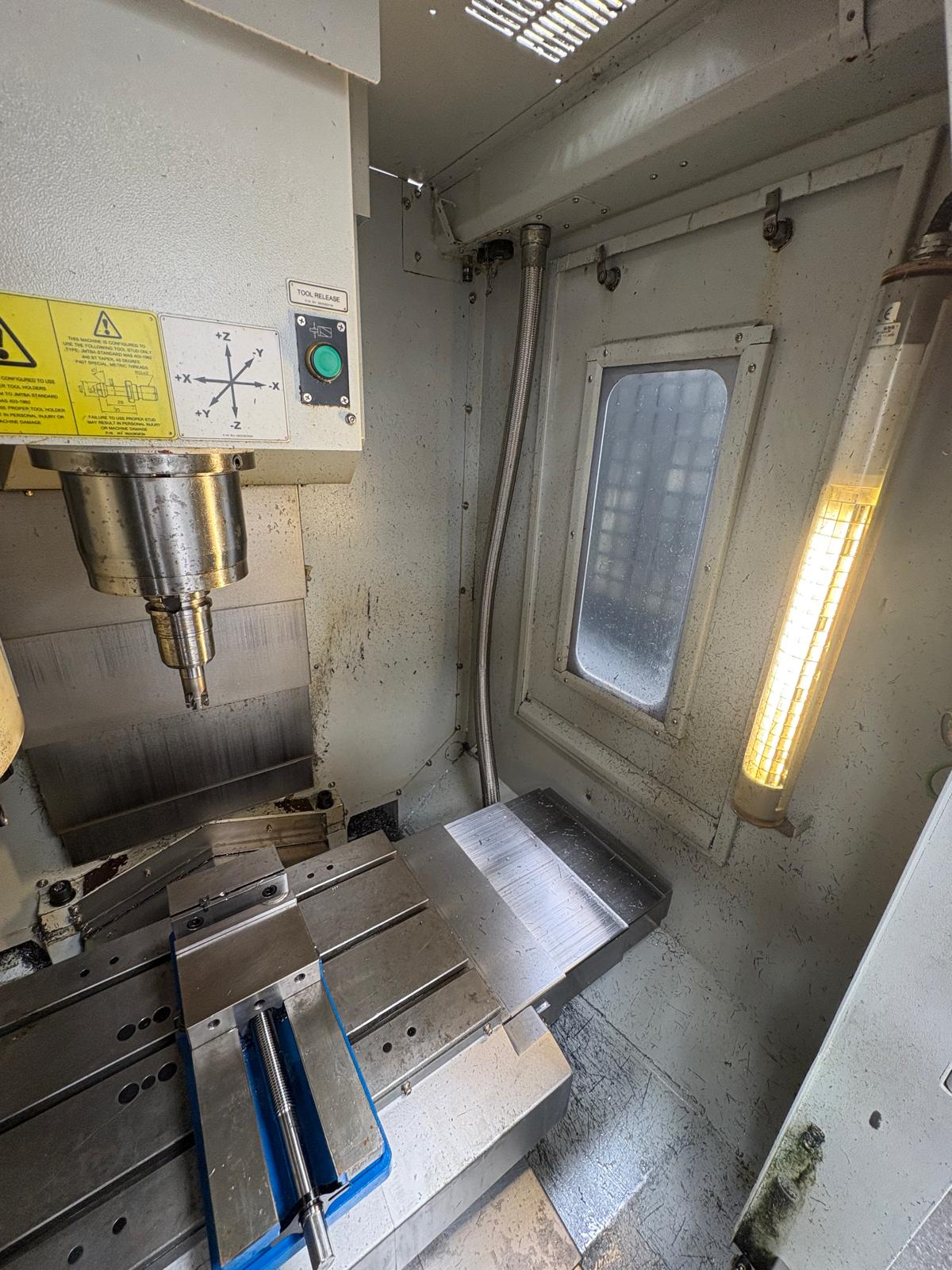

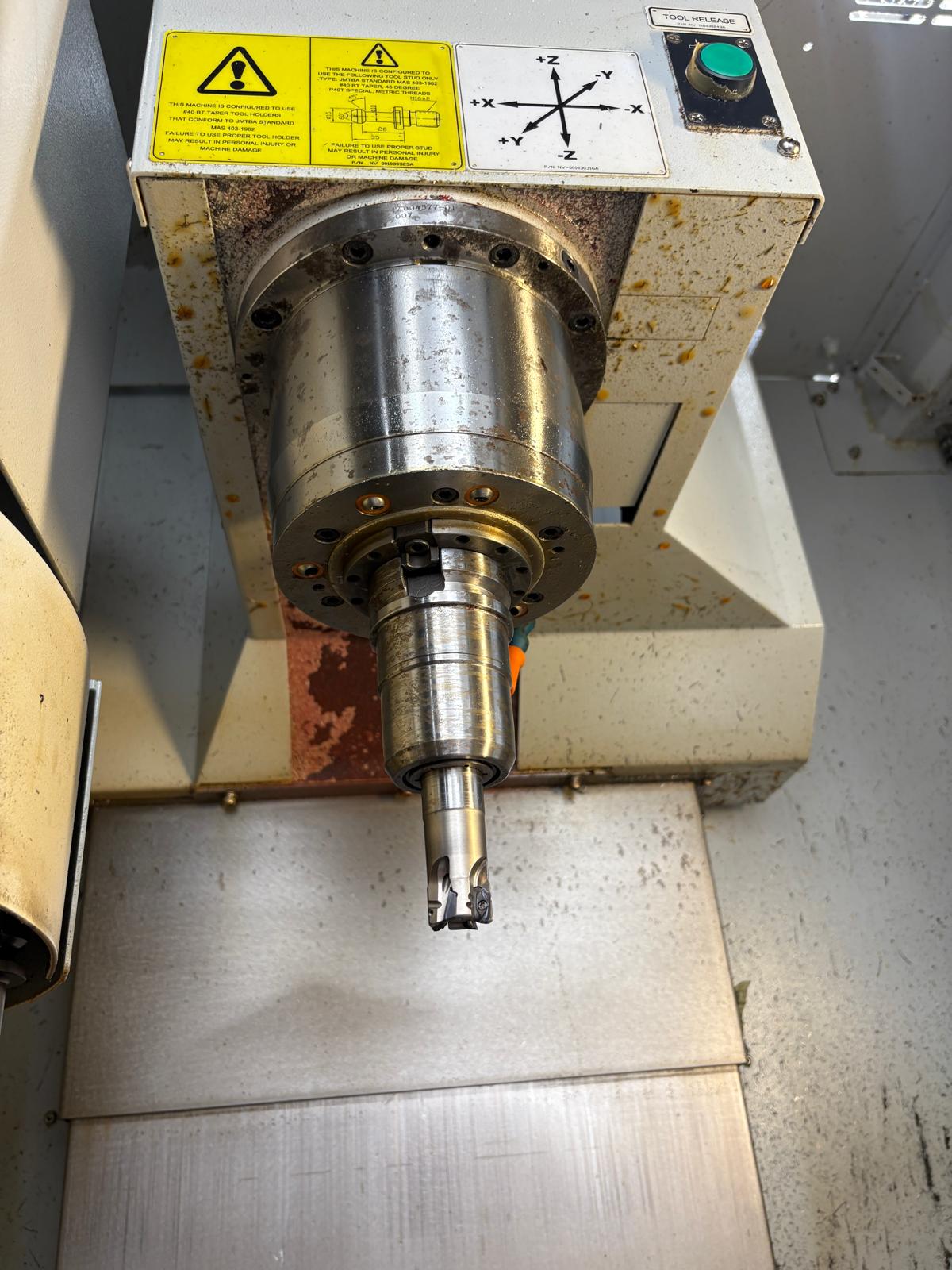

Spindle taper BT40
Spindle motor 15 kW (20 HP)
Spindle torque 47.7 Nm @ 1500 rpm
Number of tools 20 ATC

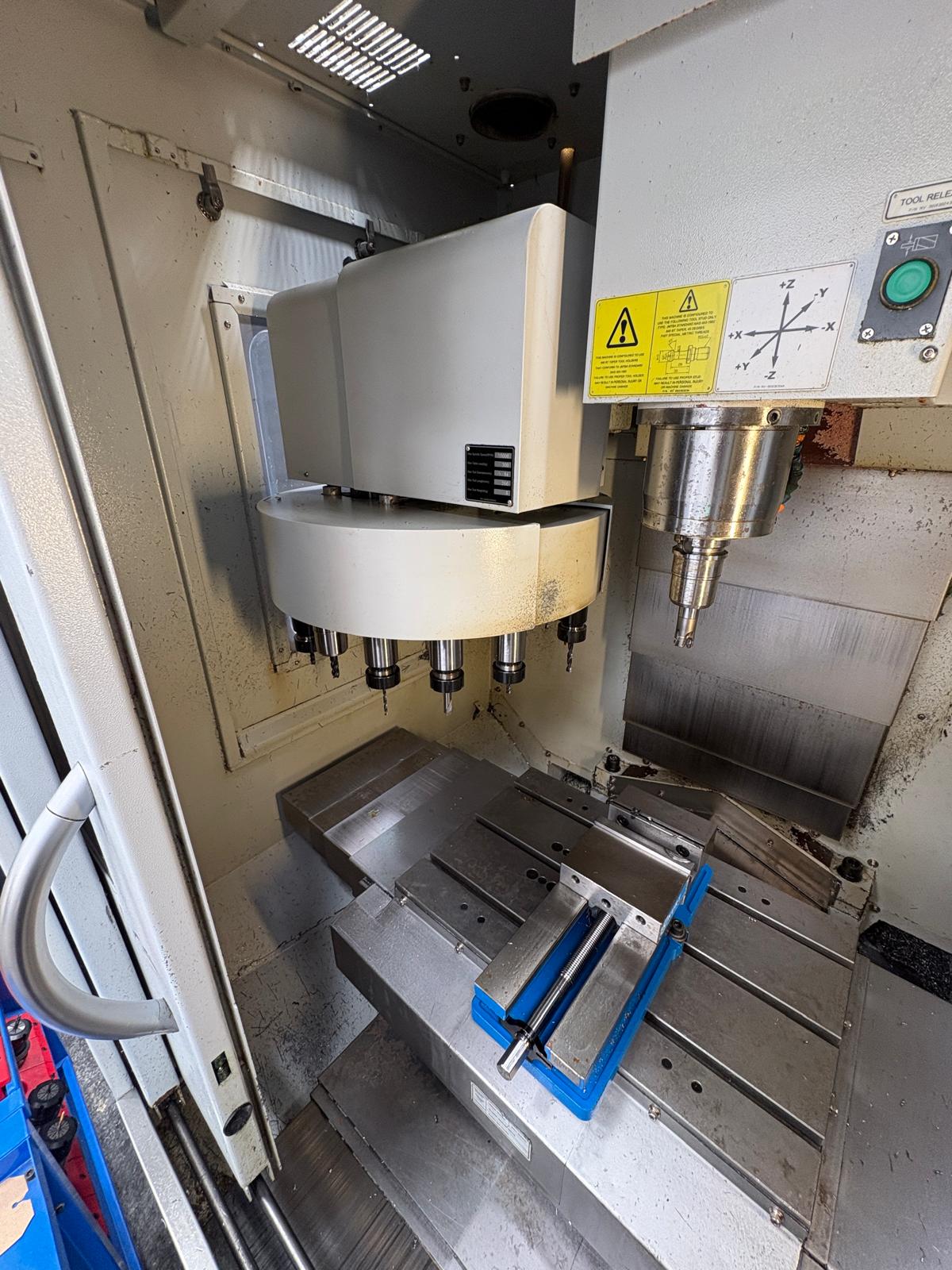

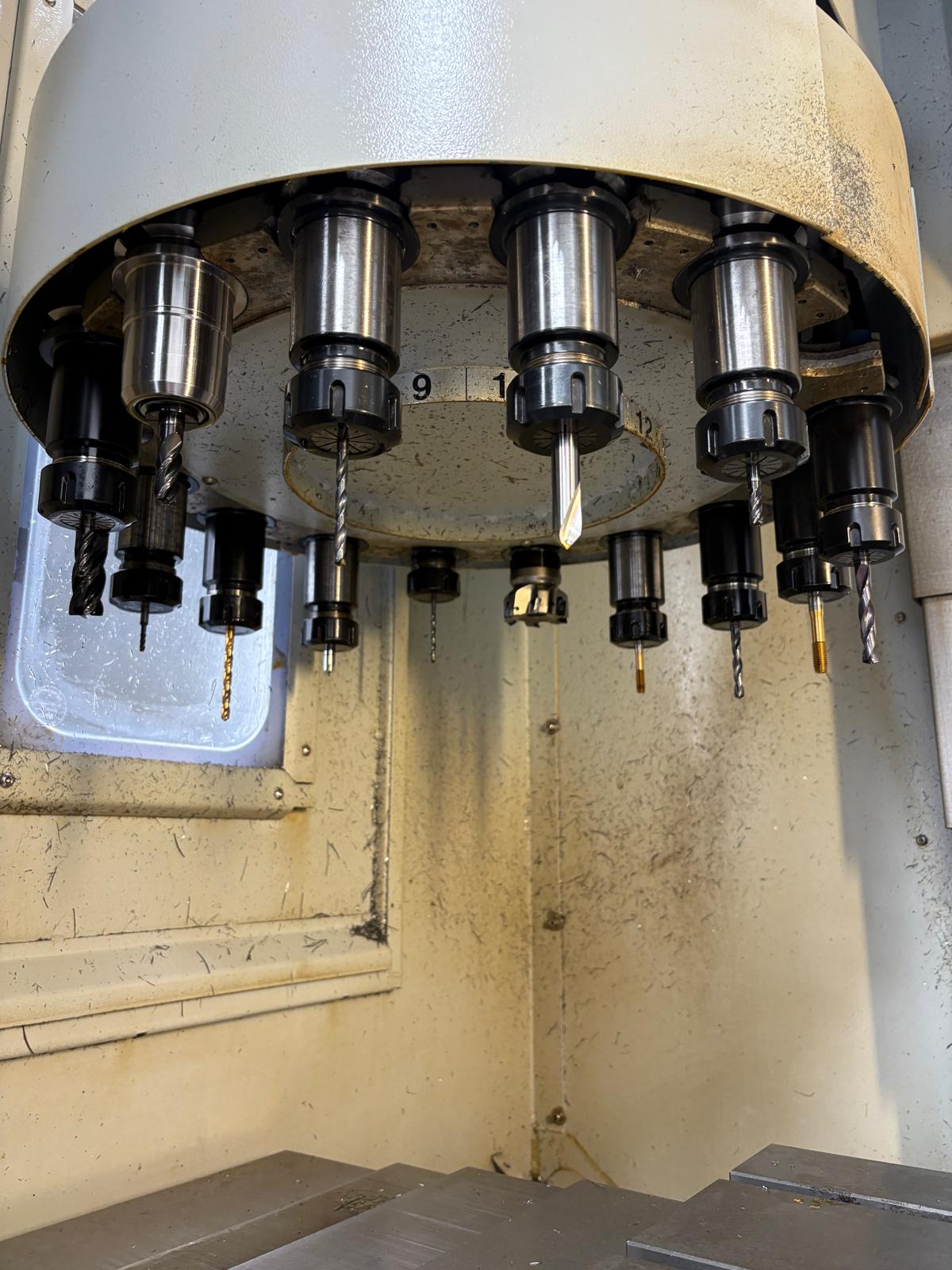

ATC type Umbrella Type
Rapid traverse X, Y, Z 36 m/min
Feed rate 0.004 - 23.2 m/min
Coolant tank capacity 120 litres
Power requirement 415V / 3 Phase / 50Hz
Installed power 20 kW
Machine FLA 35A
Weight 3800 kg
Footprint 1575 x 2168 x 2088 mm (W x D x H)
Supplied with:

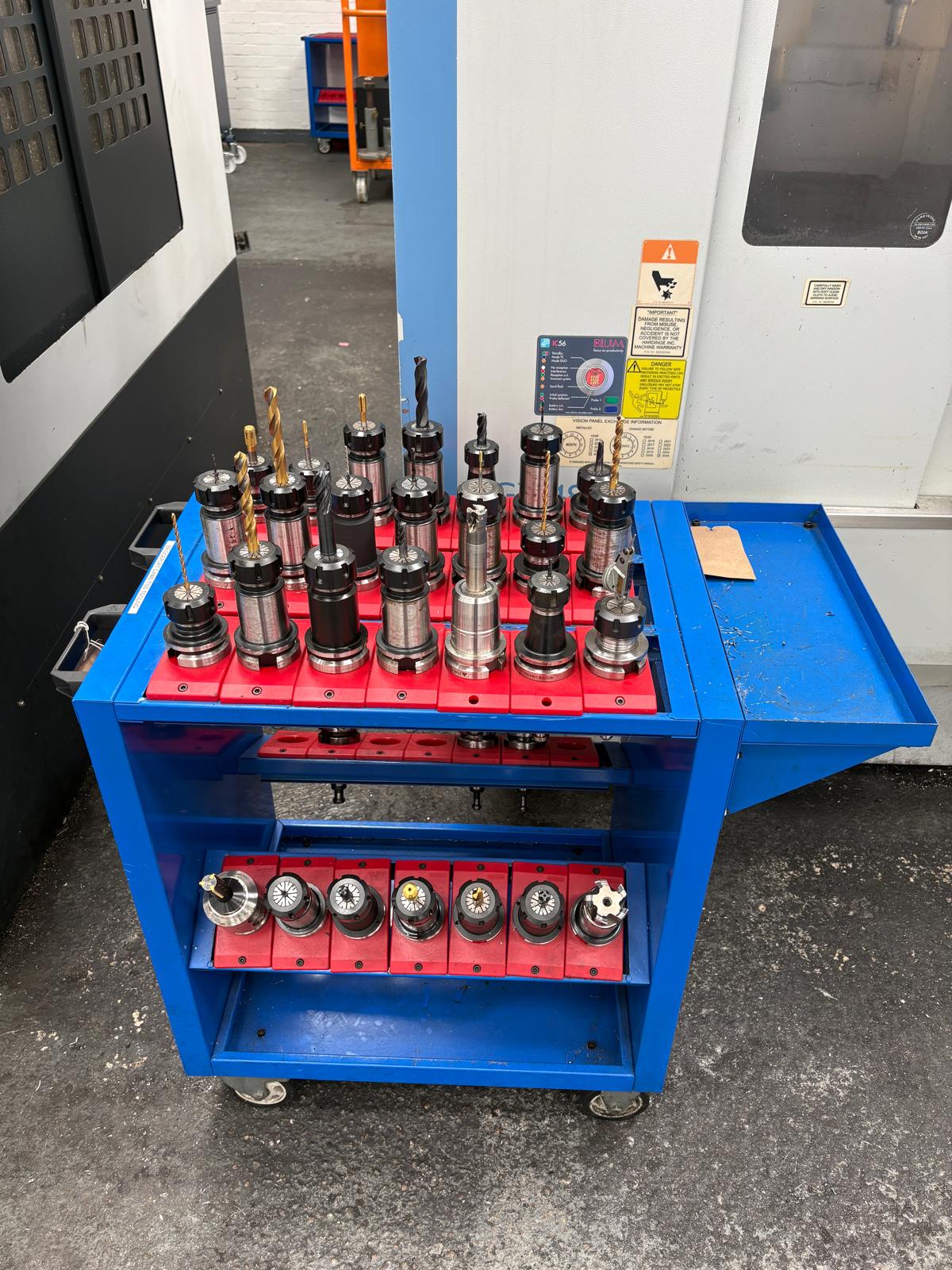

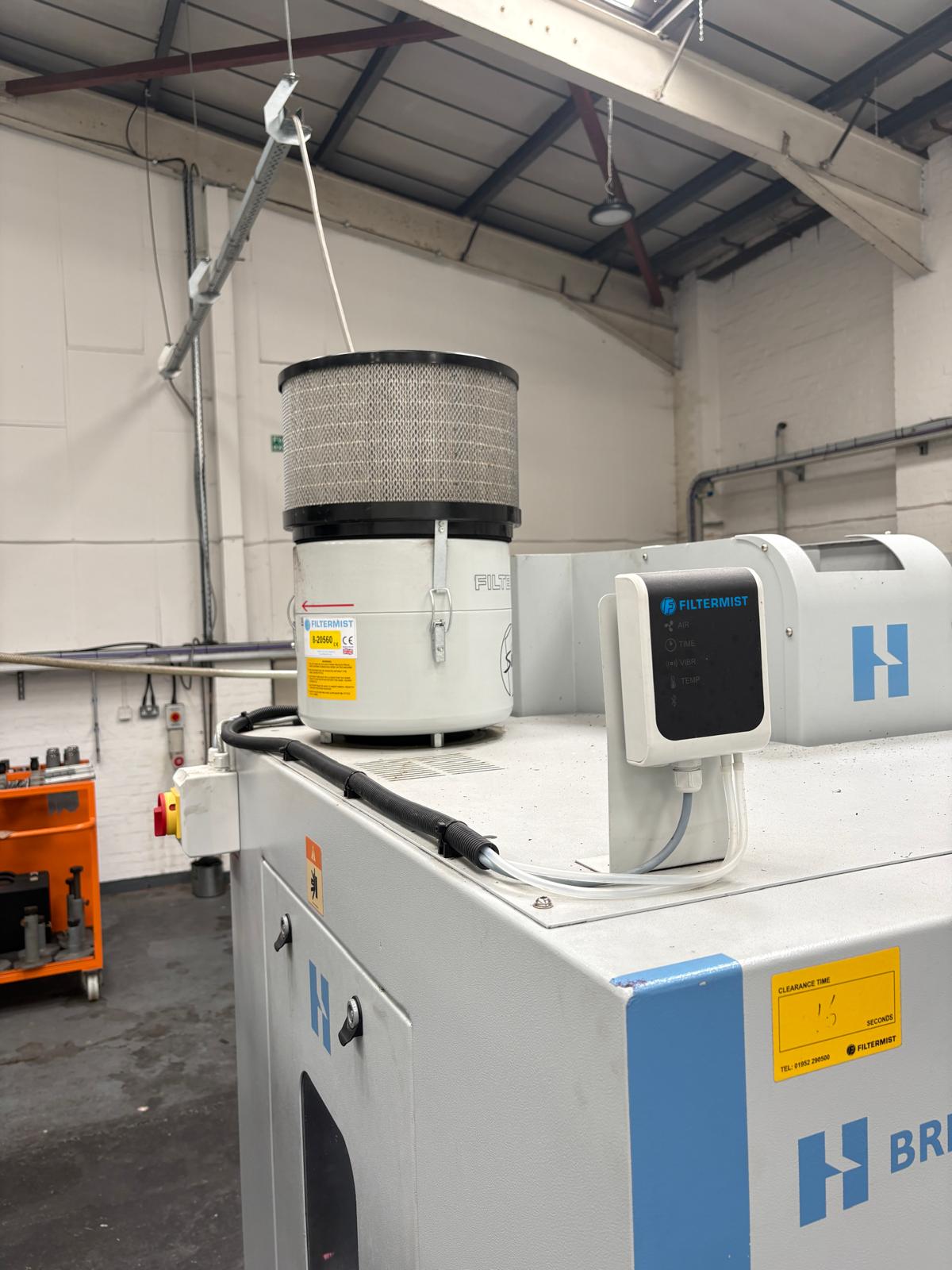

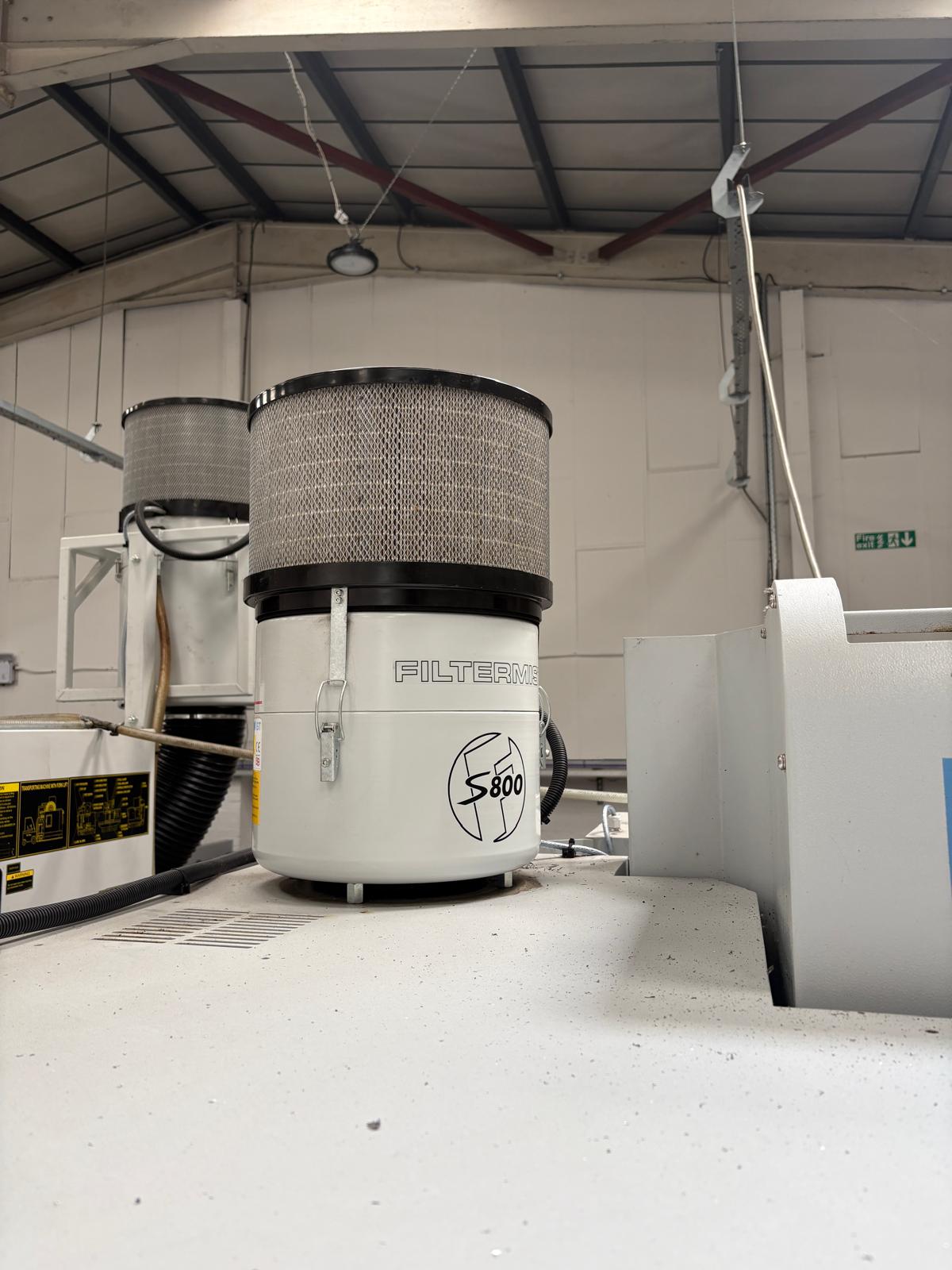

Filtermist Extraction Unit, Flood Coolant System, Tooling Package. 20 Position Umbrella Type Tool Changer, Fully Enclosed Guarding, CE Marked.
For sale with Jet Machinery Ltd
Jet Machinery Stock No: #27004

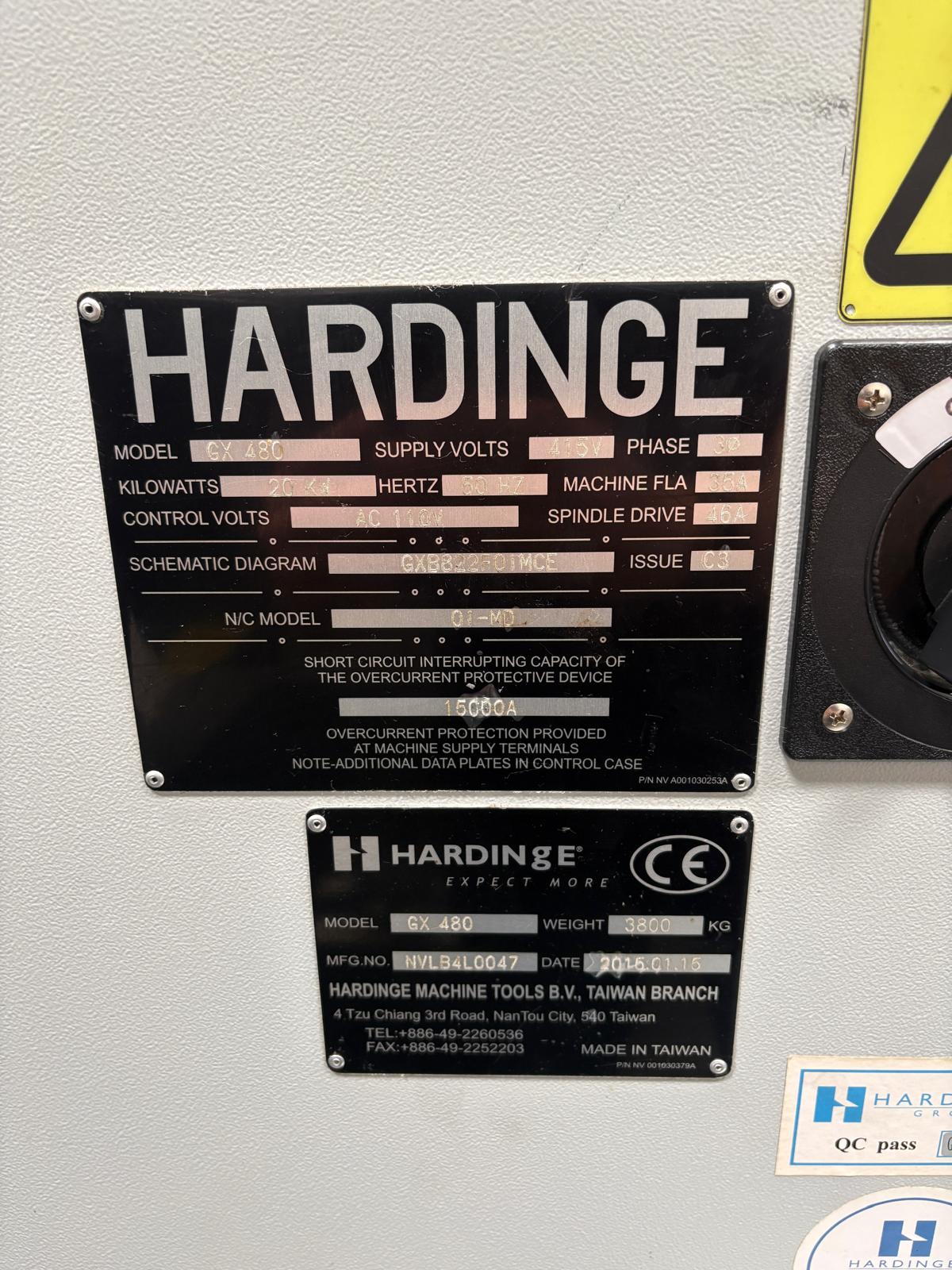

Machine Serial Number: NVLB4L0047
Cost: £19,950.00 + VAT
Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details.
Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.
