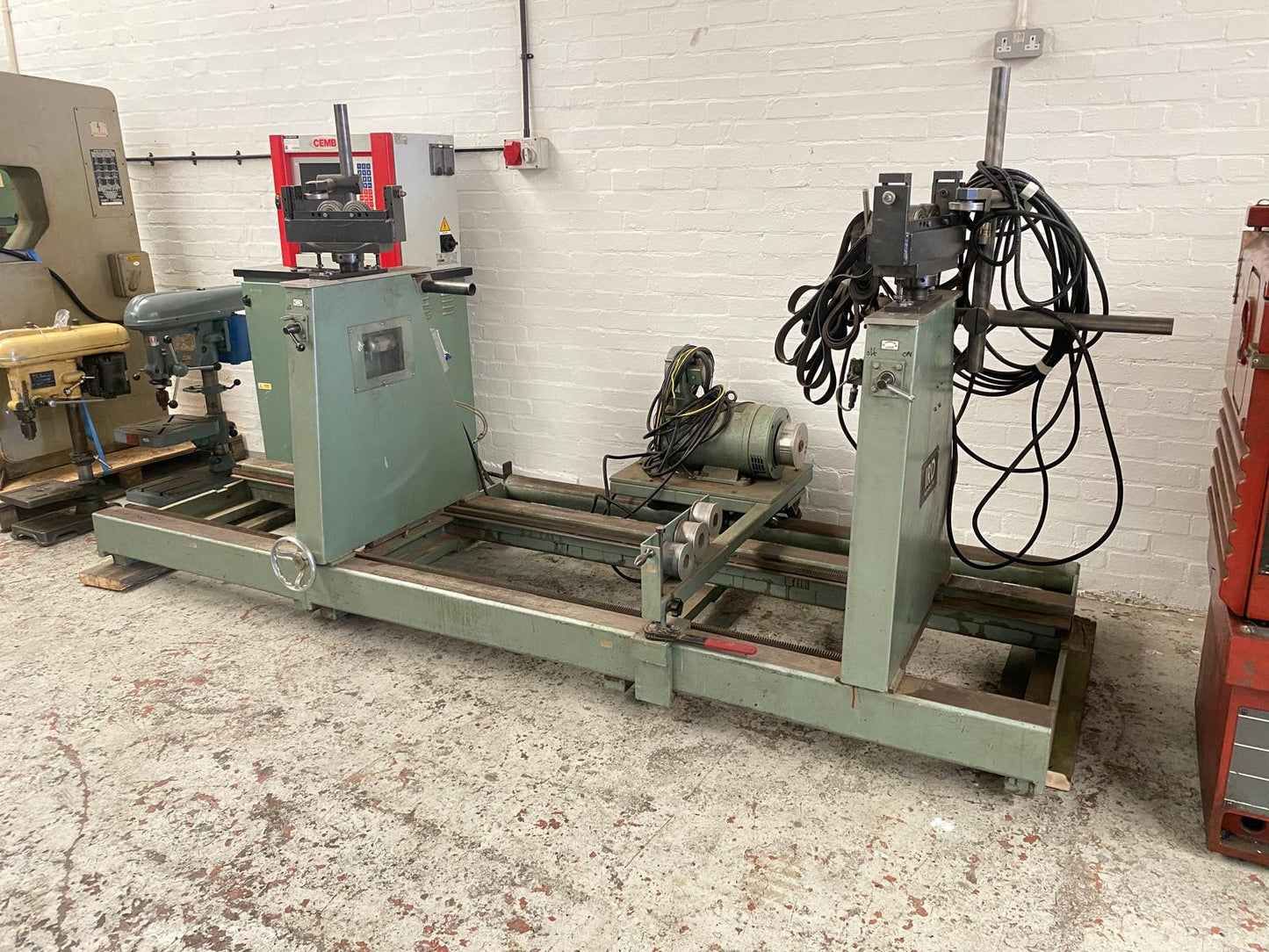

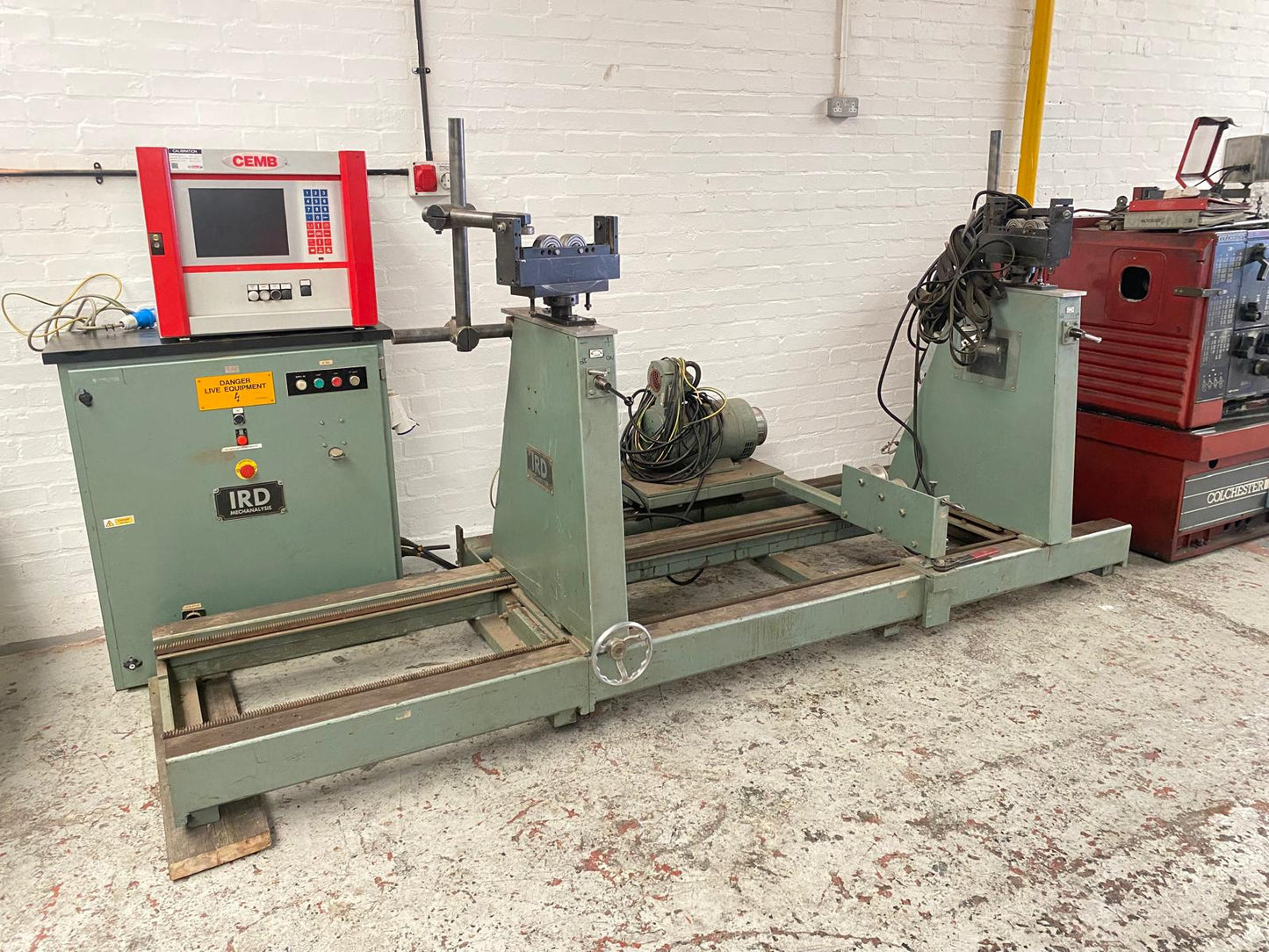

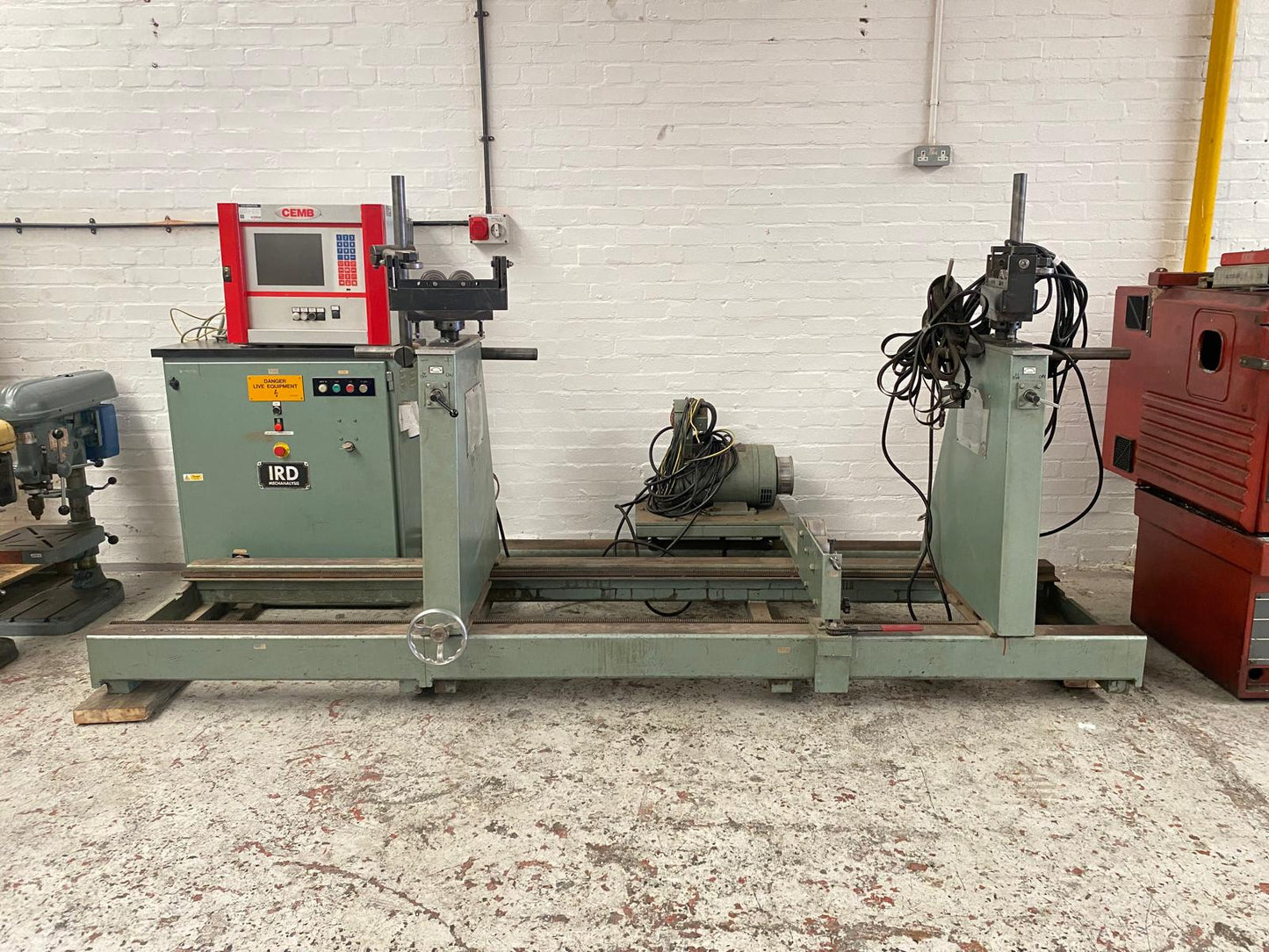

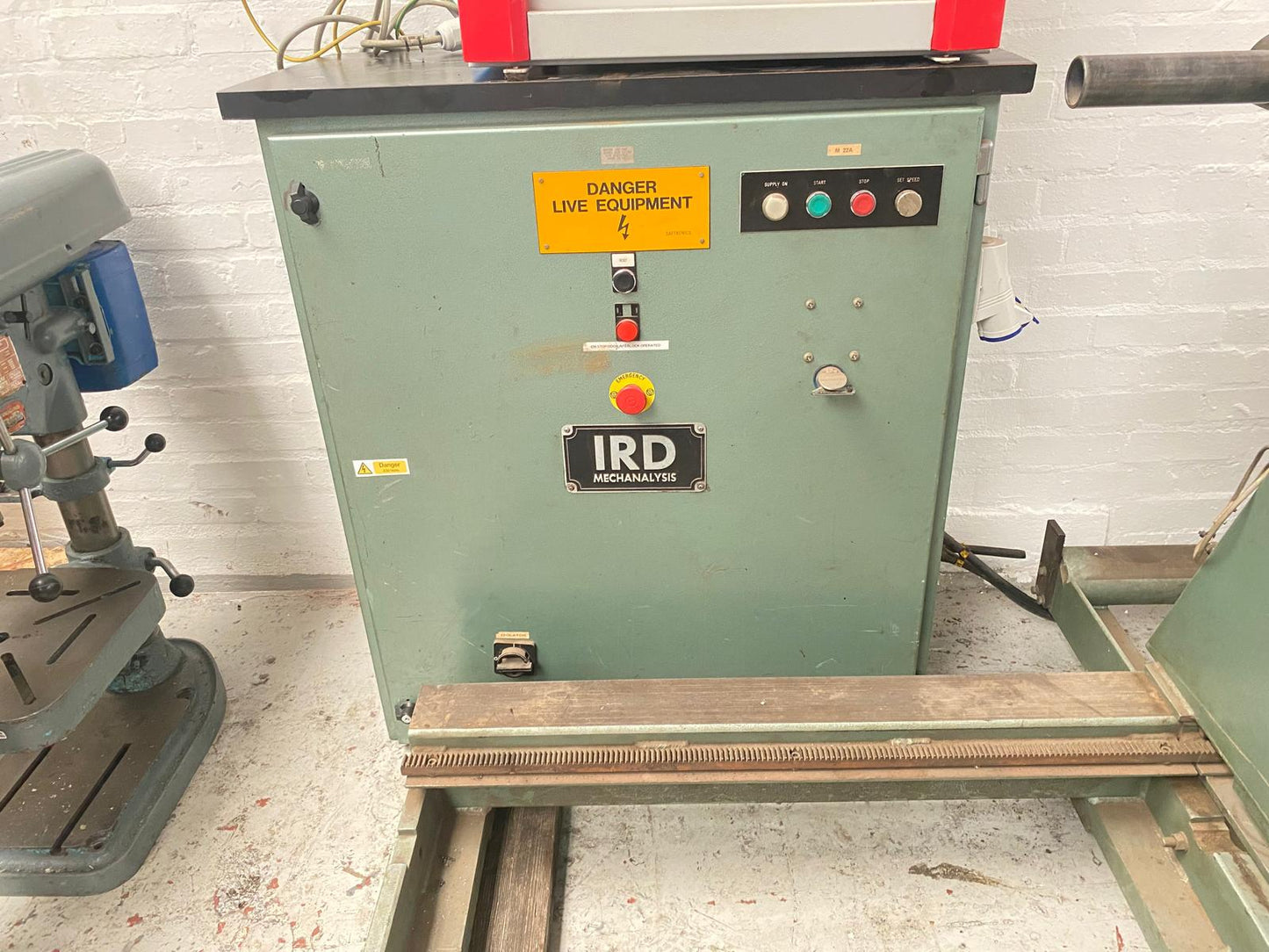

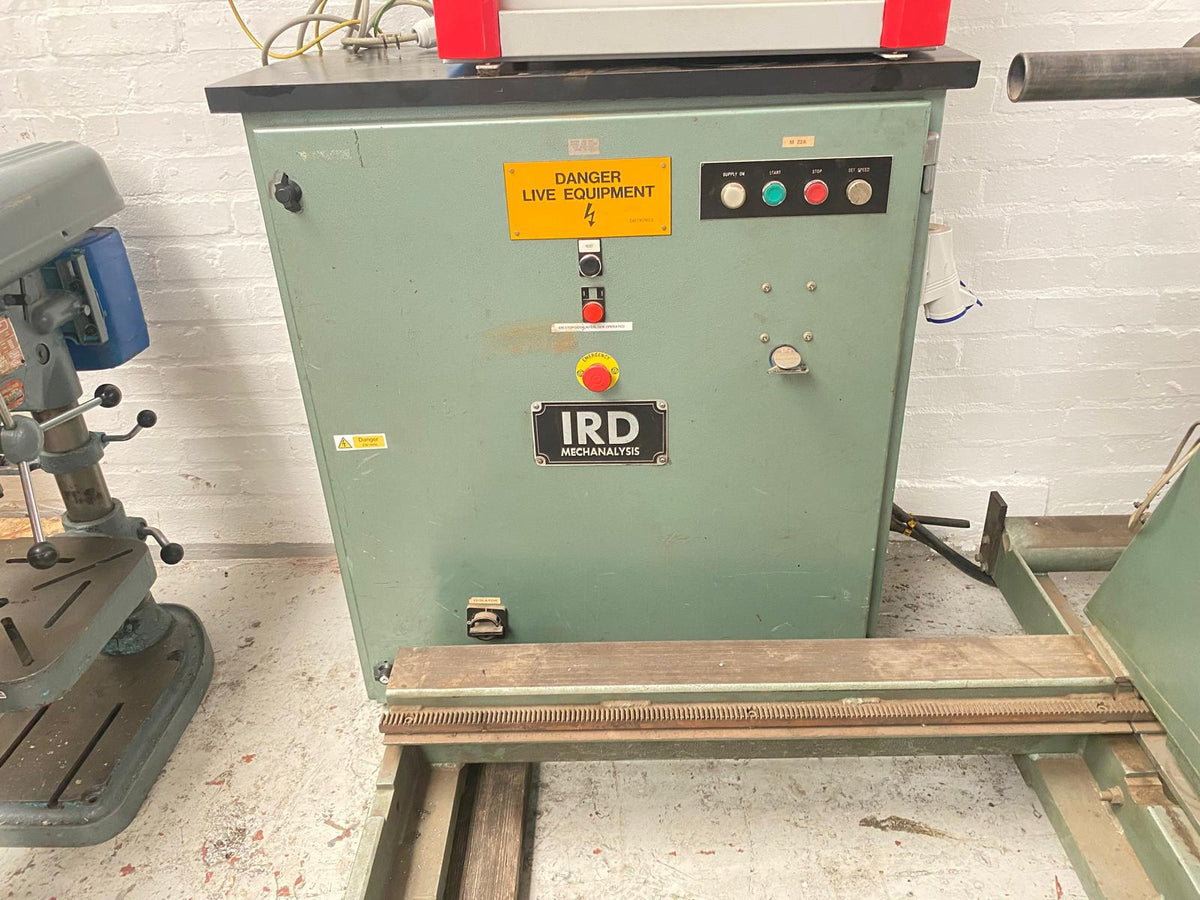

IRD Mechanalysis B50 Dynamic Balancing Machine

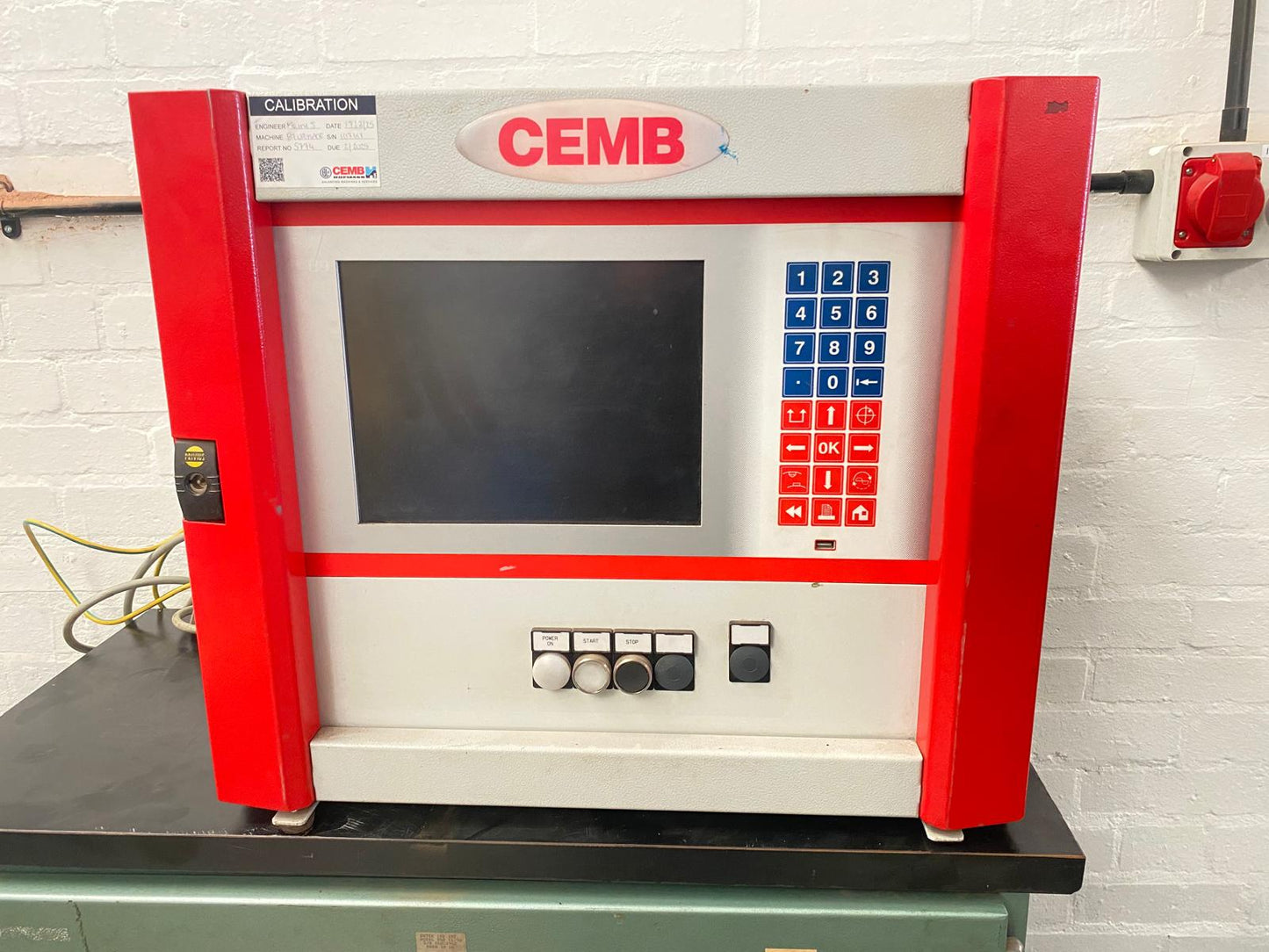

Fitted with CEMB Digital Balancing Control System
Maximum Rotor Weight 2,268 kg (5,000 lbs)
Maximum Swing Over Bed 2,260 mm (89")
Maximum Swing Over Drive Unit 1,500 mm (59")
Working Length 254 - 1,981 mm (10" - 78")
Maximum Journal Diameter 330 mm (13")
Horizontal Soft Bearing Dynamic Balancing Machine
Twin Plane Dynamic Balancing
Variable Speed Belt Drive
Heavy Duty Fabricated Bed
Adjustable Balancing Pedestals
Precision Roller Bearing Supports
Supplied with:
CEMB Digital Balancing Control System, Variable Speed Drive Motor, Belt Drive System, Adjustable Roller Bearing Supports & End Thrust Assembly.
For sale with Jet Machinery Ltd
Jet Machinery Stock No: 79249
Machine Serial Number: TBC
Cost: £14,950.00 + VAT
Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details.
Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.
