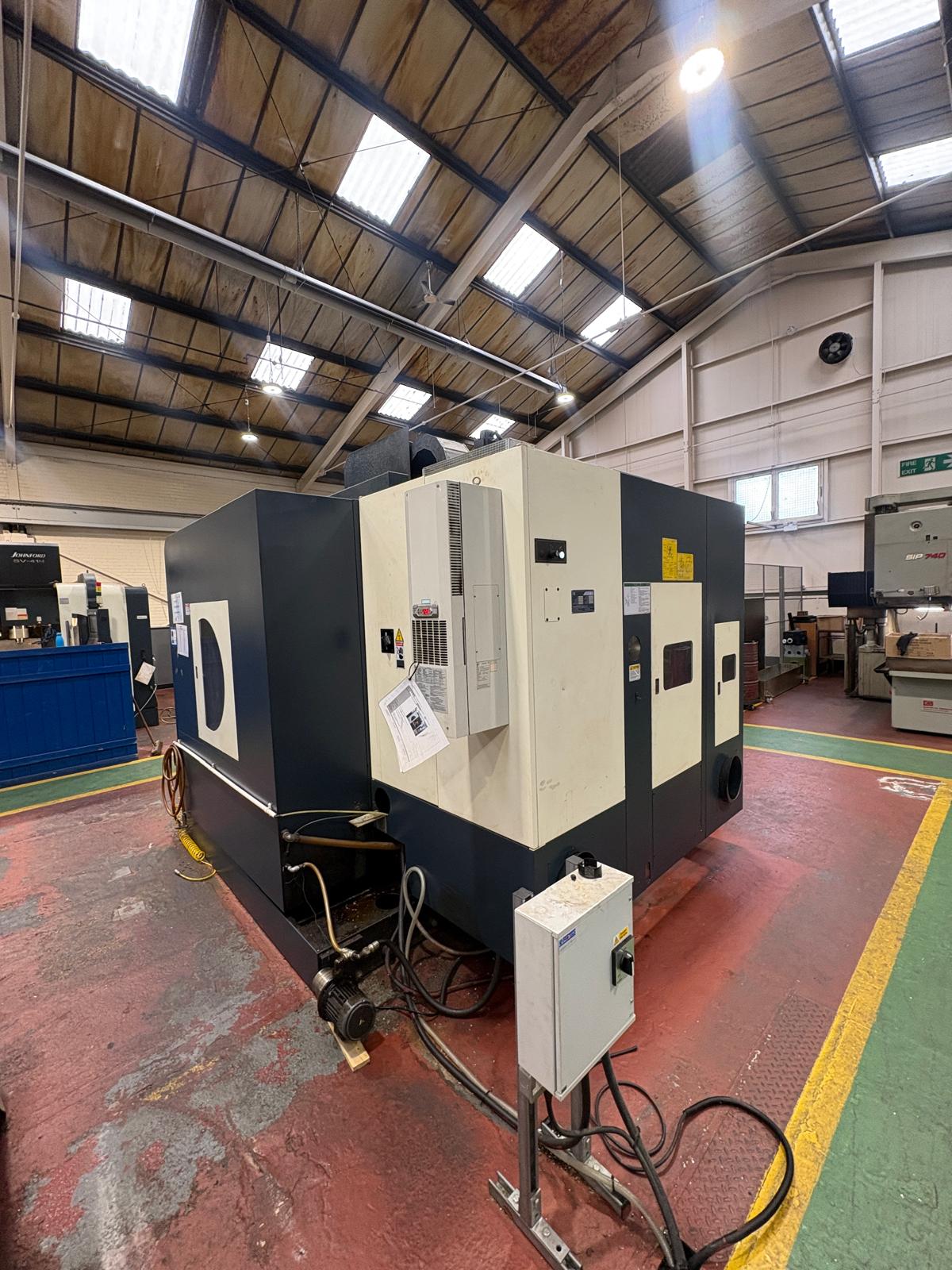

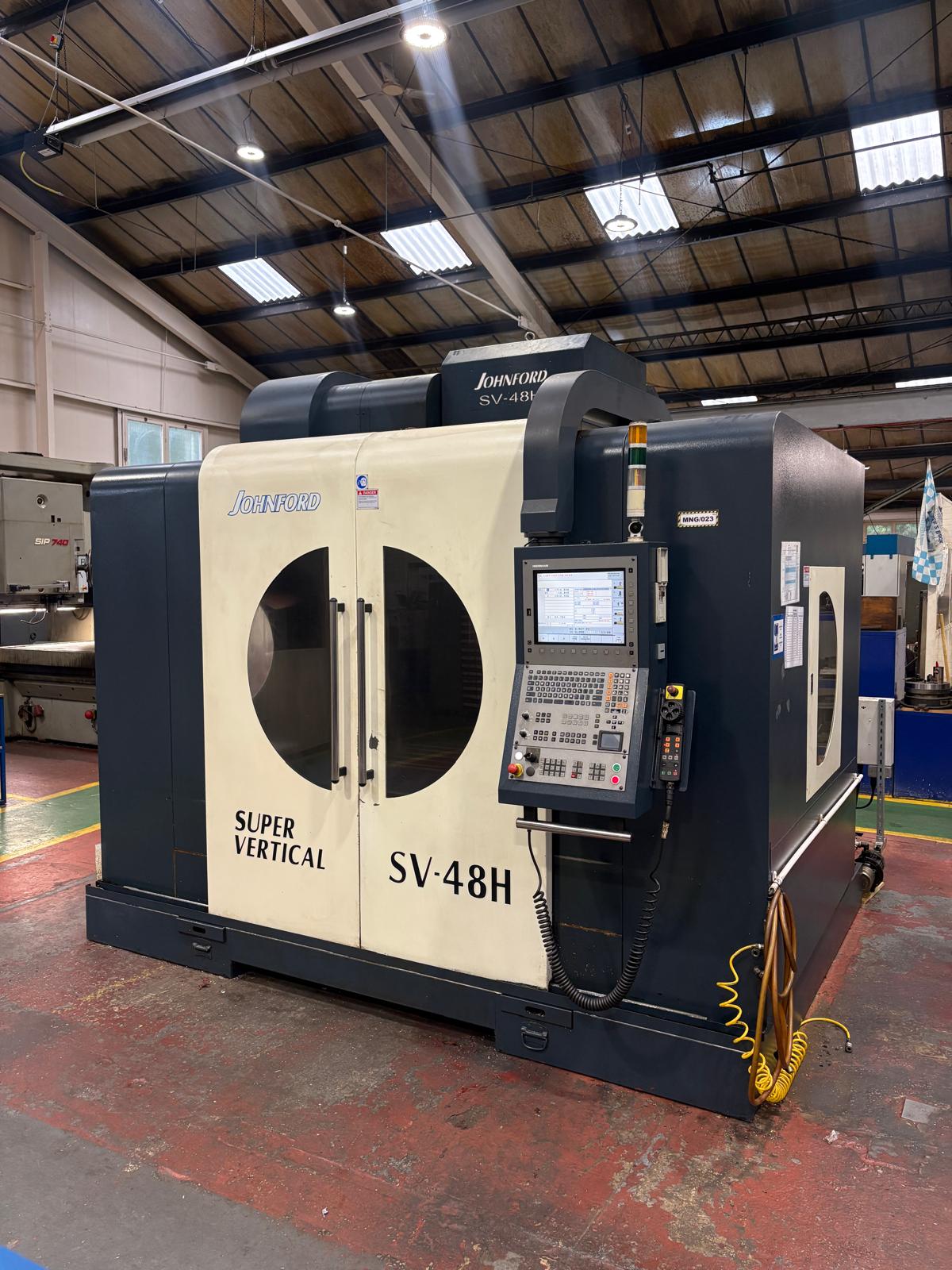

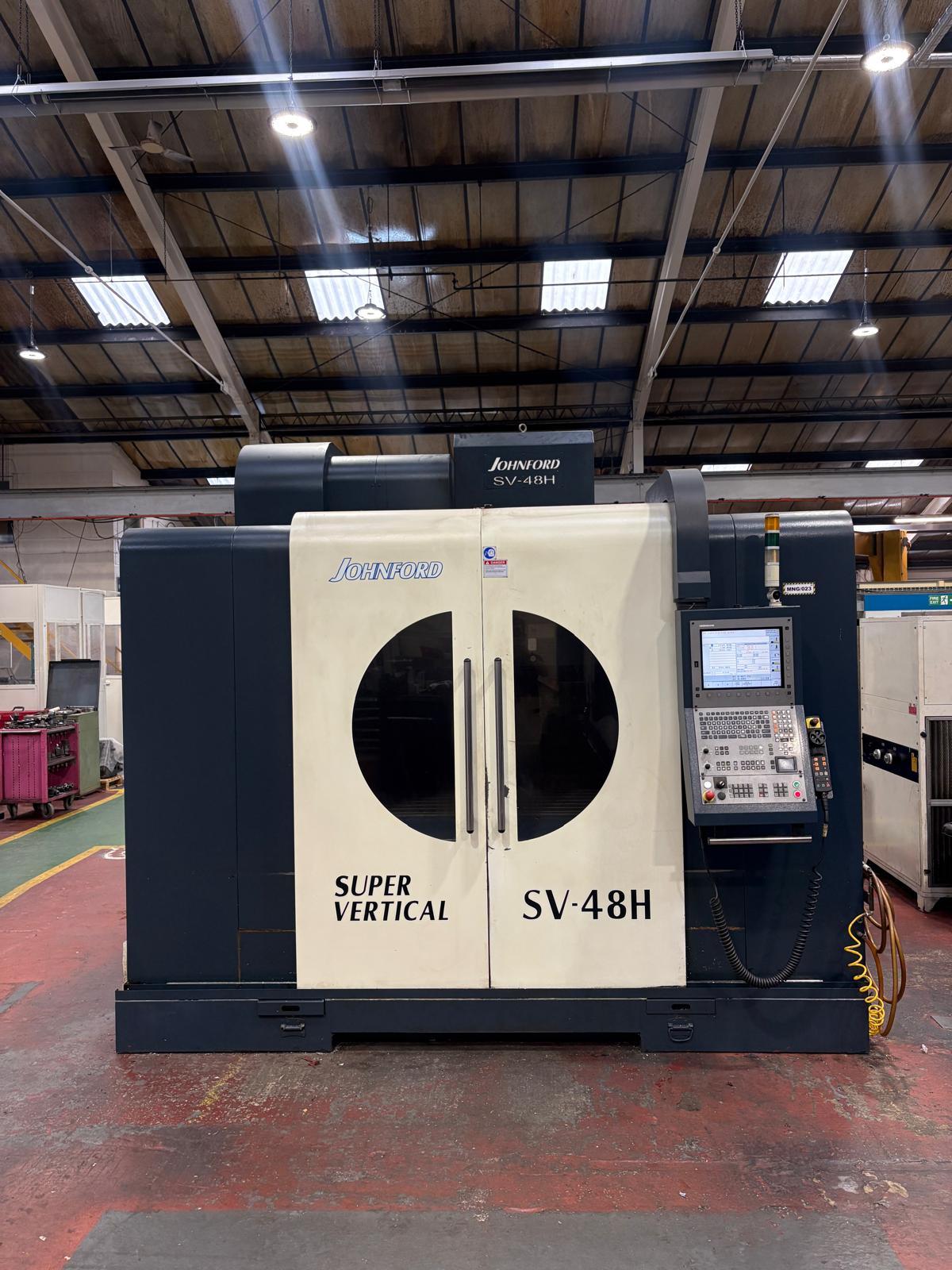

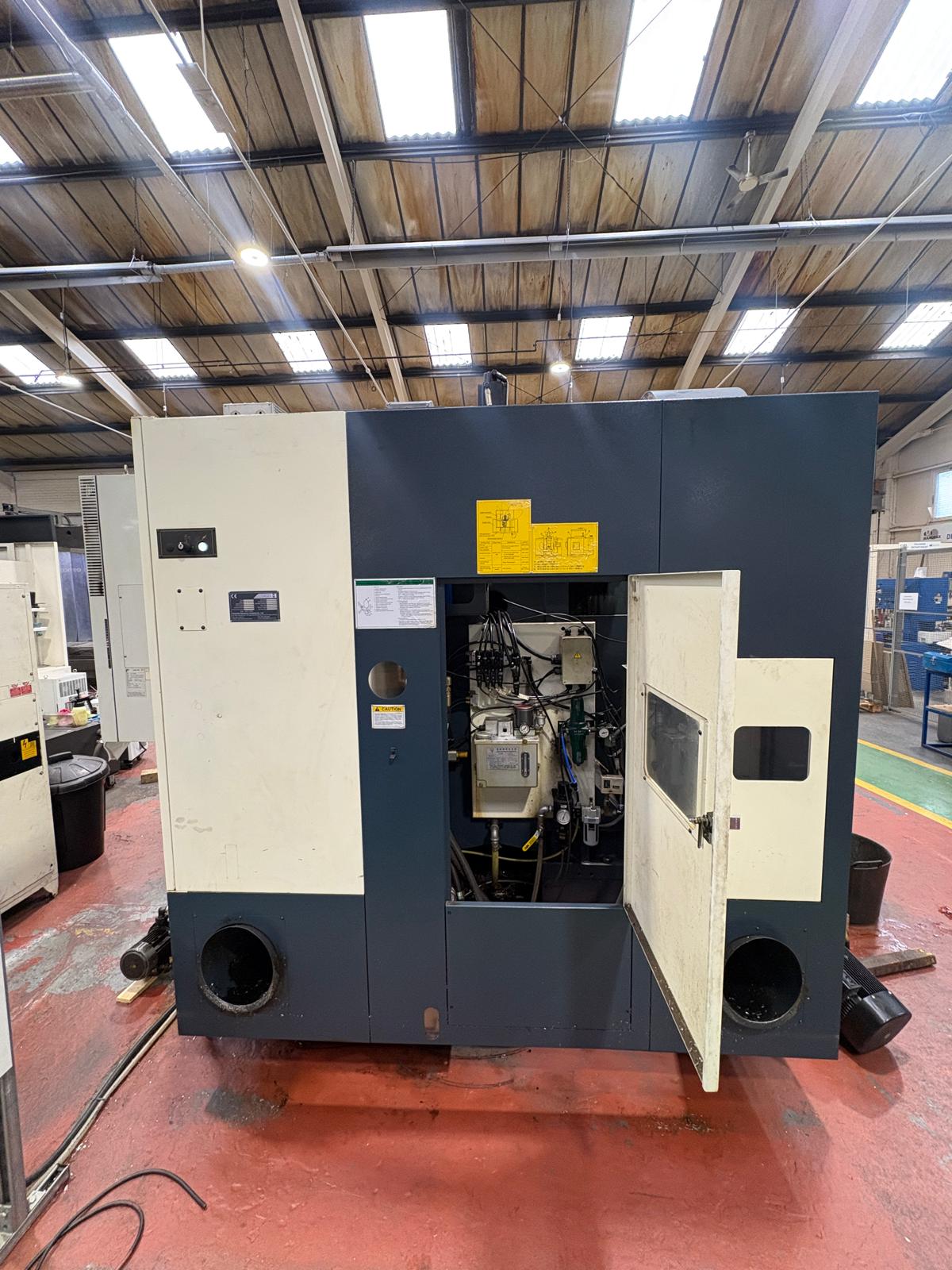

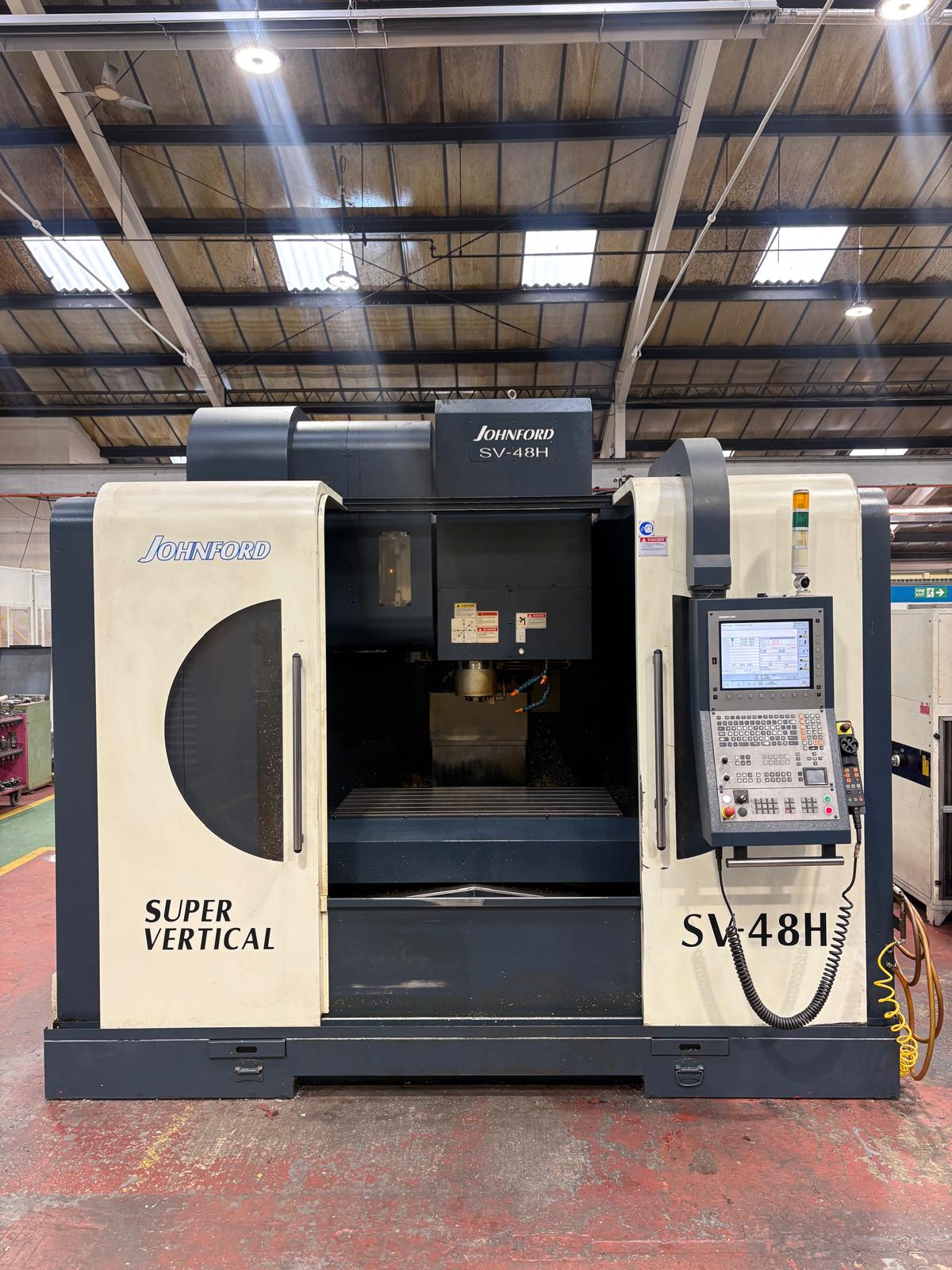

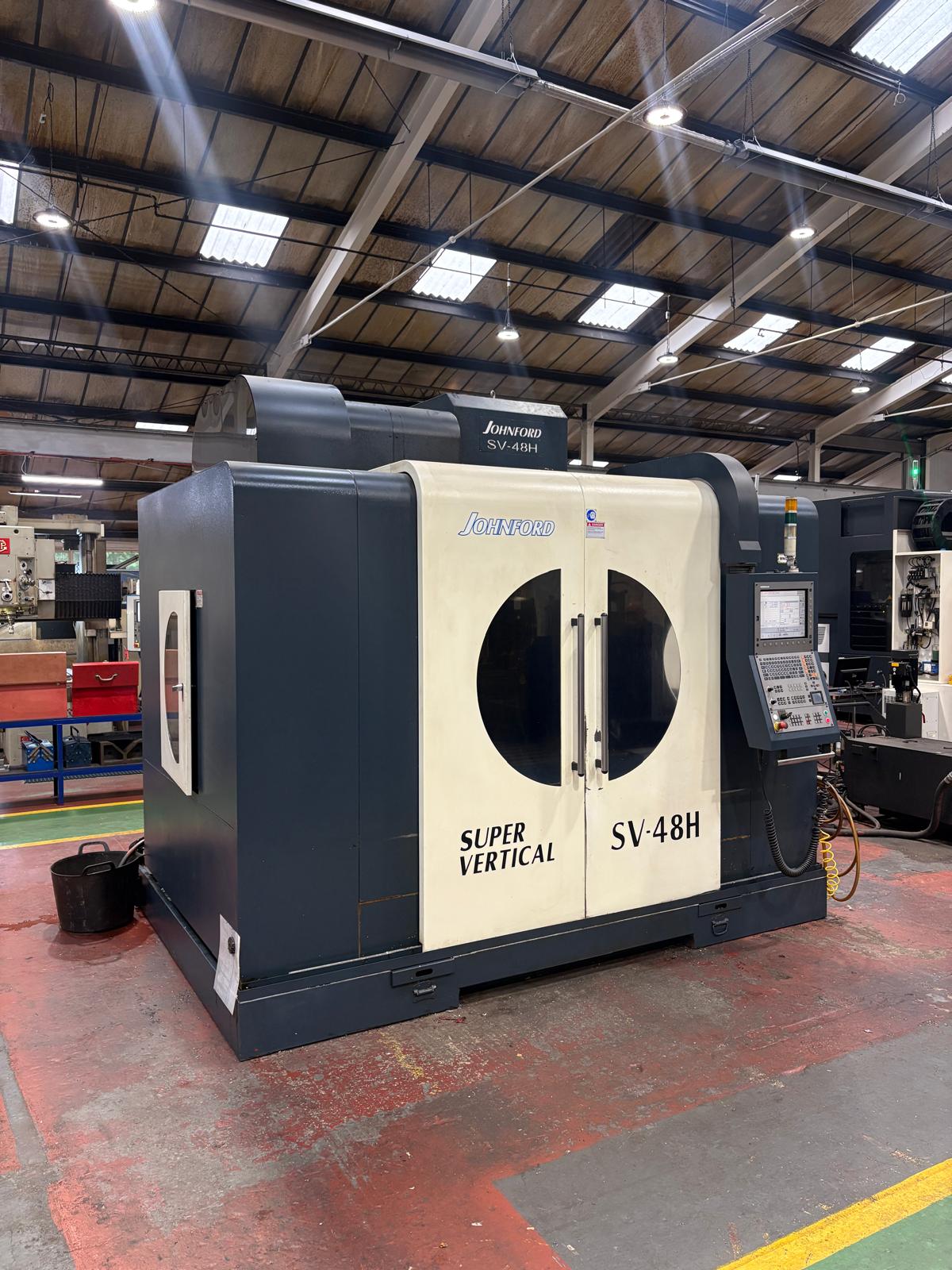

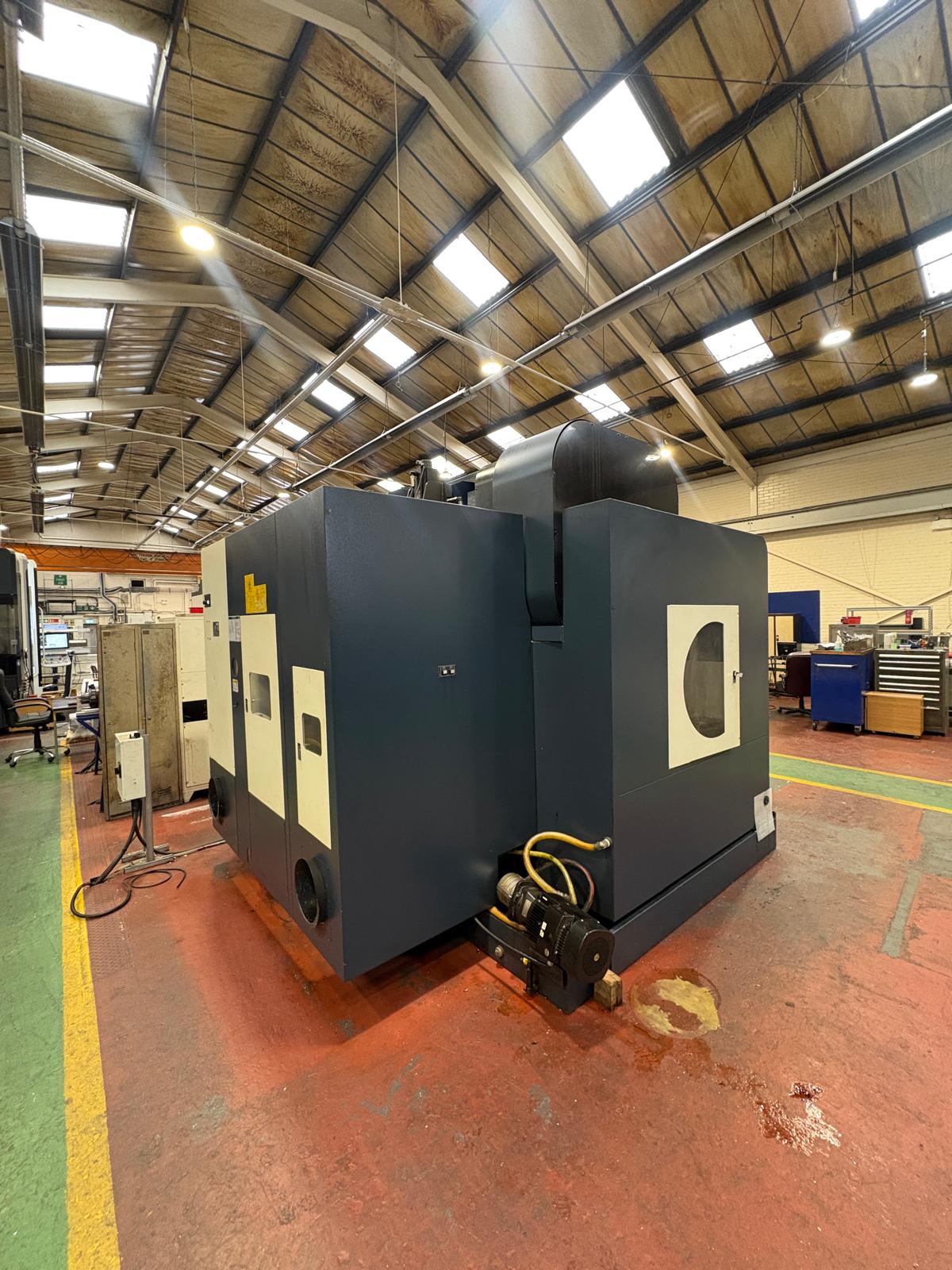

Johnford SV-48H “Super Vertical” CNC Vertical Machining Centre
Specification:
Model: SV-48H
Manufactured In June 2012

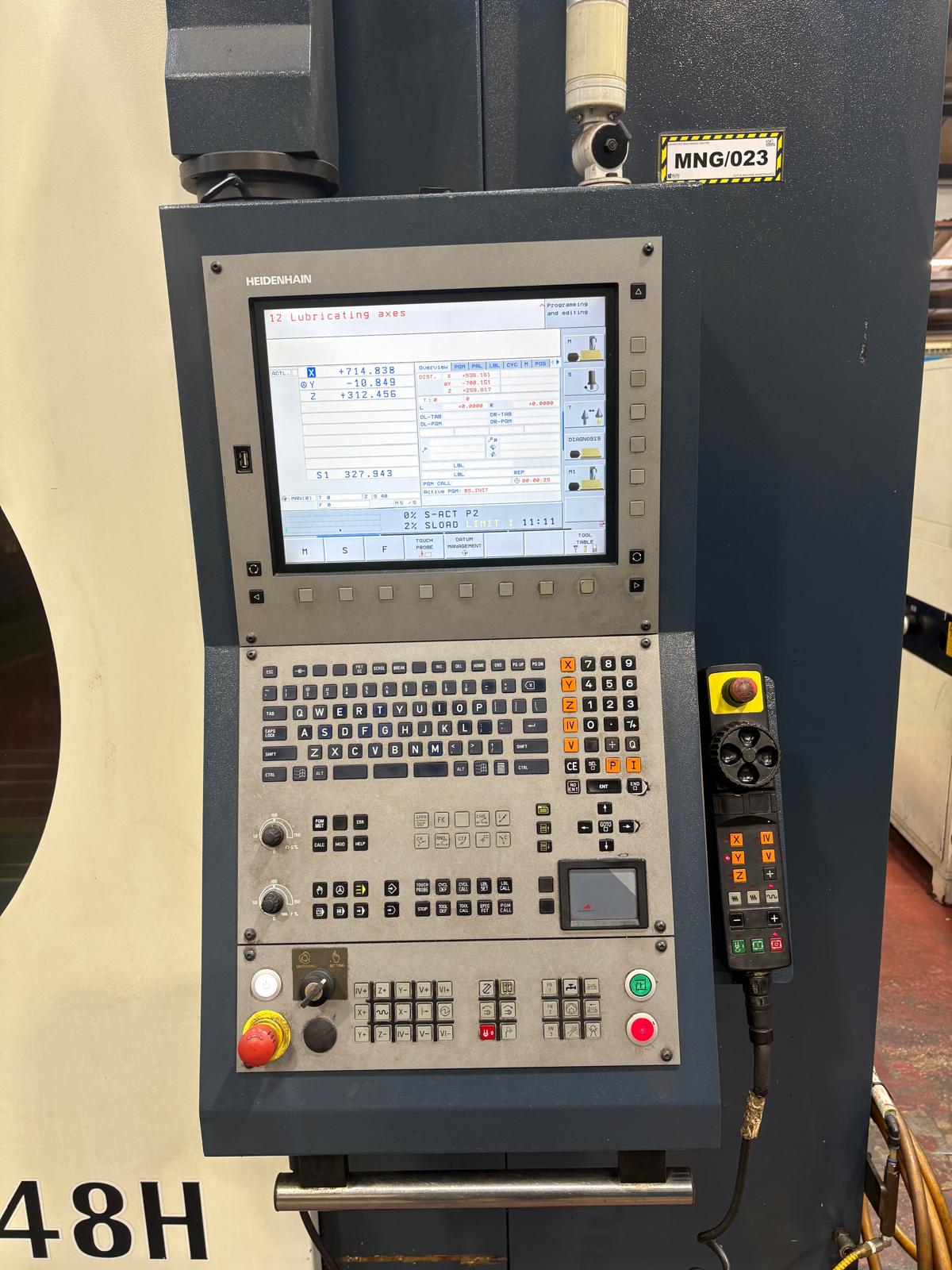

Heidenhain iTNC 530 CNC Control
Maximum spindle speed: 6,000 rpm

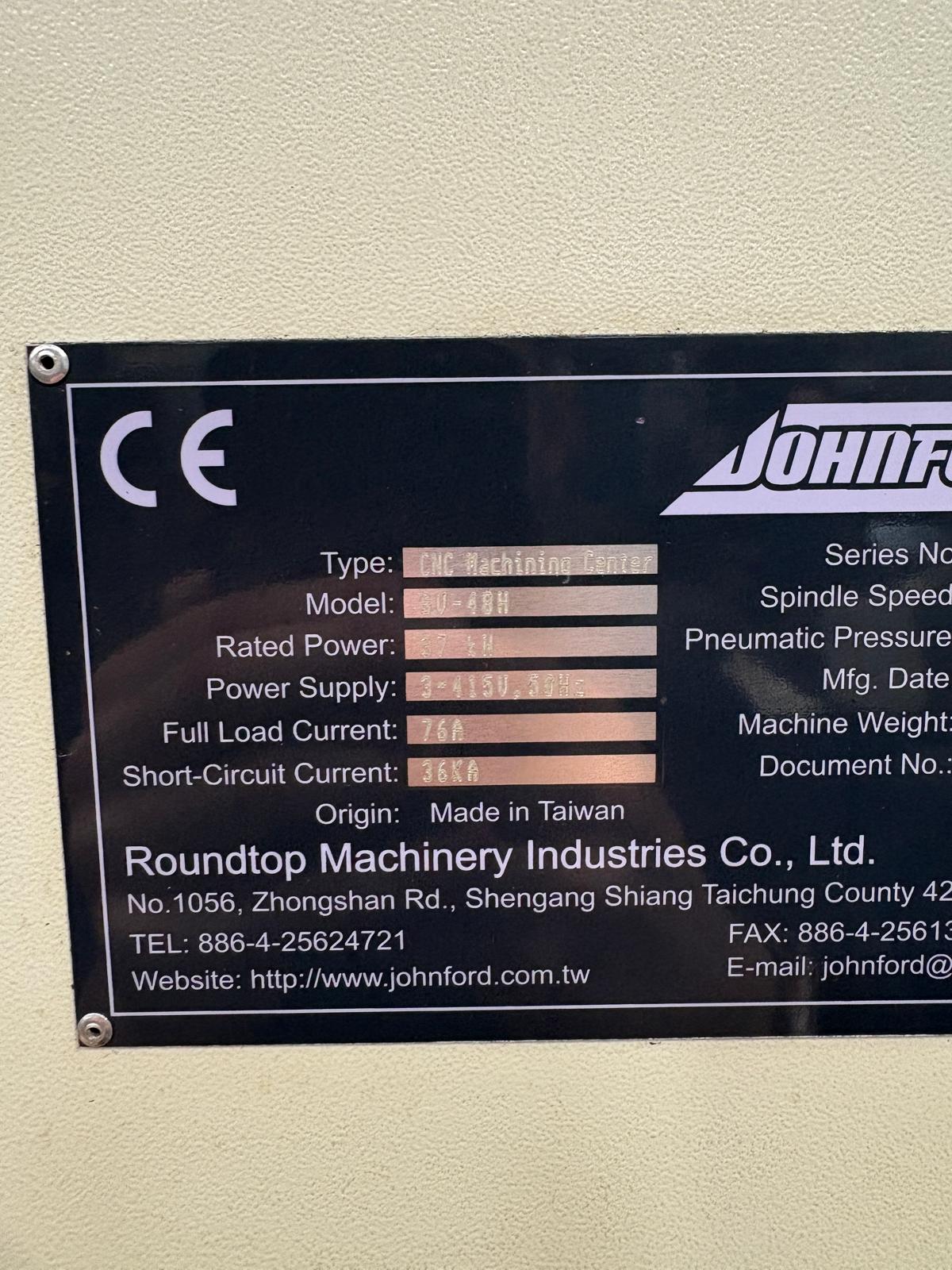

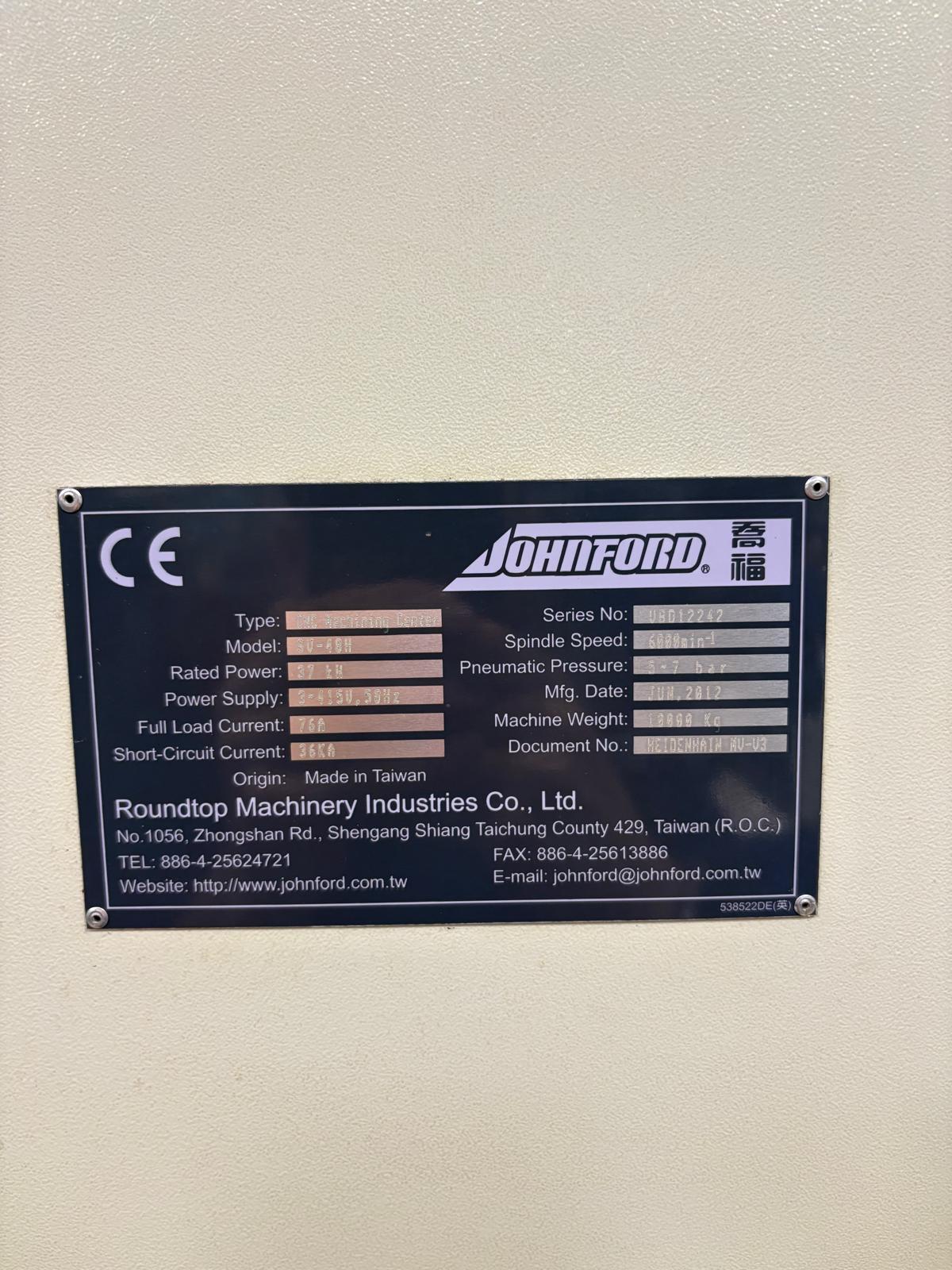

Machine Weight: 10,000 kg, stated on the plate
Electrical supply: Three-phase, 415 V, 50 Hz
Full-load current: 76 A

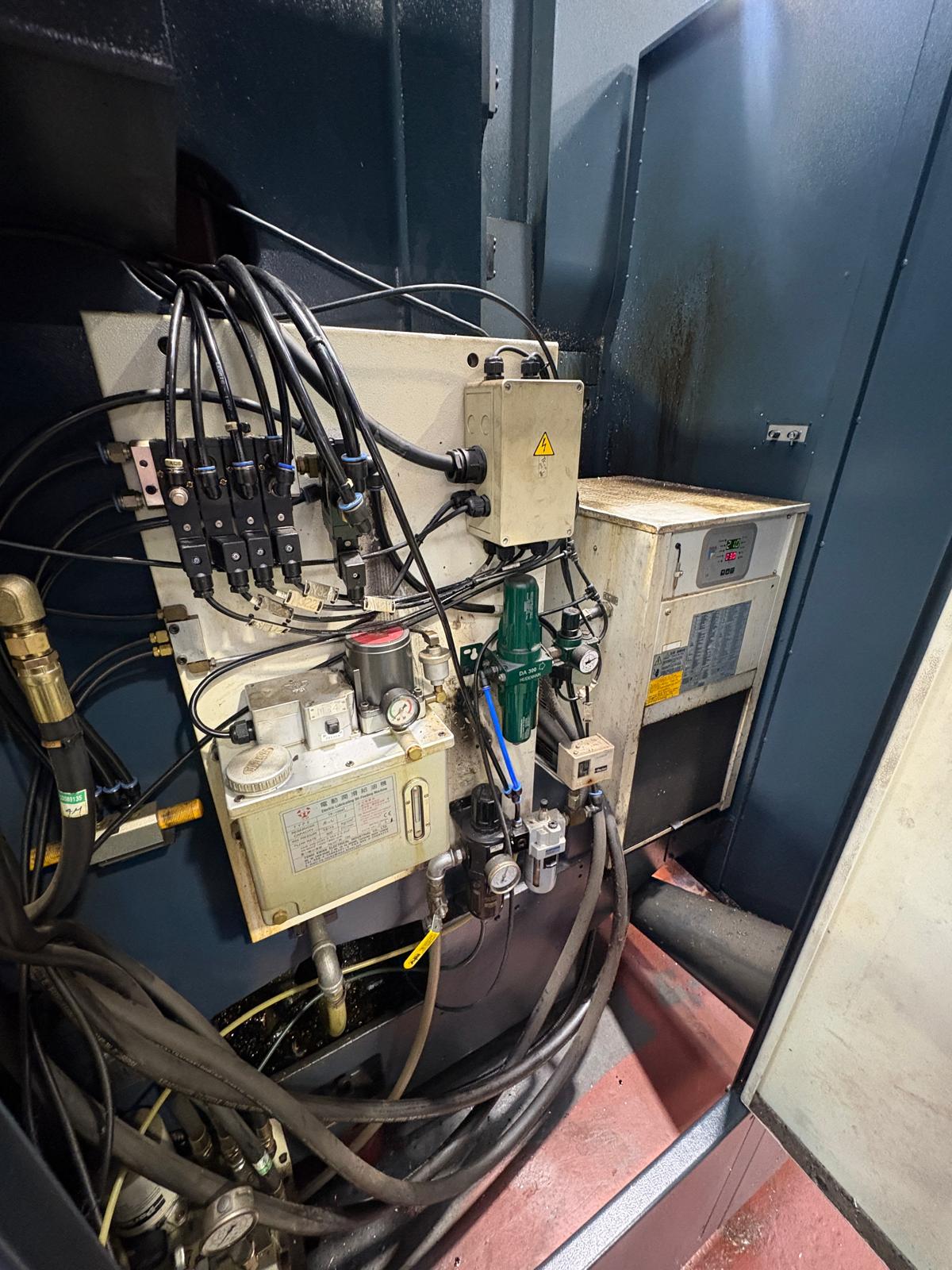

Compressed-air pressure: 5–7 bar
X-axis travel: 1,220 mm
Y-axis travel: 710 mm
Z-axis travel: 630 mm

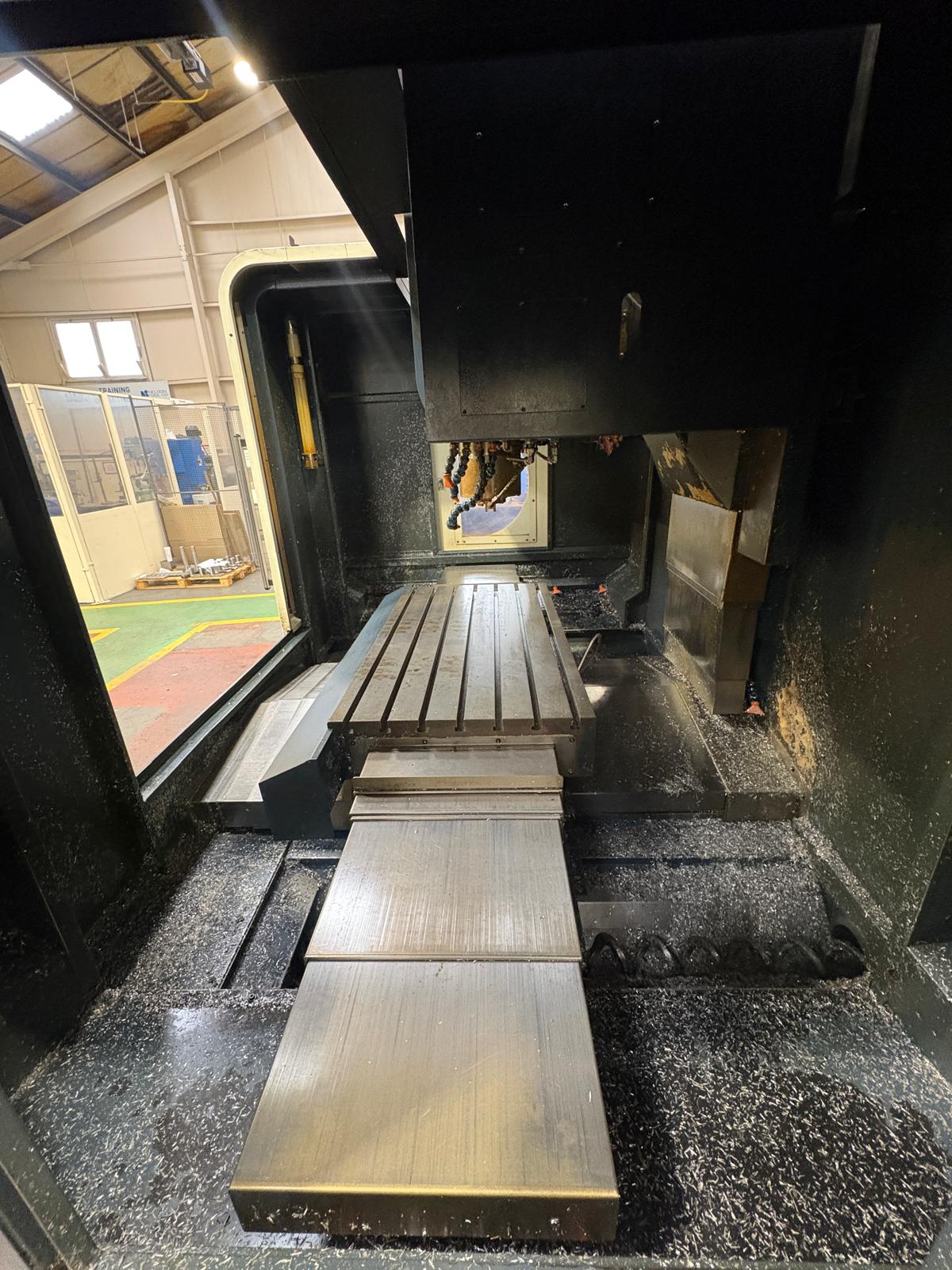

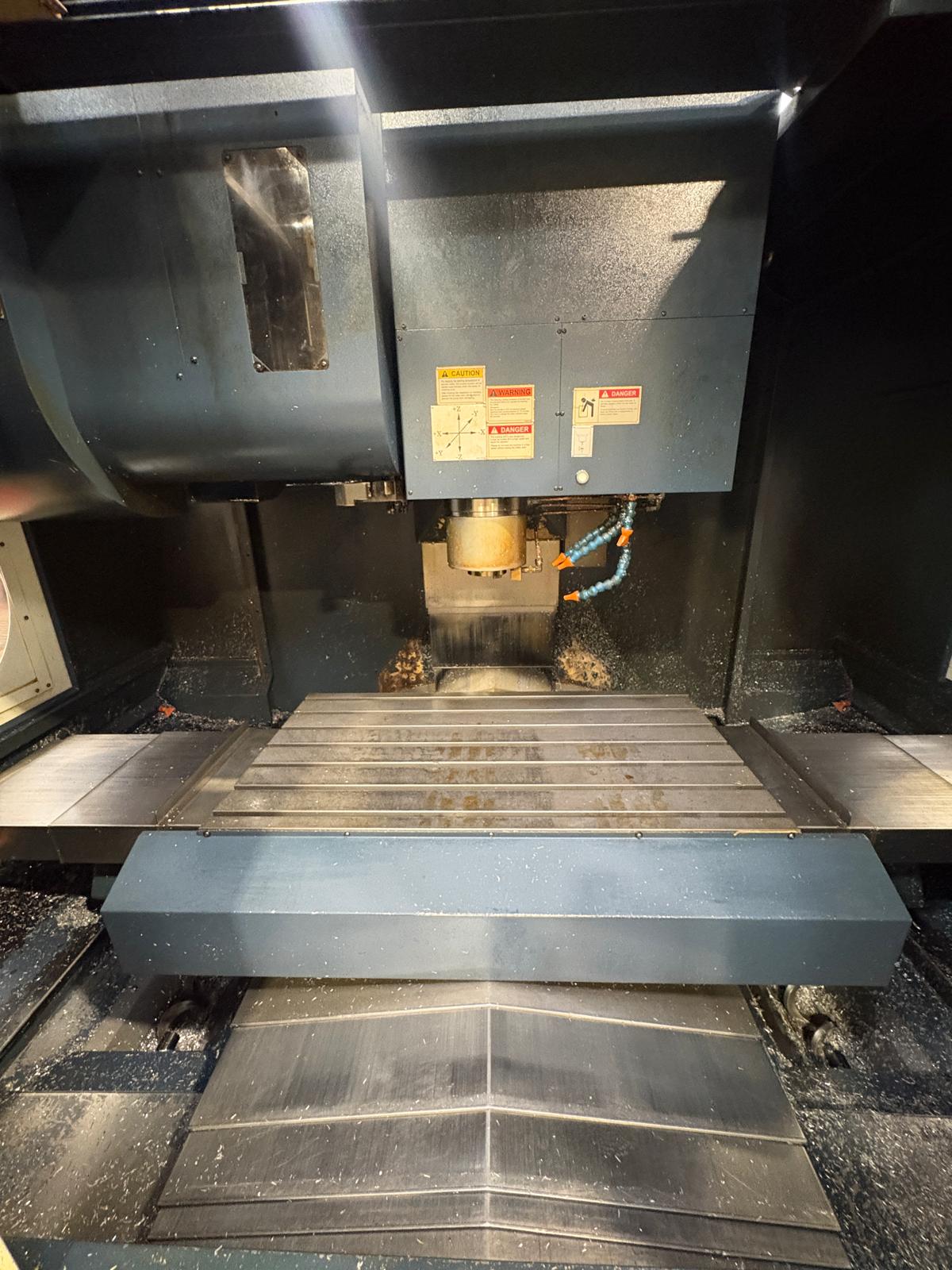

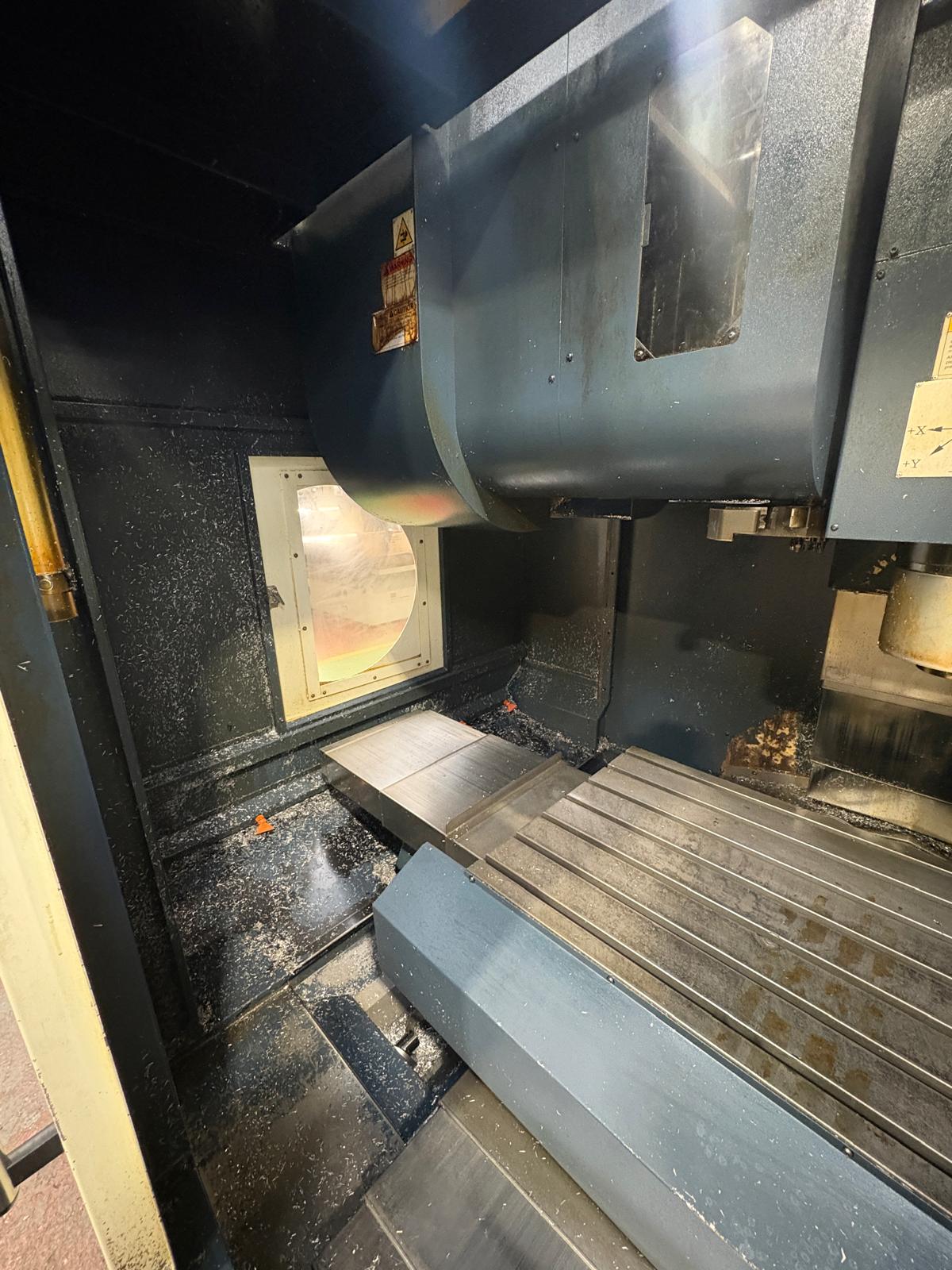

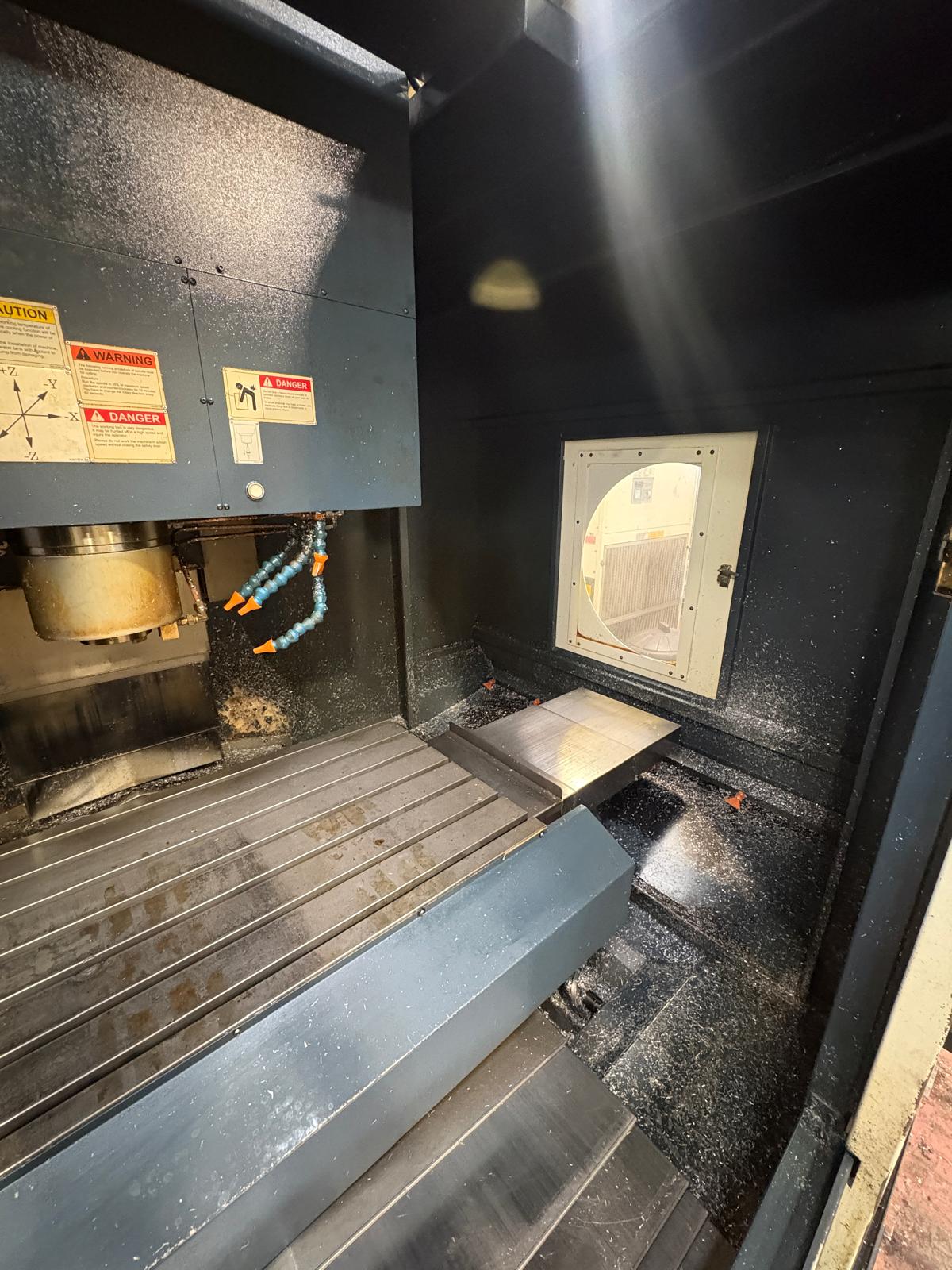

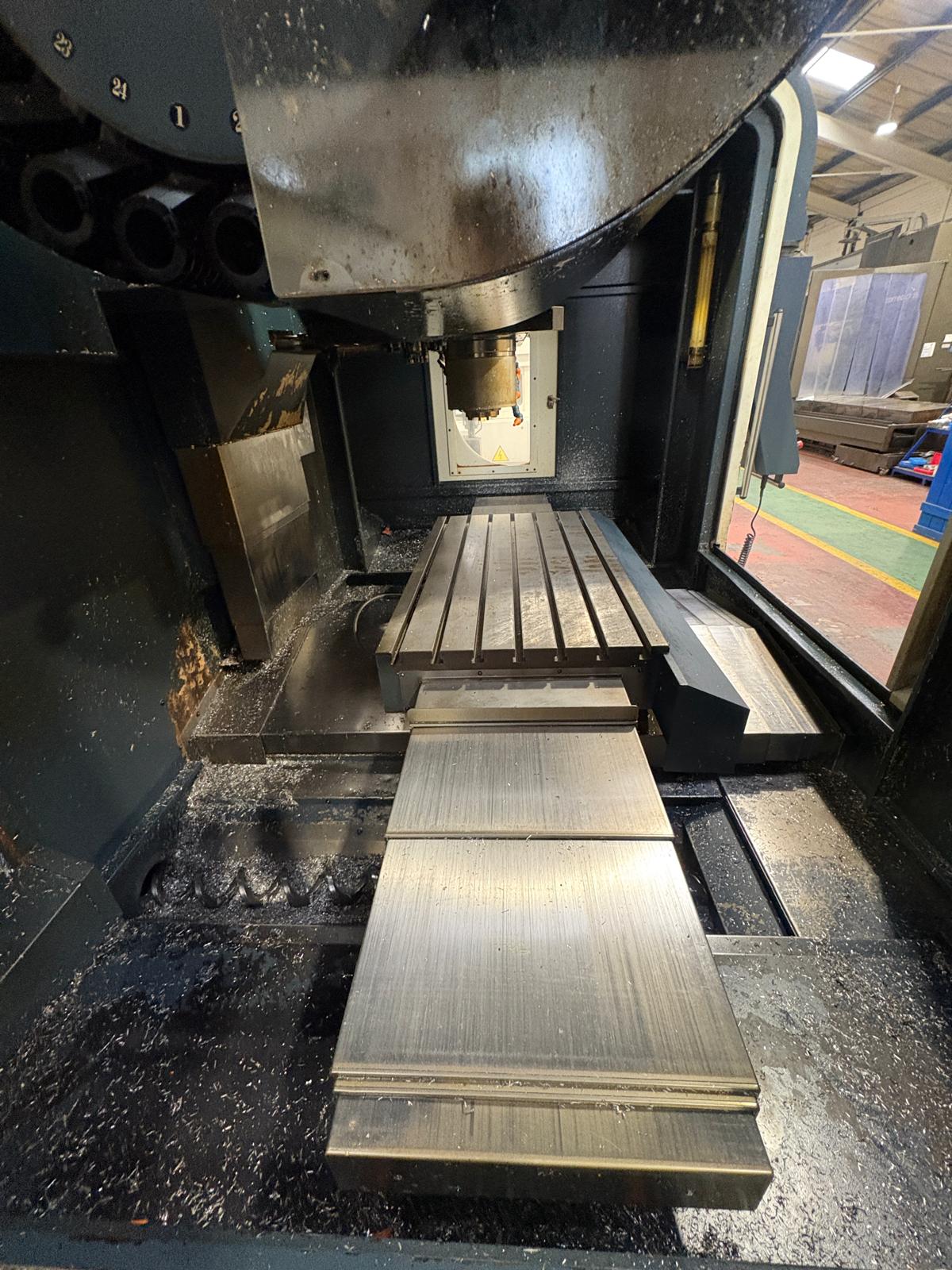

Table size: 1,300 × 700 mm
Maximum table load: 1,500 kg
Spindle nose to table: 100–730 mm
Spindle centre to column: 740 mm

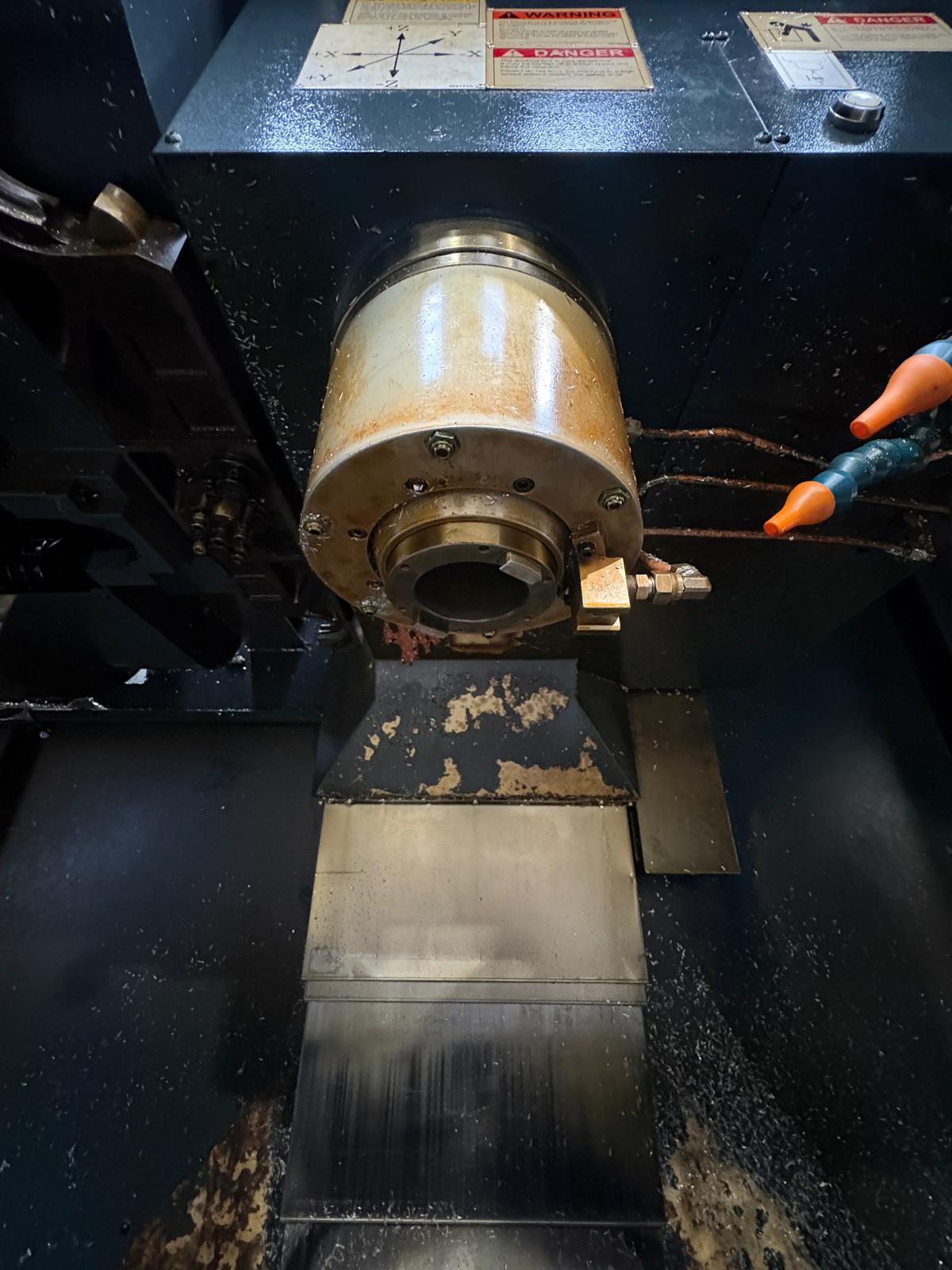

Spindle taper: BT50
Spindle motor: 11 kW continuous / 15 kW at 30-minute rating
Spindle transmission: High/low gearbox
Rapid traverse, X / Y / Z: 24 / 24 / 24 m/min
Cutting feed rate: 1–12,000 mm/min

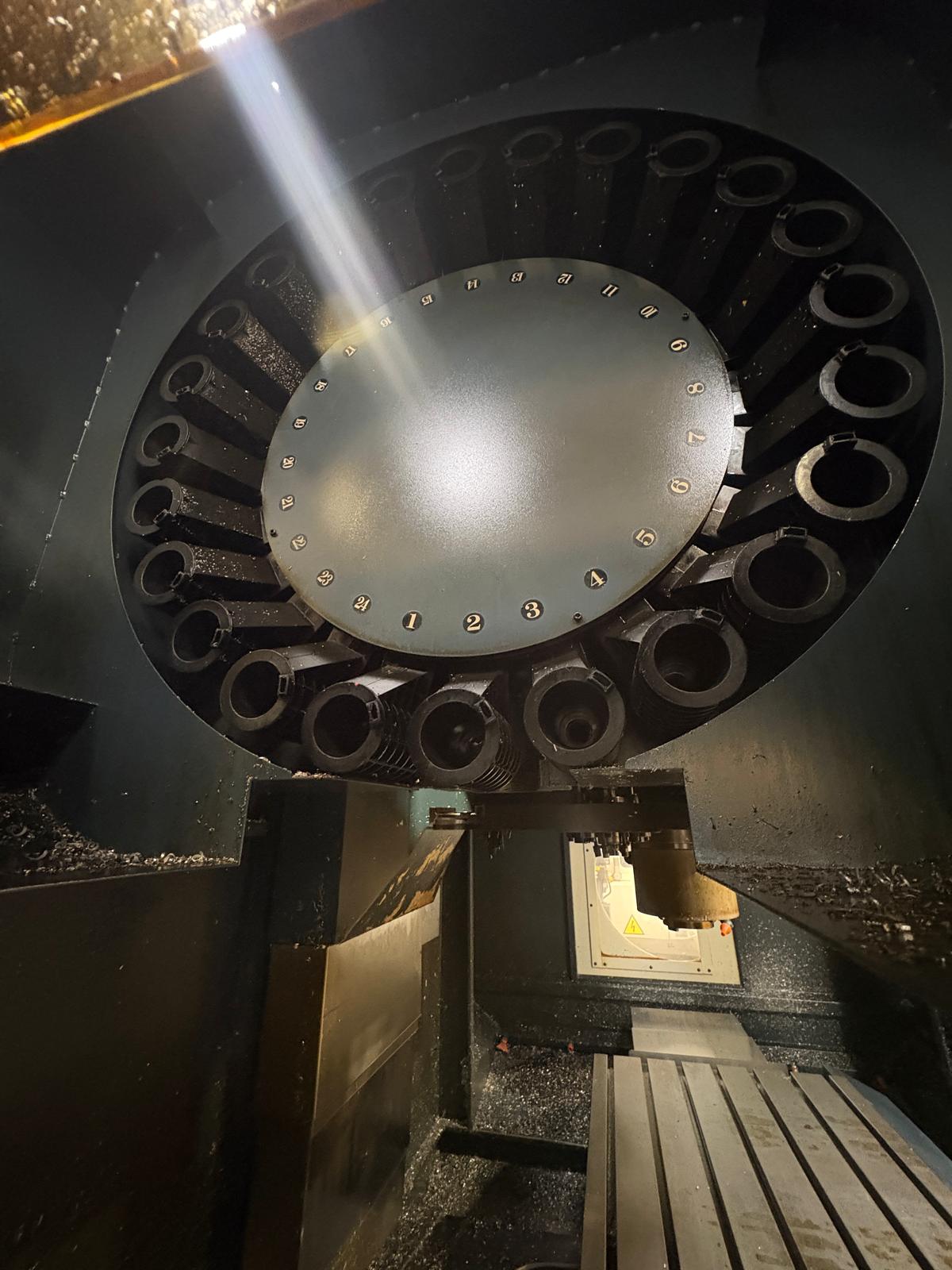

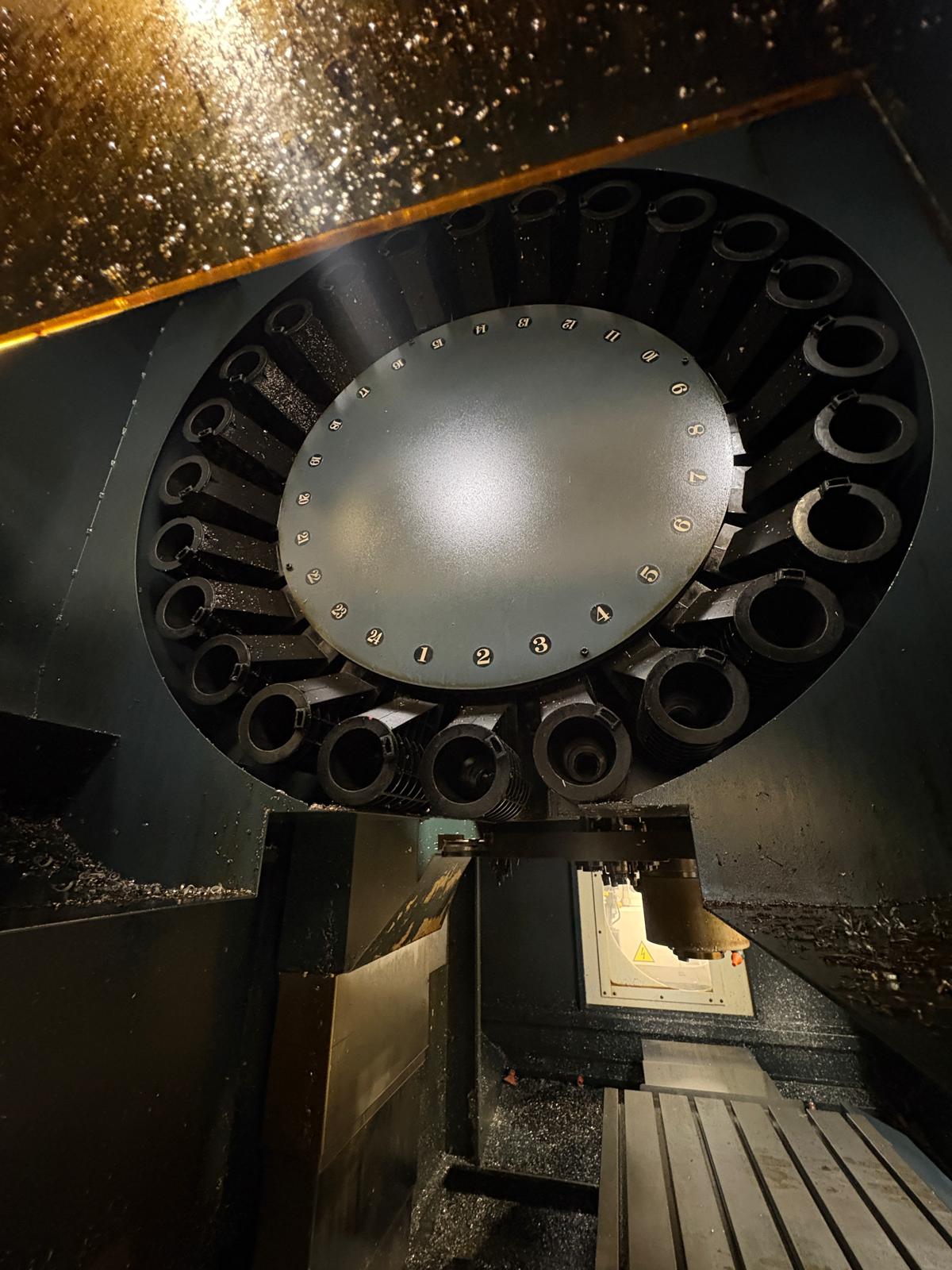

Tool magazine: 24 Station Arm type ATC
Maximum tool length: 400 mm
Maximum tool weight: 15 kg
For sale with *Jet Machinery Ltd*
Jet Machinery Stock No: #MAN001
Machine Serial Number: VBD12242
Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details.
Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.
