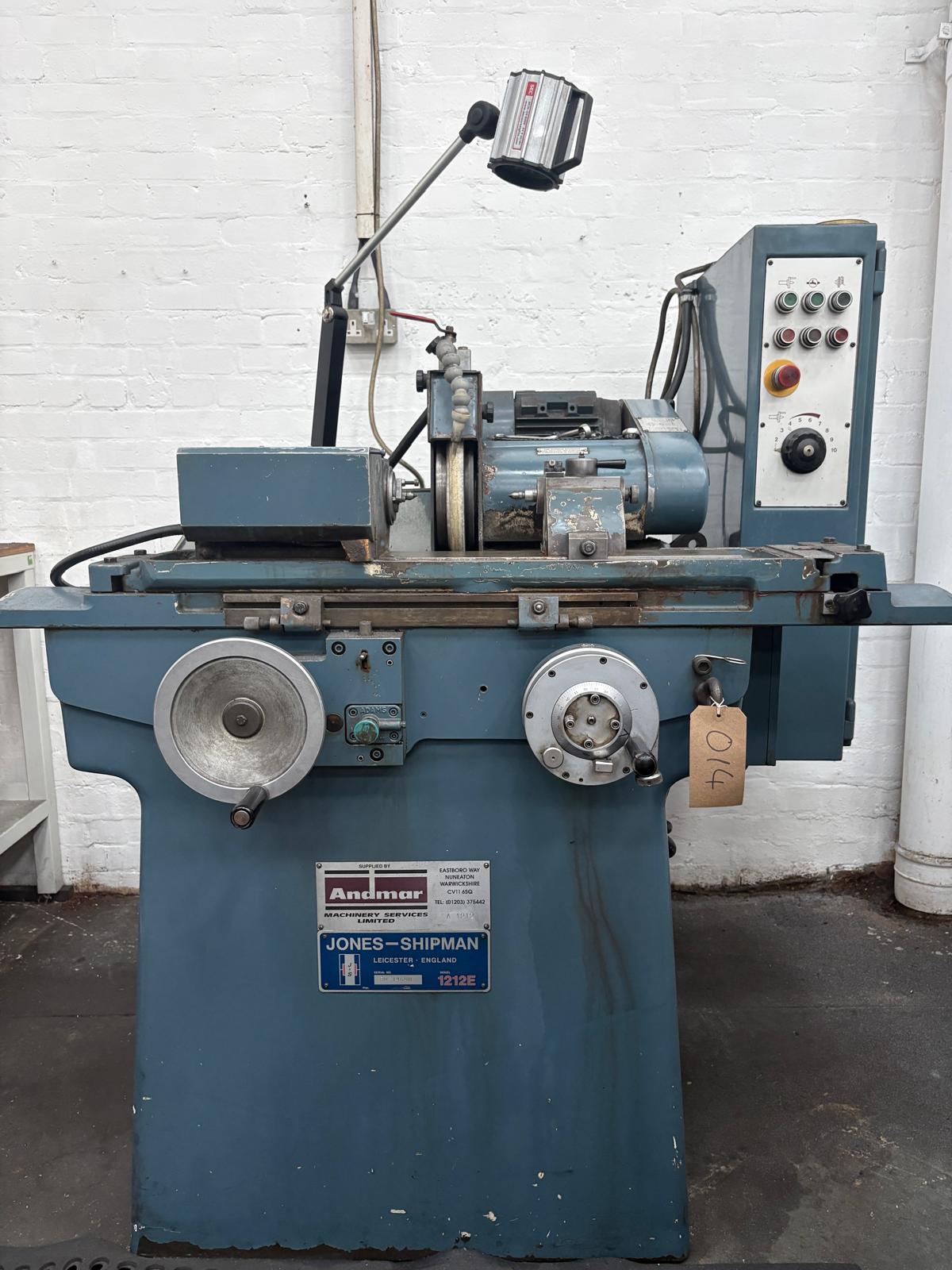

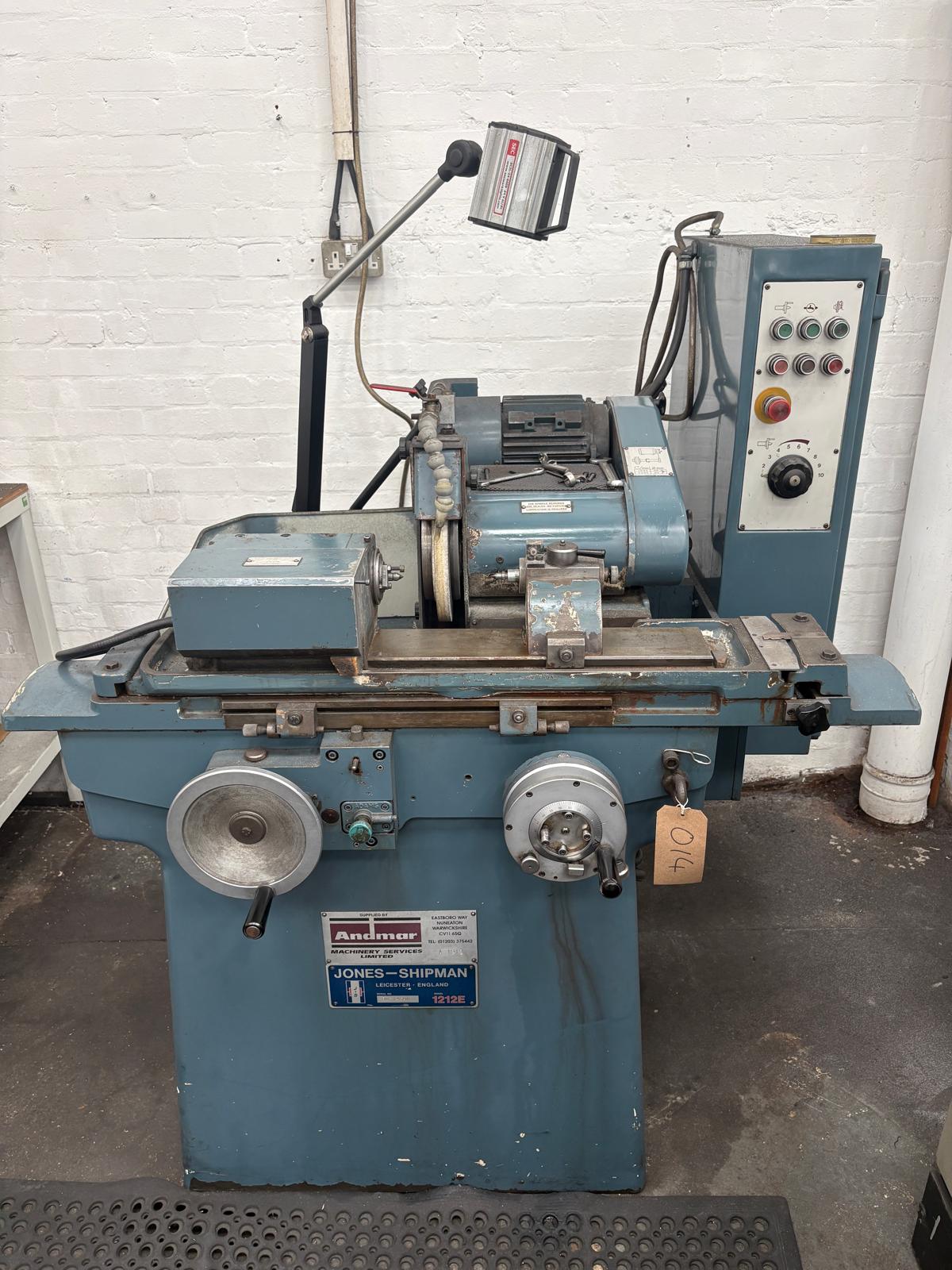

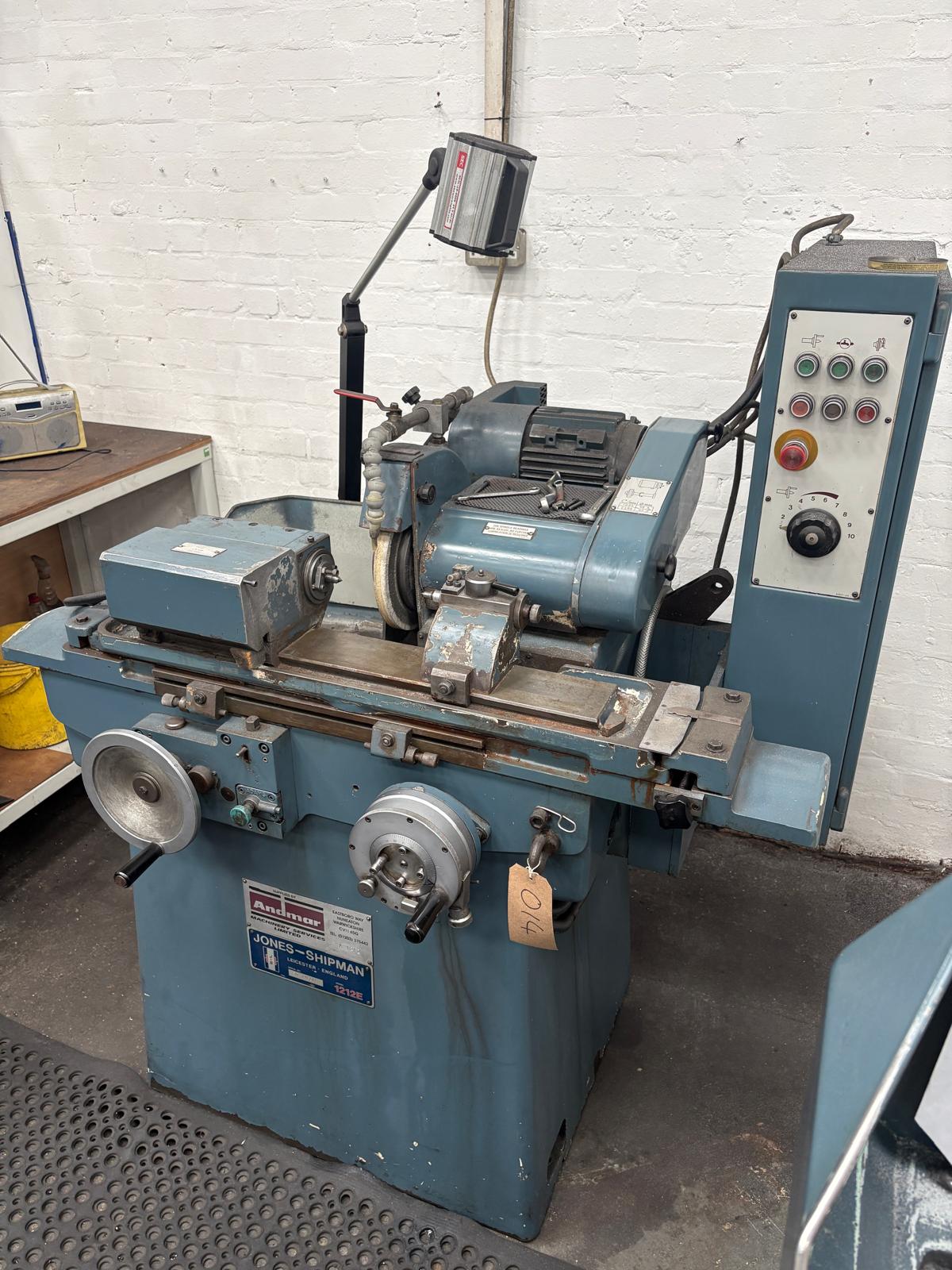

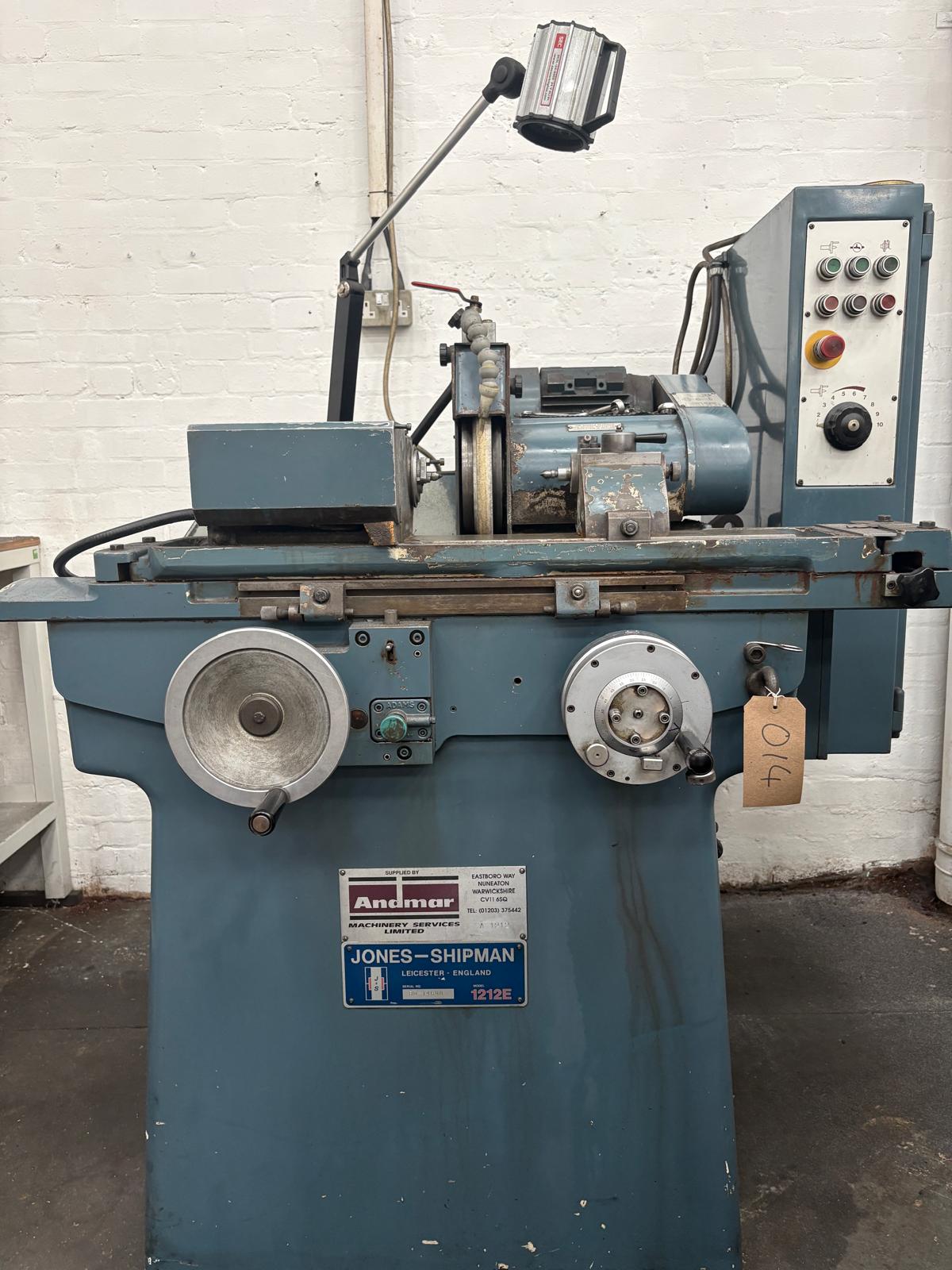

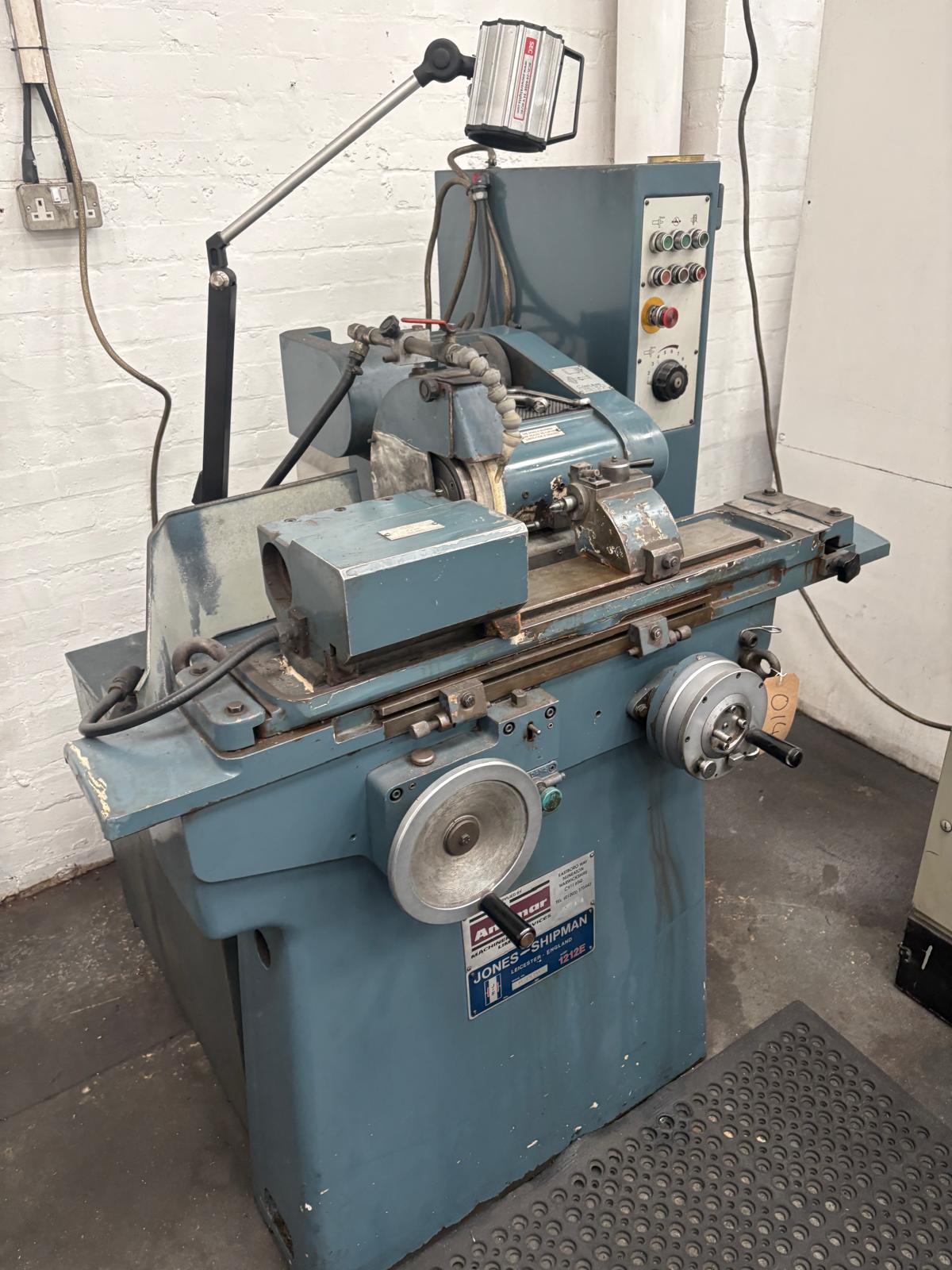

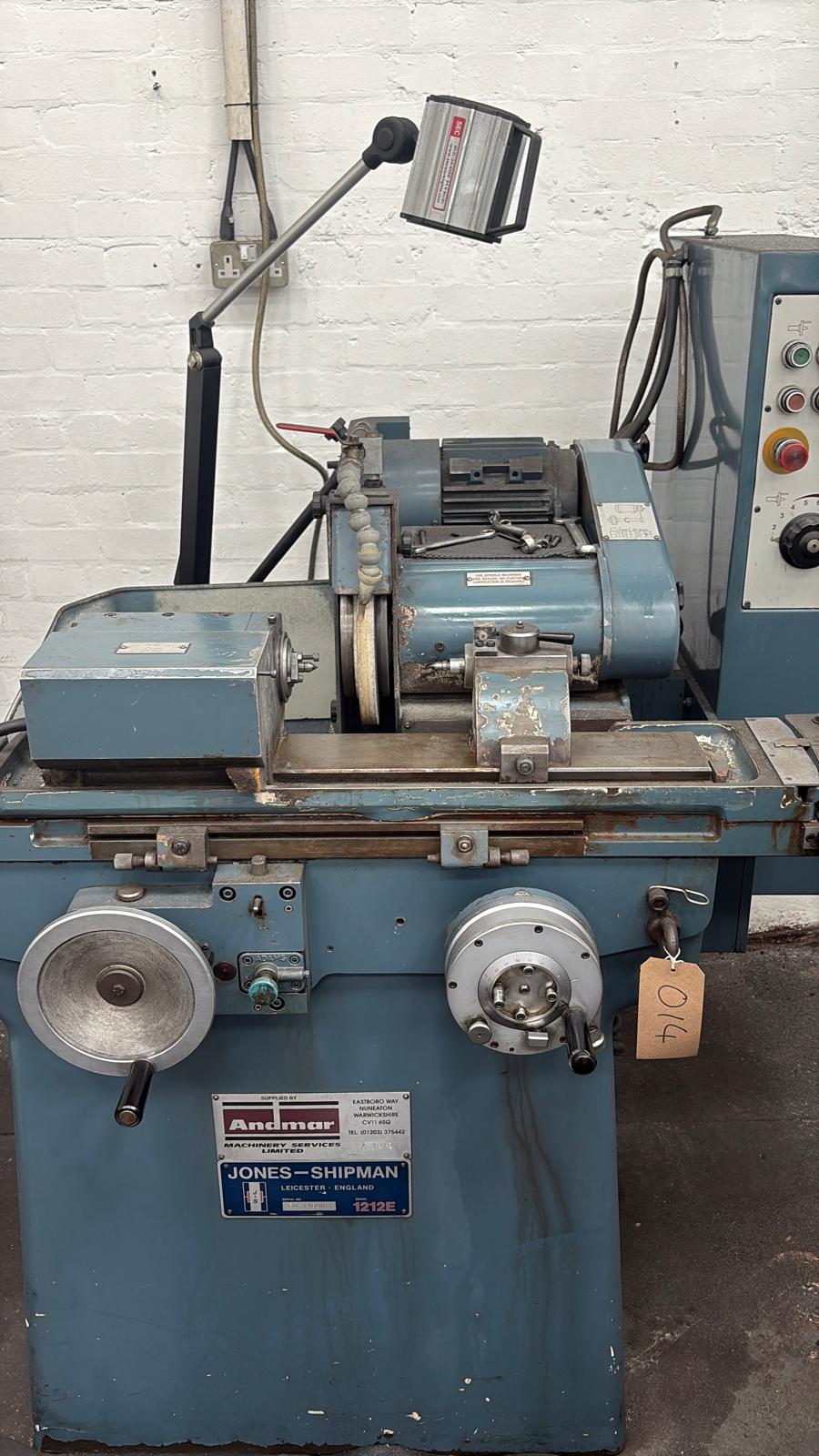

Jones & Shipman 1212 Precision Toolroom Universal Grinding Machine
Maximum diameter ground with new wheel 3"
Swing over table 5"
Grinding length between centres 12"
Maximum table traverse 13½"
Table swivels 20°
Table traverse per revolution of handwheel:
Coarse 1.0"
Fine .002"
Maximum wheelhead traverse 3"
Handwheel graduations (reduction in diameter) .0002"
Fine feed up to dead stop (reduction in diameter) .00002"
Wheelhead speeds 2240 / 2500 rpm
Grinding wheel size 10" x 1" x 3" bore
Wheelhead motor 1½ HP
Workhead speeds:
Low range (6) 75 – 375 rpm
High range (6) 150 – 750 rpm
Maximum collet capacity ½"
For sale with Jet Machinery Ltd
Jet Machinery Stock No: 27016

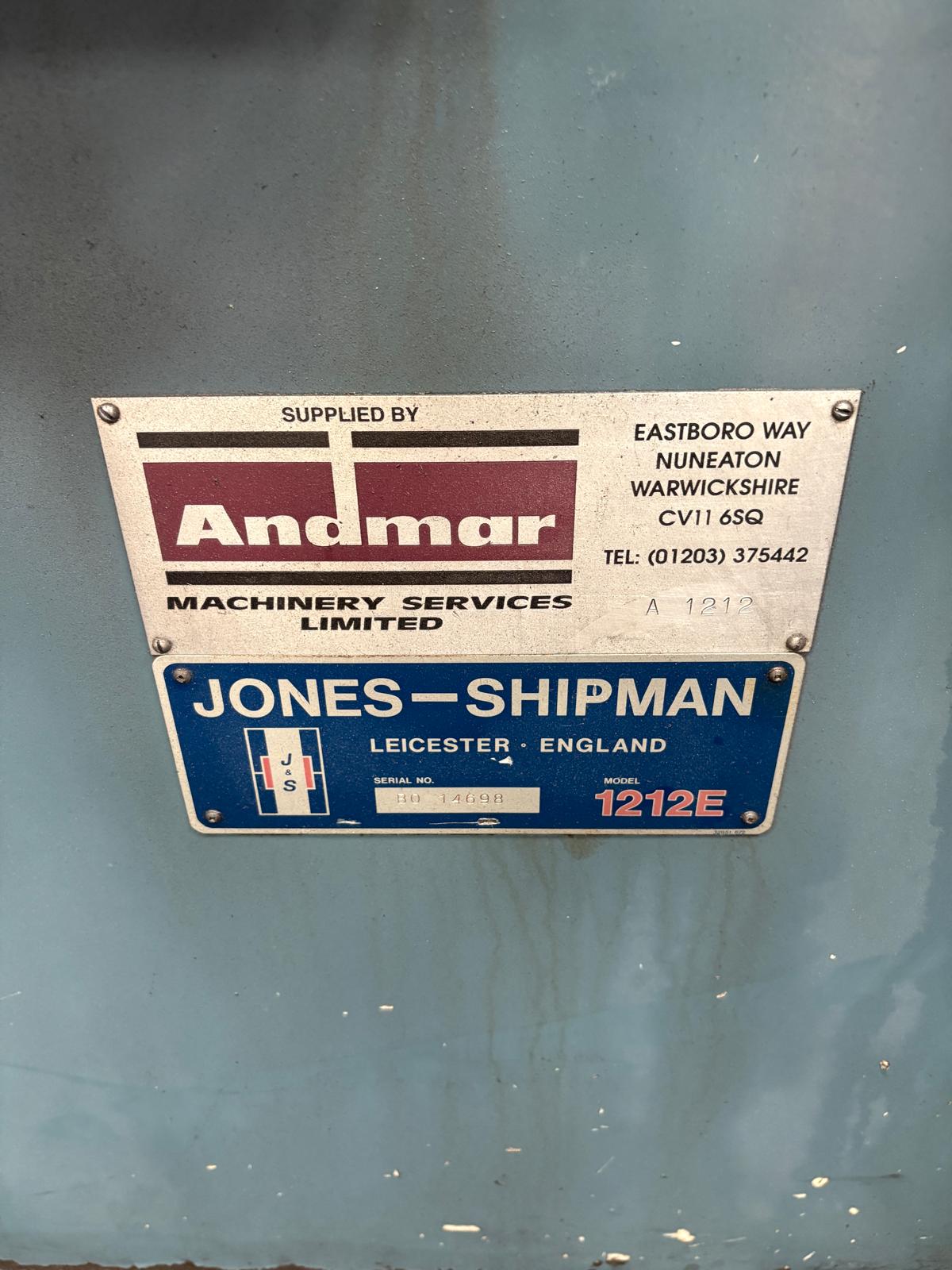

Machine Serial Number: BO 14698
Cost: £2,750.00 + VAT
