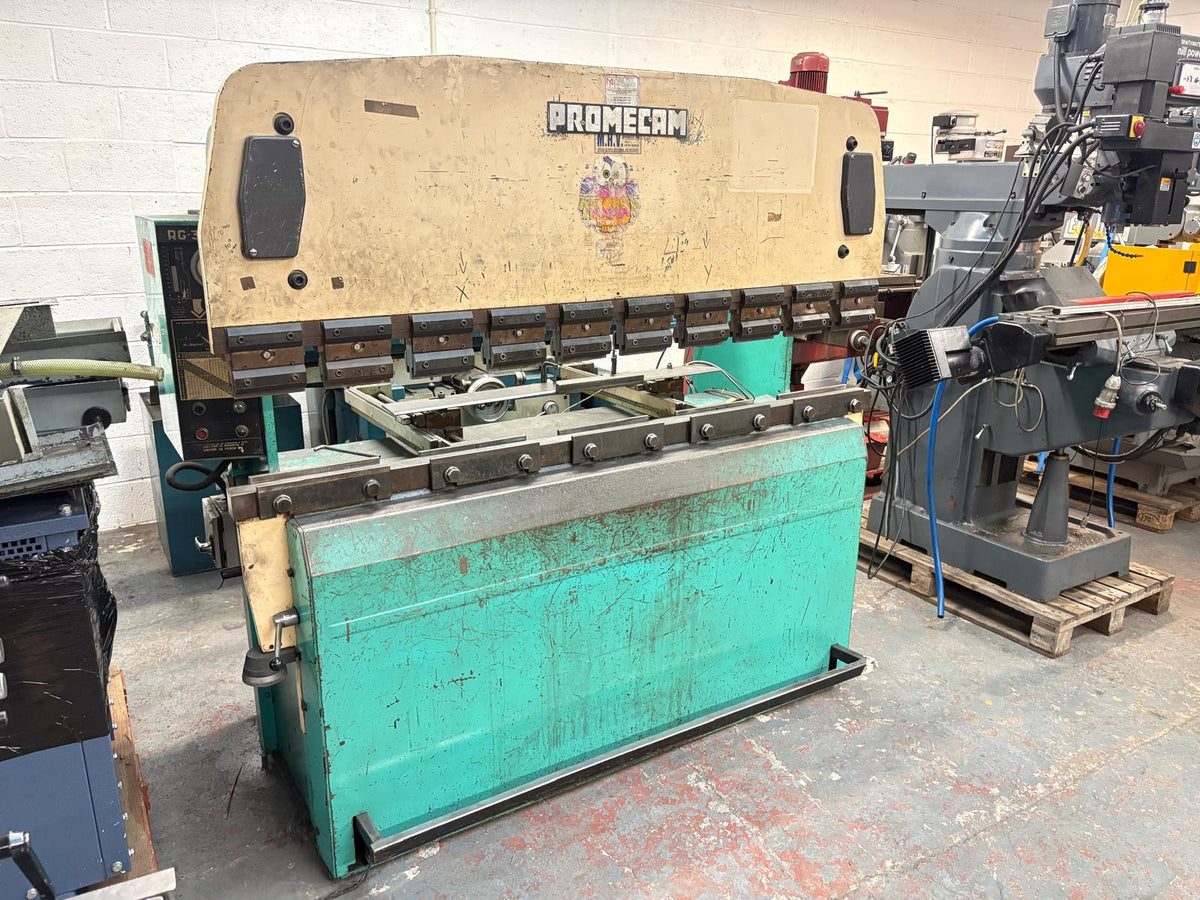

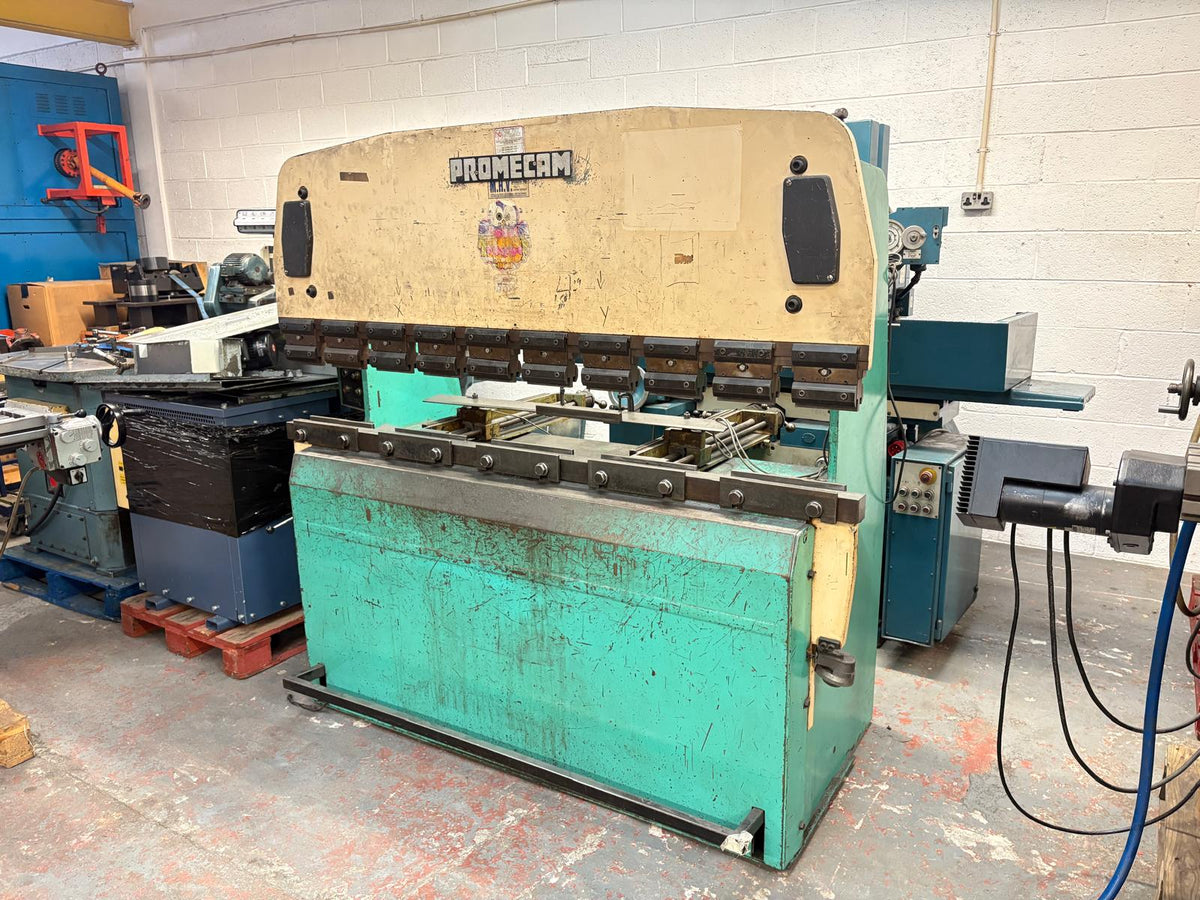

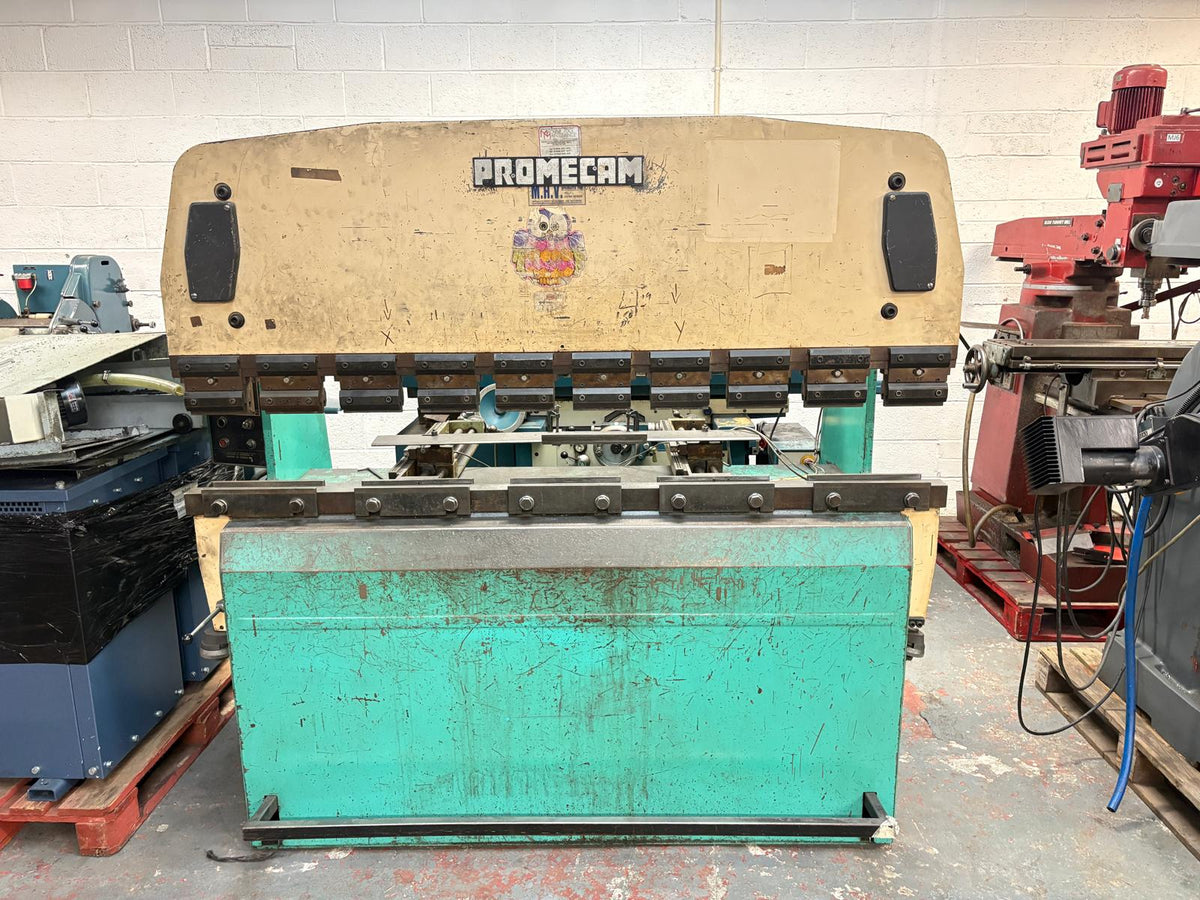

Promecam RG 50-20 Hydraulic Upstroking Press Brake
Pressing capacity: 50 tonnes
Maximum bending length: 2,085 mm
Distance between frames: 1,690 mm
Ram stroke: 100 mm
Maximum table-to-ram opening: 300 mm
Throat depth: 400 mm
Table width: 60 mm
Approach speed: 48 mm/sec
Working speed: 14 mm/sec
Return speed 70 mm/sec
Main motor: 5.5 kW / 7.5 hp
Approximate dimensions: 2,100 × 1,400 × 1,850 mm
Approximate weight 2,500–3,000 kg
Electrical supply: Three-phase
Control: Manual hydraulic control

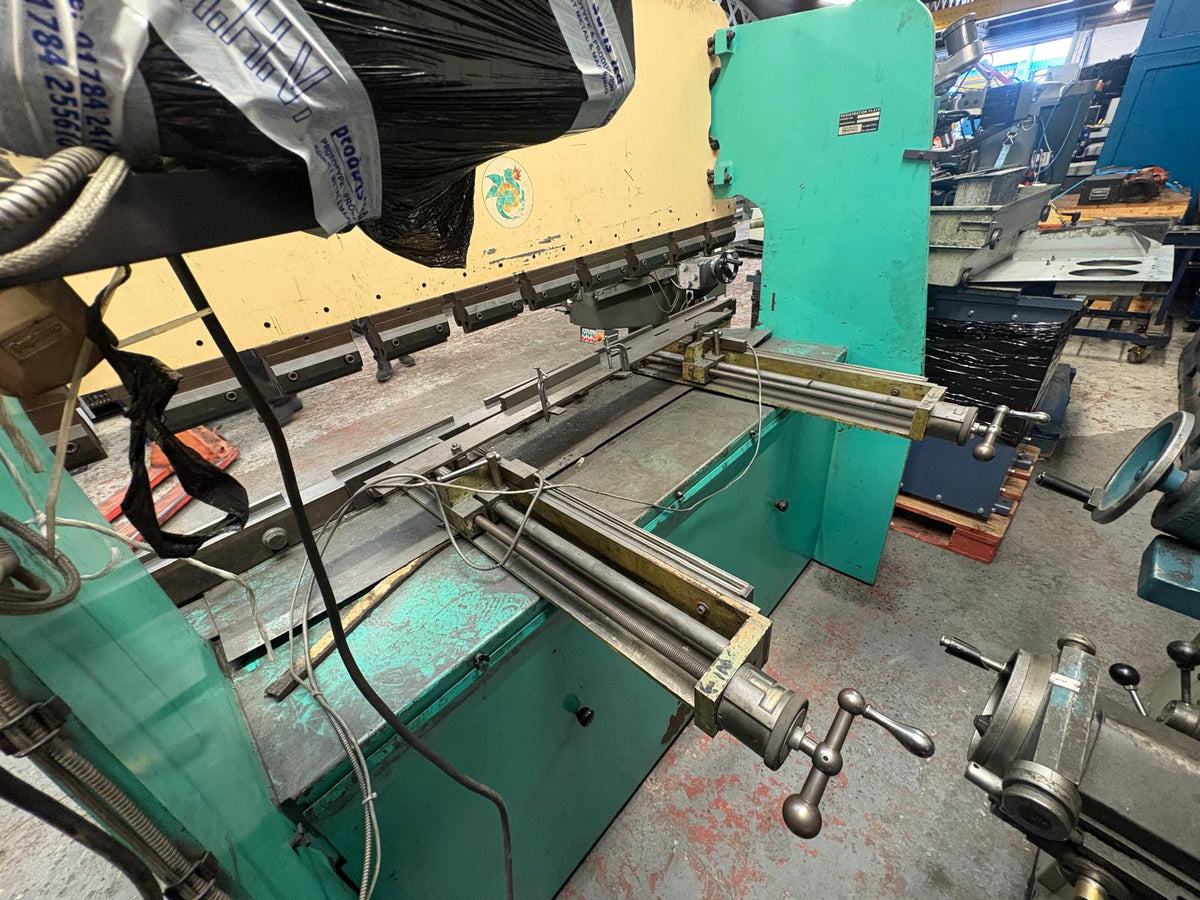

Back gauge: Manually operated rear back gauge

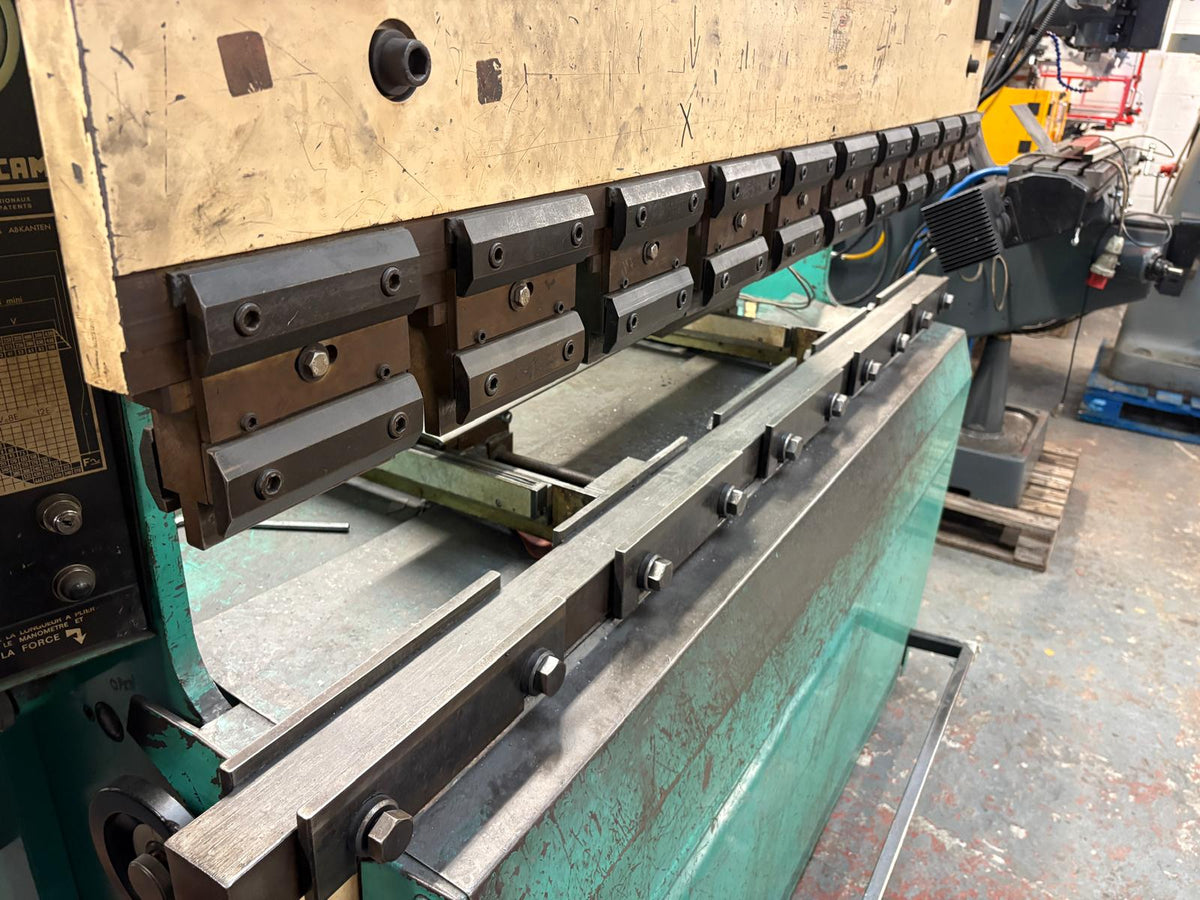

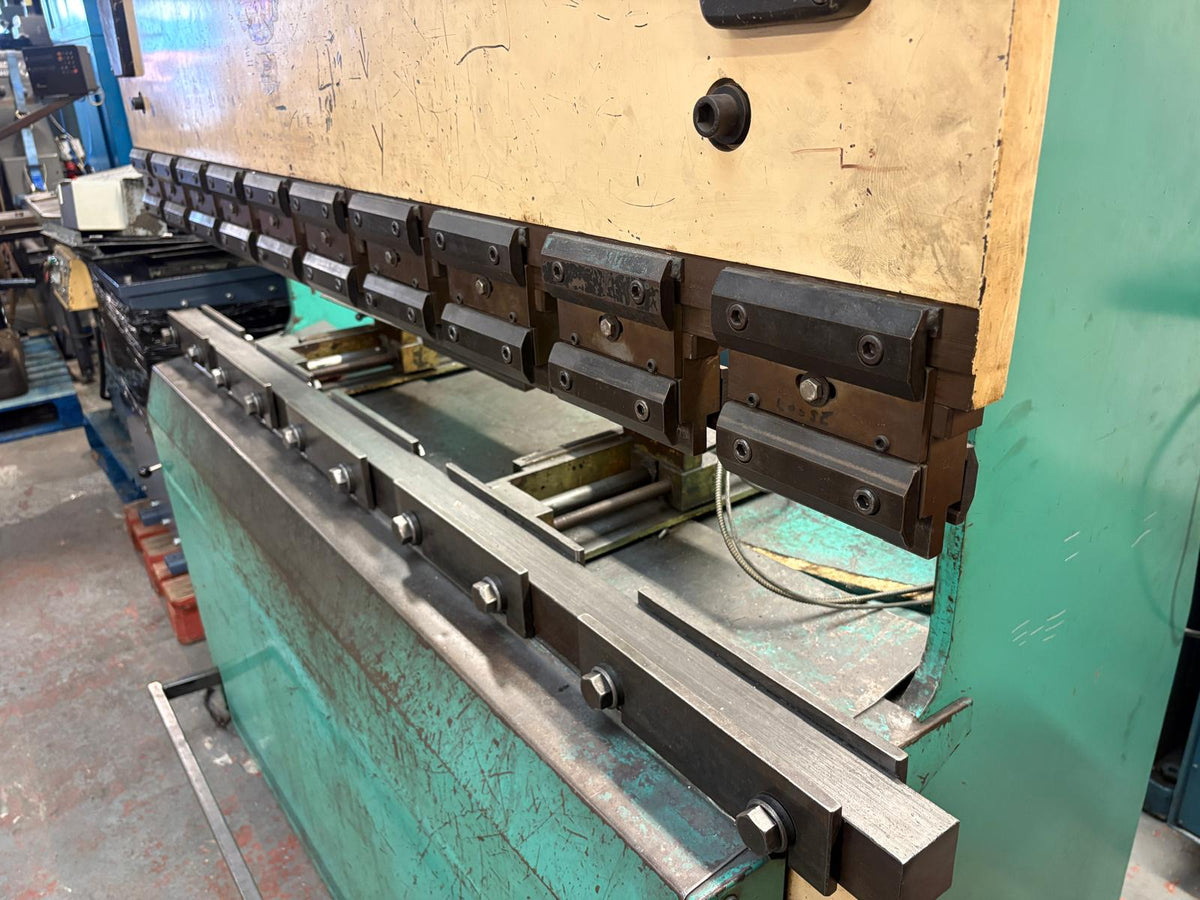

Tooling: Segmented upper tooling and full-length lower die rail
For sale with *Jet Machinery Ltd*
Jet Machinery Stock No: #79178
Machine Serial Number:
Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details.
Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.
