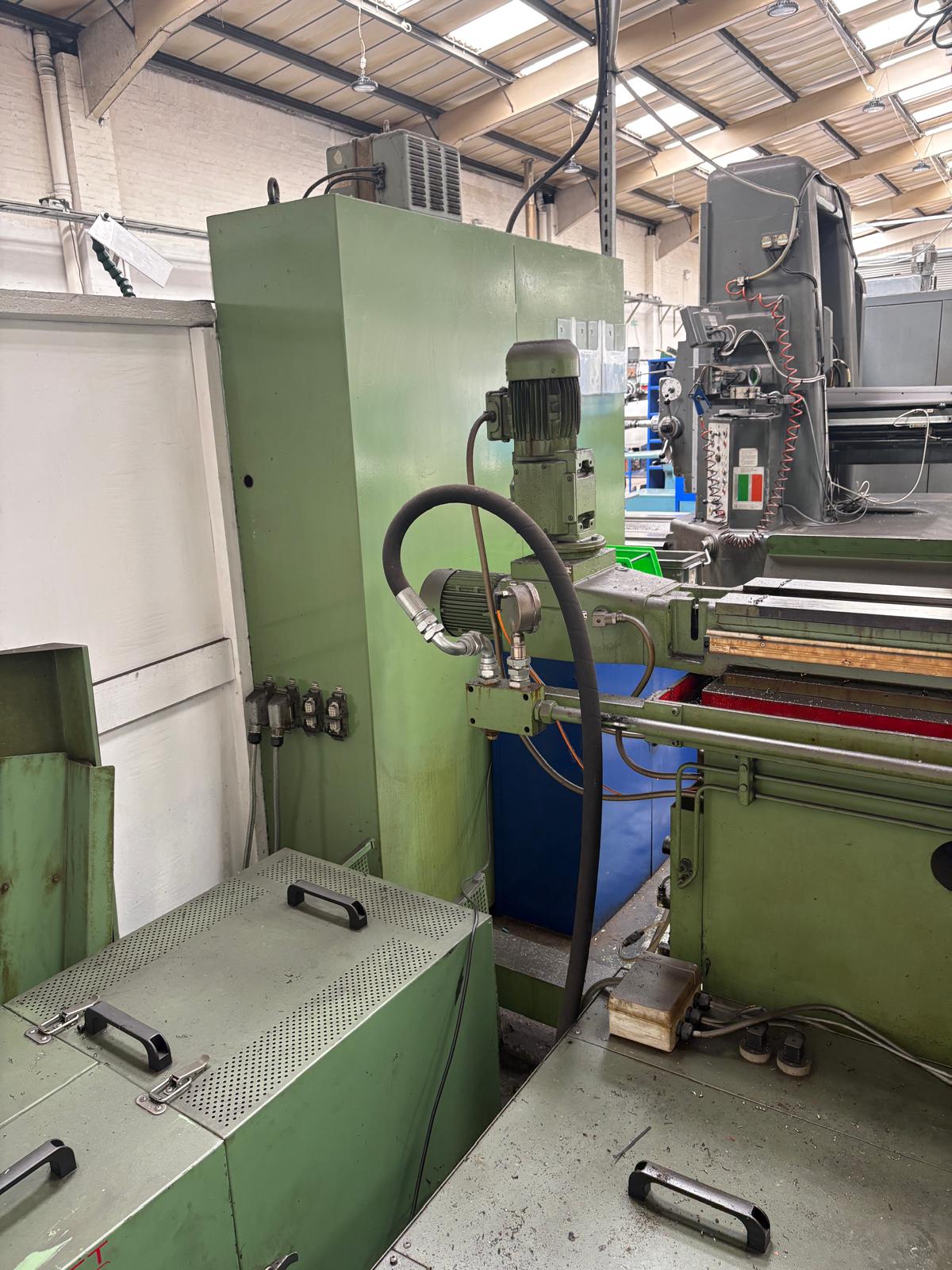

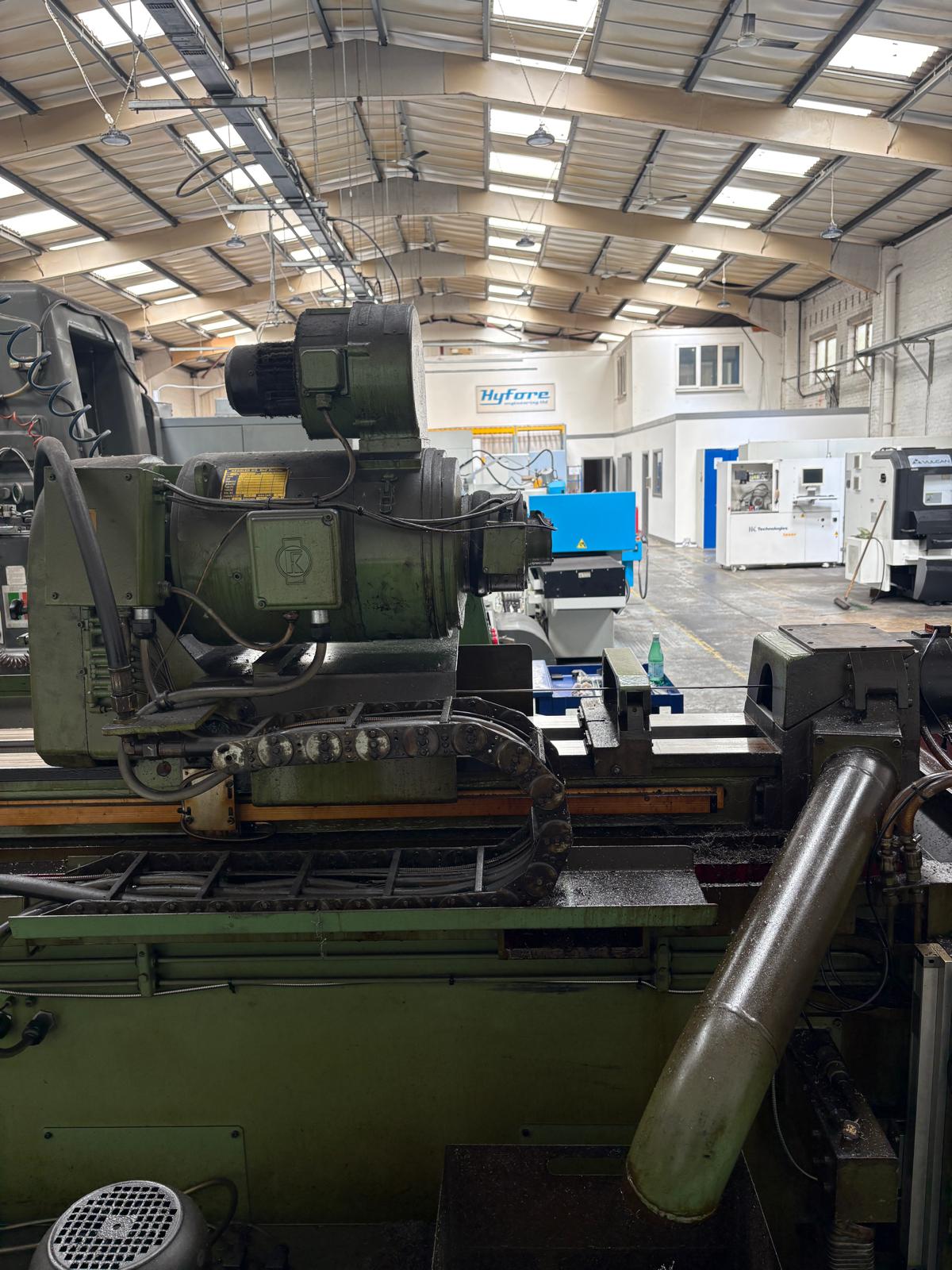

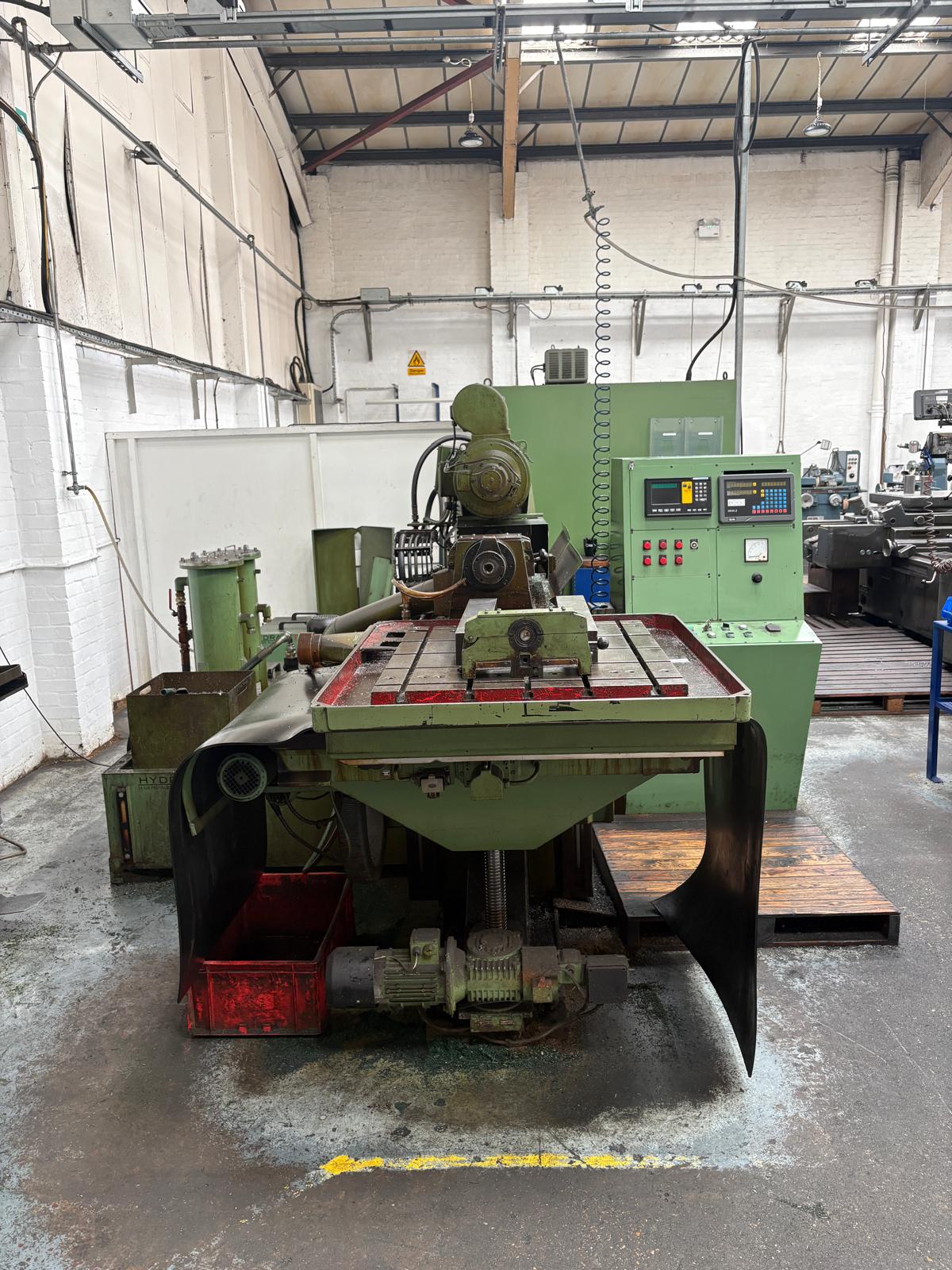

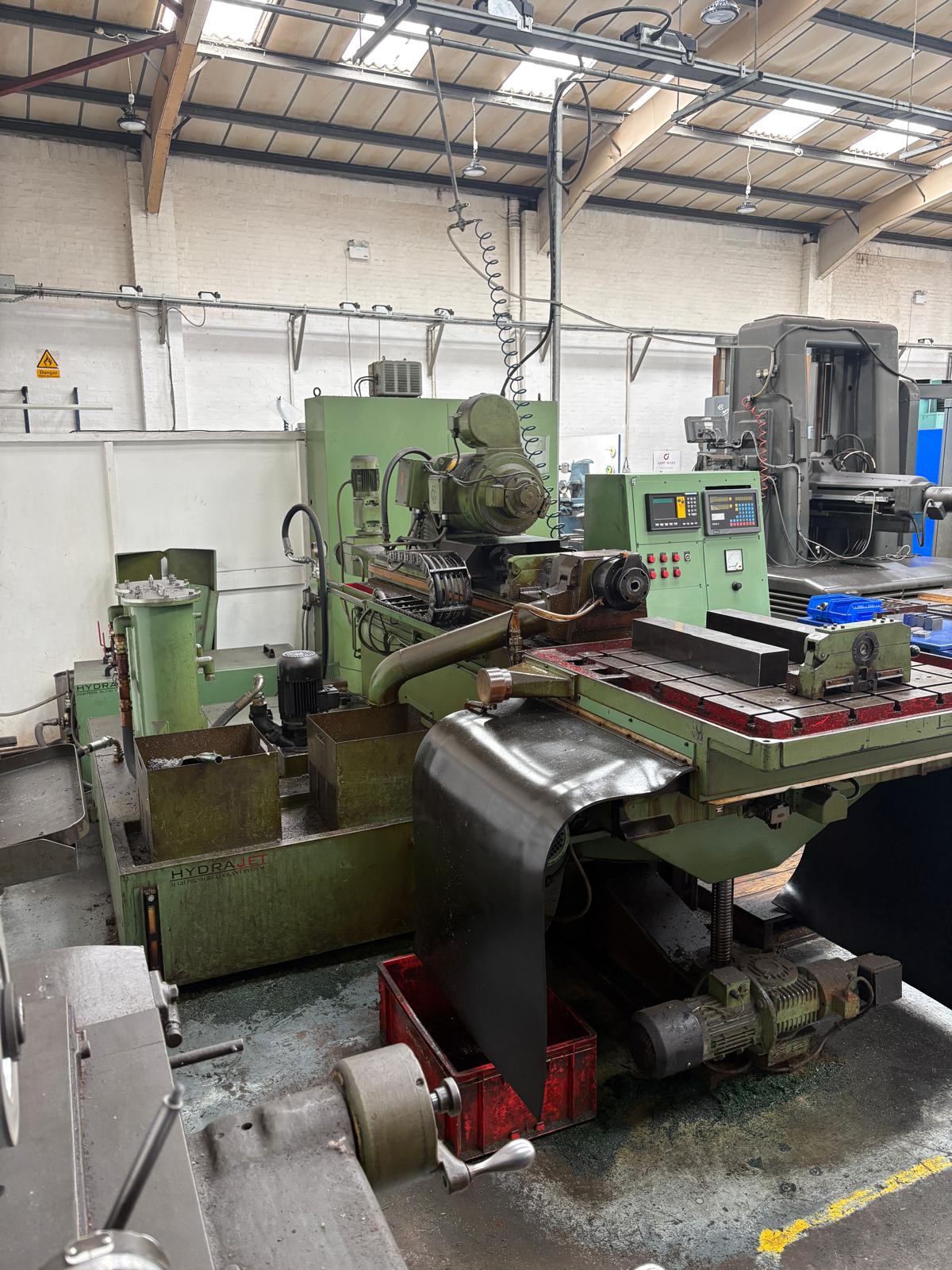

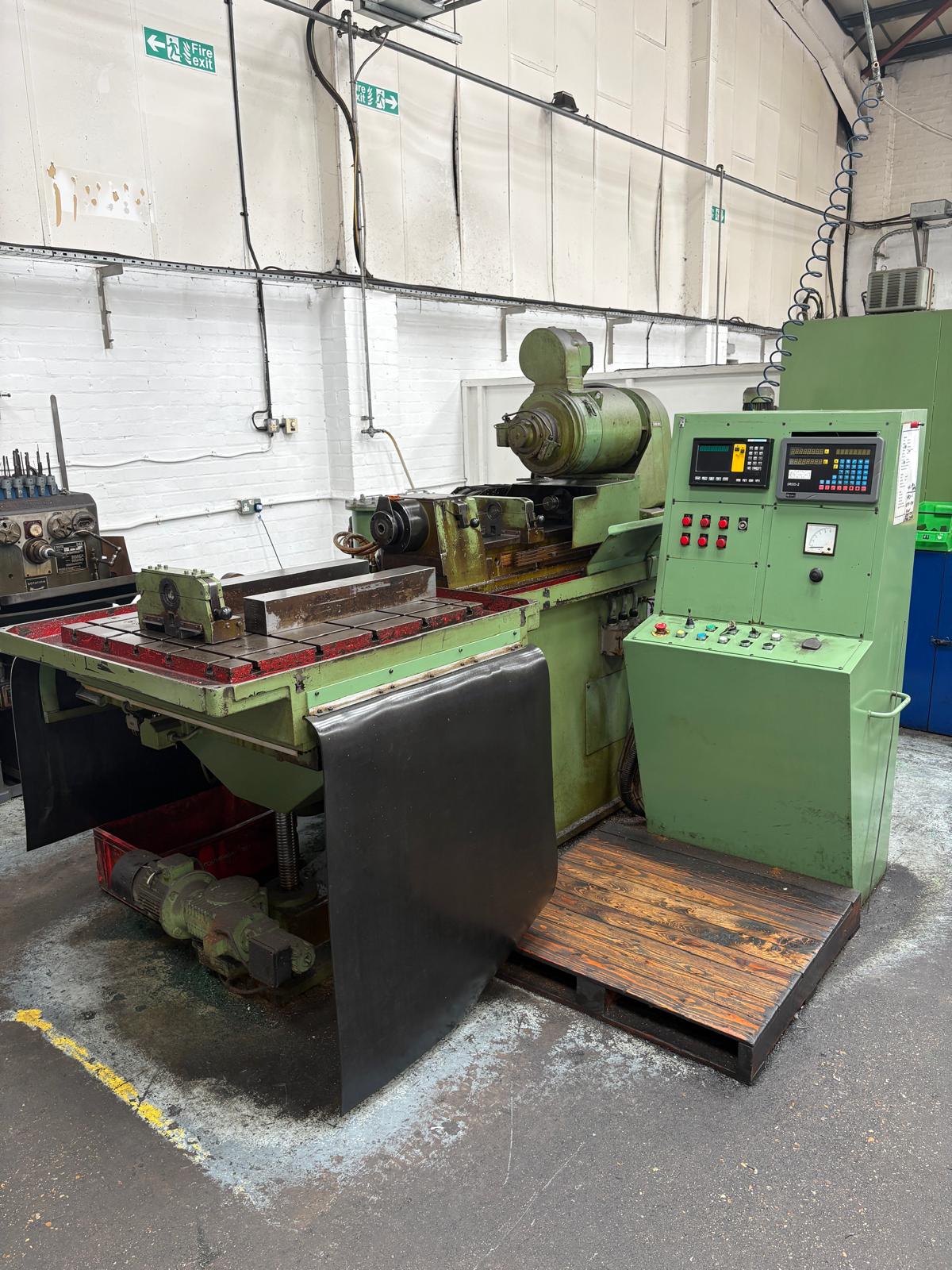

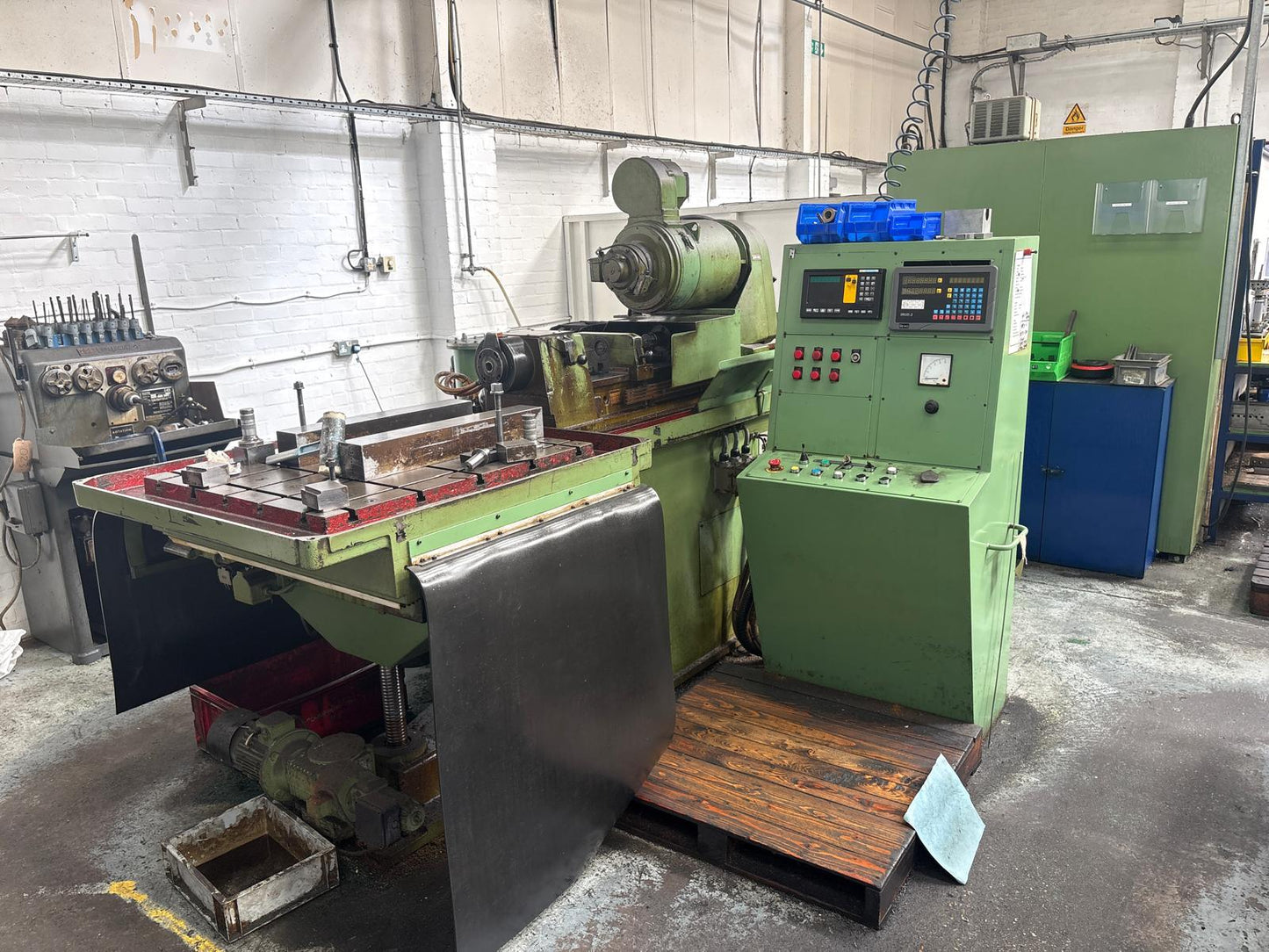

TBT T30 SERIES TABLE TYPE GUN DRILLING MACHINE
Model T30-1000KTN
Serial number 410.364.016
Number of spindles 1
Drilling range in steel 4 - 30 mm (solid)
Counter boring 40 mm
Nominal drilling depth 1000 mm
Slotted table size 850 long x 750 wide mm
Table size overall 1100 long x 1000 wide mm
Table cross movement 800 mm (approx.)
Table vertical movement 400 mm (approx.)
Drilling slide longitudinal travel 1450 mm
Slideway width 250 mm
Spindle speeds to approx. 9000 rpm
Spindle motor 25 kW
Total load 41 kW
Supplied with:
2 off Whip guides.
Ballscrew feed.

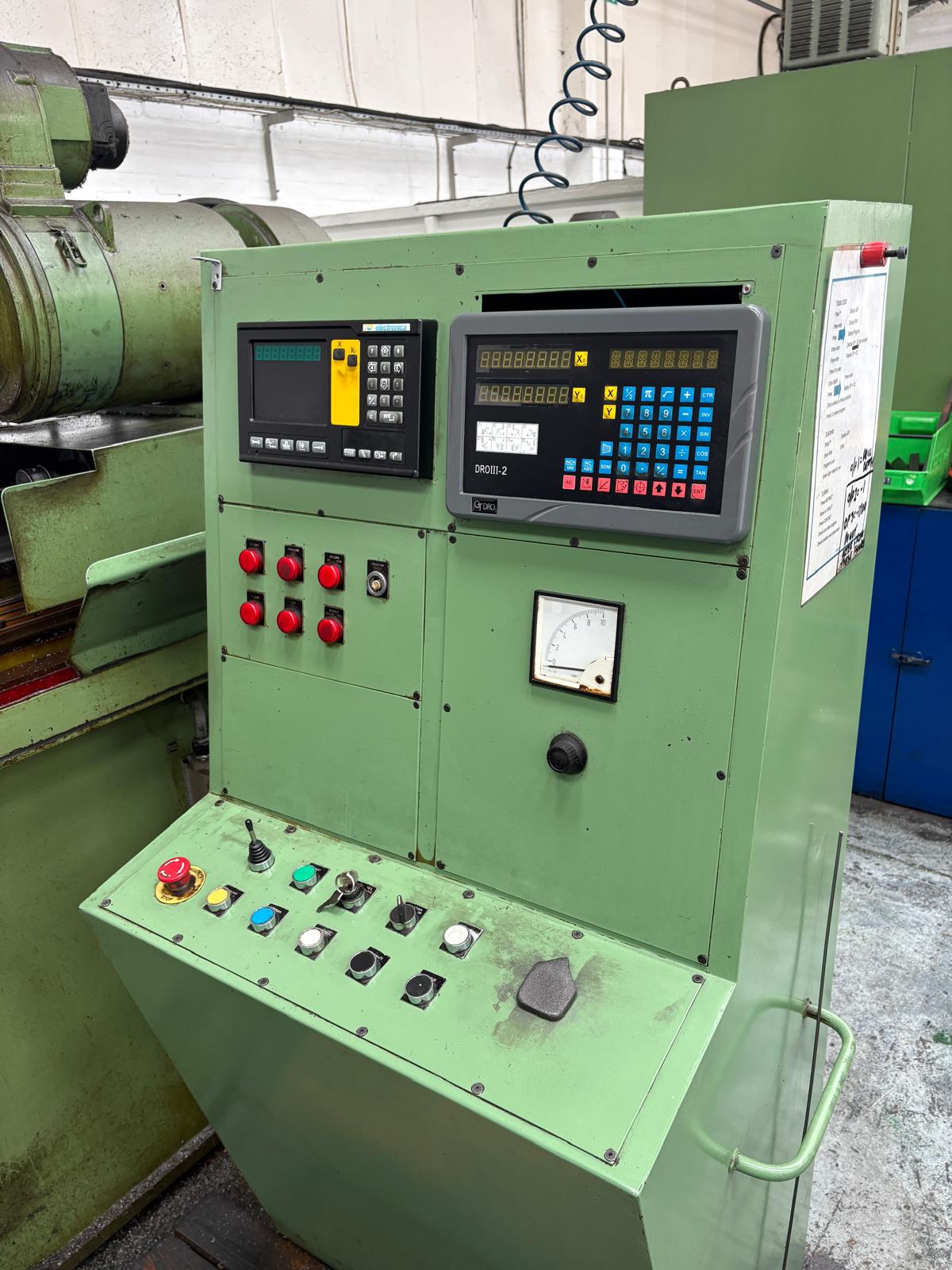

2 Axis DRO to table Cross and Vertical, DRO to drill slide.

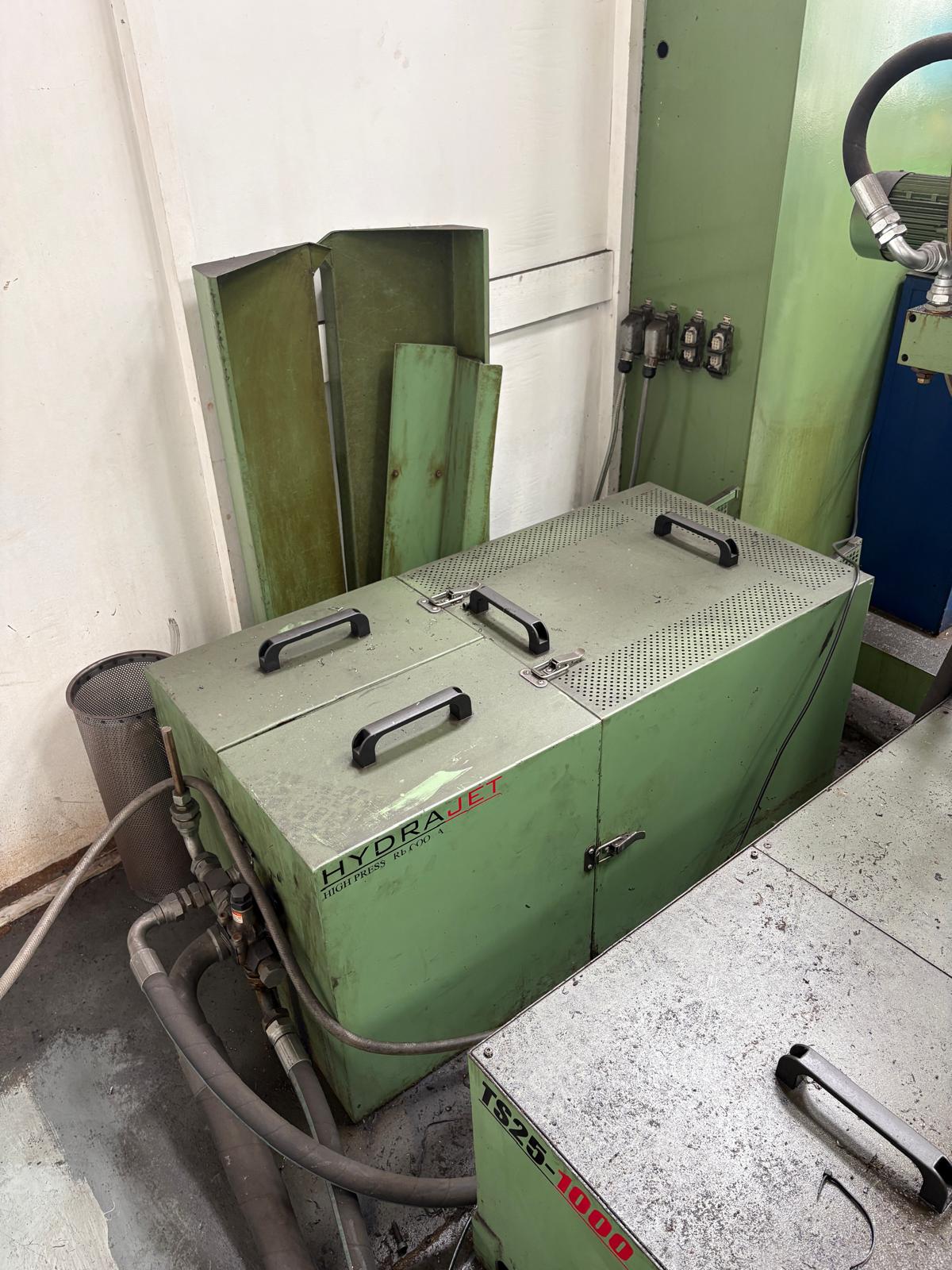

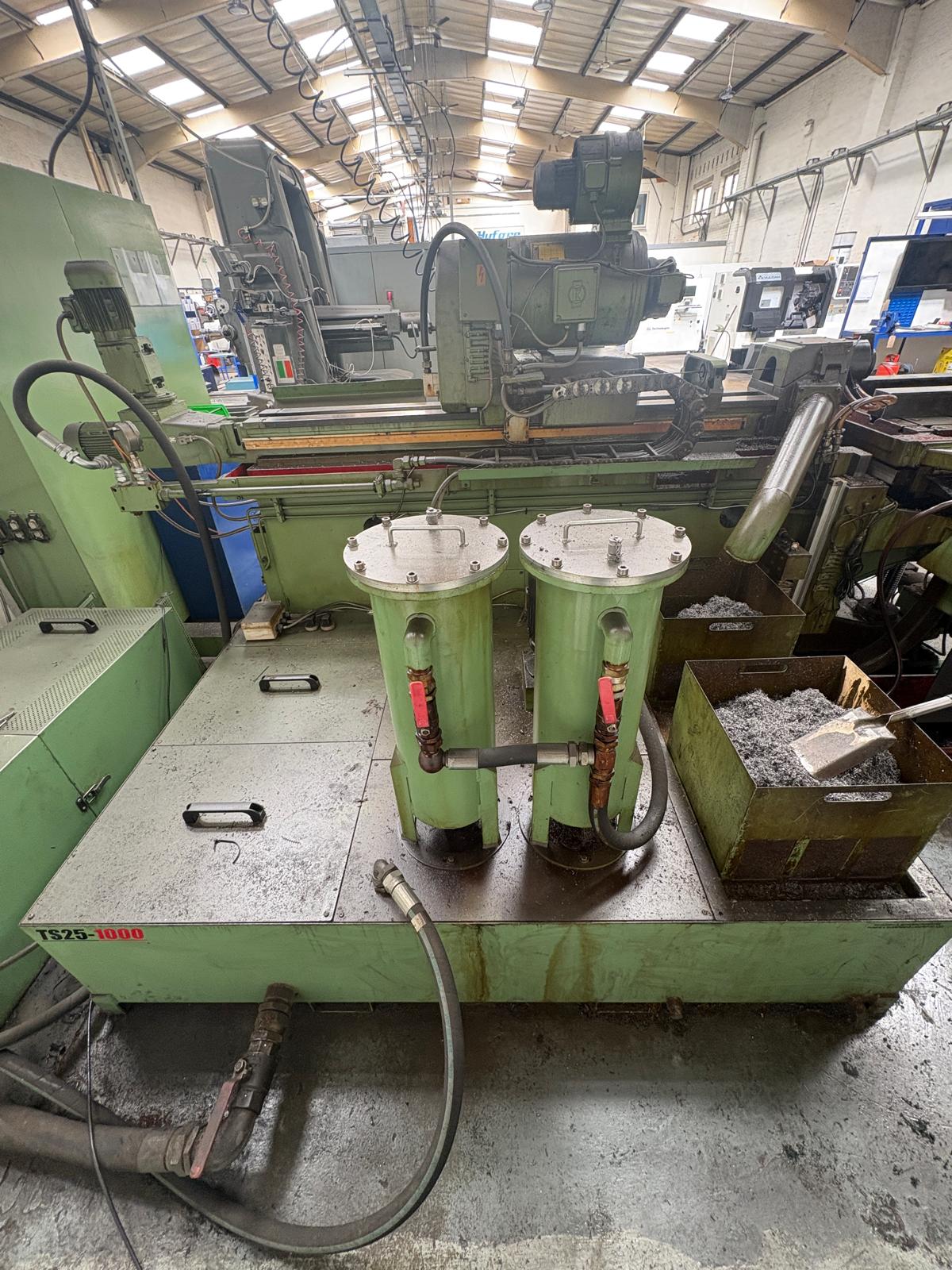

TS25-1000 Coolant tank.
Drill bushes.
