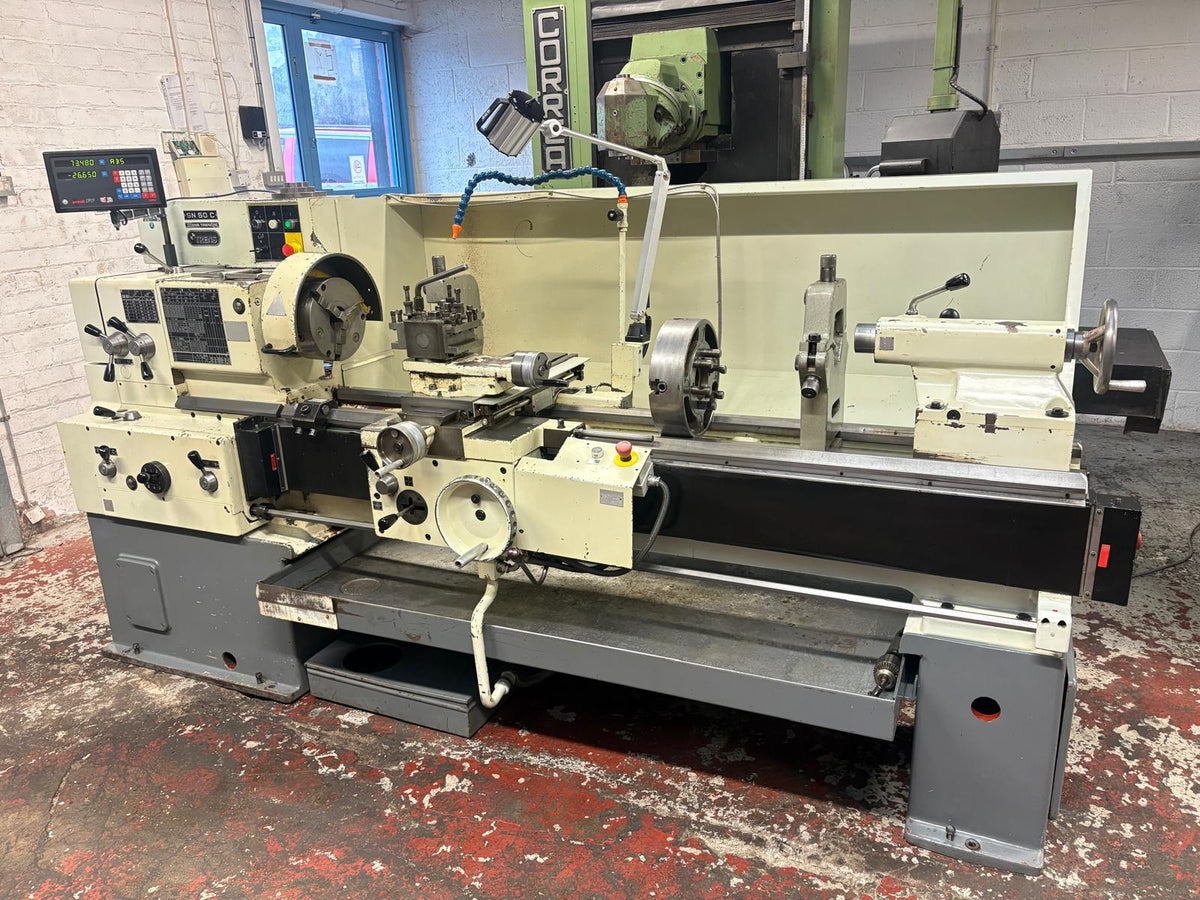

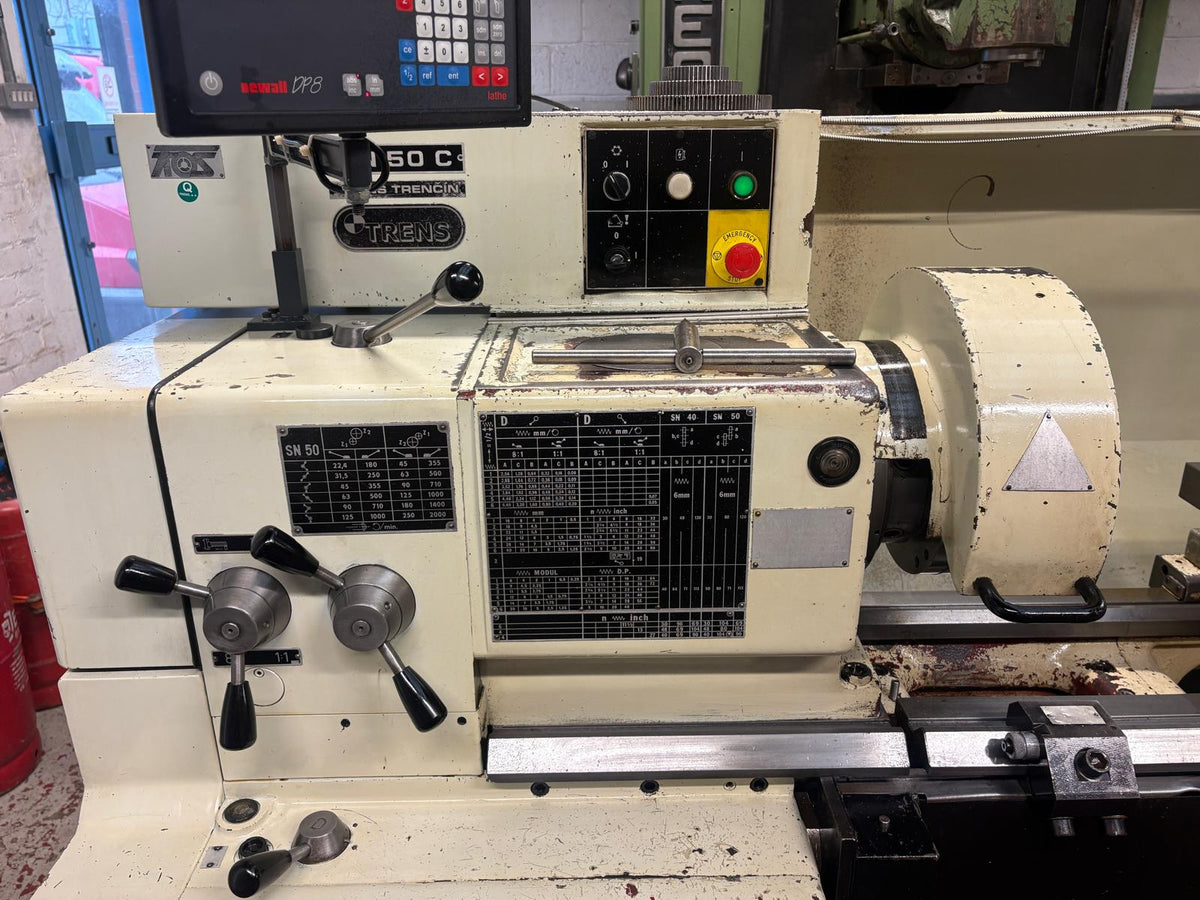

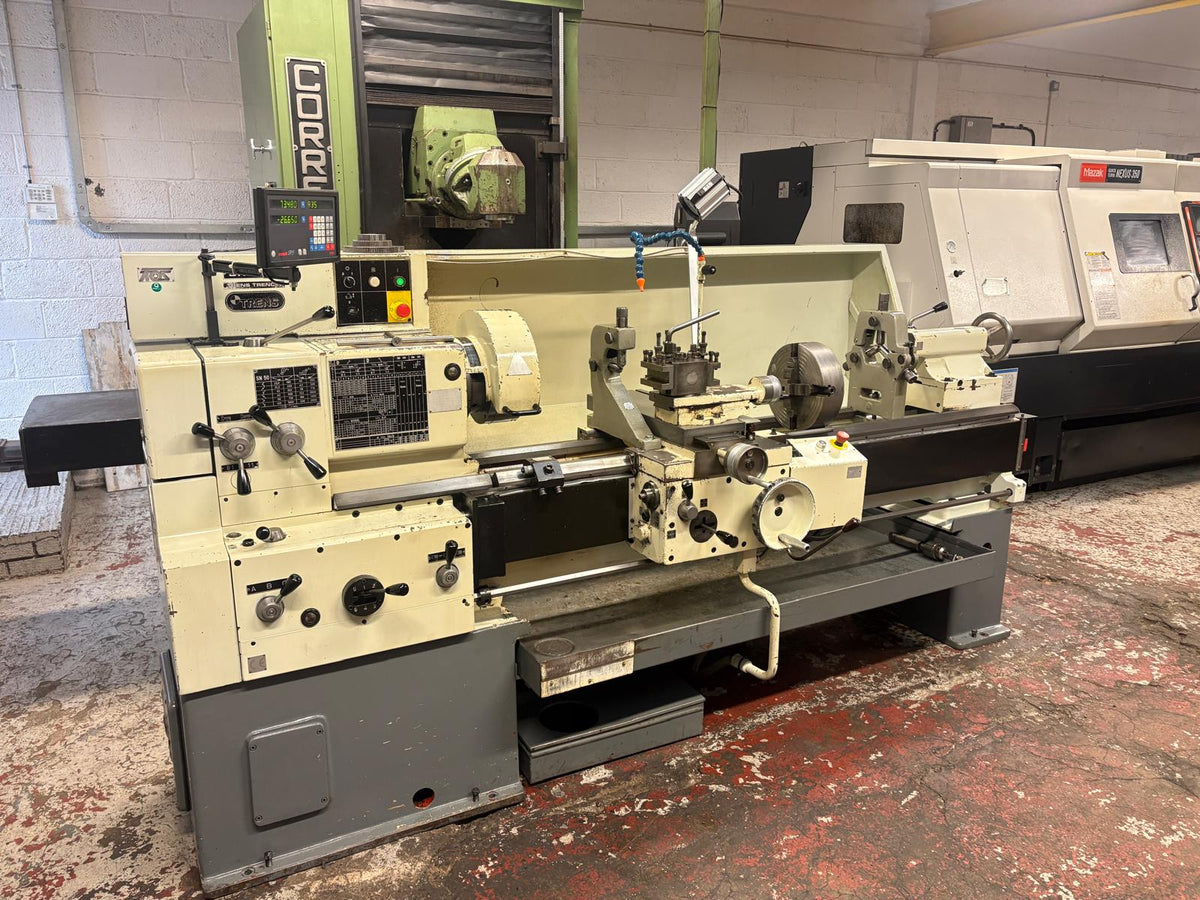

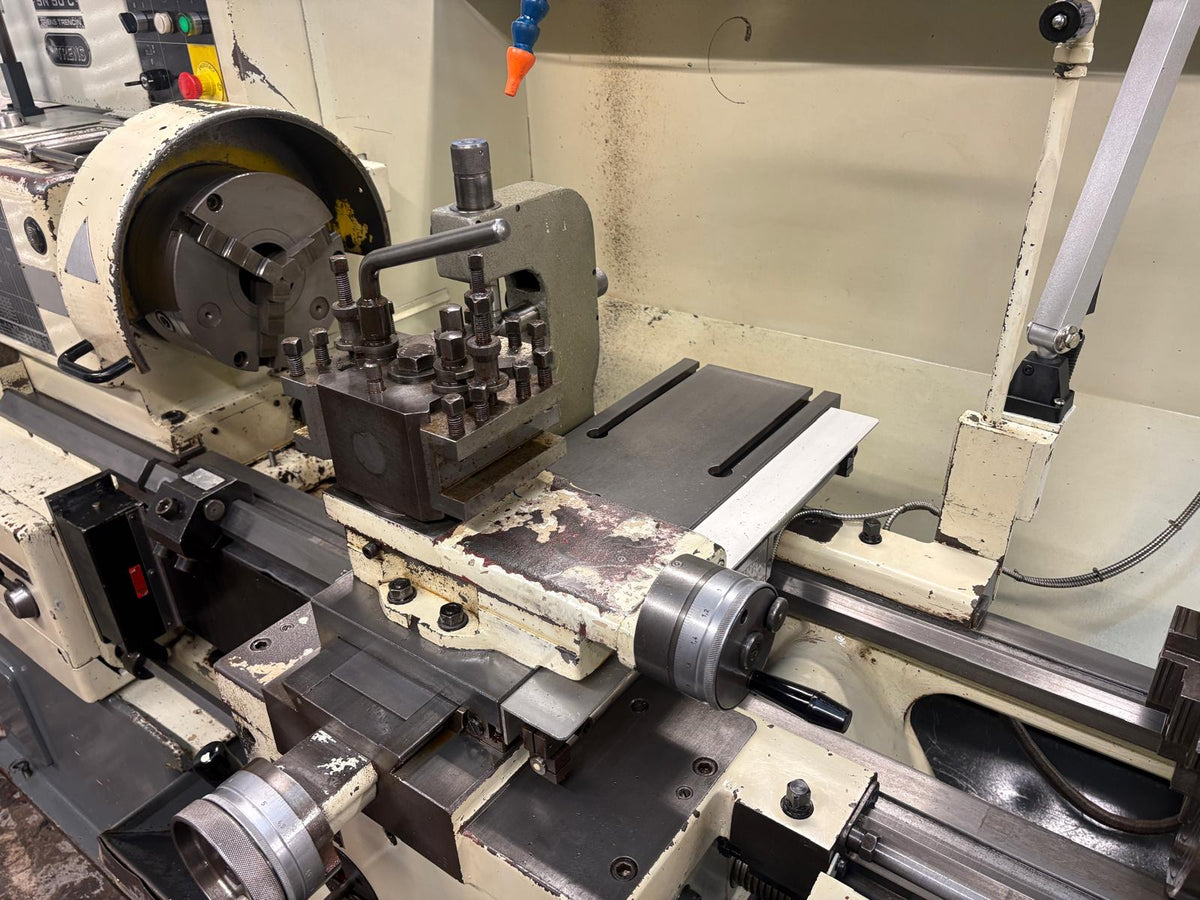

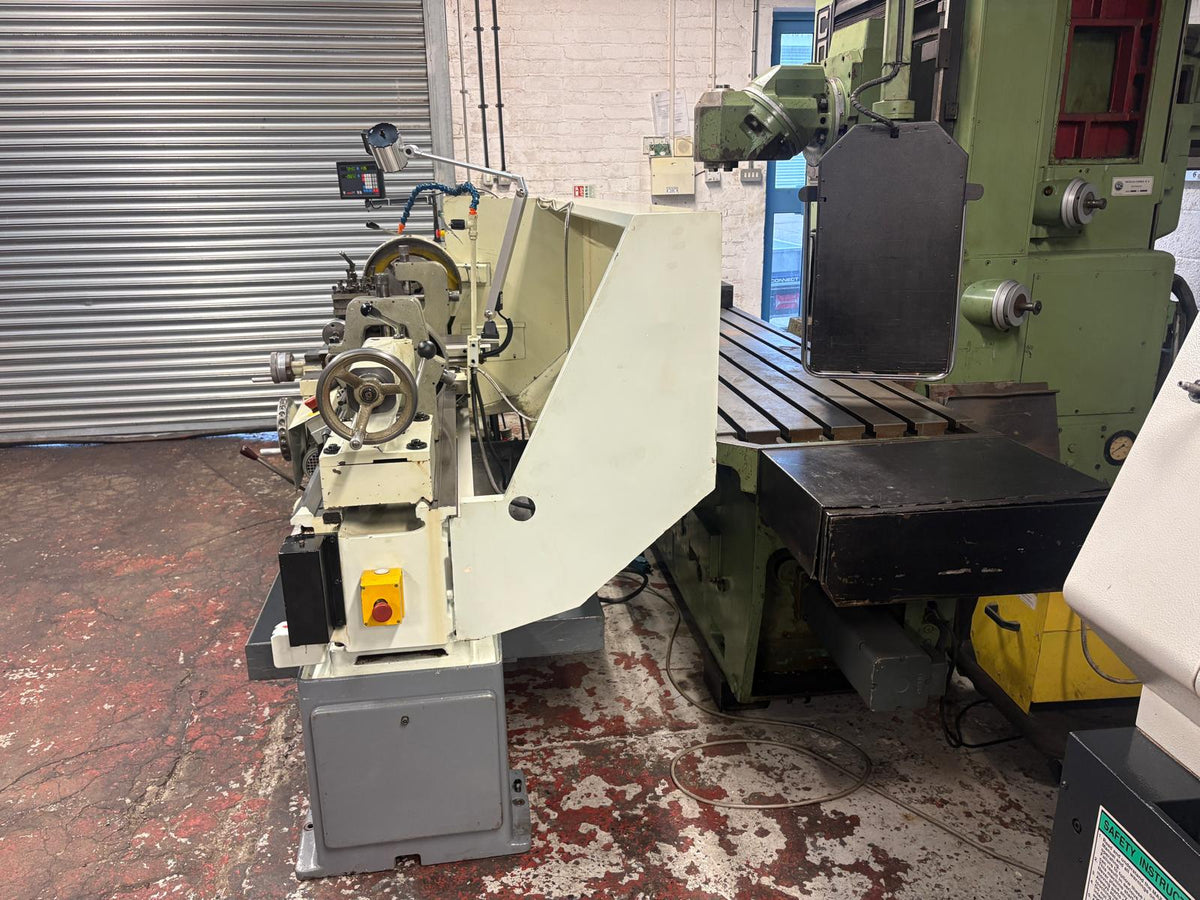

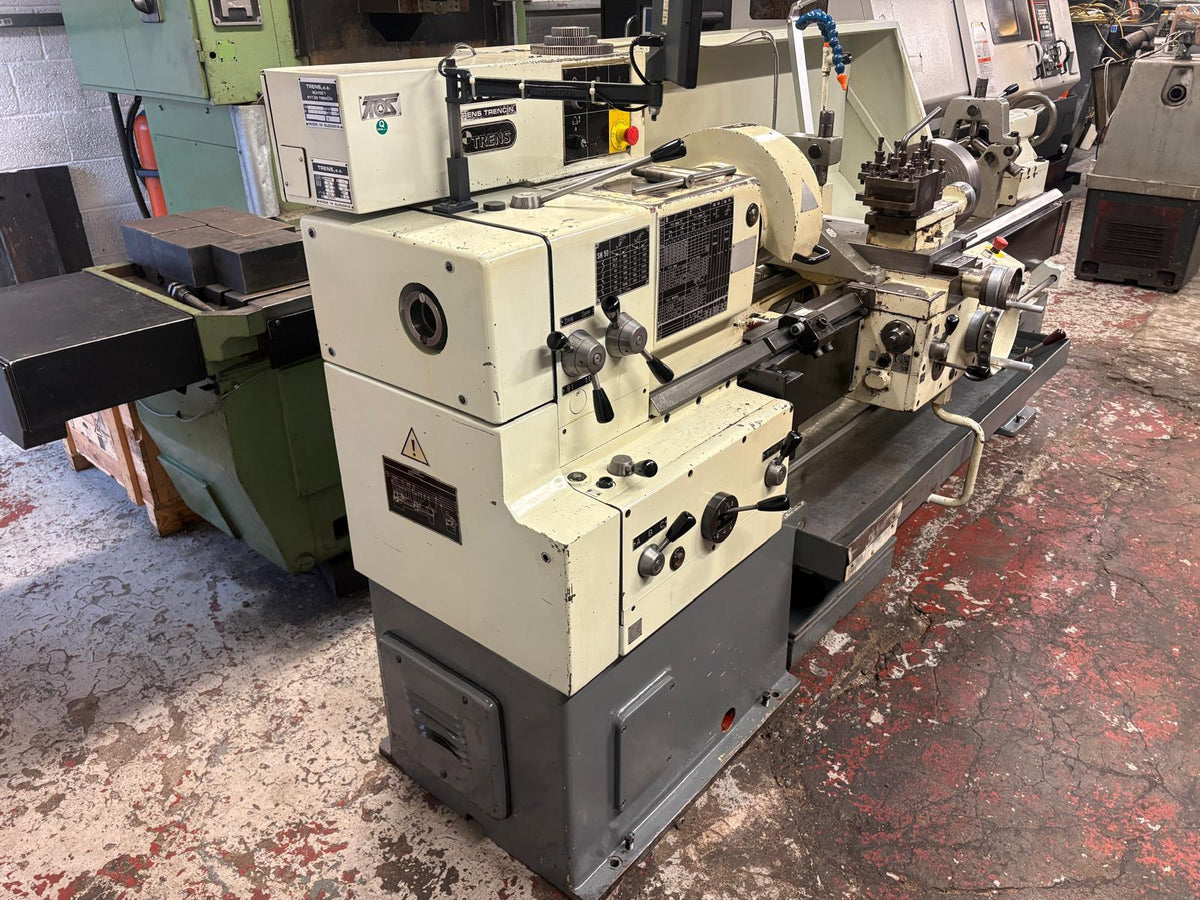

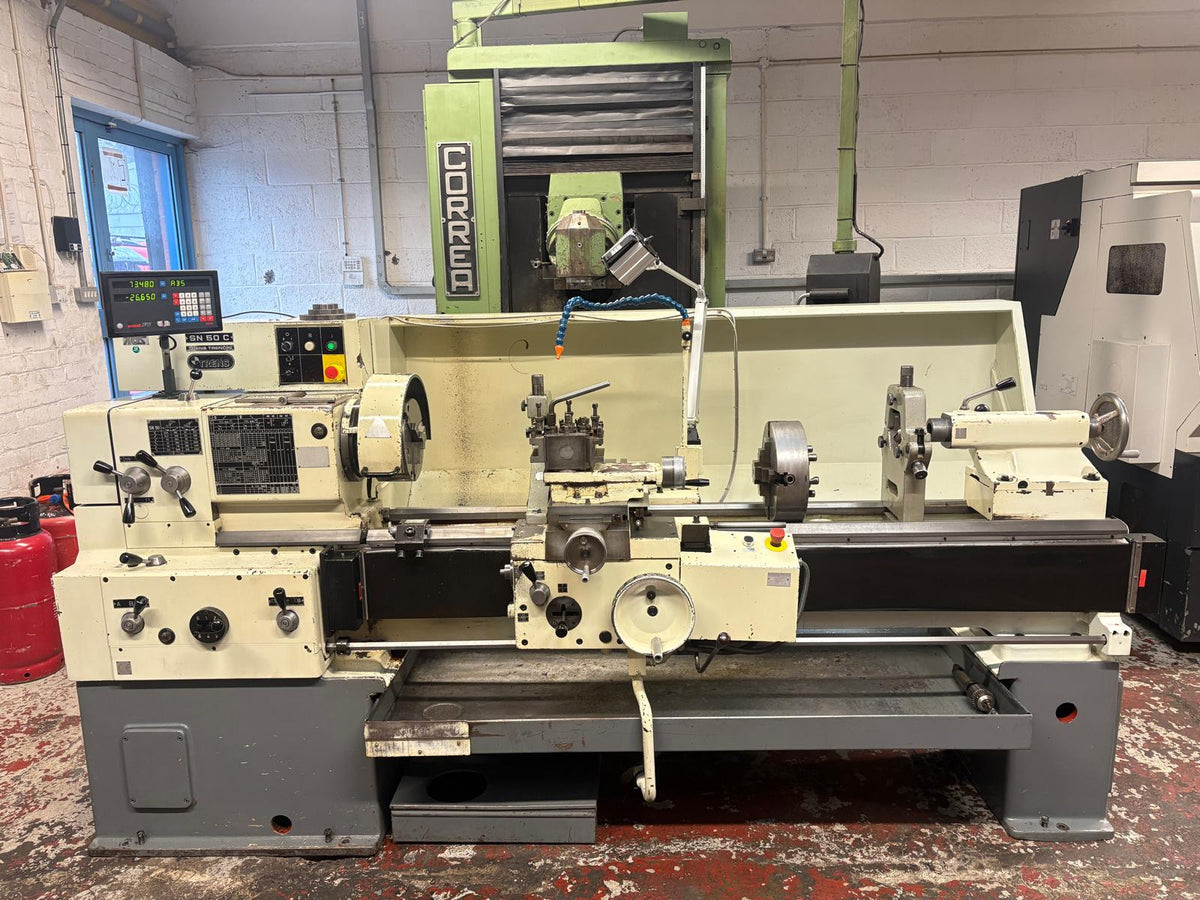

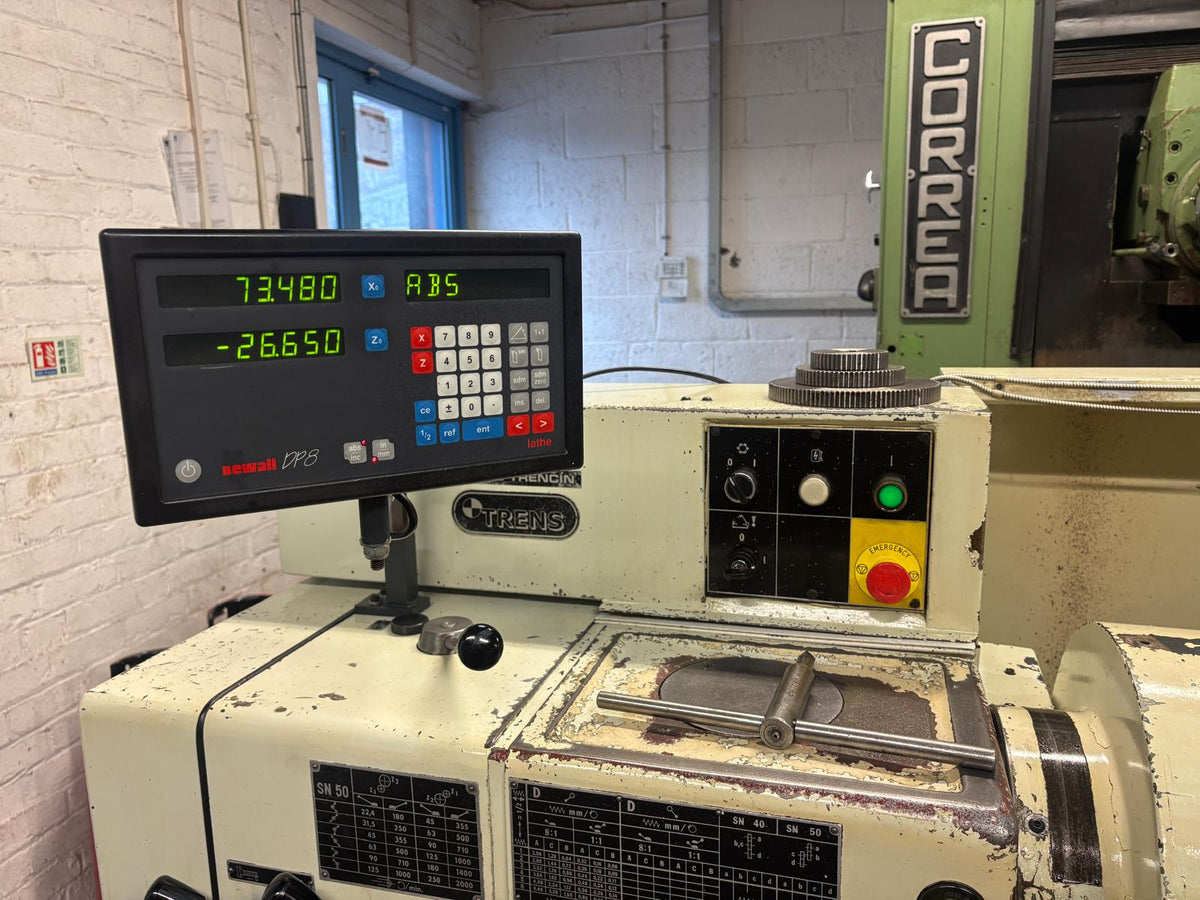

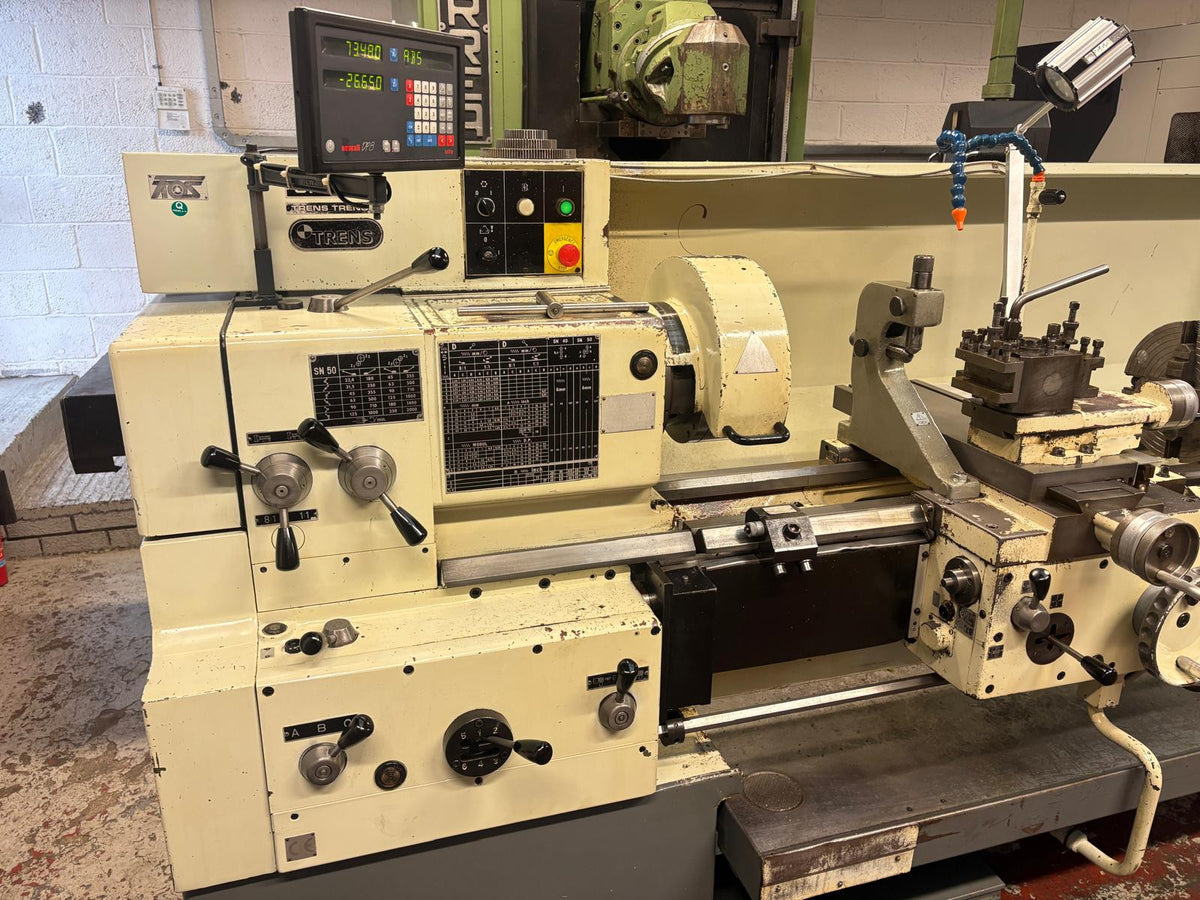

TOS SN50C Gap Bed Centre Lathe
Superb Condition Machine
Rapid feeds all ways.
Max. Swing Over Bed 500mm
Max. Swing over cross-slide 270 mm
Max. Swing in Gap 700 mm
Max. Distance Between Cemtres 1500mm
Spindle bore 52 mm
Spindle speed range 22–2,000 rpm
Main motor: 5.5 kW / 7.5 hp
Maximum spindle torque: 1,200 Nm

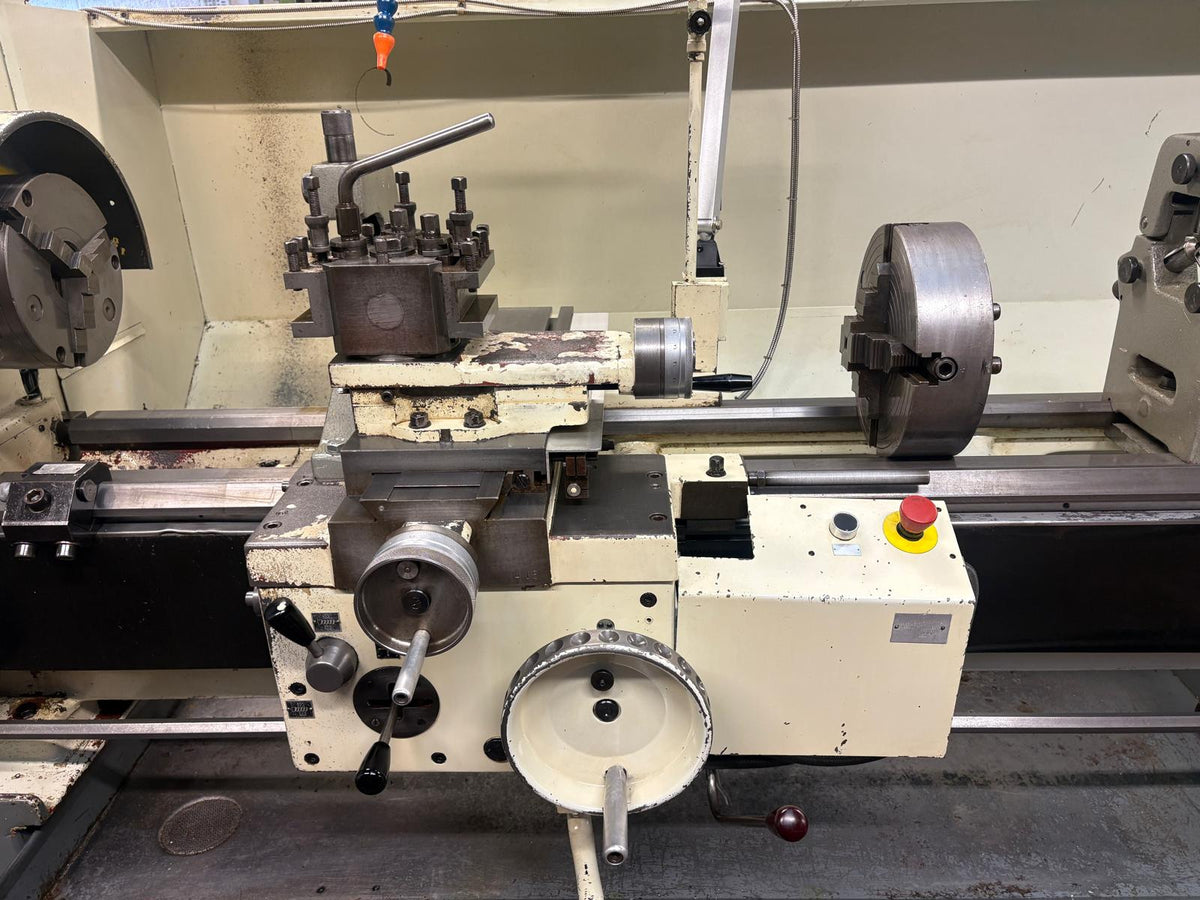

Cross-slide travel: 300 mm

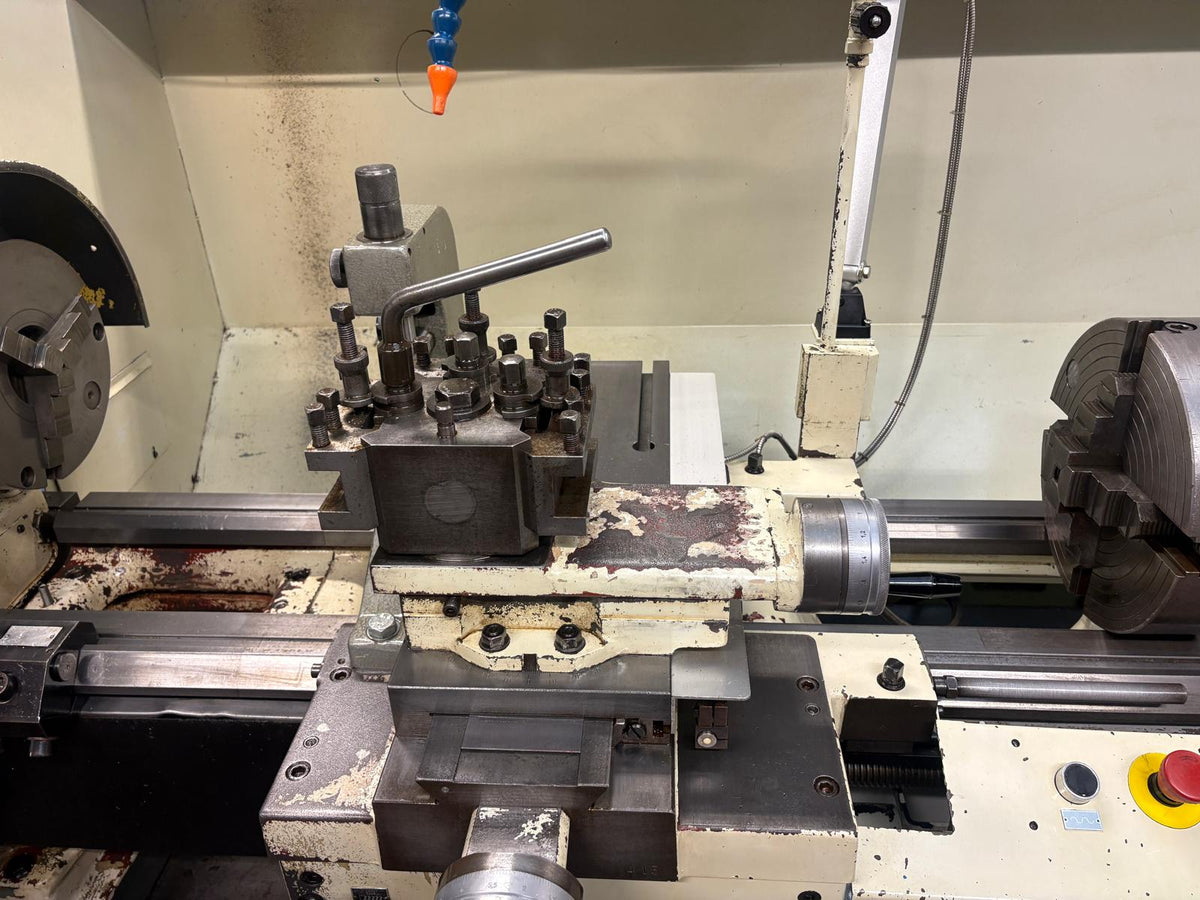

Compound/tool-slide travel 140 mm

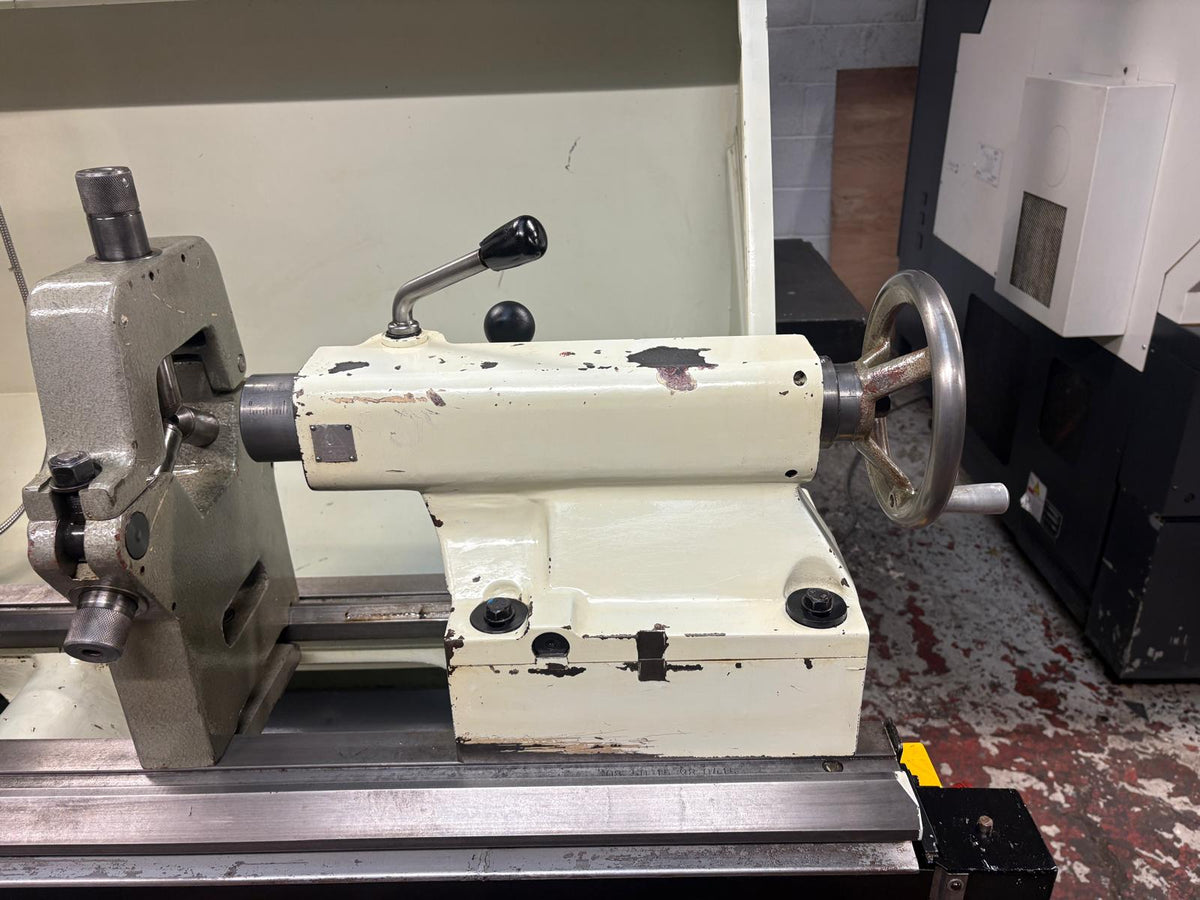

Tailstock quill diameter: 70 mm
Tailstock quill travel 180 mm
Tailstock taper: Morse taper No. 5
Electrical supply: 3-phase, 400 V
Machine width × height: 1,100 × 1,505 mm
Weight: 1,785 kg
Supplied with:

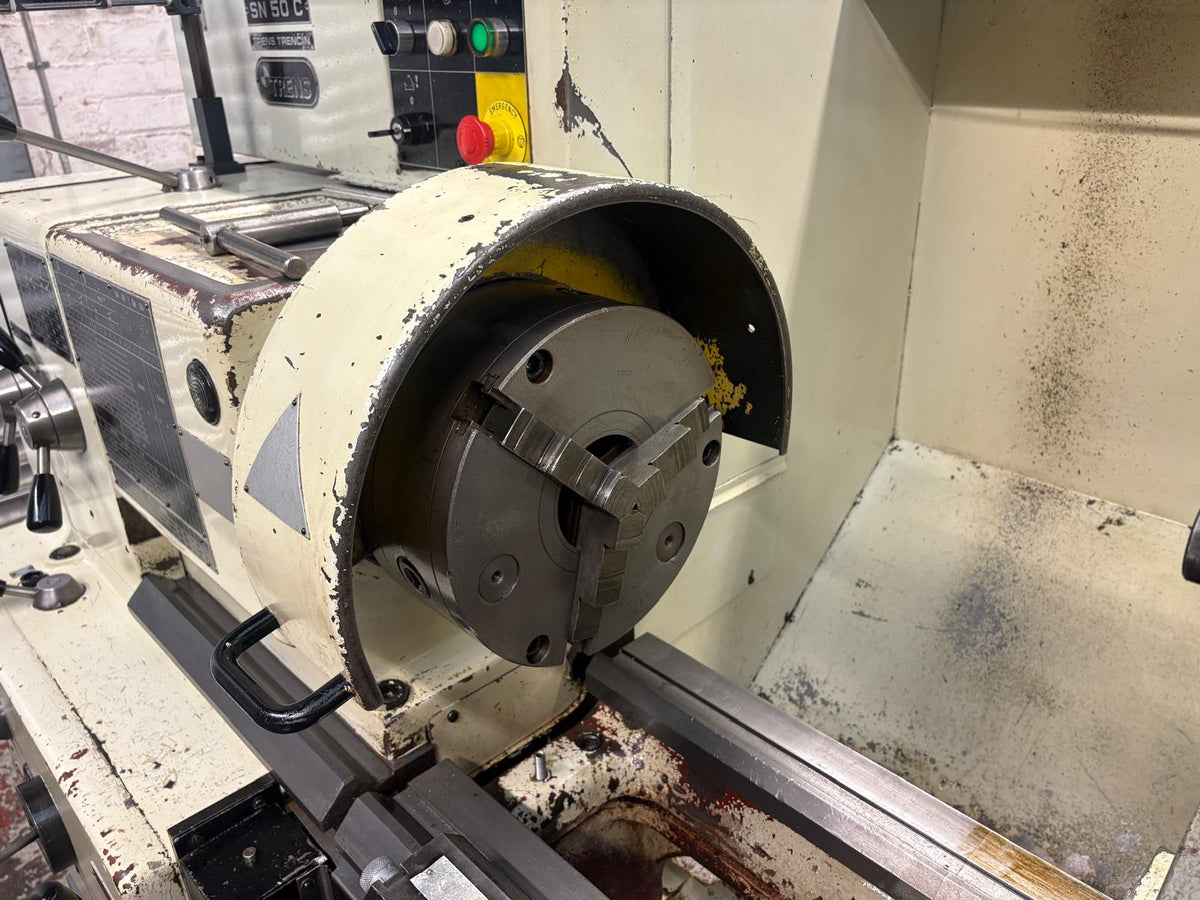

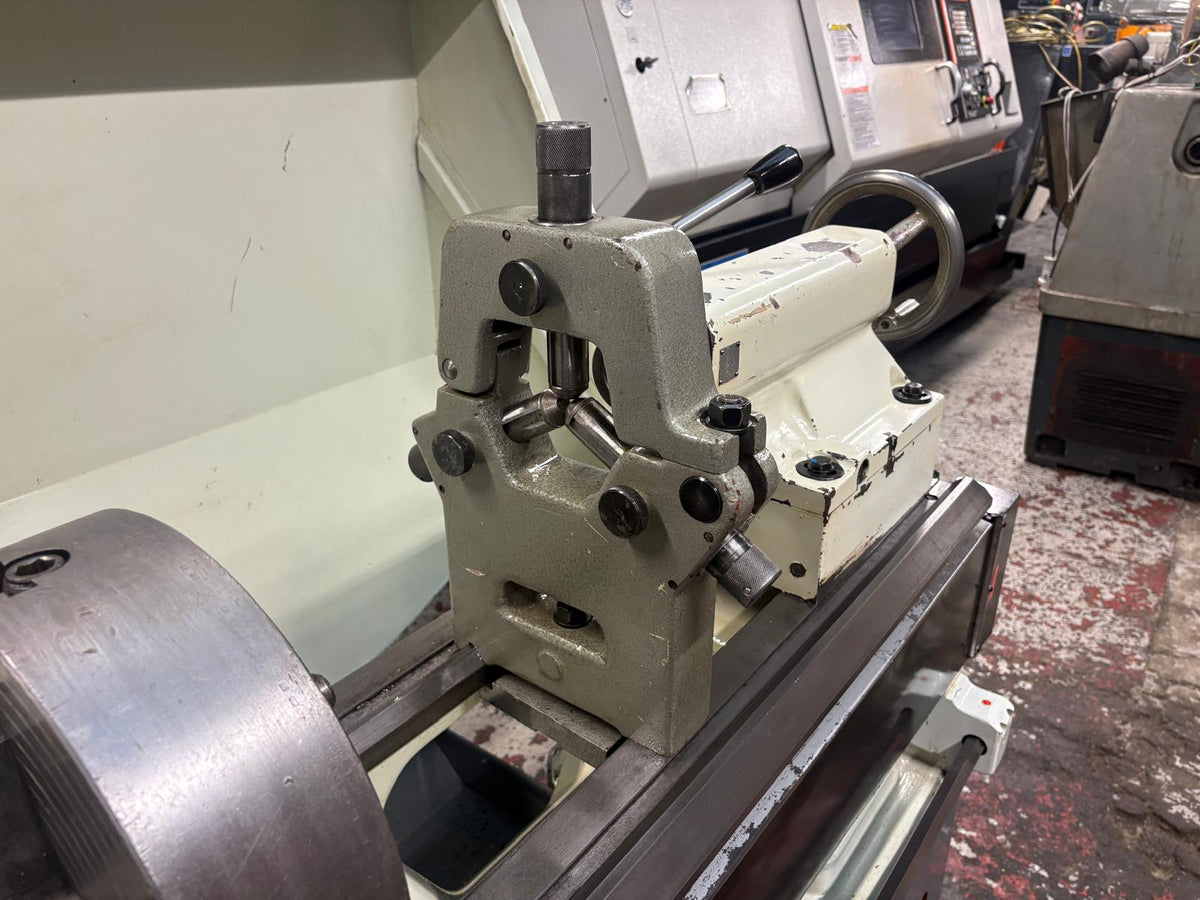

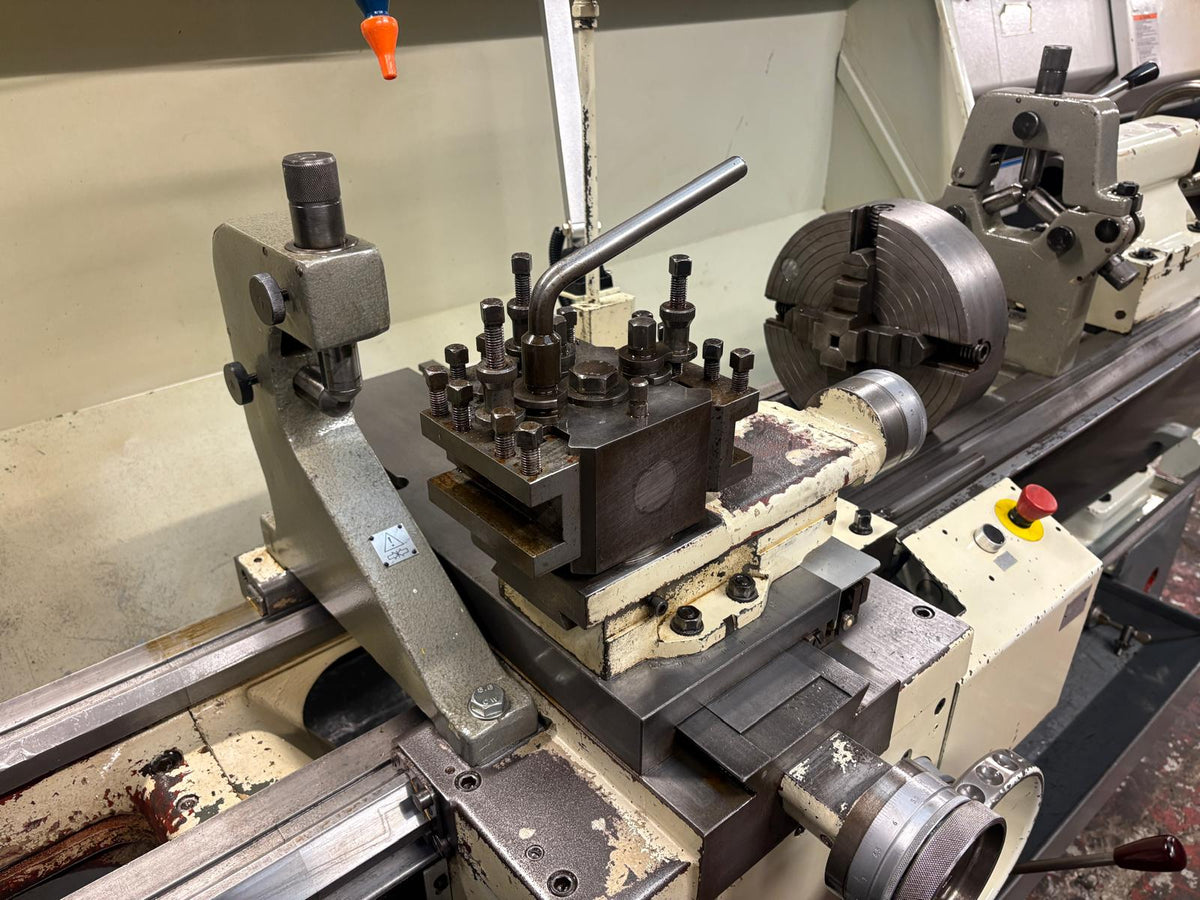

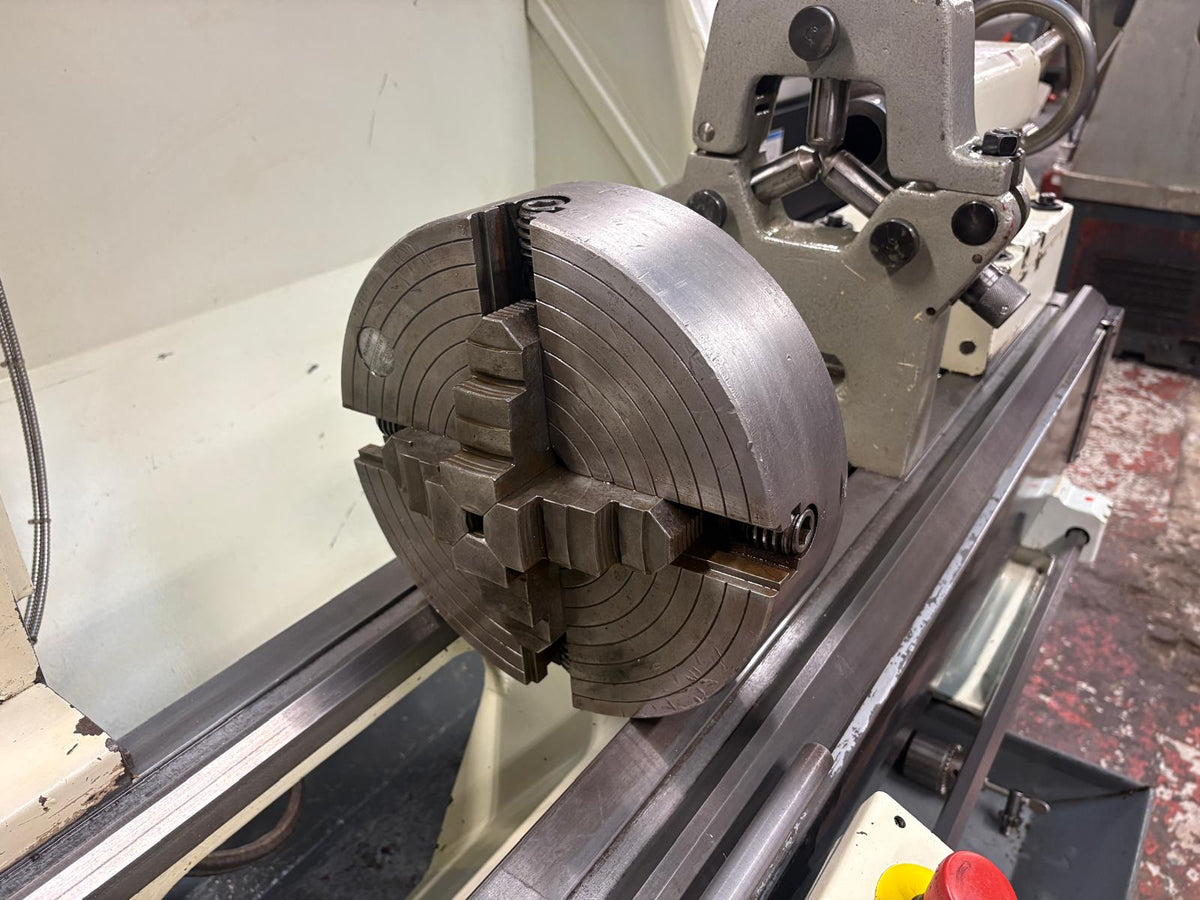

3 & 4 Jaw Chucks, Travelling Steady, Fixed Steady, Drill Chuck. Low volt light. Coolant
For sale with *Jet Machinery Ltd*
Jet Machinery Stock No: #79257
Machine Serial Number: 085015980415
