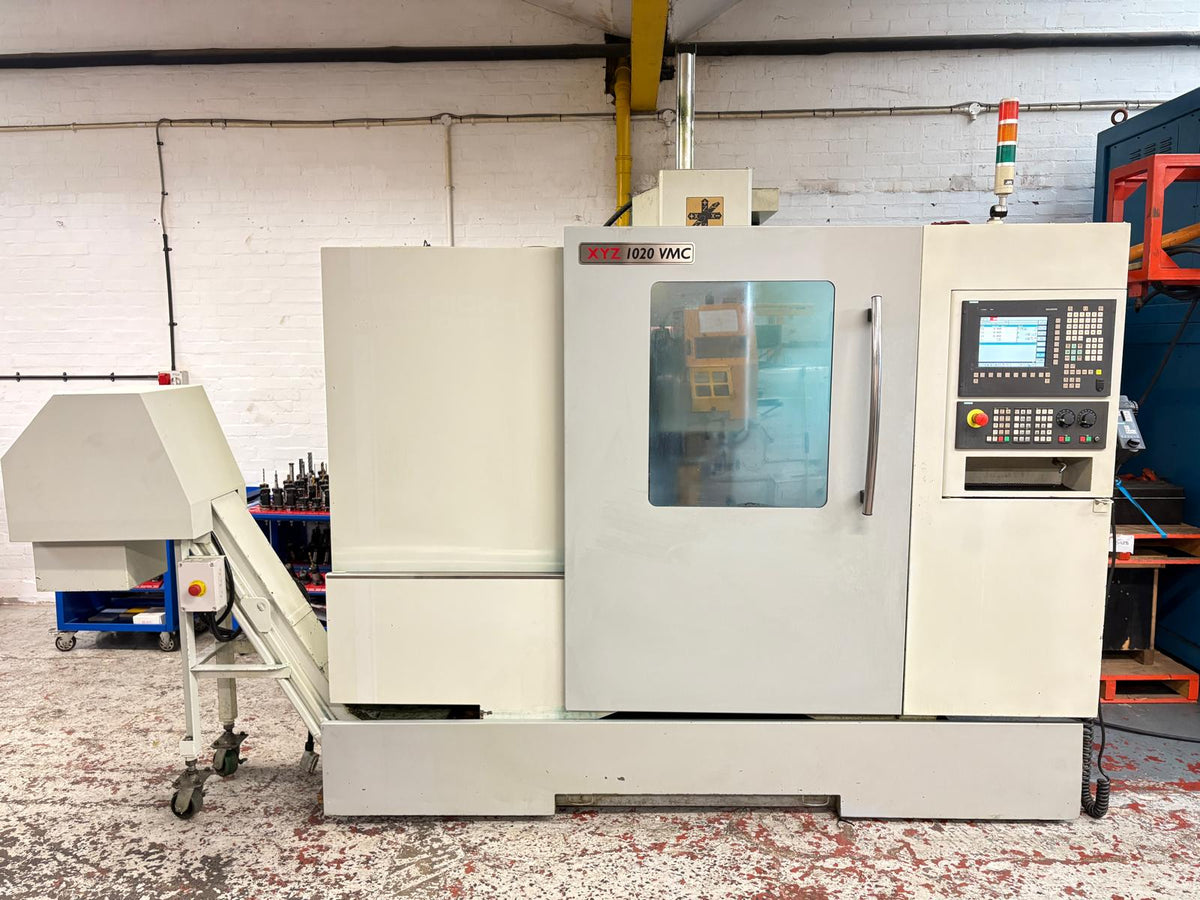

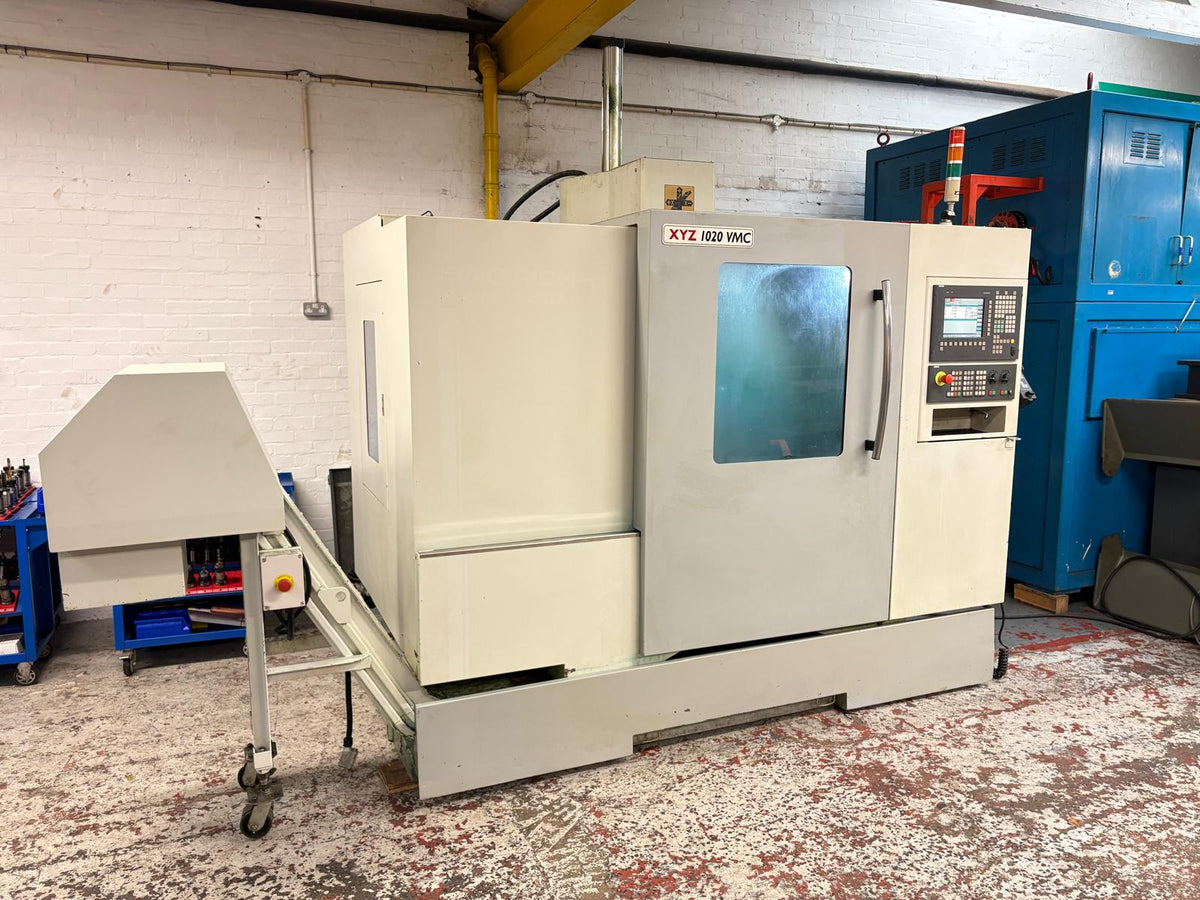

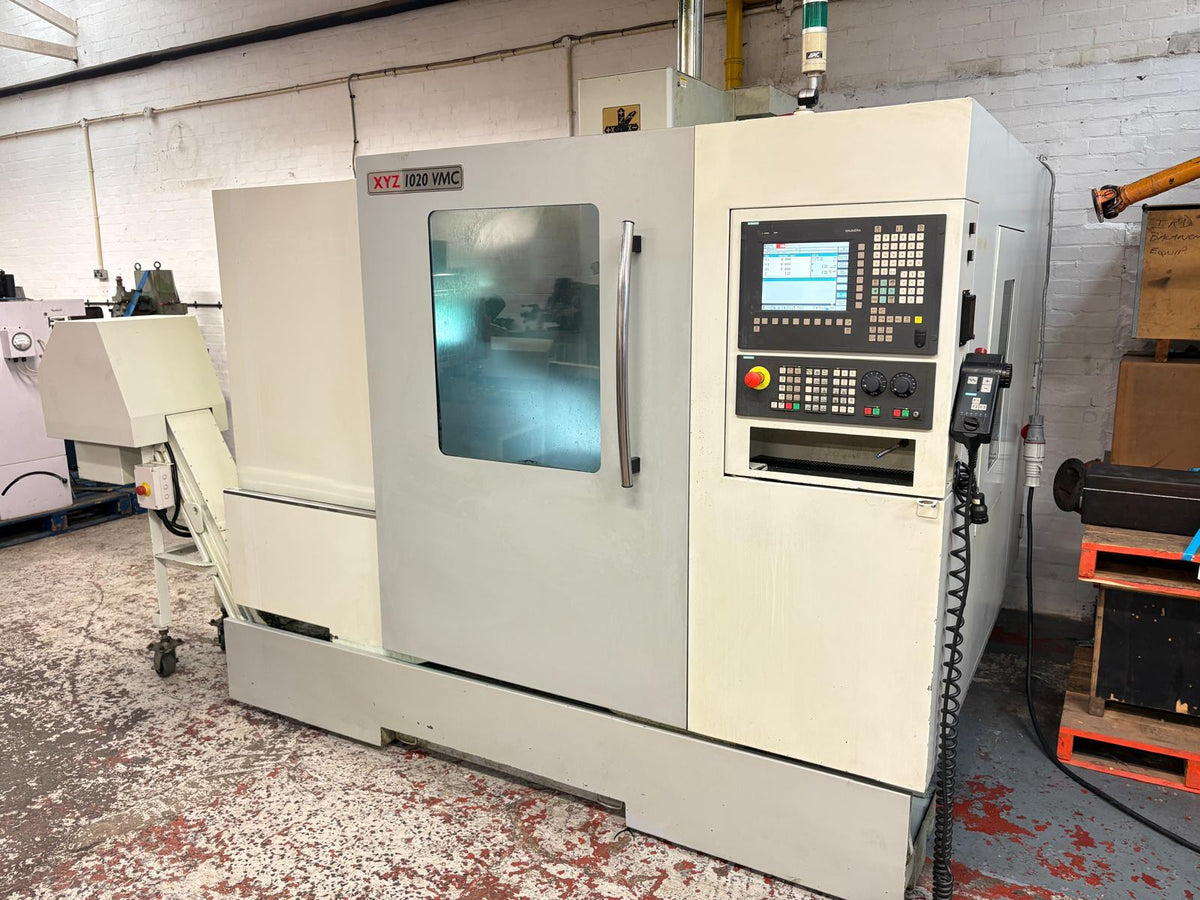

XYZ 1020 CNC Vertical Machining Centre

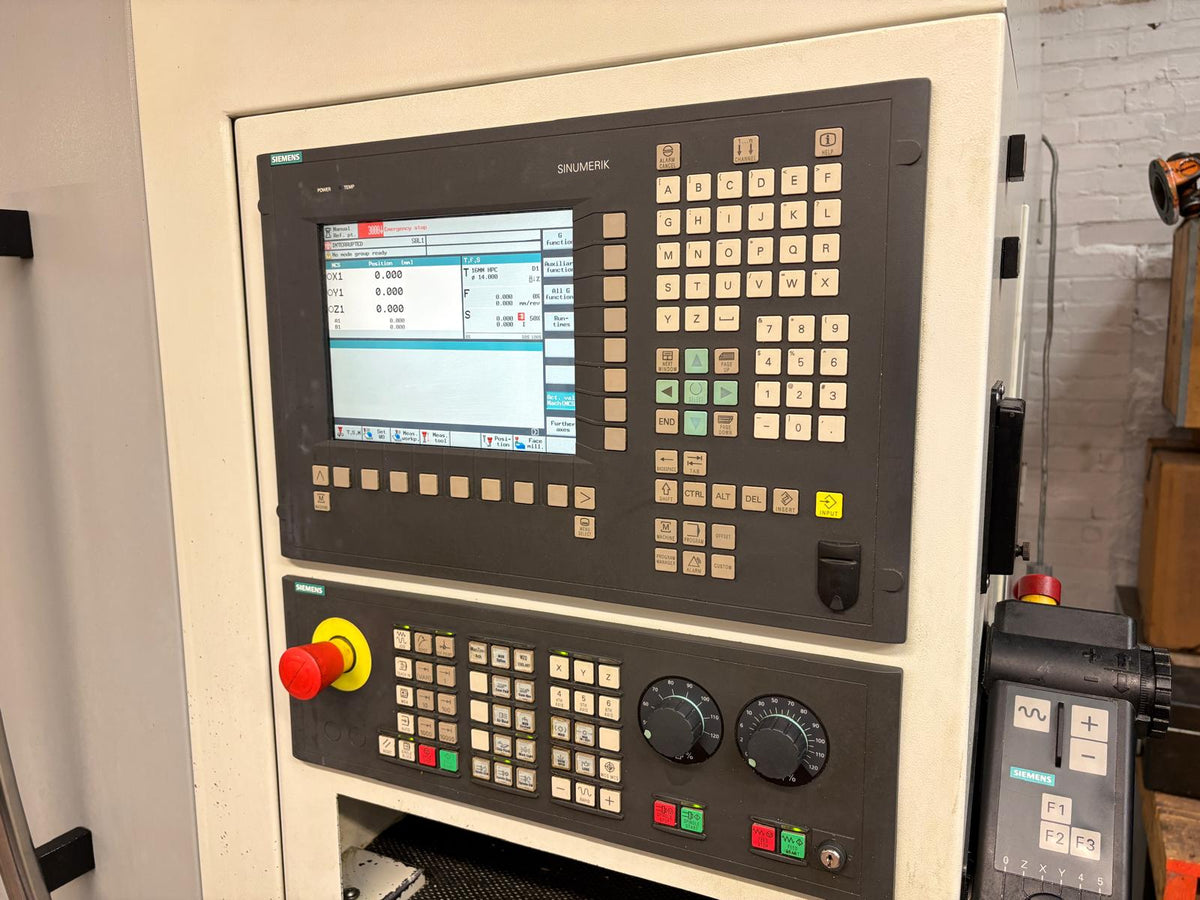

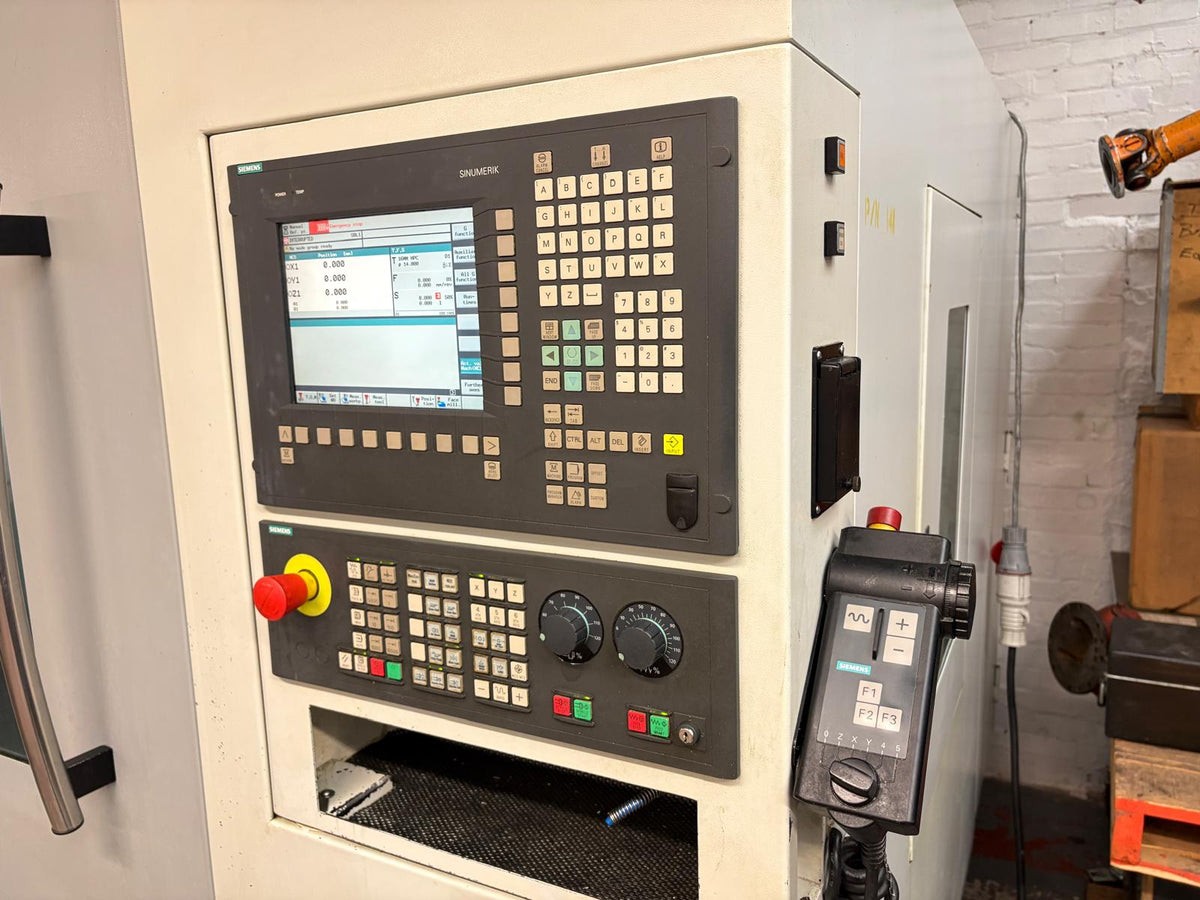

Siemens 810D SINUMERIK control with ShopMill
X-axis travel: 1,020 mm
Y-axis travel: 520 mm
Z-axis travel: 575 mm

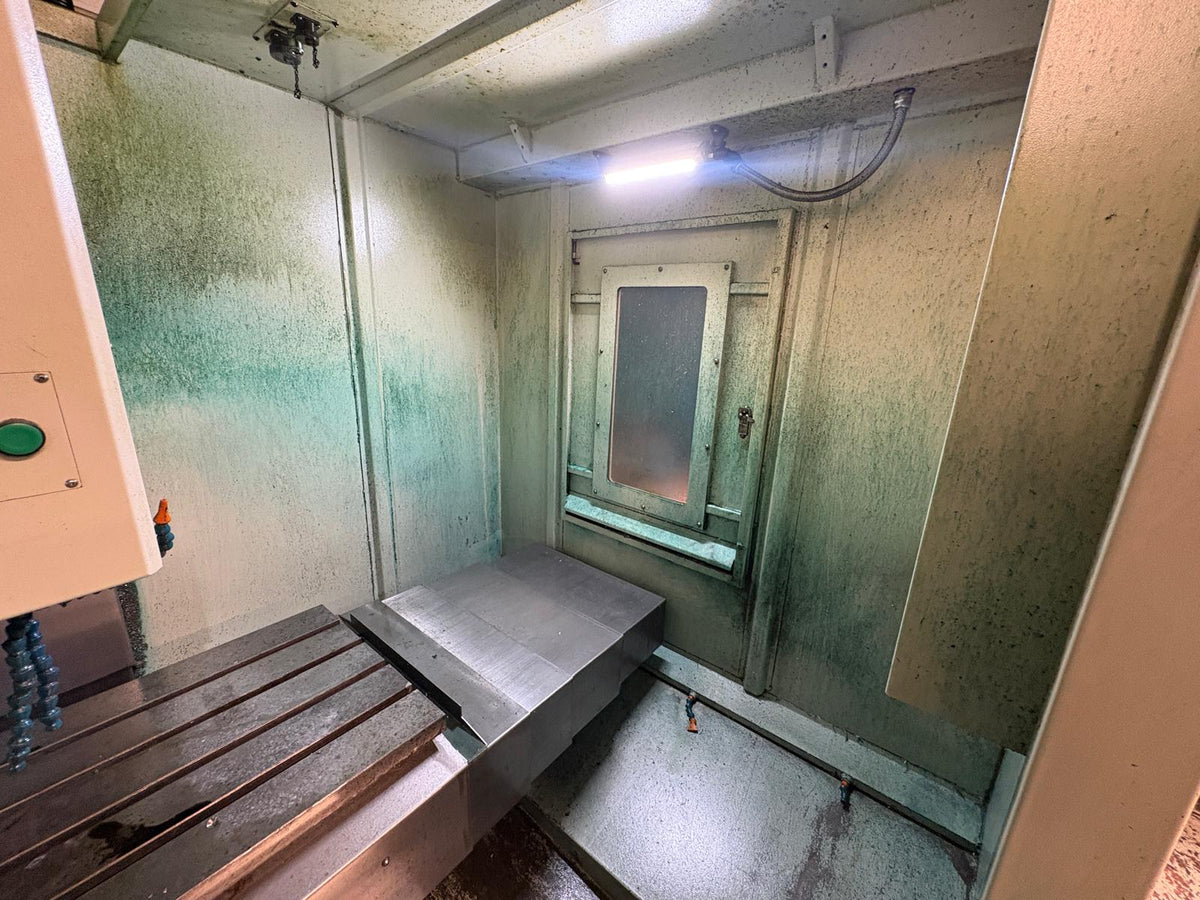

Table size: 1,120 × 500 mm
Maximum table load: 800 kg
Maximum spindle speed: 8,000 rpm
Spindle motor: 20 hp / 15 kW
Spindle taper: BT40
Automatic tool changer: 24 stations
Tool change time: 2.5 seconds, tool to tool
Rapid traverse X/Y/Z 20m/Min
Cutting feed rate: 1–20,000 mm/min
Spindle nose to table: 125–700 mm
Spindle centre to column: 570 mm
Table T-slots: Four, 18 mm wide, at 100 mm pitch
Maximum tool diameter: 80 mm
Maximum tool weight: 7 kg
Coolant capacity: 200 litres
Machine weight: 6,000 kg
Footprint Dimensions, W × D × H: 2,650 × 2,150 × 3,000 mm

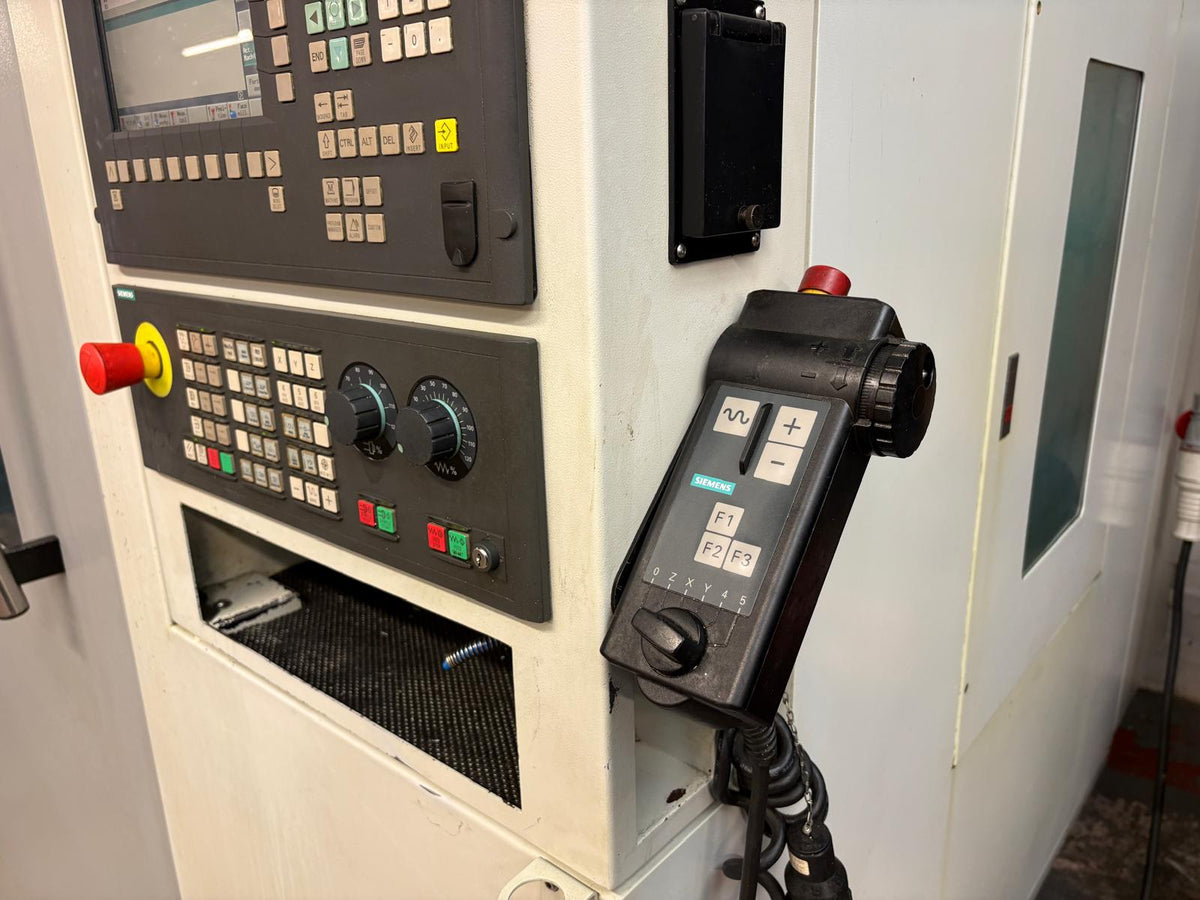

Supplied With Siemens 810D Control, Swarf Conveyor & Electronic Handwheel
For sale with *Jet Machinery Ltd*
Jet Machinery Stock No: #79287
