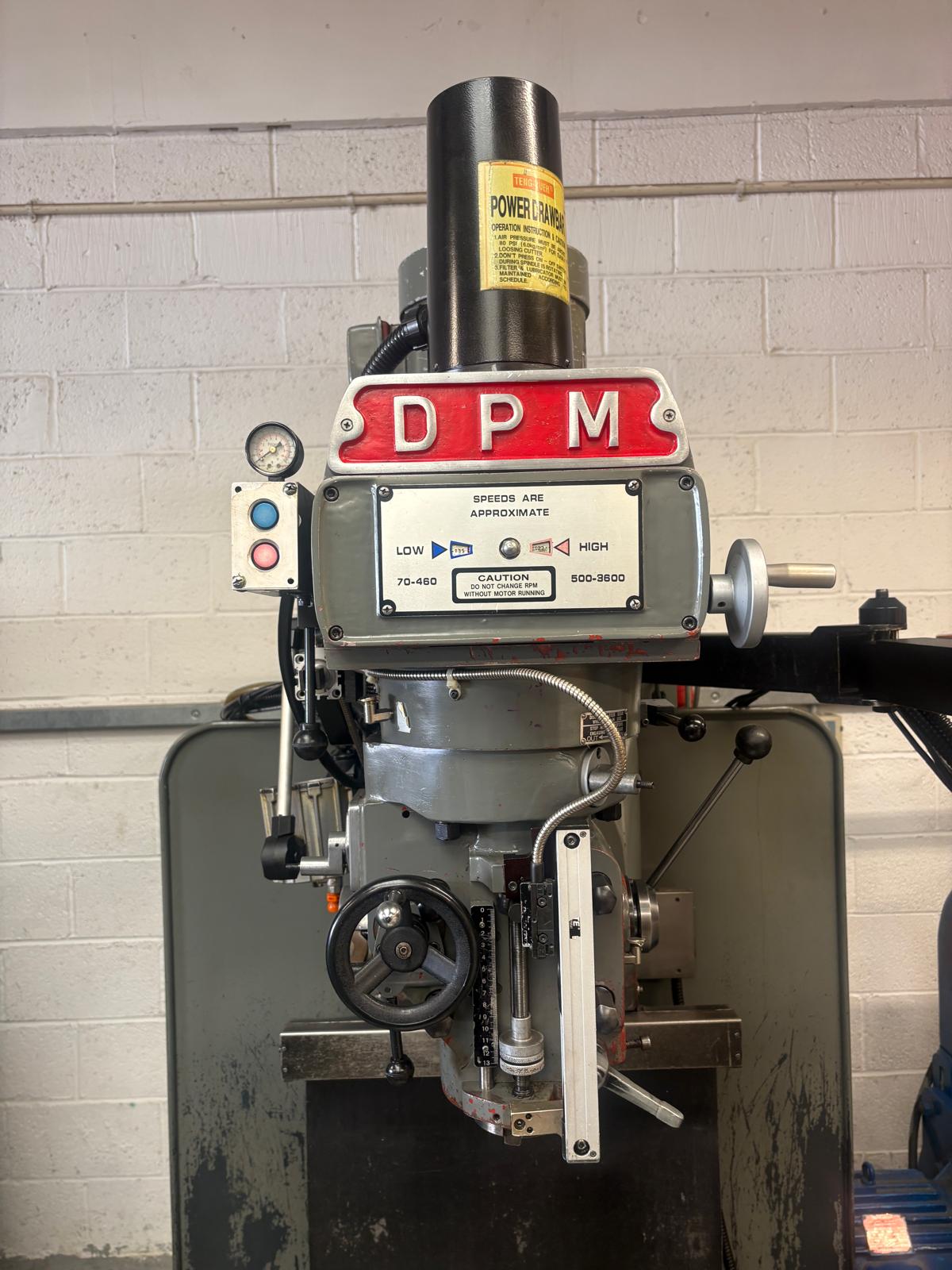

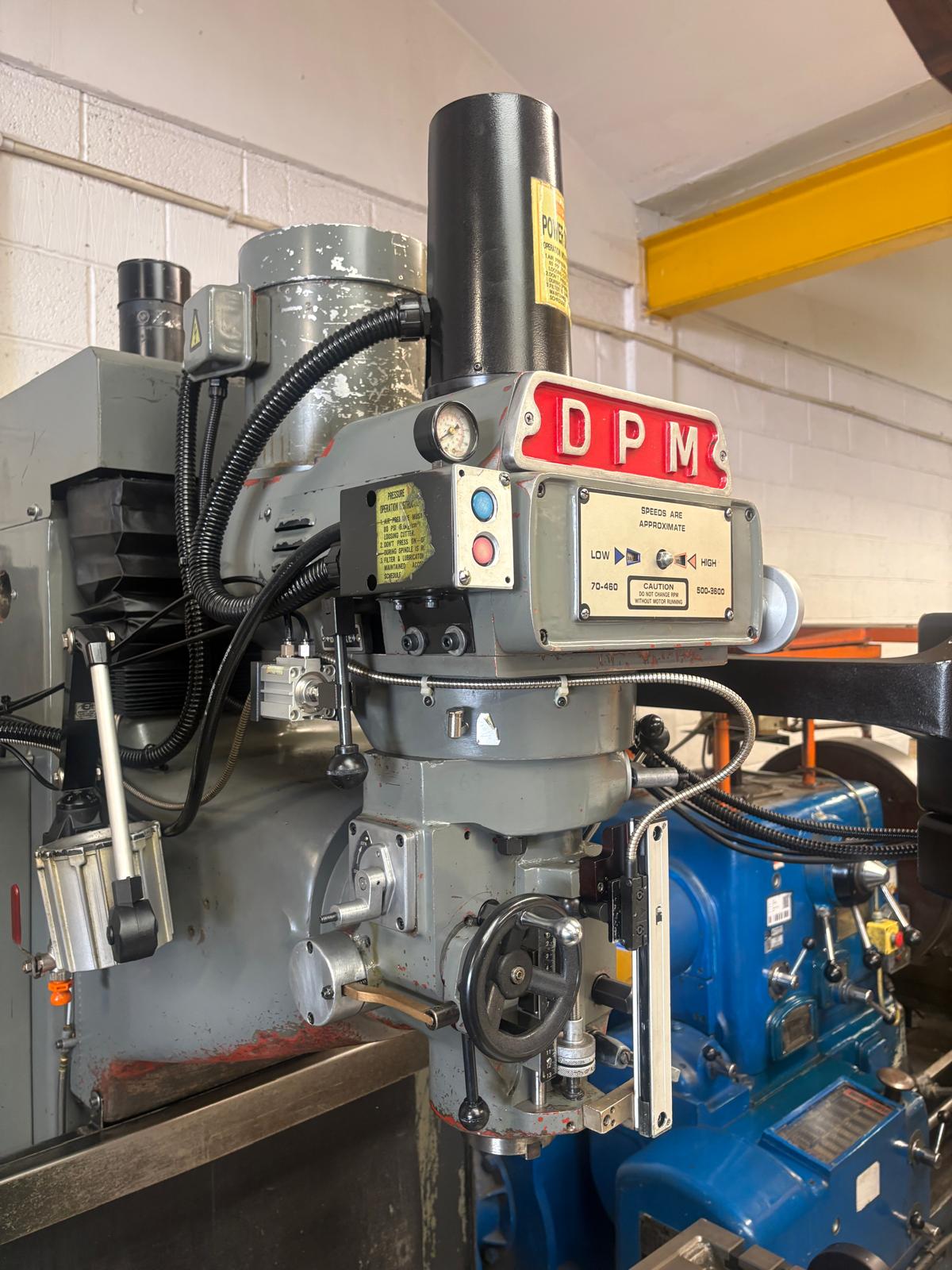

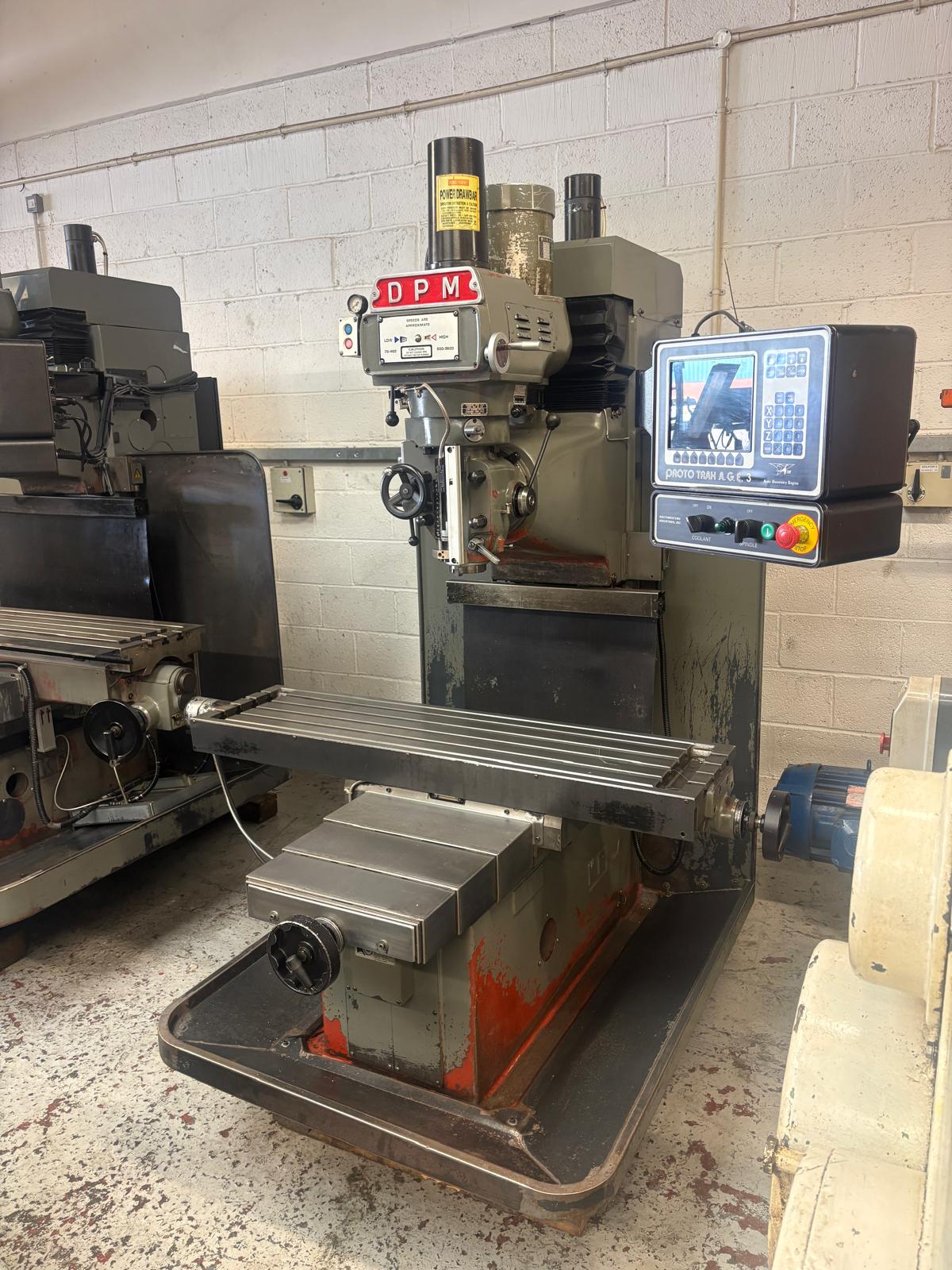

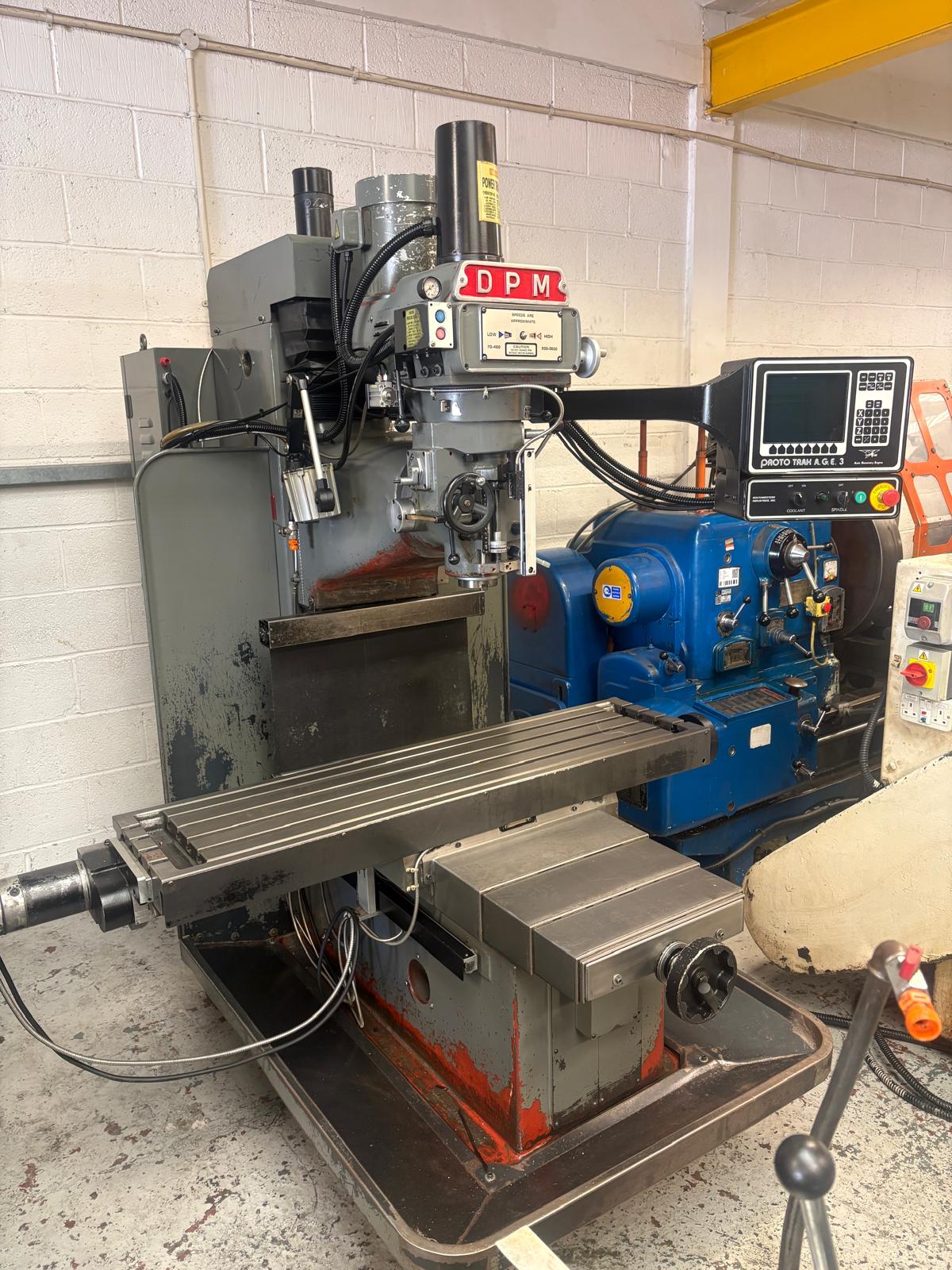

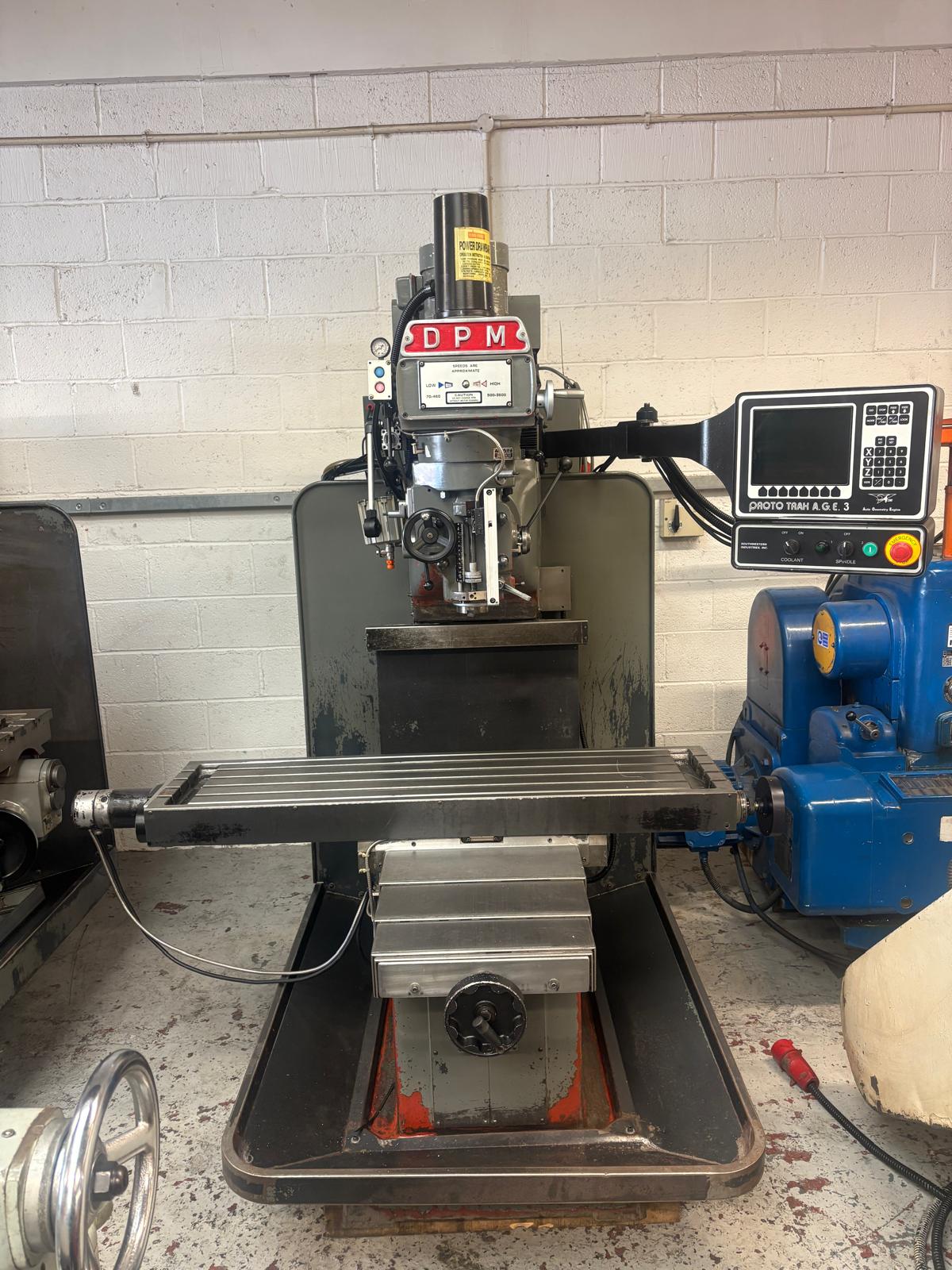

XYZ DPM 3-Axis ProtoTRAK 3 CNC Bed Milling Machine
CNC control: ProtoTRAK A.G.E. 3

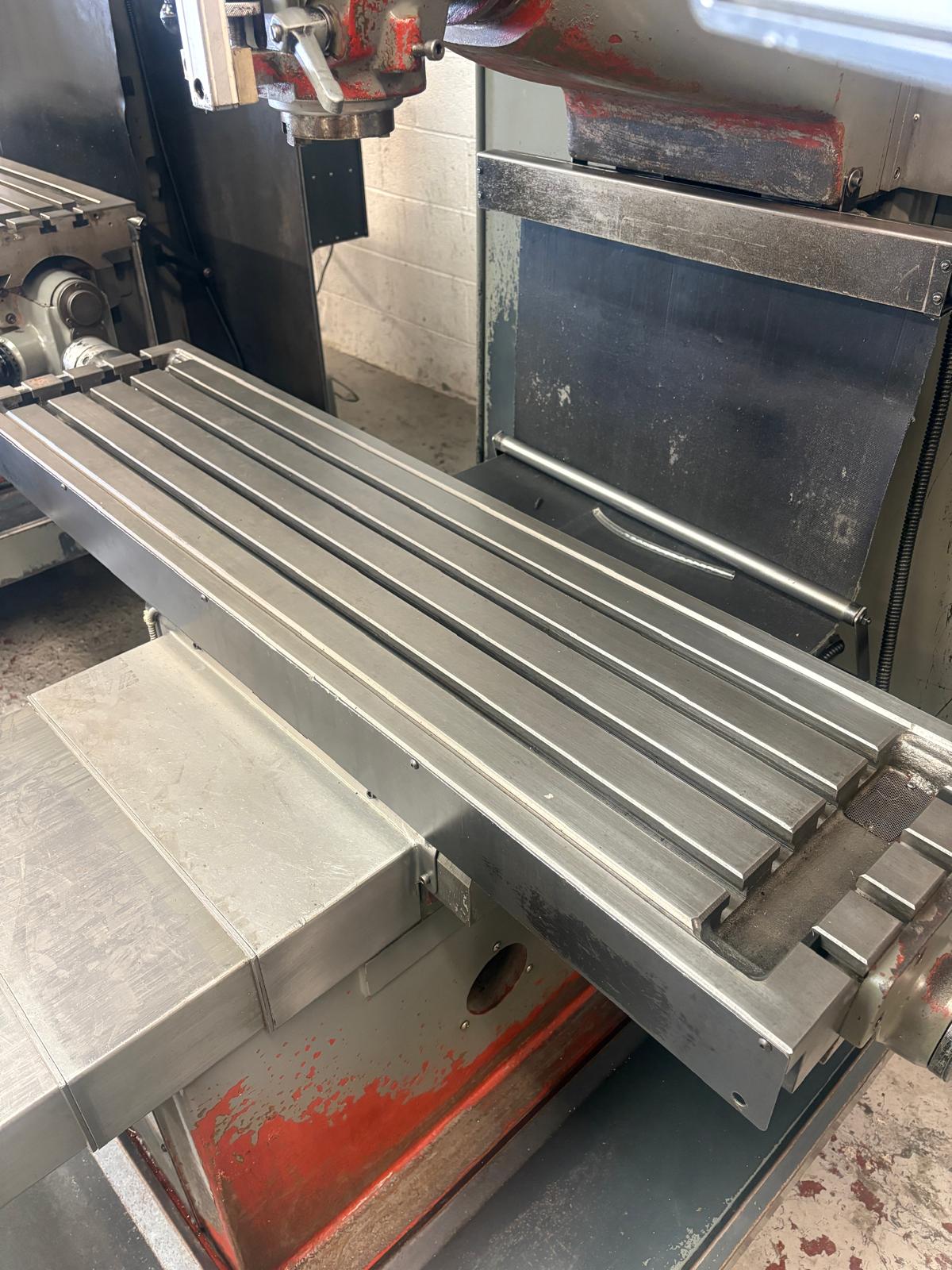

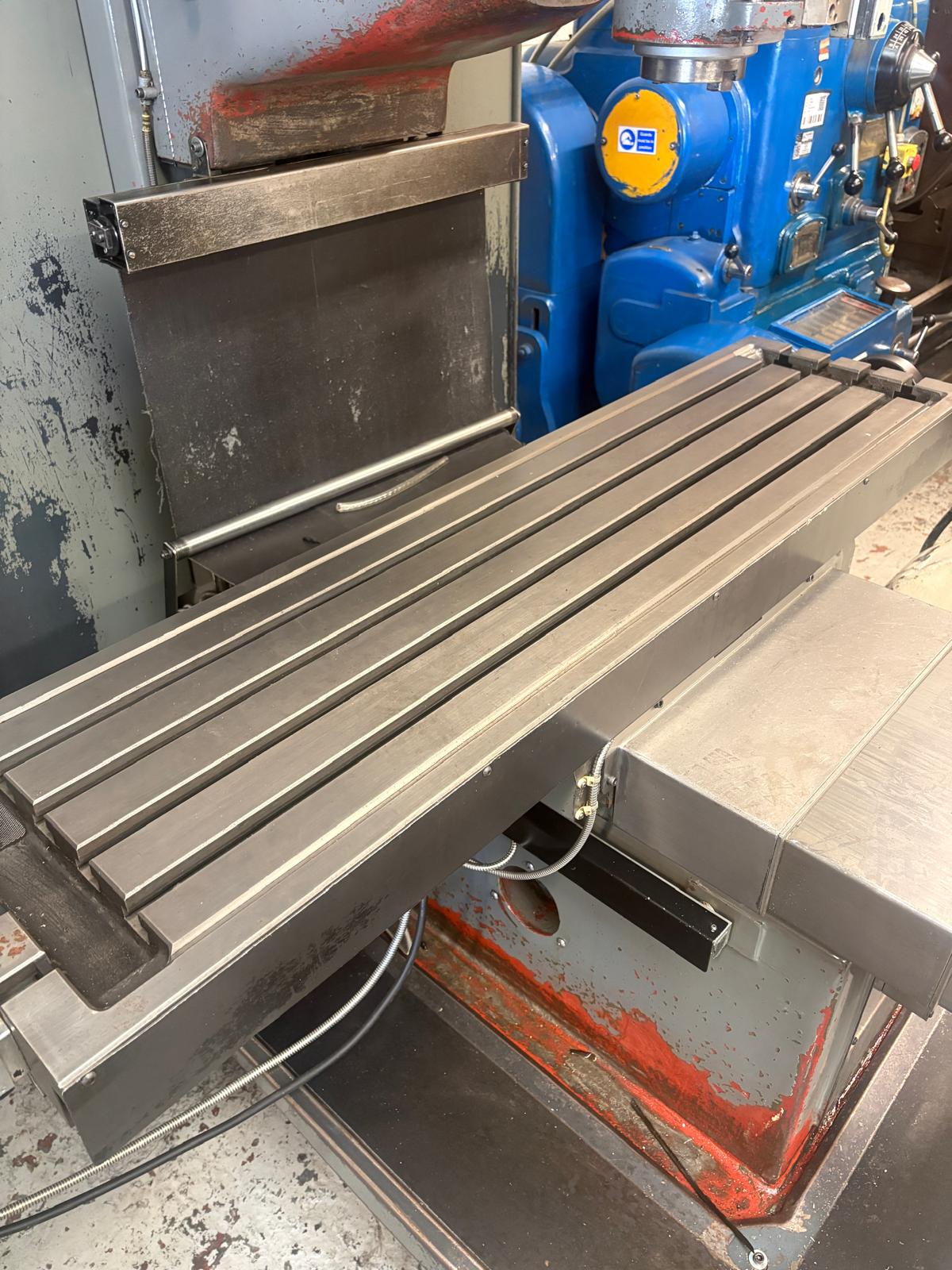

Table size: 1,371 × 355 mm
Longitudinal travel (X-axis): 745 mm
Cross travel (Y-axis): 500 mm
Vertical travel (Z-axis): 500 mm
Quill travel: 125 mm
Maximum table load: Approximately 850 kg
Spindle taper: ISO 40
Spindle-speed range: 70–3,600 rpm
Quill-feed range: 0.038–0.152 mm/rev
Spindle motor: Approximately 3.75 kW / 5 hp
Drawbar: Powered
Electrical supply: 415 V, three-phase, 50 Hz
Approximate overall dimensions: 1,800 × 1,676 × 2,160 mm
Approximate weight: 2,200 kg
Supplied With:

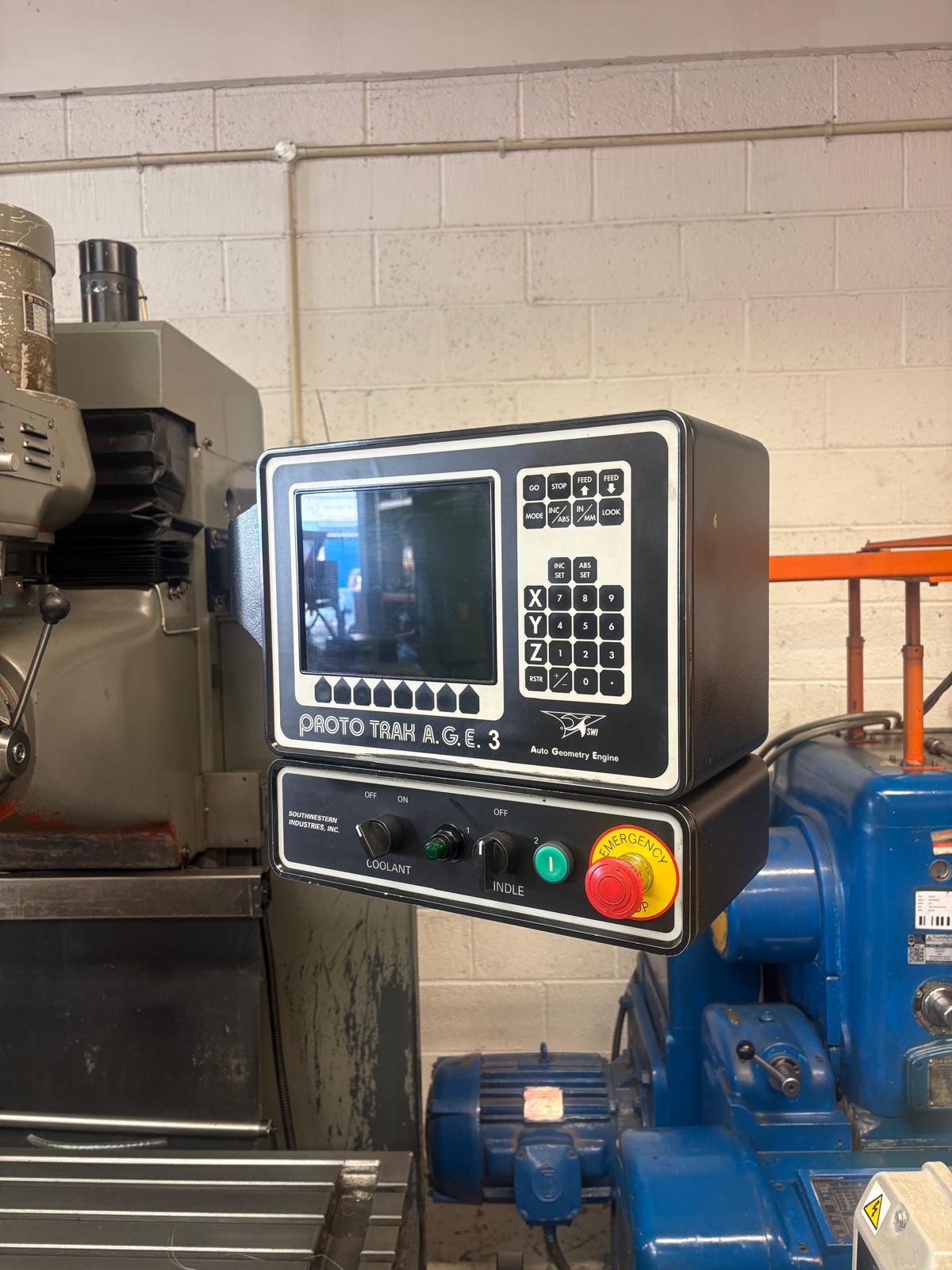

ProtoTRAK A.G.E. 3 conversational CNC control
Three-axis CNC operation
Powered drawbar
Automatic lubrication
Coolant system
Quill digital readout
Telescopic Y-axis slideway guards

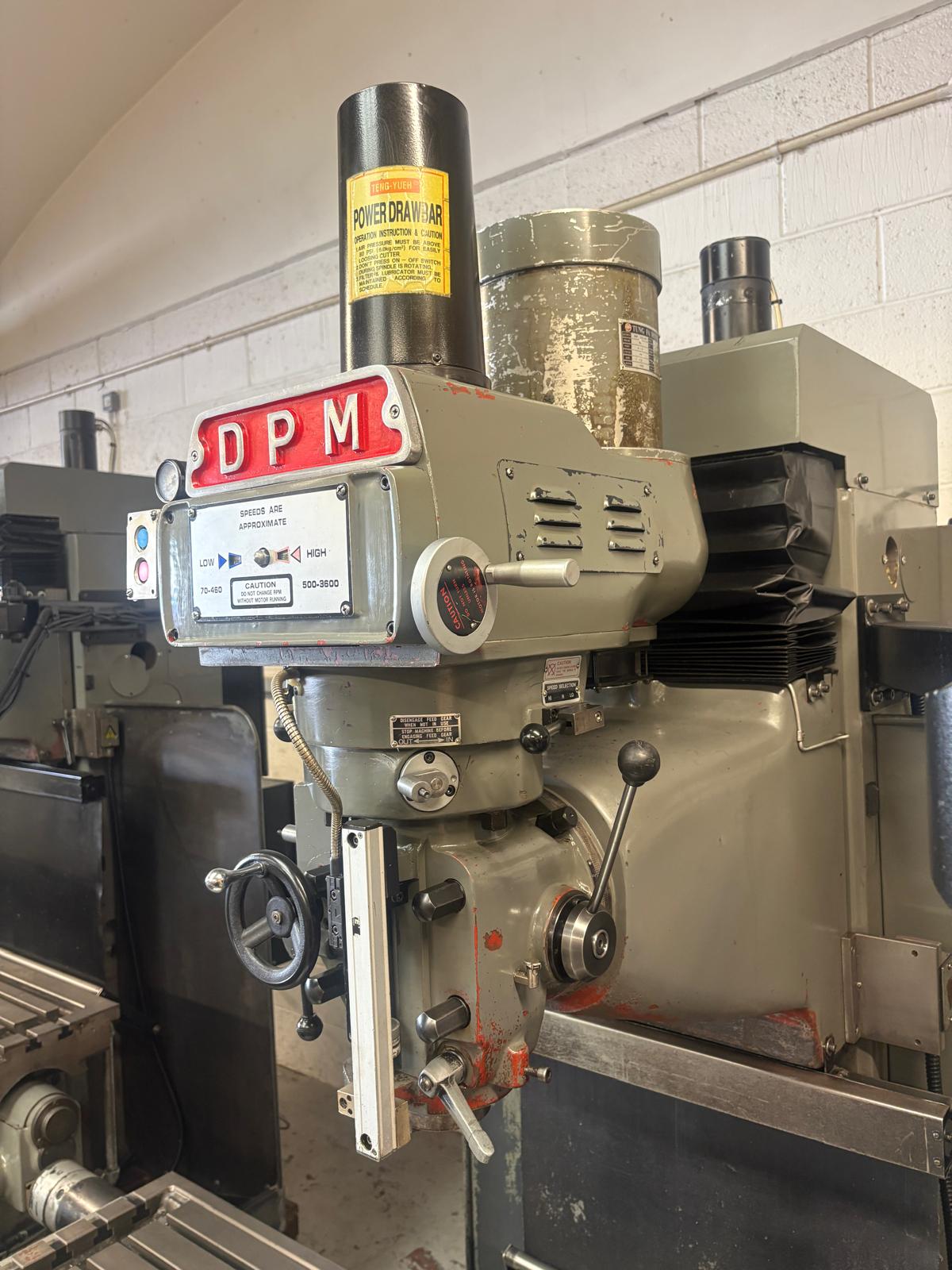

Adjustable milling head
Emergency stop
For sale with *Jet Machinery Ltd*
Jet Machinery Stock No: #79201

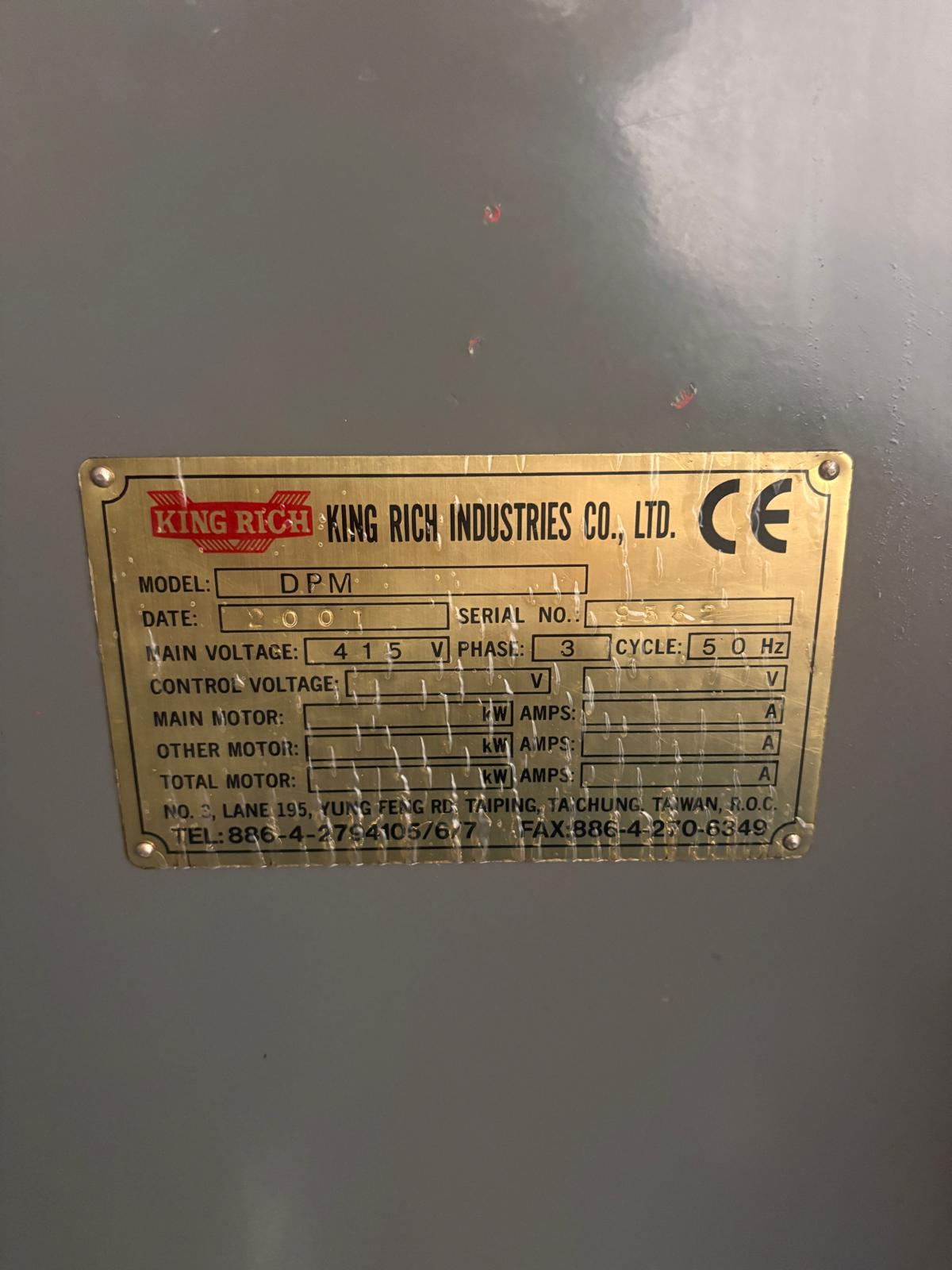

Machine Serial Number: 9562
