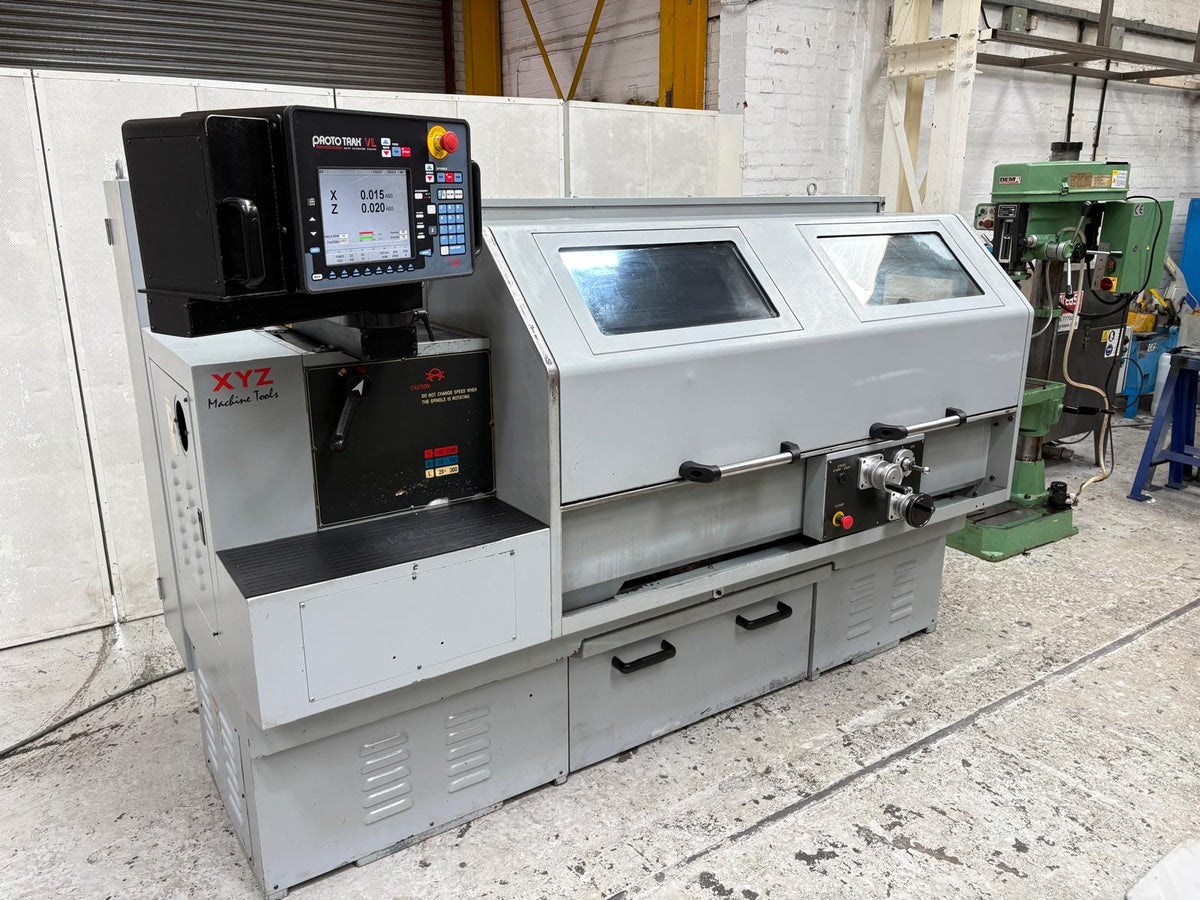

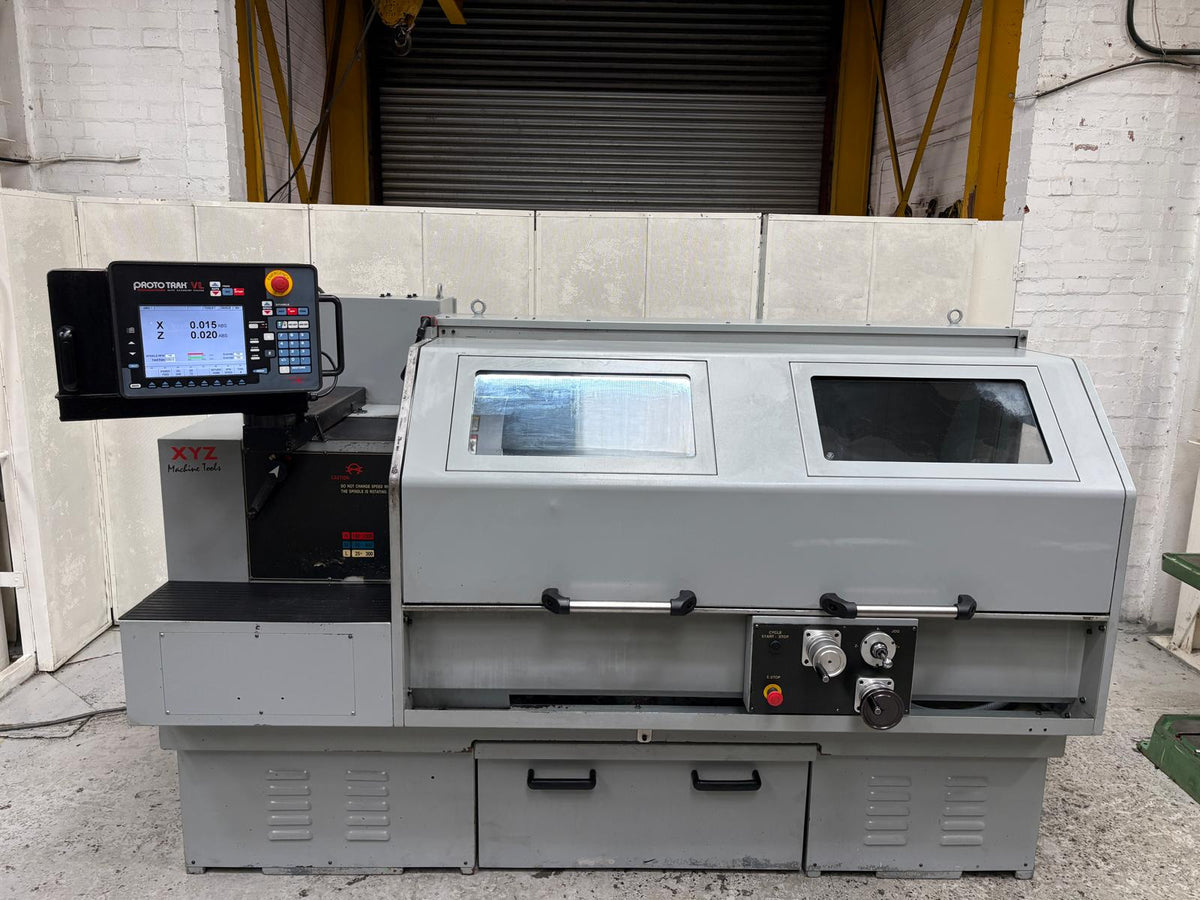

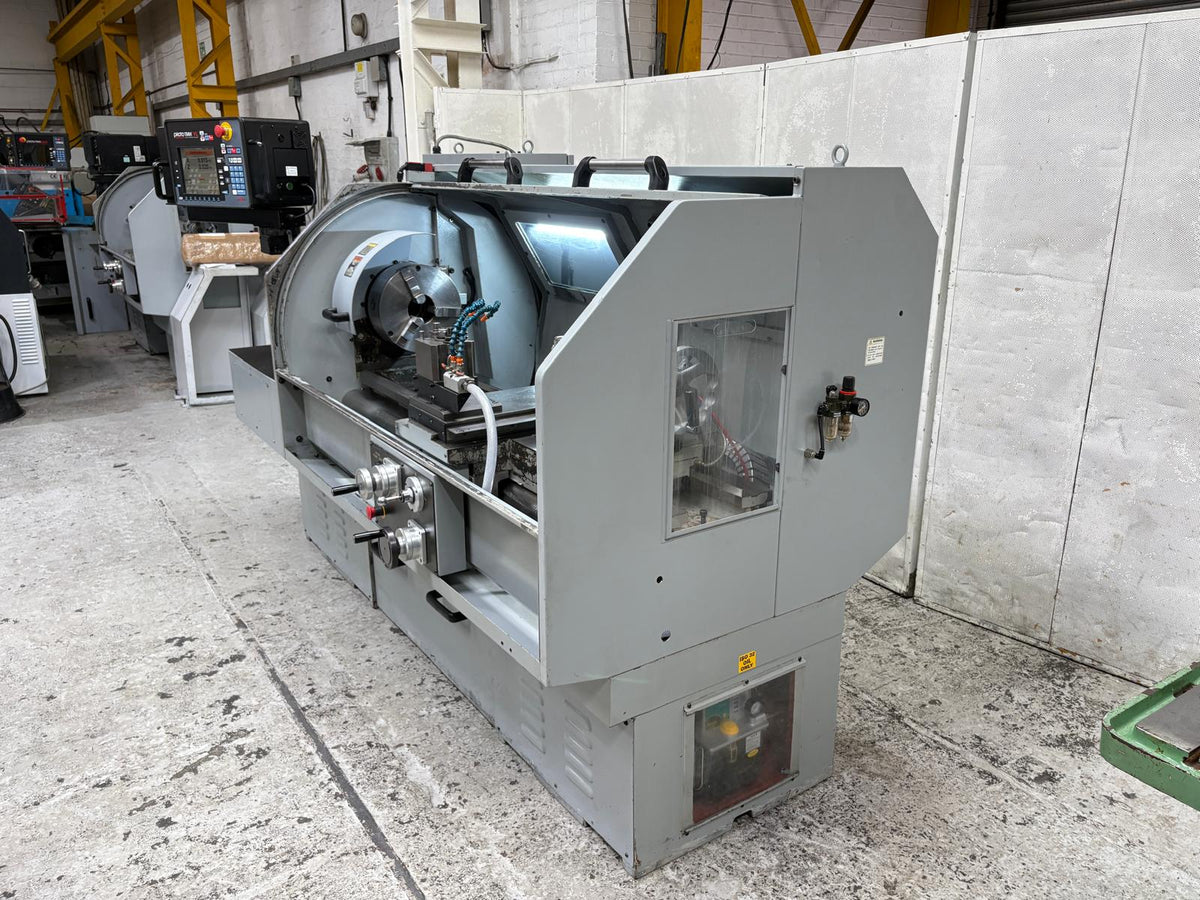

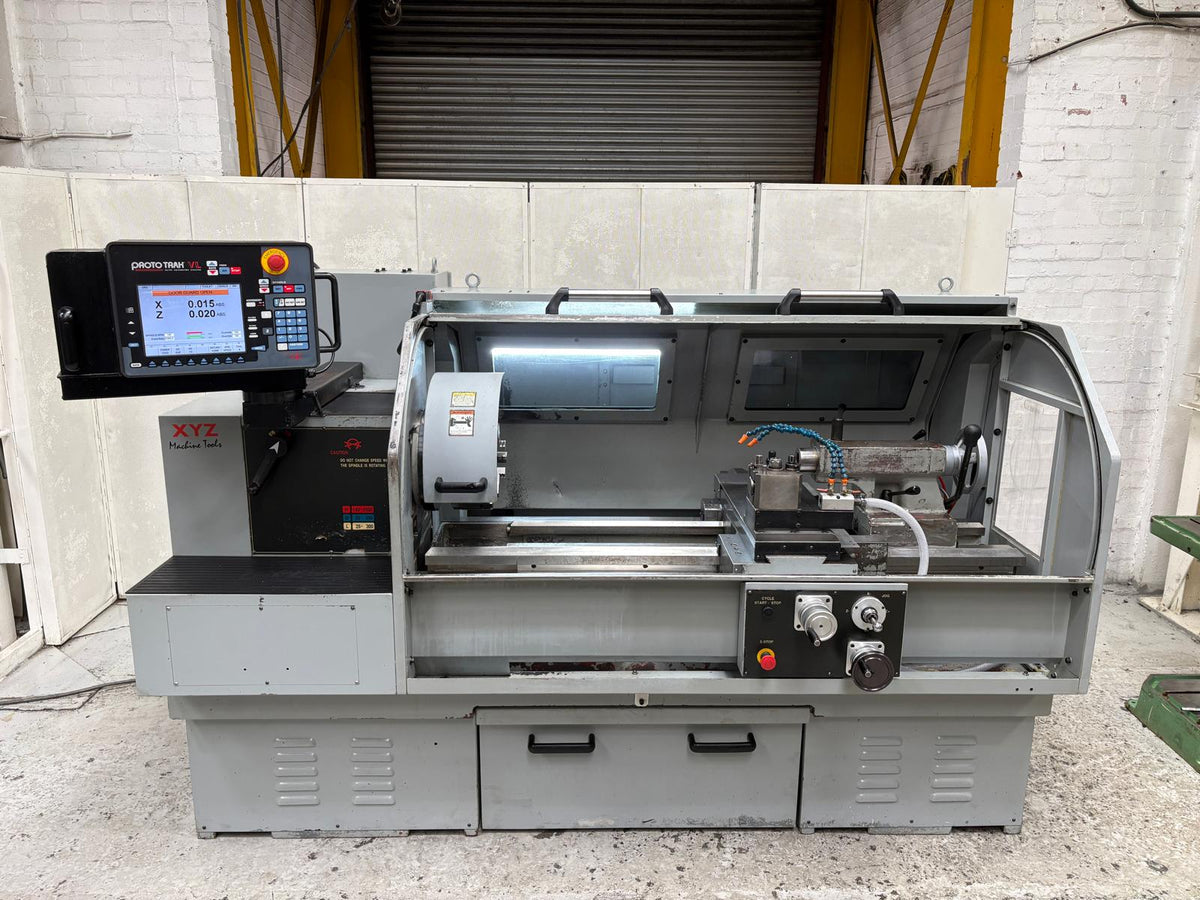

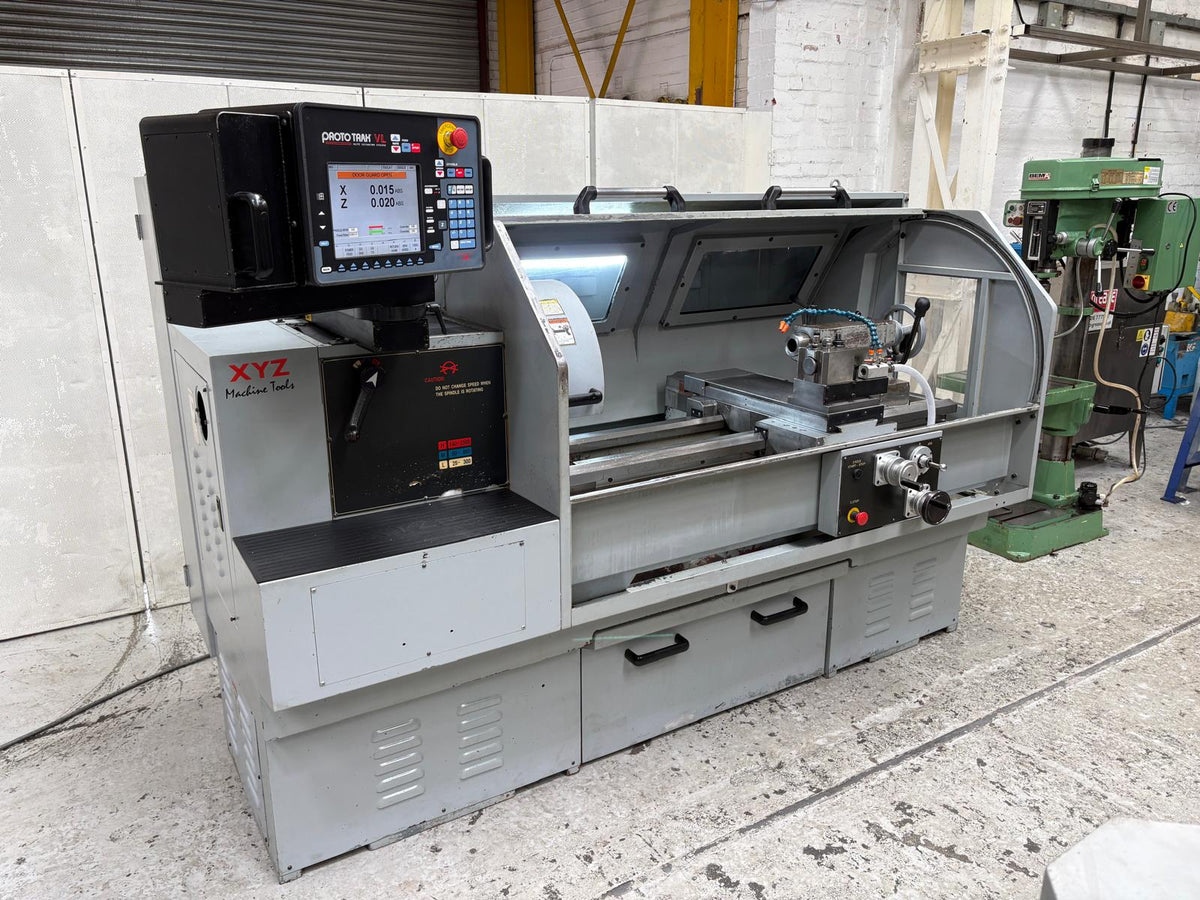

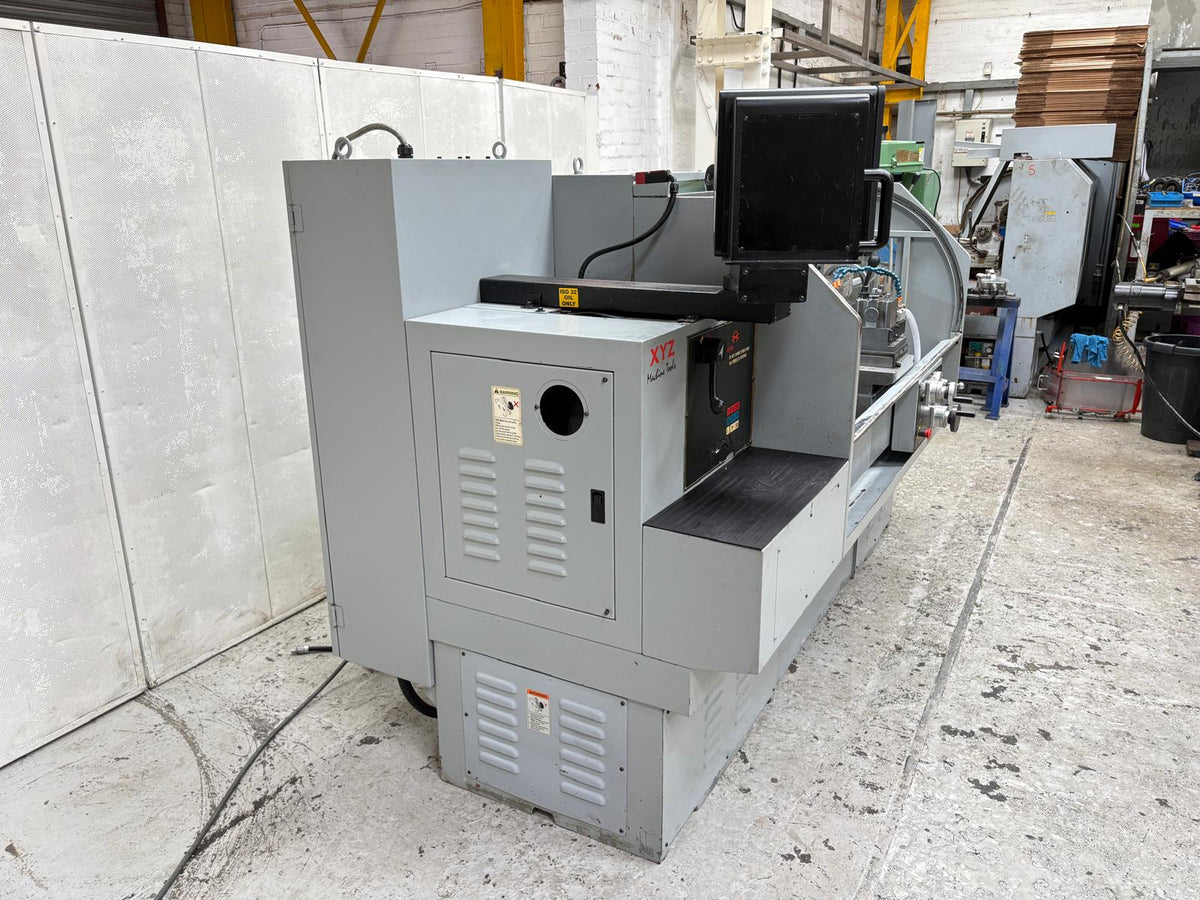

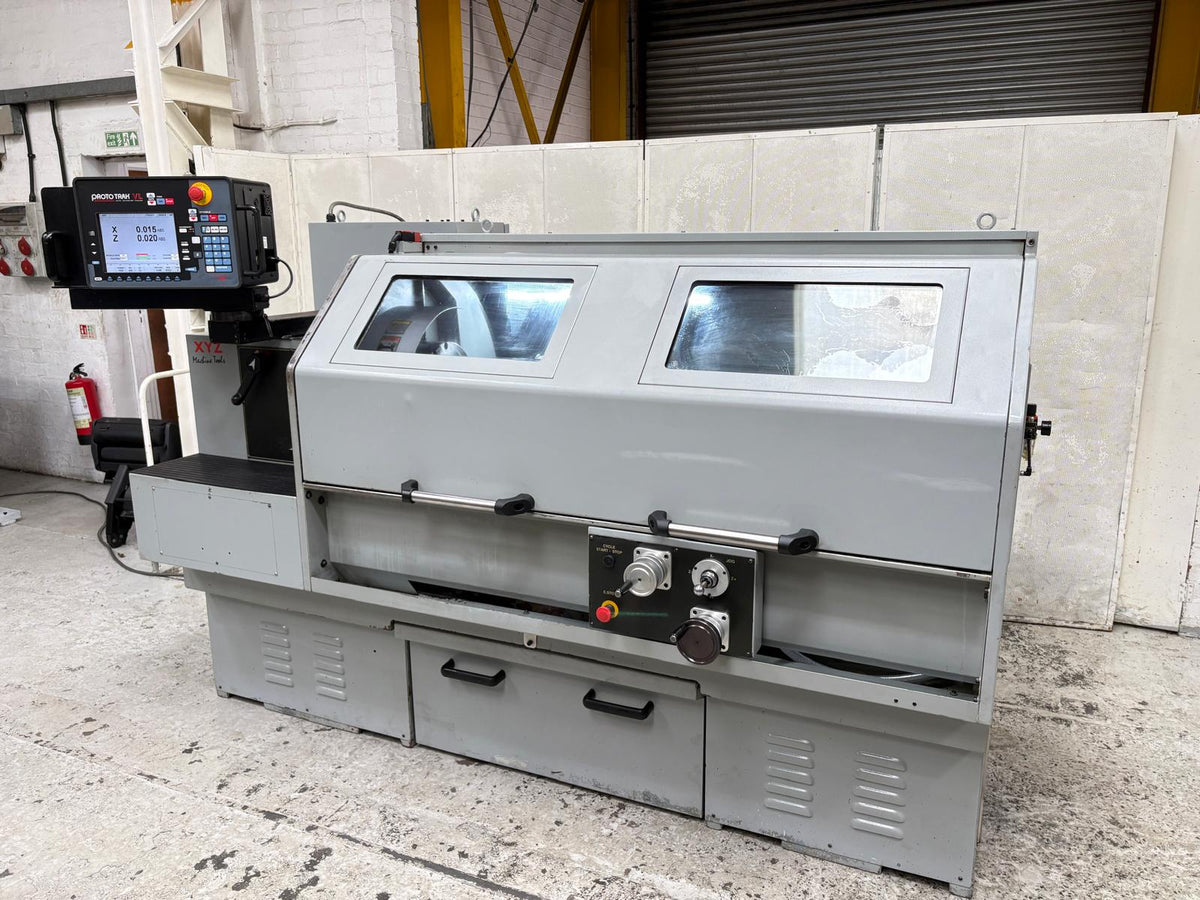

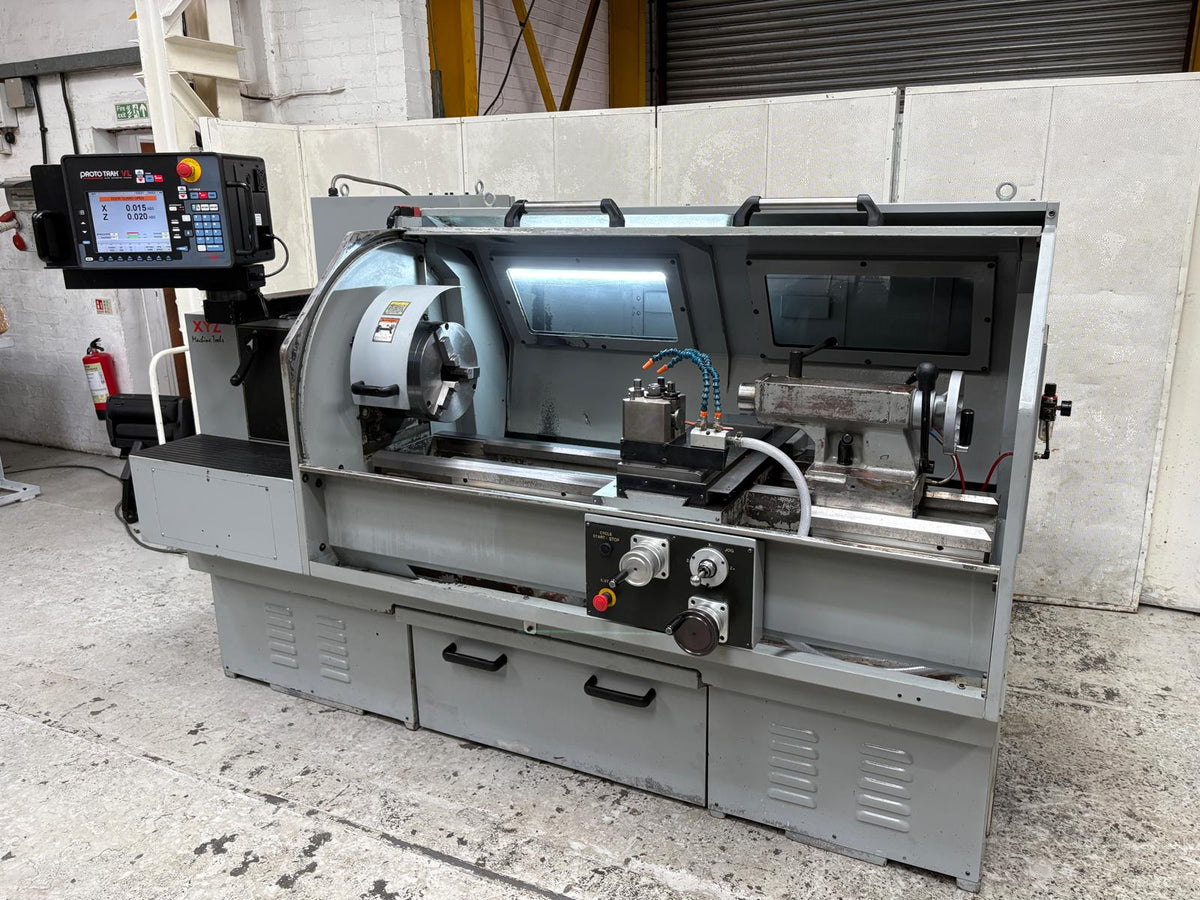

XYZ ProTURN VL425 CNC Gap Bed With ProtoTRAK Control

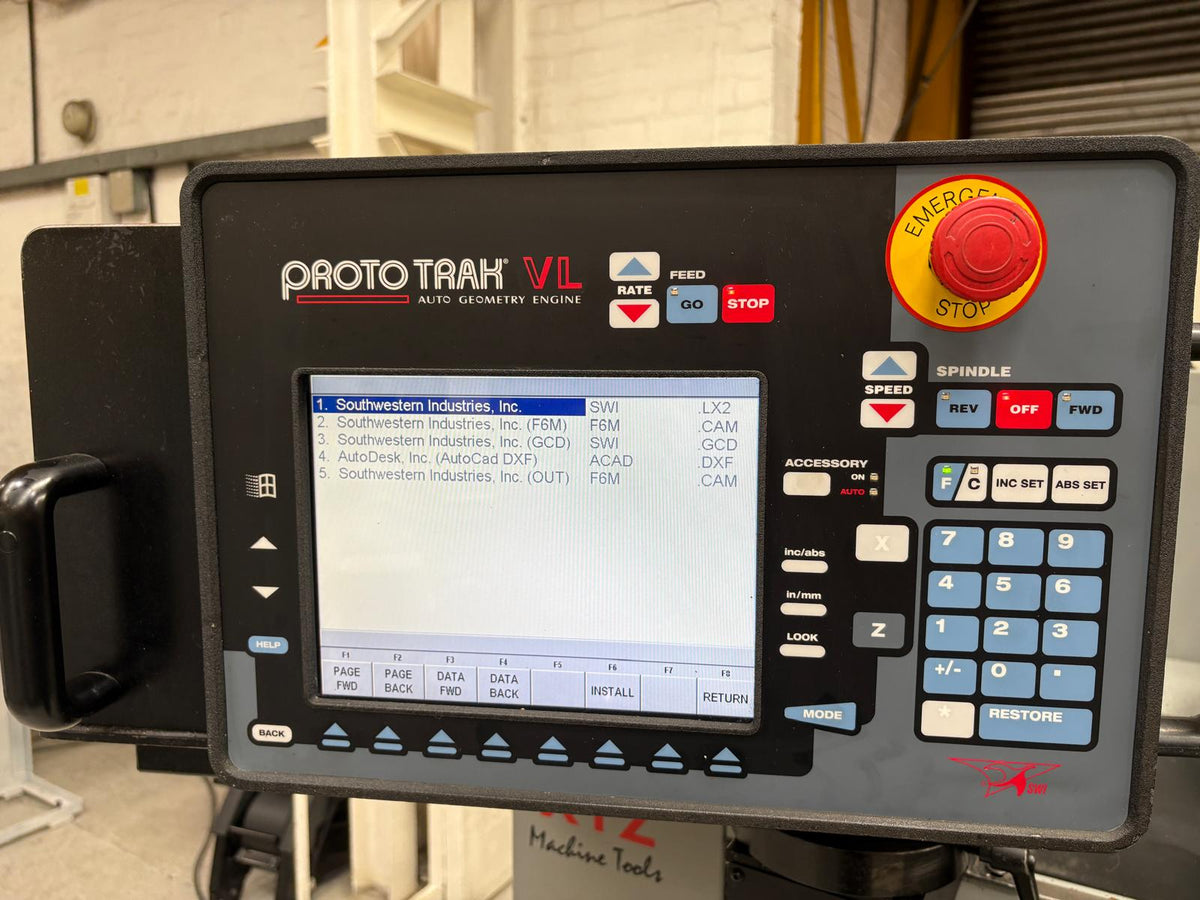

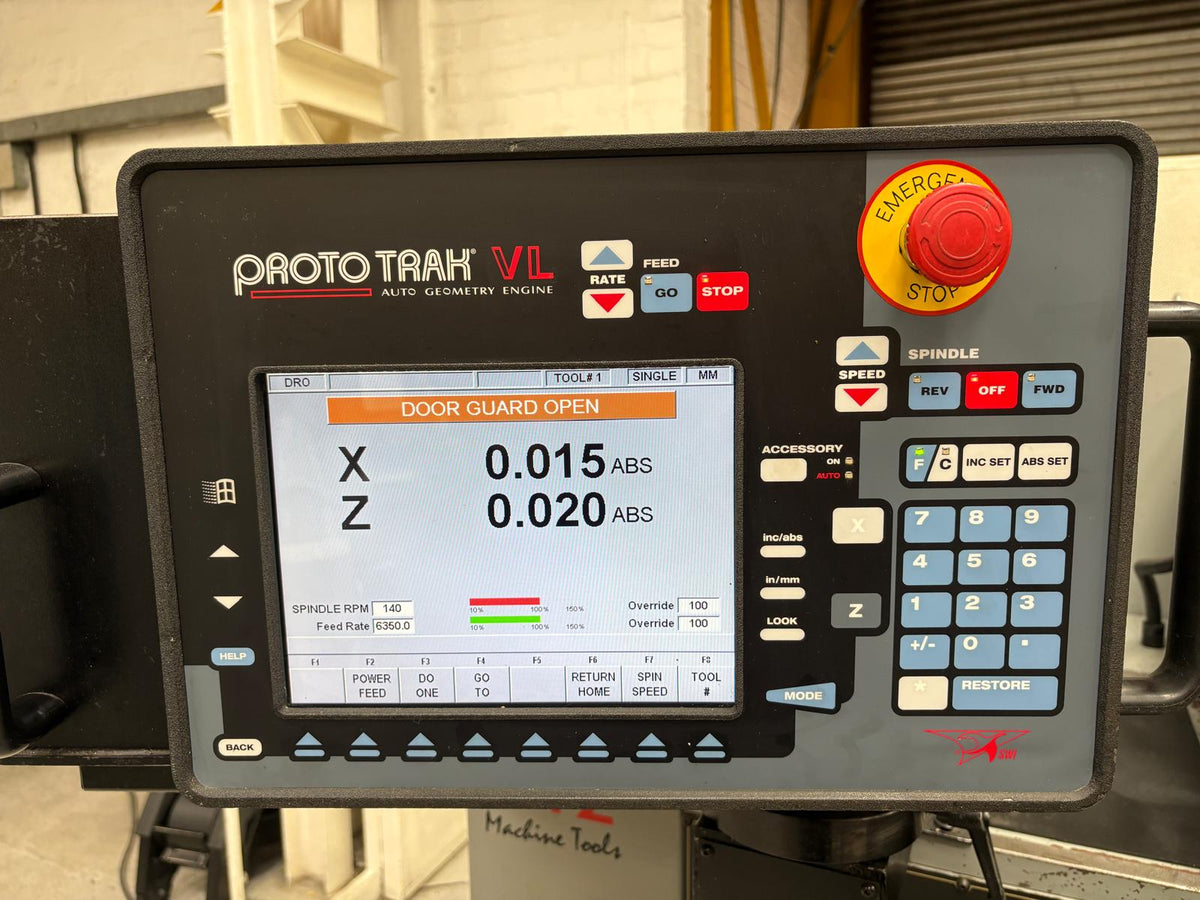

ProtoTRAK conversational CNC control
Swing over bed: 480 mm
Swing over cross slide: 257 mm
Swing in gap: 700 mm
Distance between centres: 1,250 mm

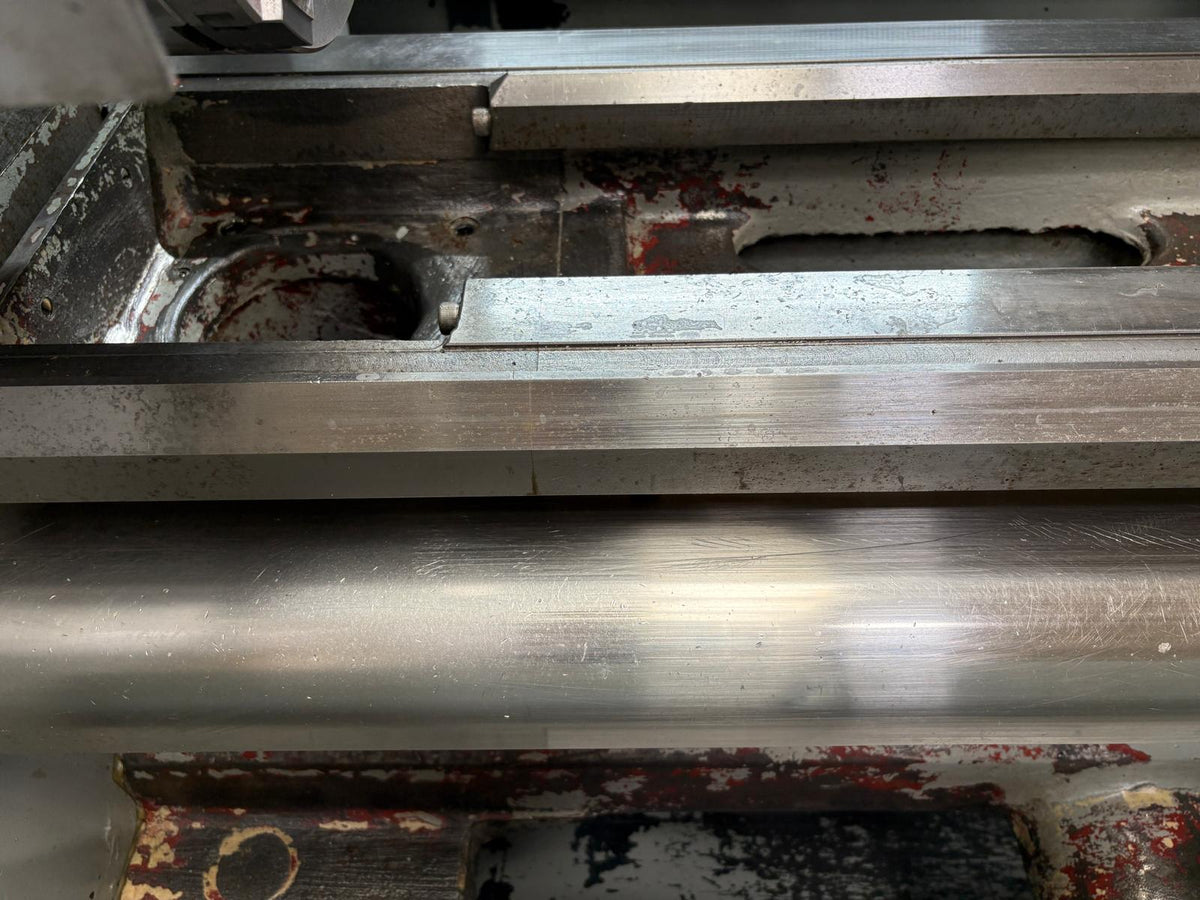

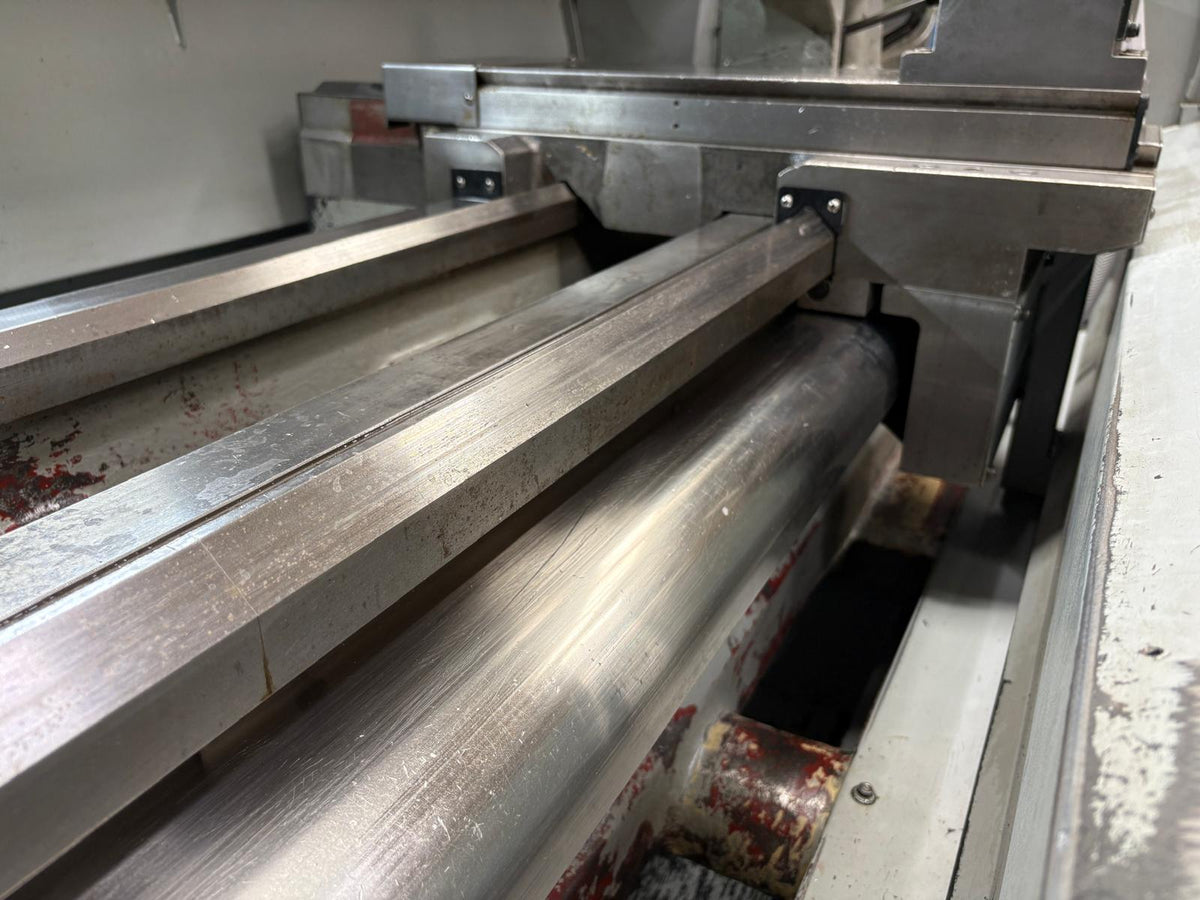

Bed width: 370 mm
Spindle bore: 80 mm
Spindle nose: D1-8 Camlock
Spindle taper: MT5 with bush
Spindle speed range: 25–2,500 rpm
Main motor power: 7.5 kW / 10 hp

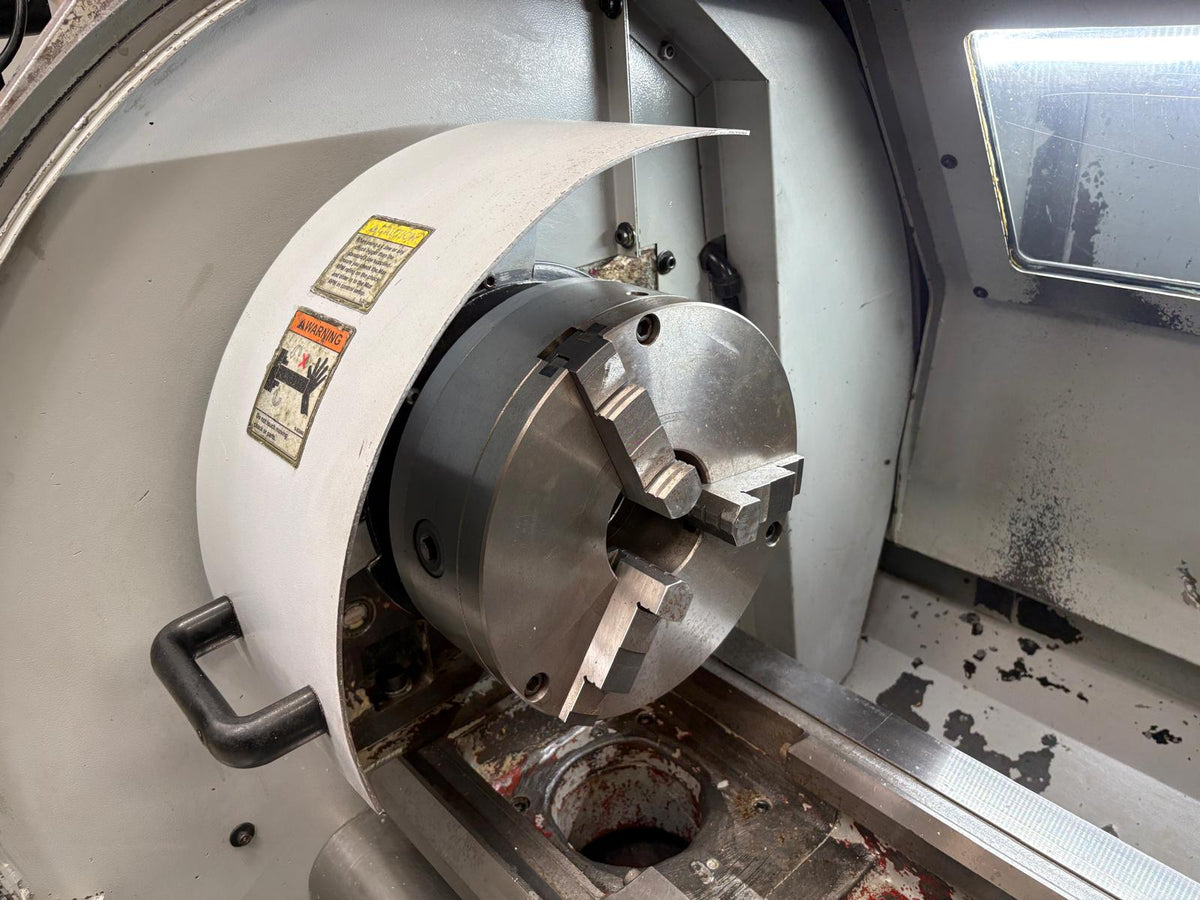

Chuck: approximately 250 mm three-jaw

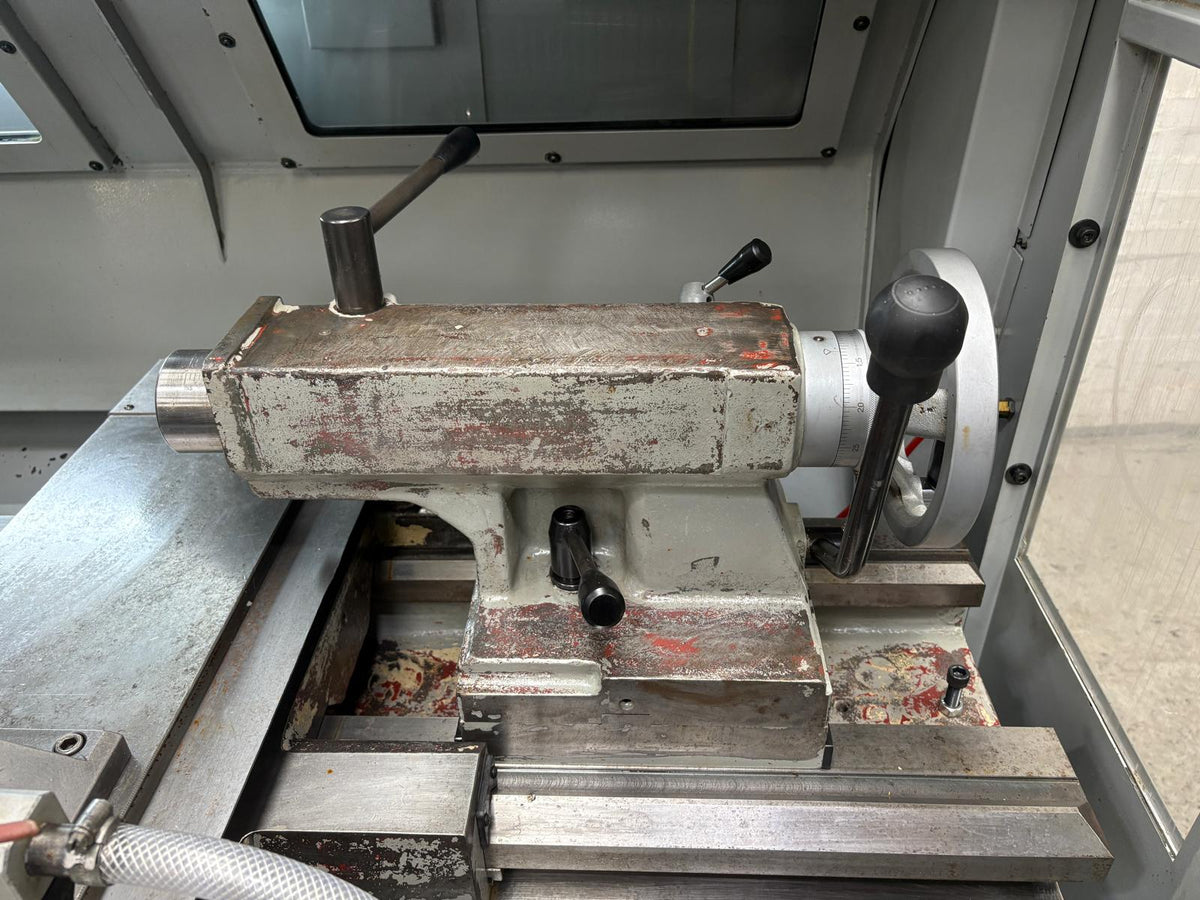

Tailstock quill diameter: 75 mm
Tailstock quill travel: 160 mm
Tailstock taper: MT5

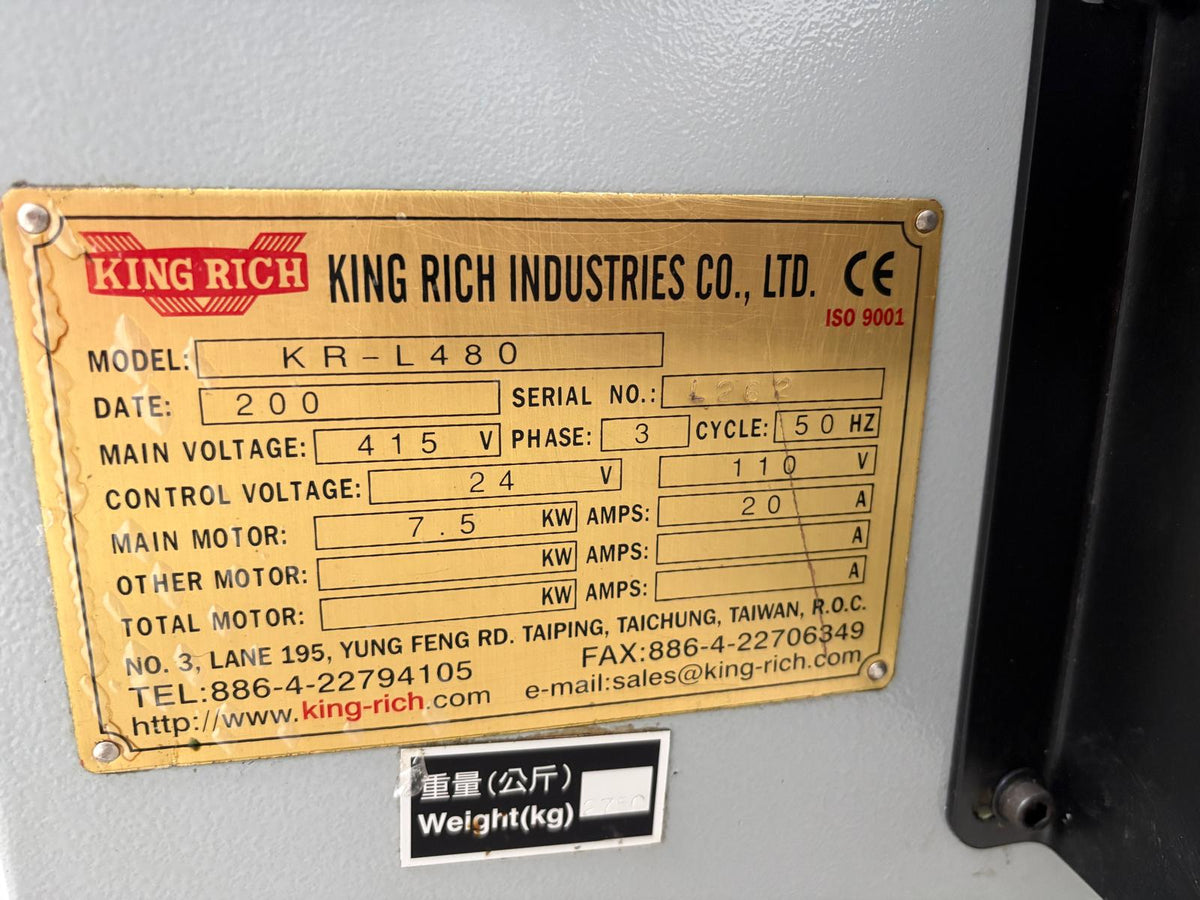

Main voltage: 415 V
Supply: Three-phase
Frequency: 50 Hz
Plate current: 20 A
Approximate dimensions: 2,600 × 1,480 × 1,830 mm
Plate weight: 2,740 kg
Supplied With:

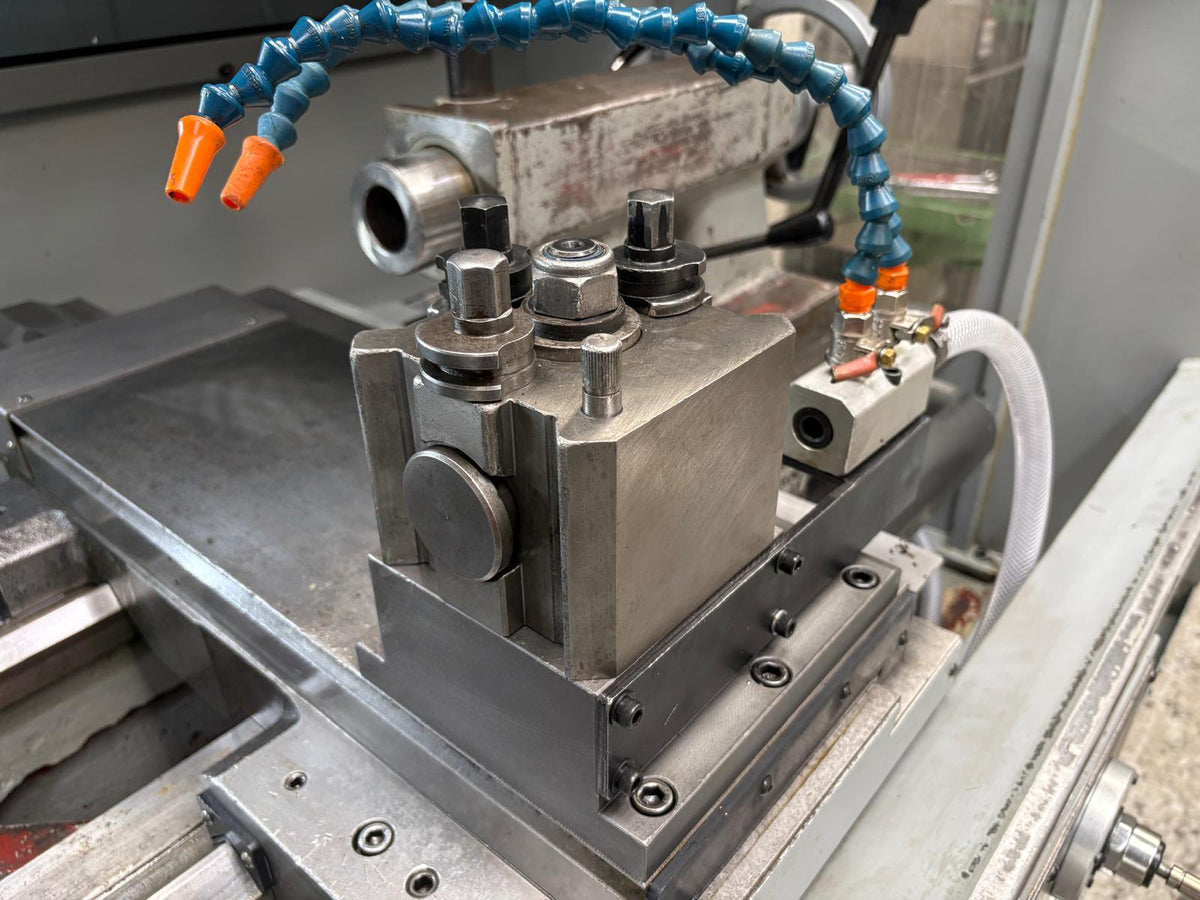

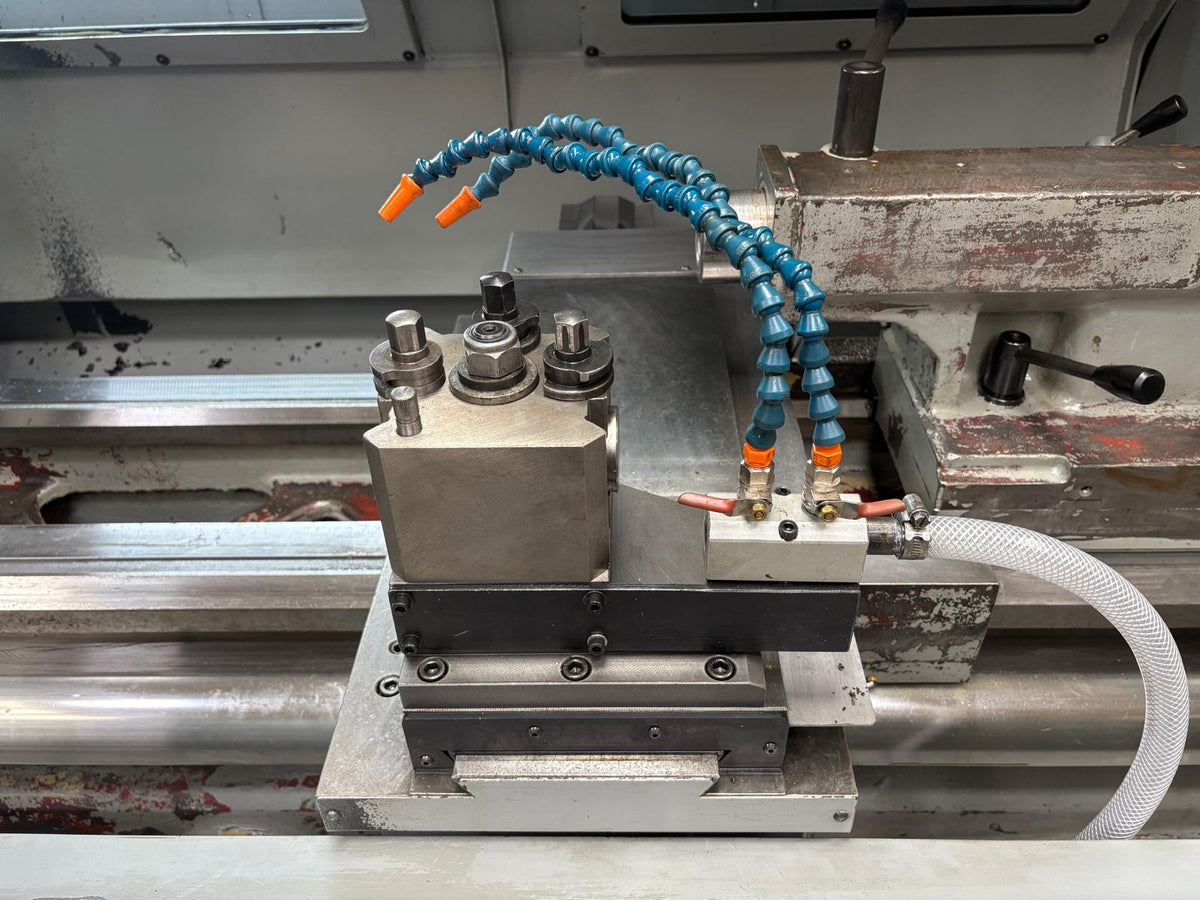

ProtoTRAK conversational CNC control, Manual electronic handwheels, Quick-change toolpost, 250 mm three-jaw chuck, Rapid-traverse joystick, Constant surface-speed function, Automatic lubrication, Flood coolant, Full sliding safety enclosure
Interlocked chuck guard, Work light, Emergency-stop controls
For sale with *Jet Machinery Ltd*
Jet Machinery Stock No: #79266
Machine Serial Number: L282
Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details.
Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.
