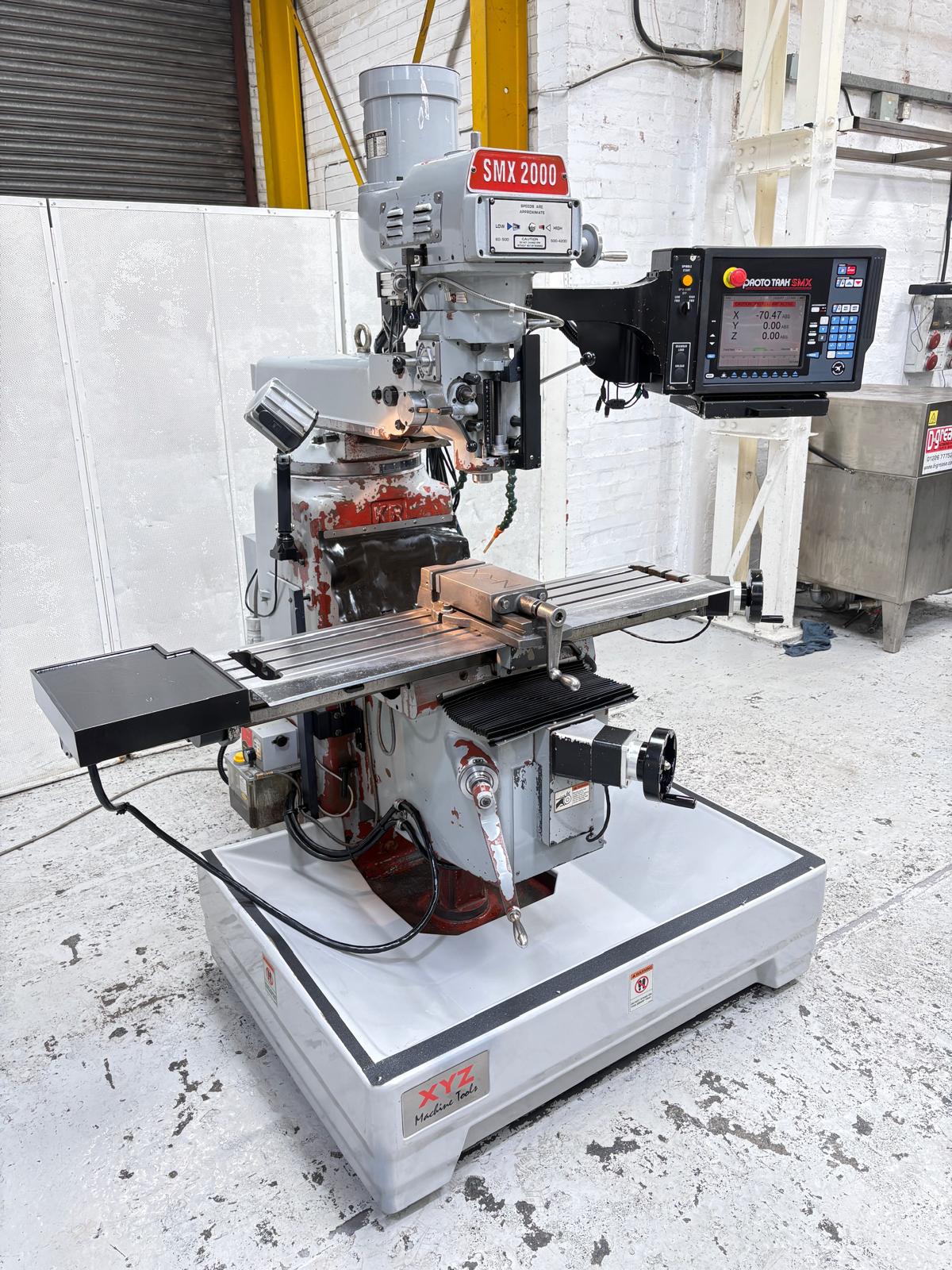

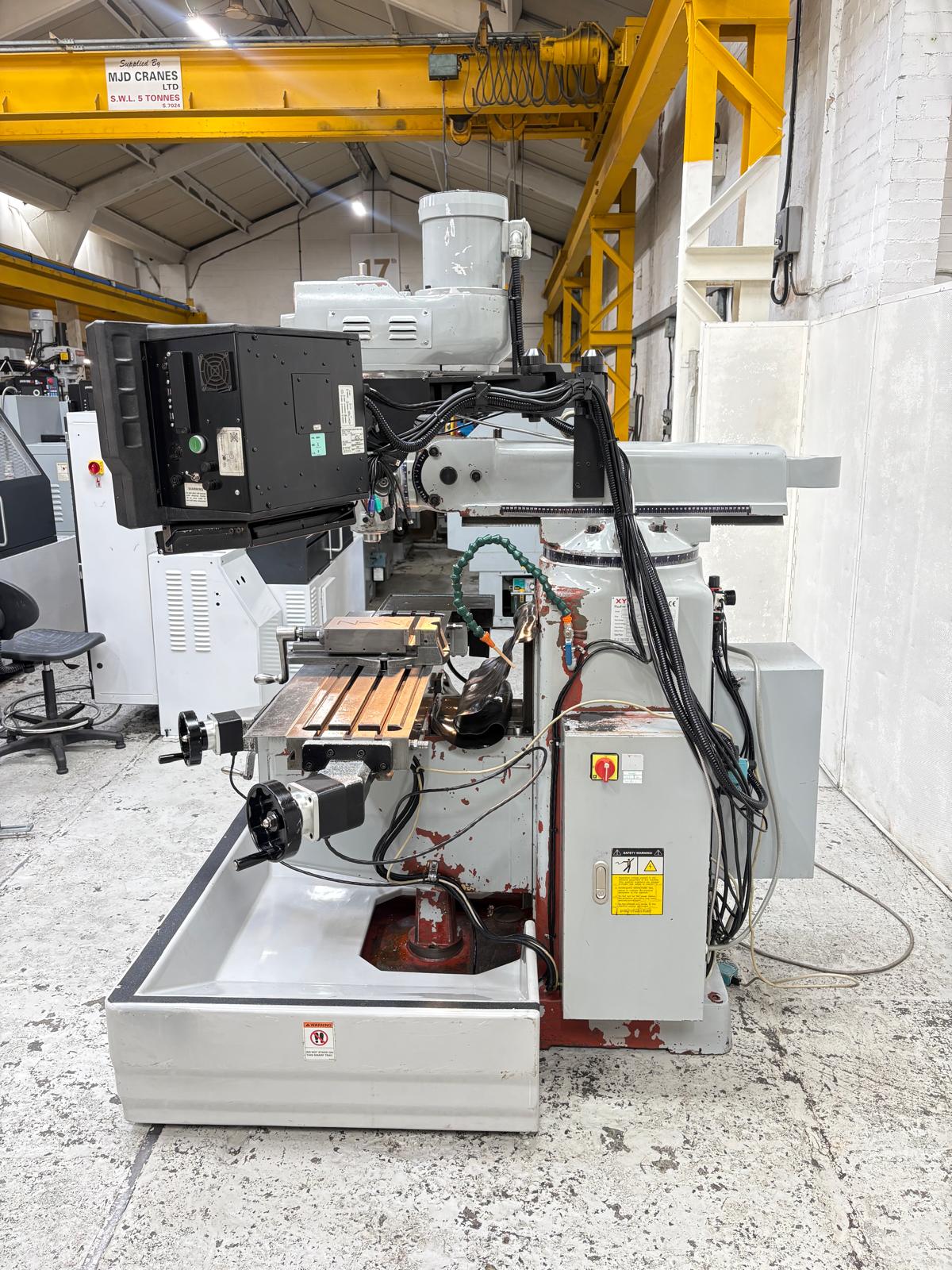

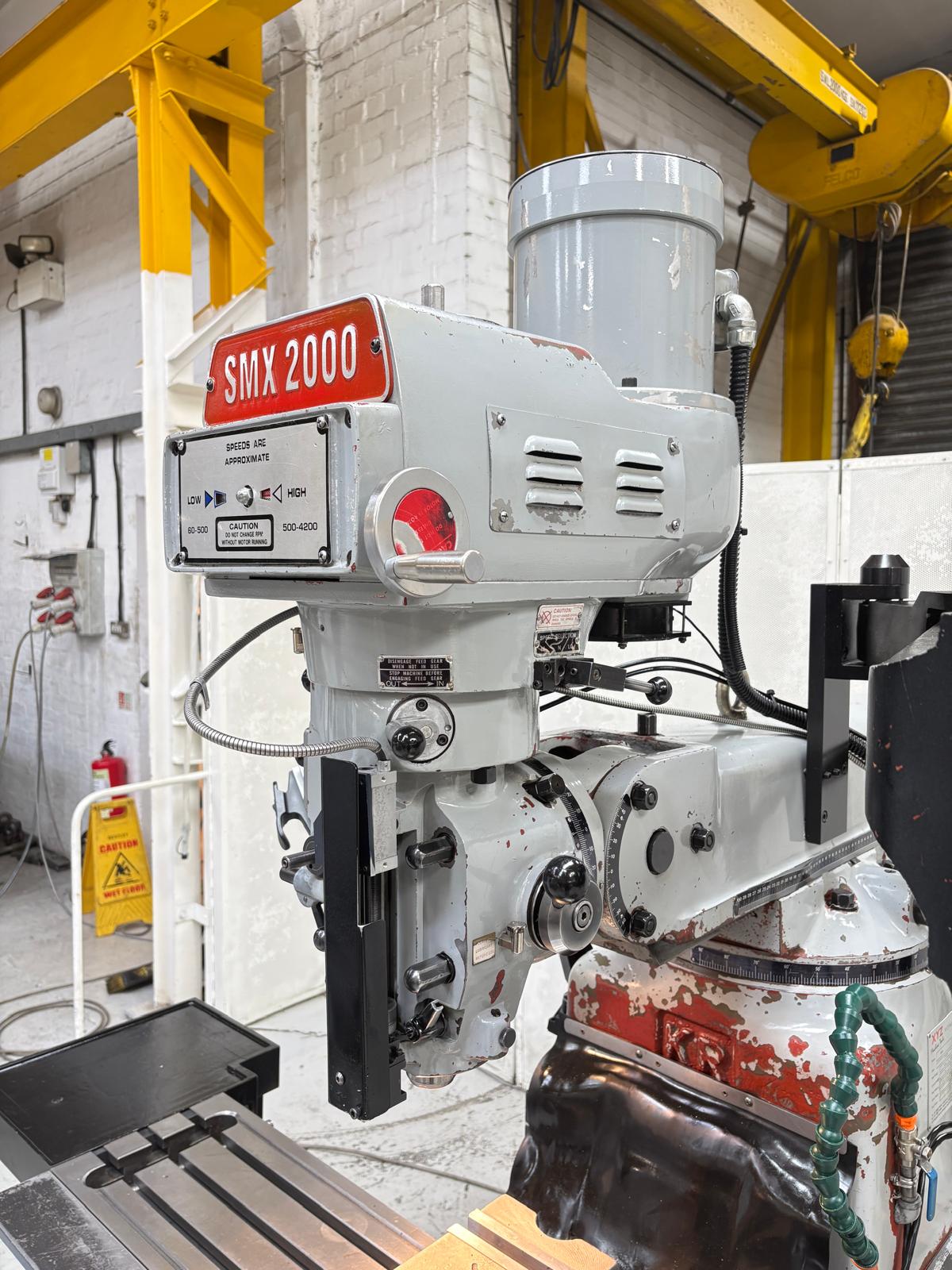

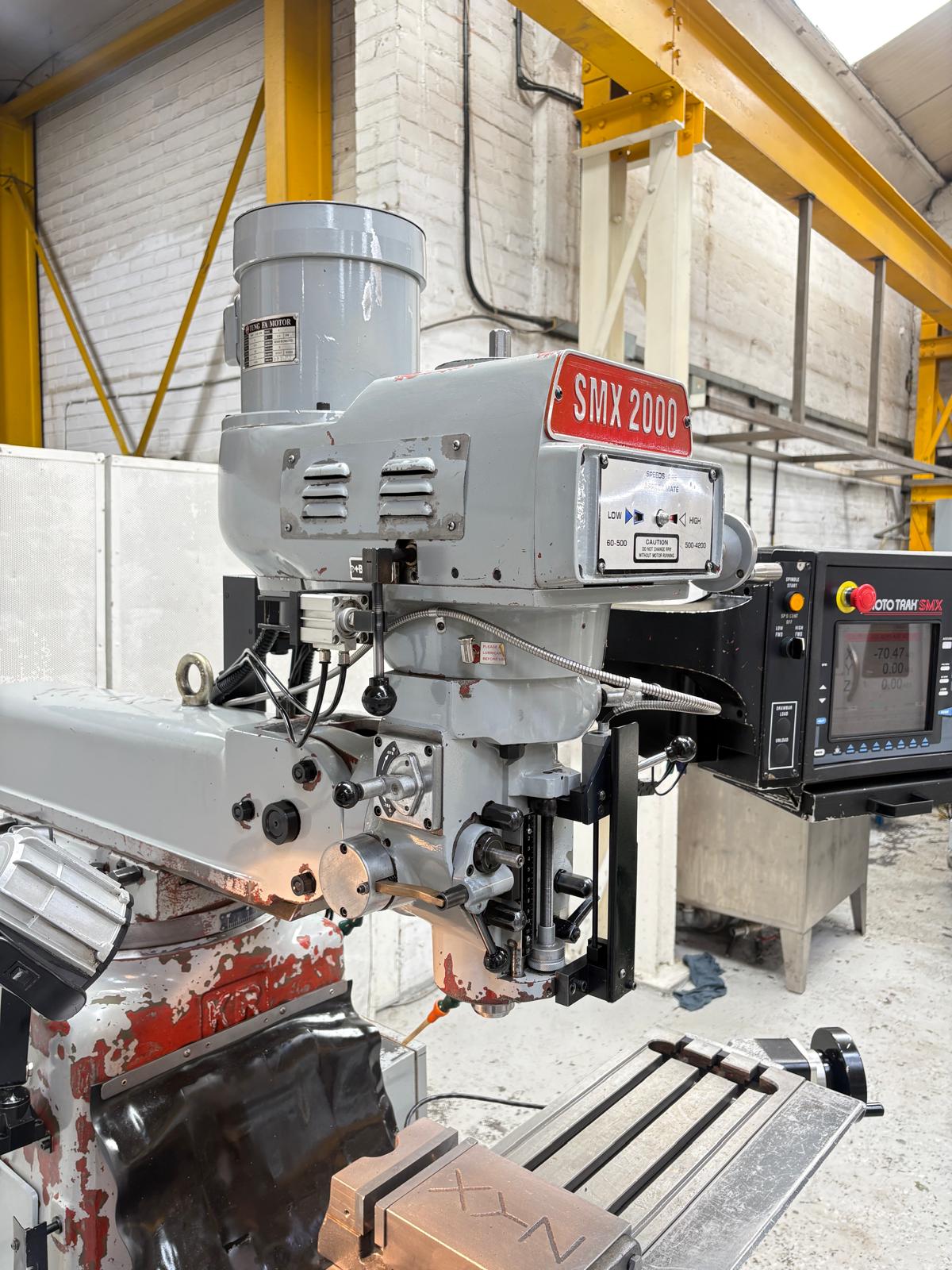

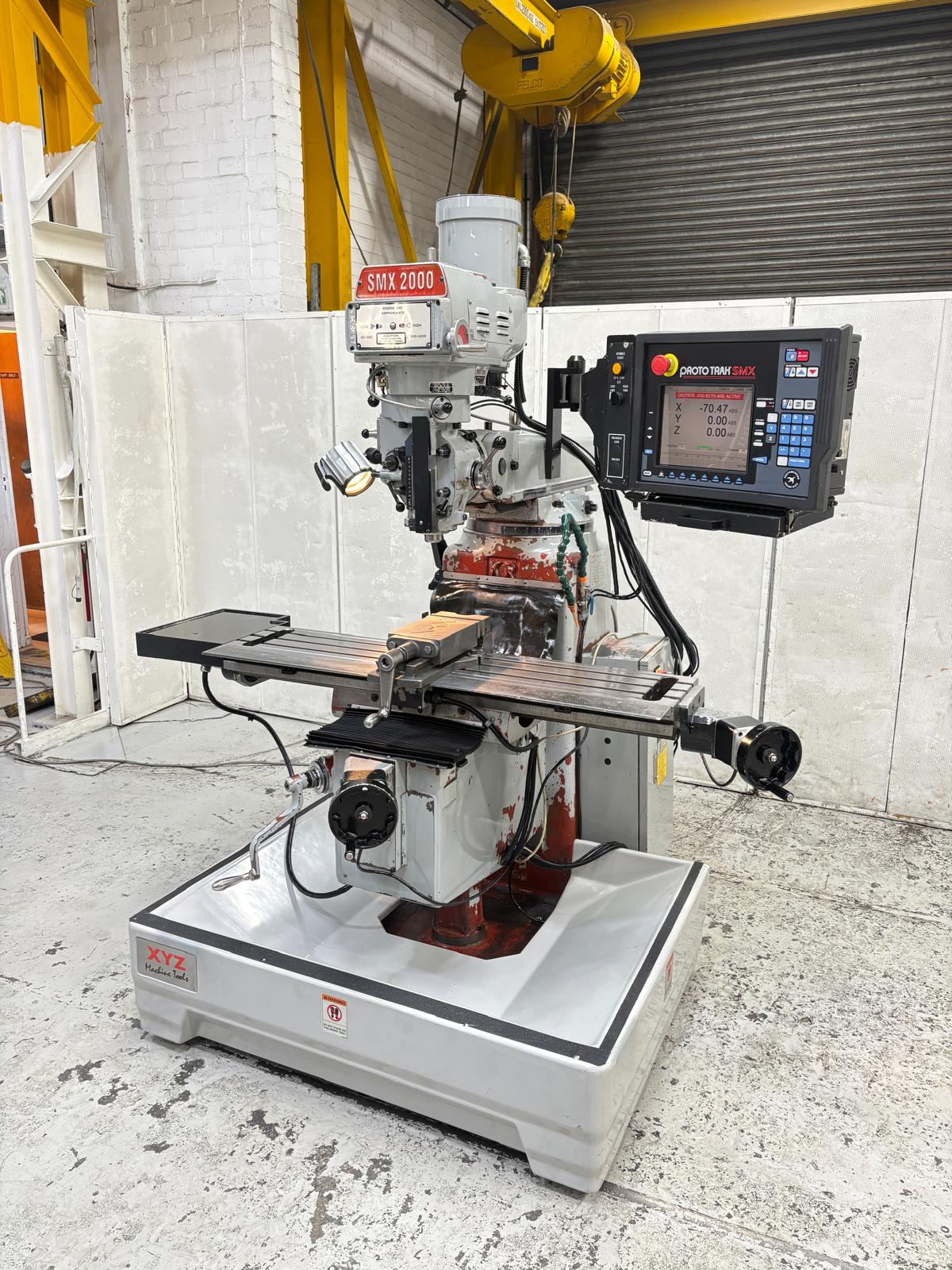

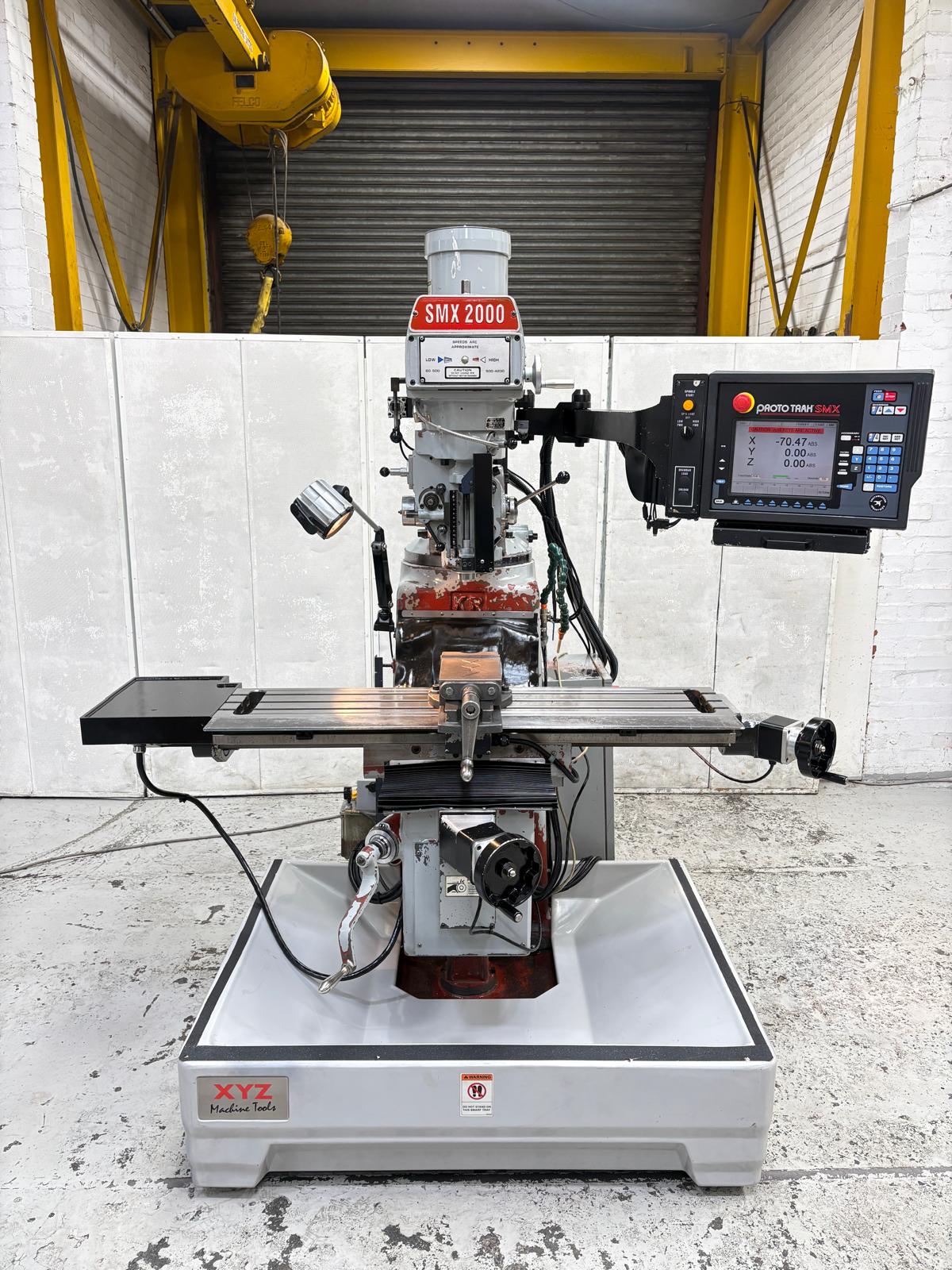

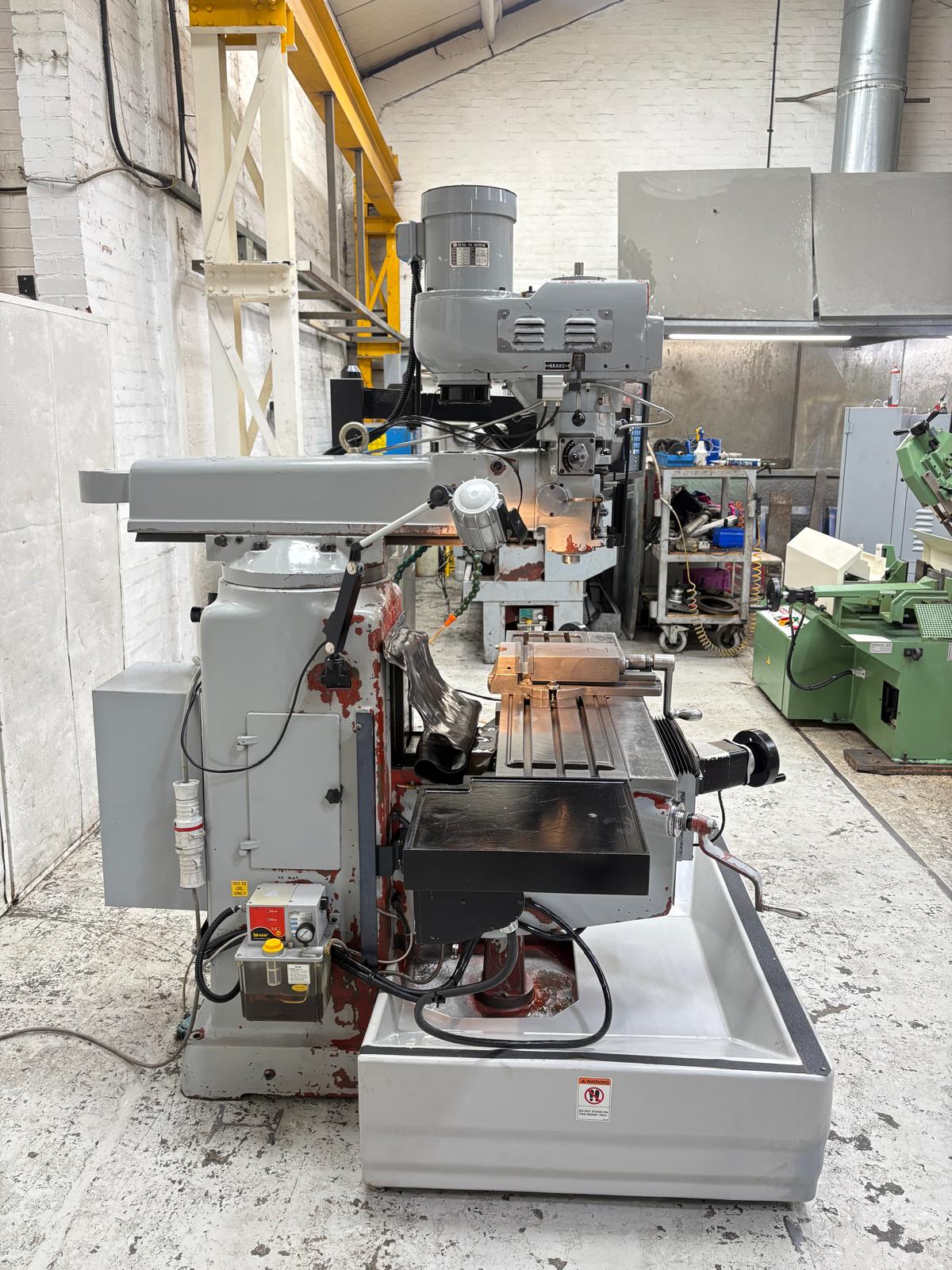

XYZ SMX 2000 CNC Turret Milling Machine

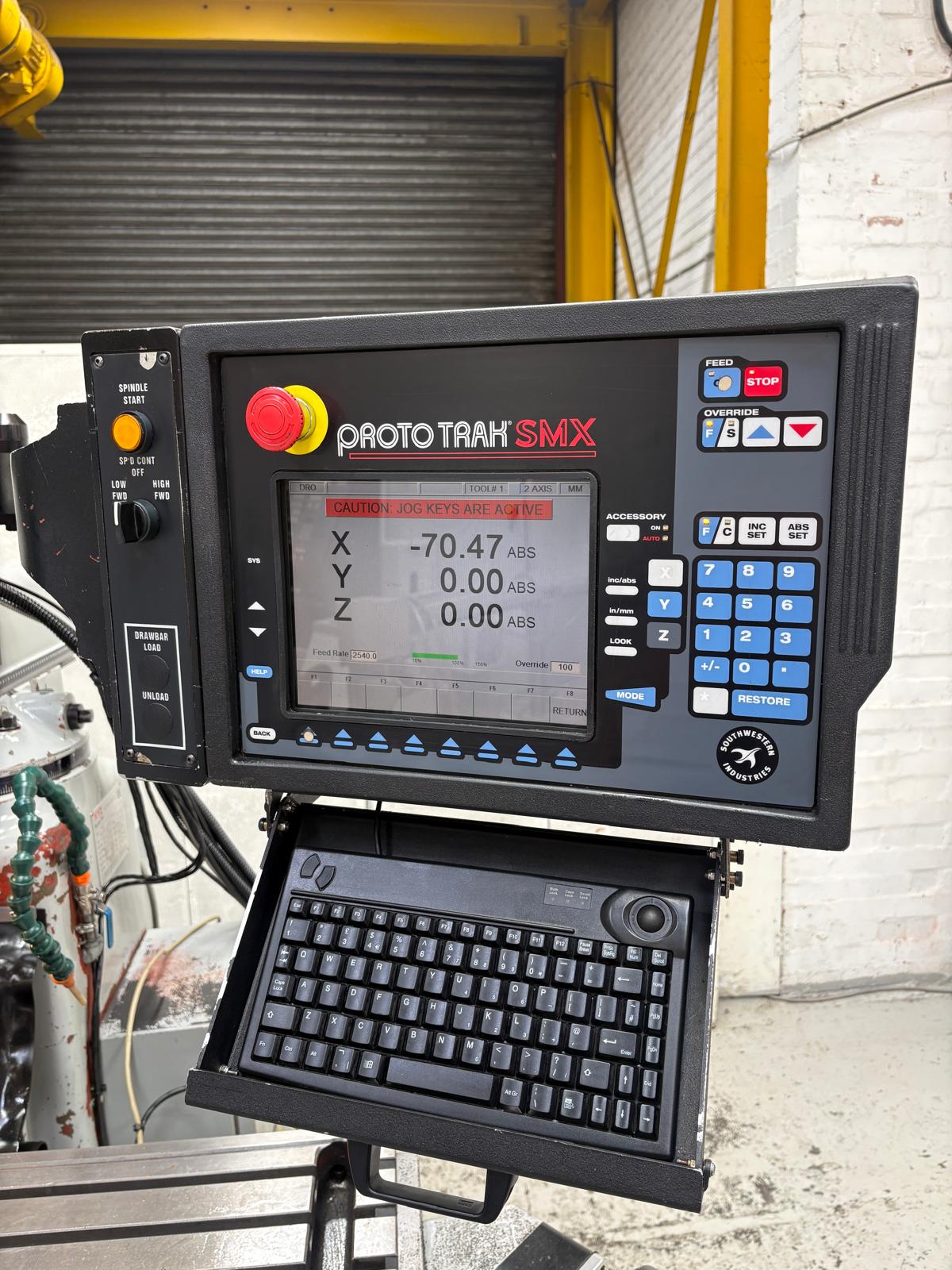

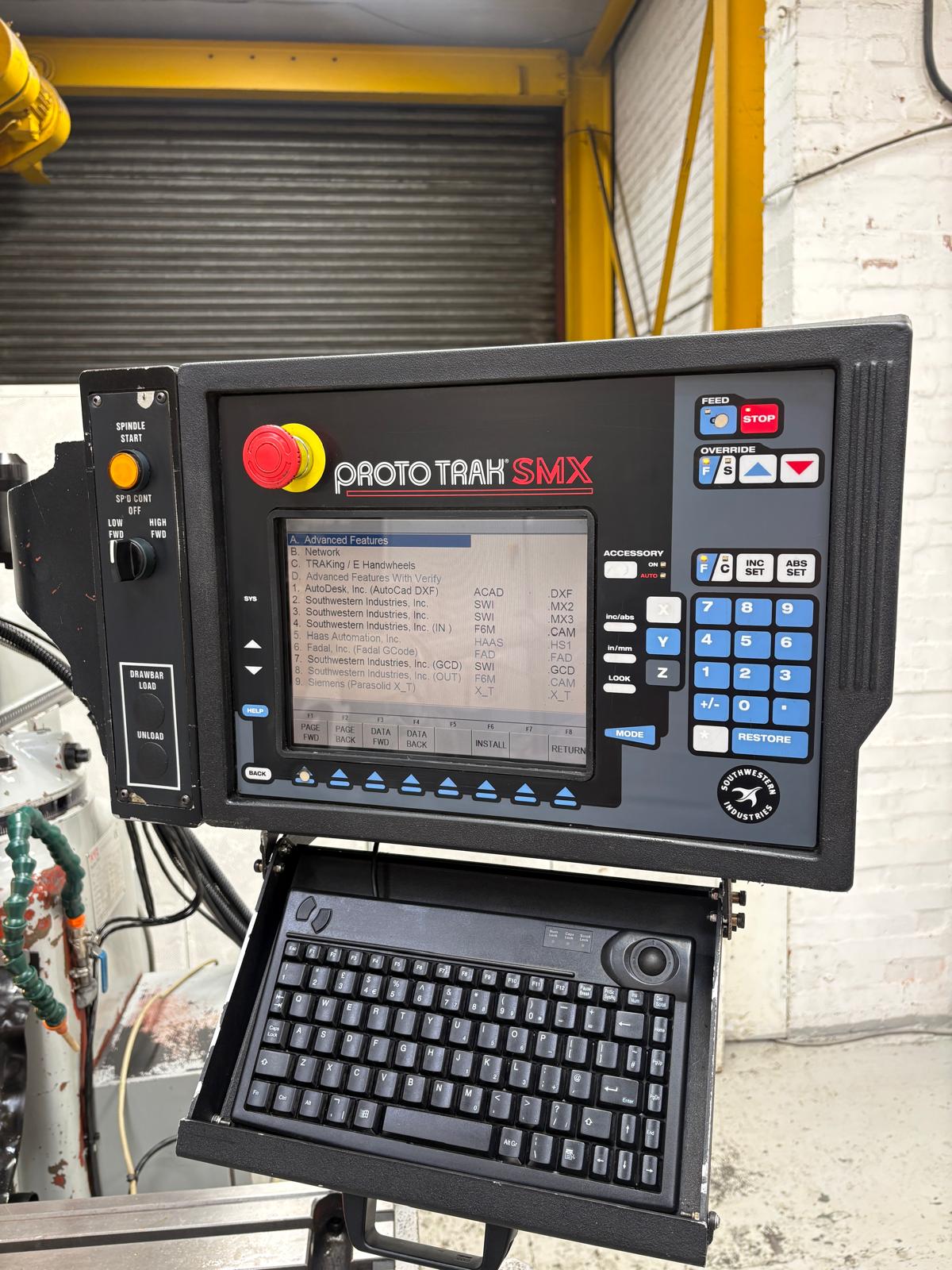

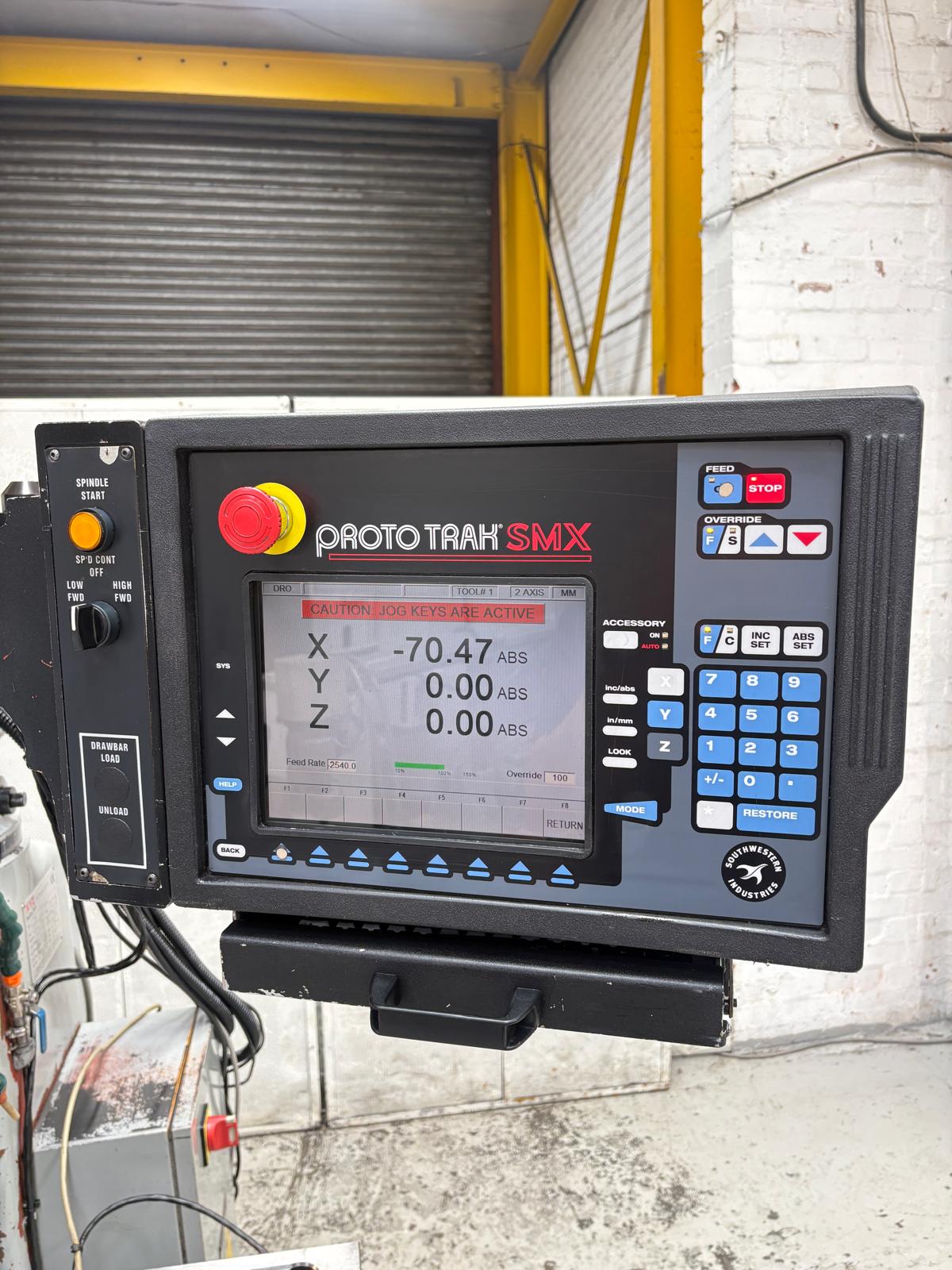

ProtoTRAK SMX Control
Controlled axes: 2-axis CNC, X and Y

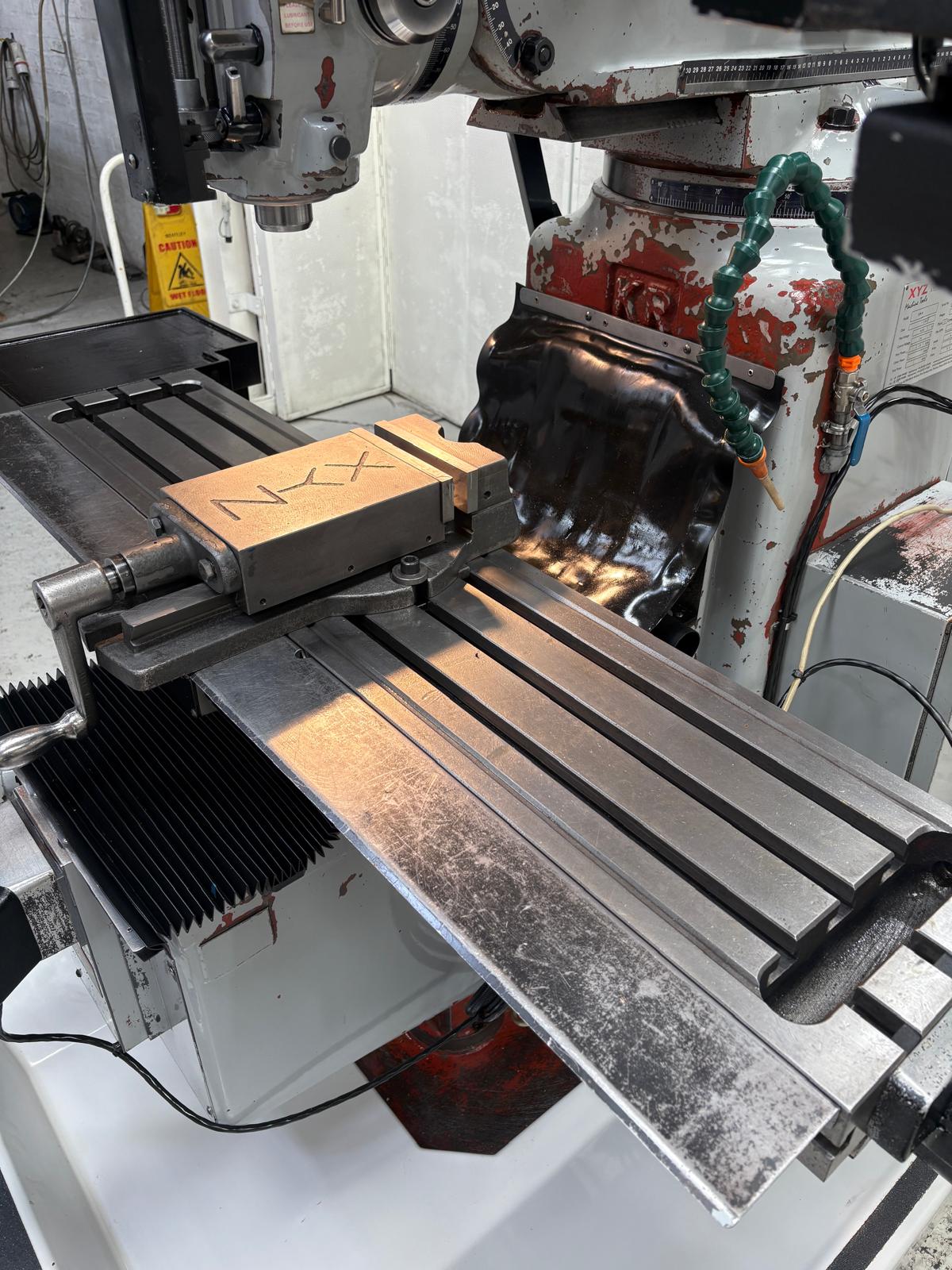

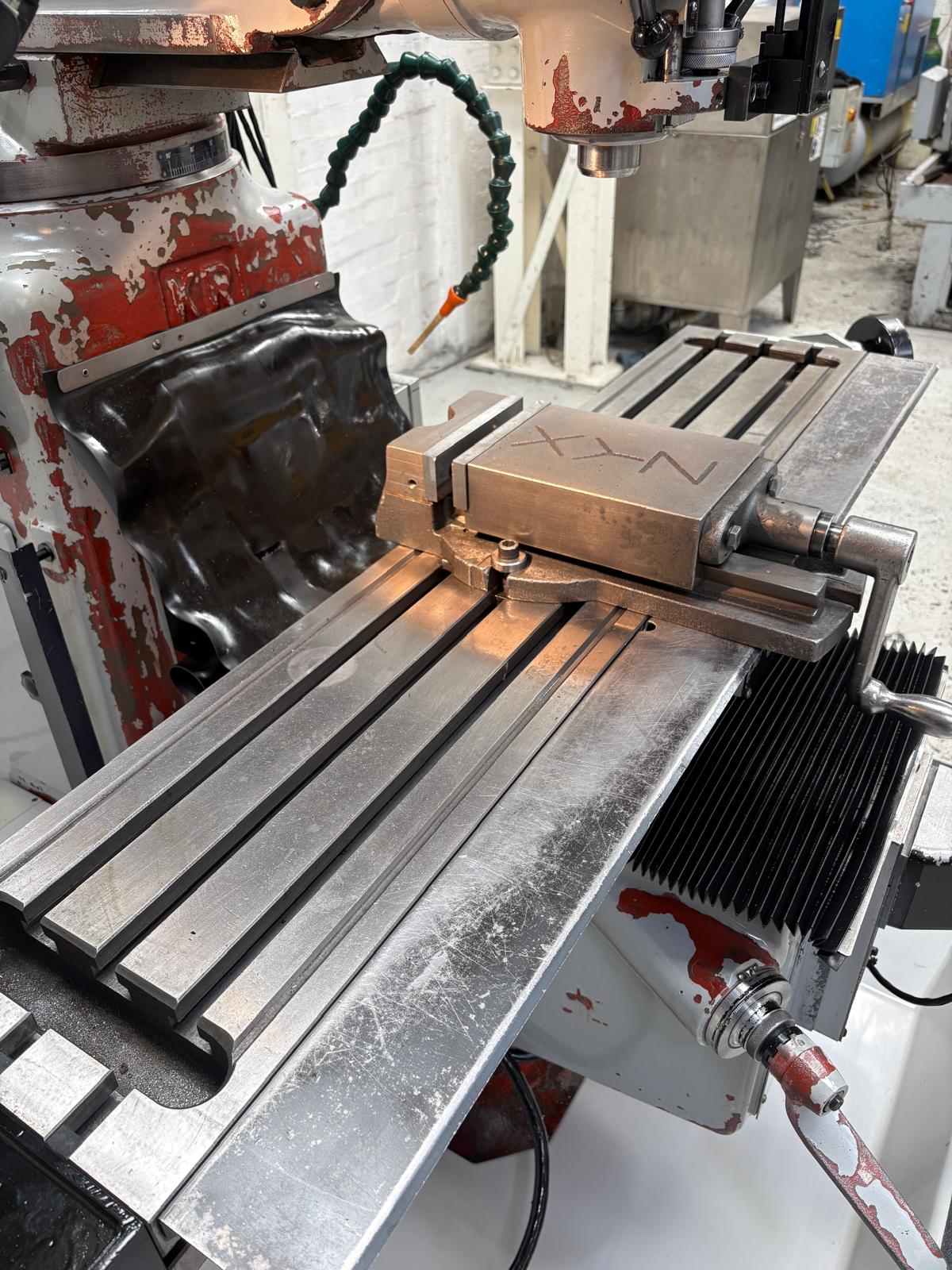

Table size: 1,270 × 254 mm
Longitudinal travel – X: 750 mm
Cross travel – Y: 380–384 mm
Knee vertical travel: 406 mm
Ram travel: 450 mm
Quill travel: 127 mm
Spindle taper R8; ISO 30 was optional

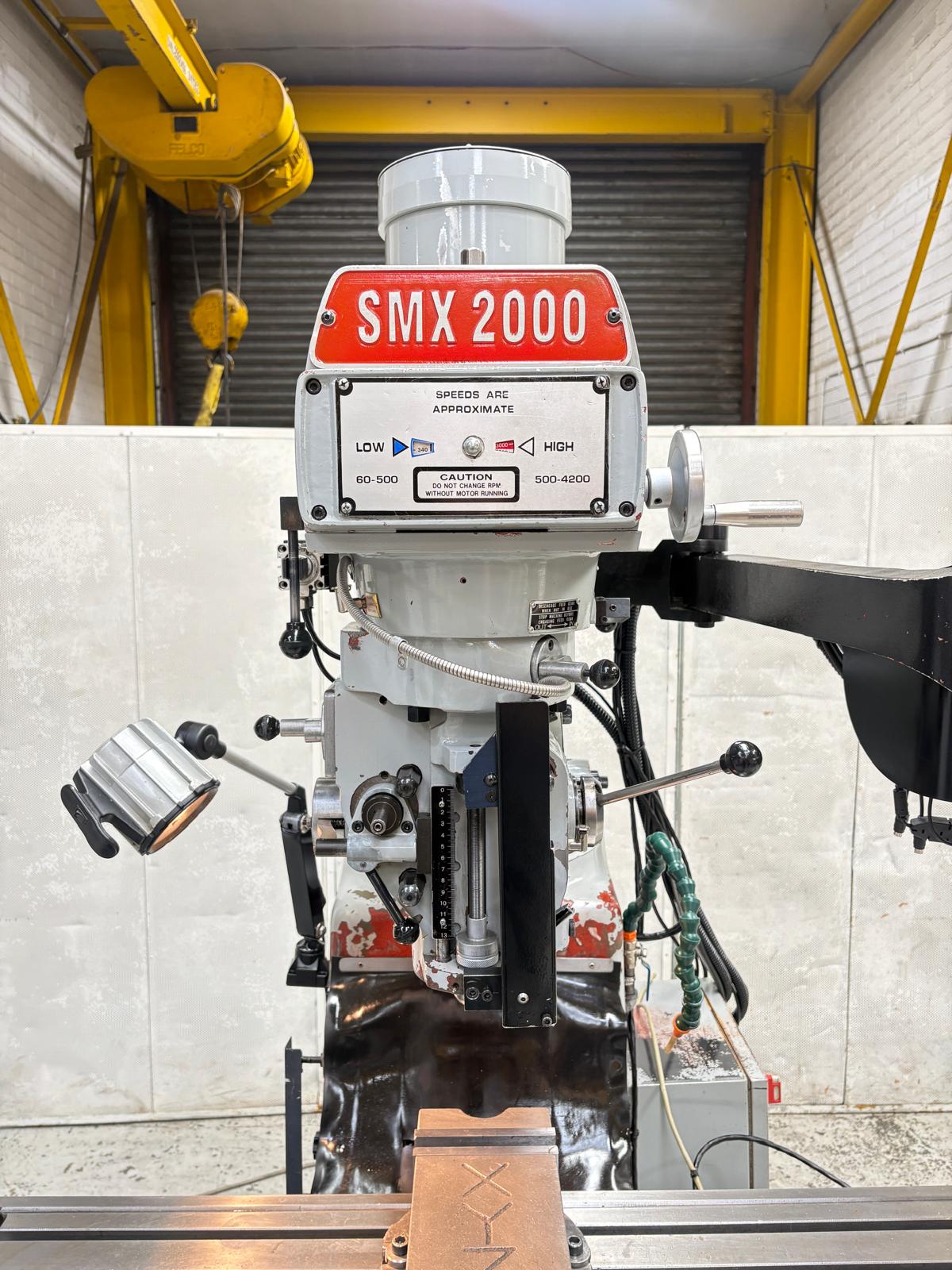

Spindle-speed range 75–4,200 rpm, variable speed
Spindle motor: 2.25 kW / 3 hp
Quill power feeds: 0.038, 0.076 and 0.15 mm/rev
Maximum throat depth: 686 mm
Approximate weight: 1,350 kg
Approximate dimensions: 1,880 × 1,750 × 2,220 mm
Electrical supply: 400 V, three-phase, 50 Hz
For sale with *Jet Machinery Ltd*
Jet Machinery Stock No: #79273

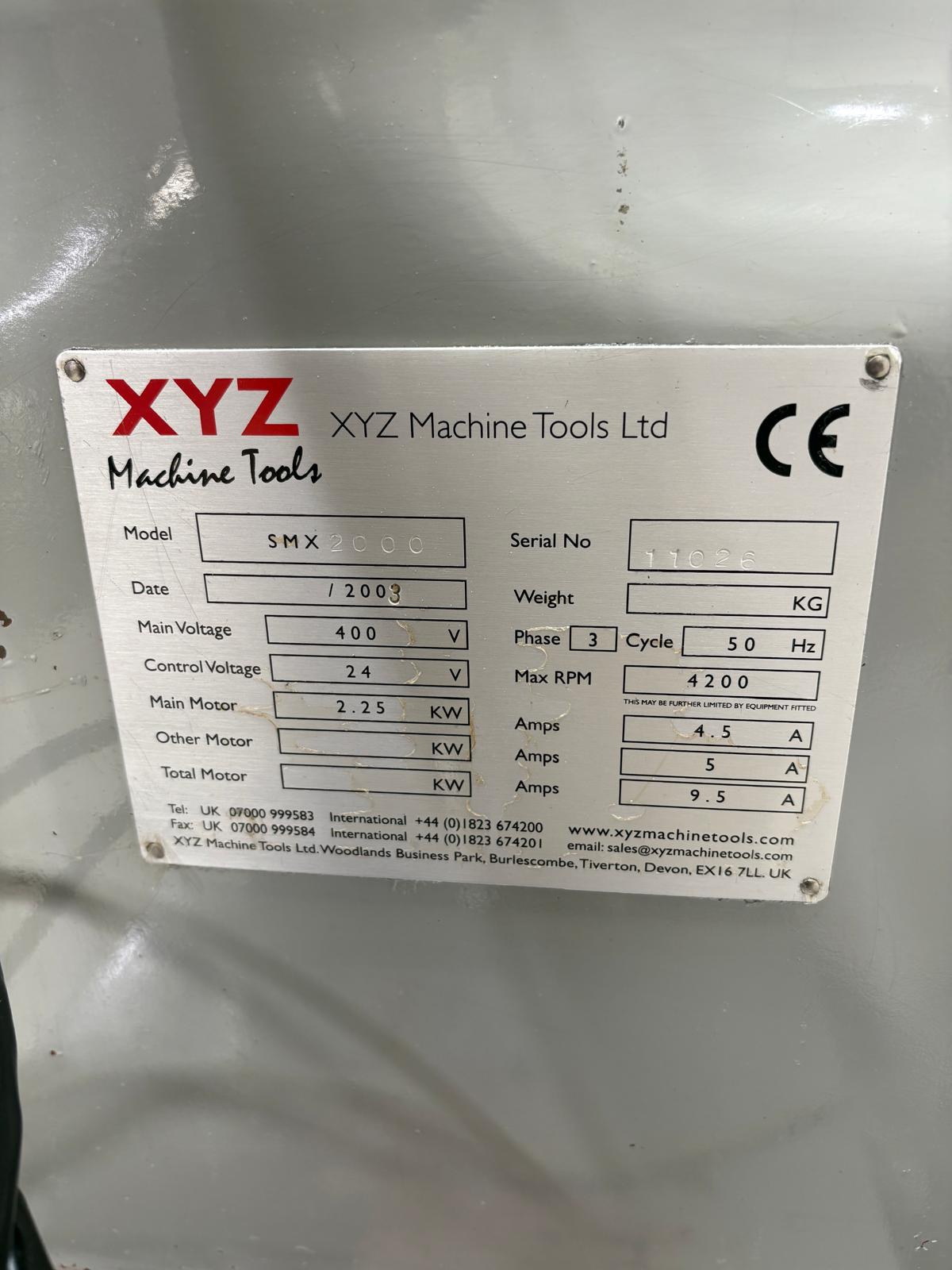

Machine Serial Number: 11026
