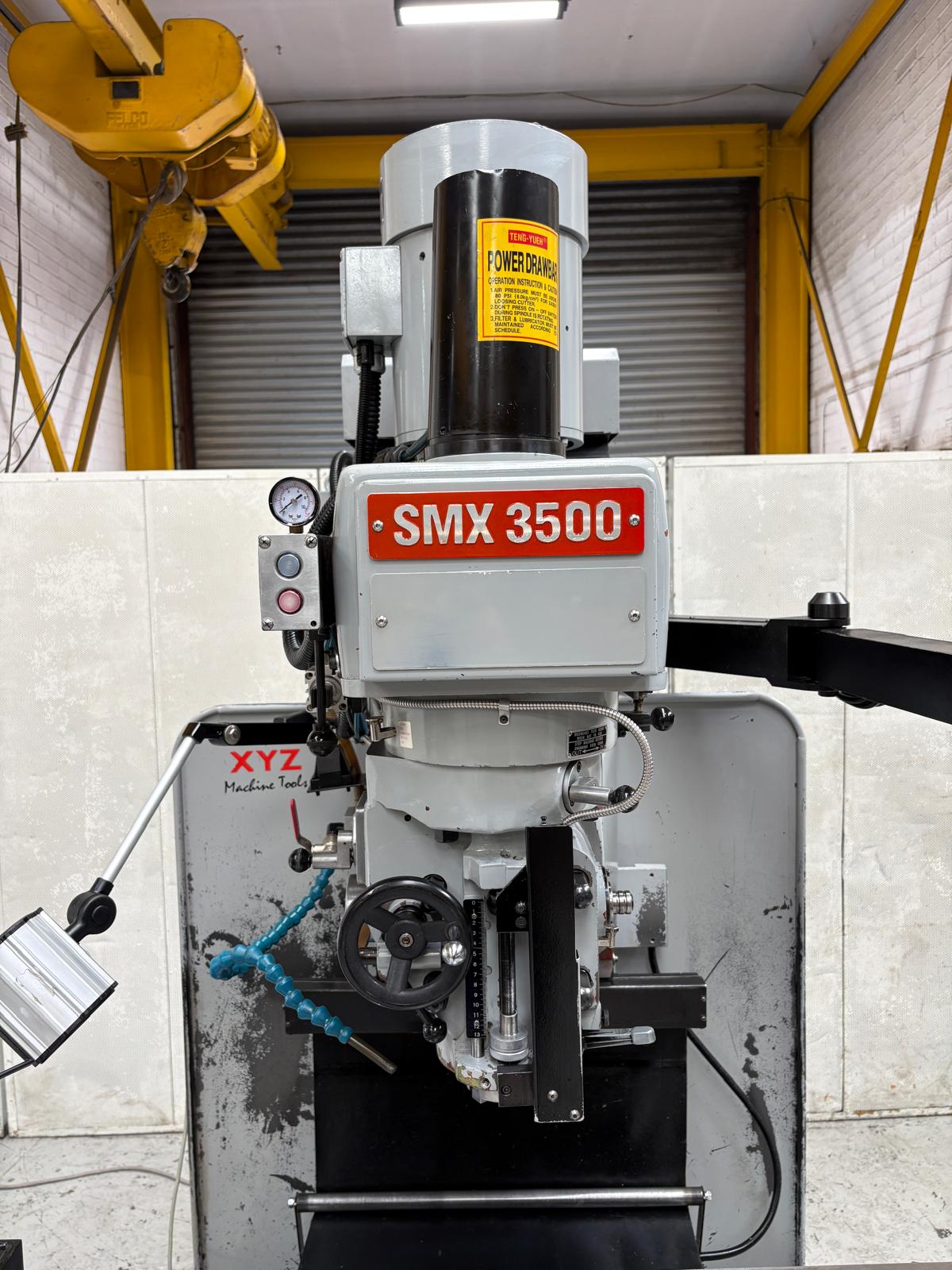

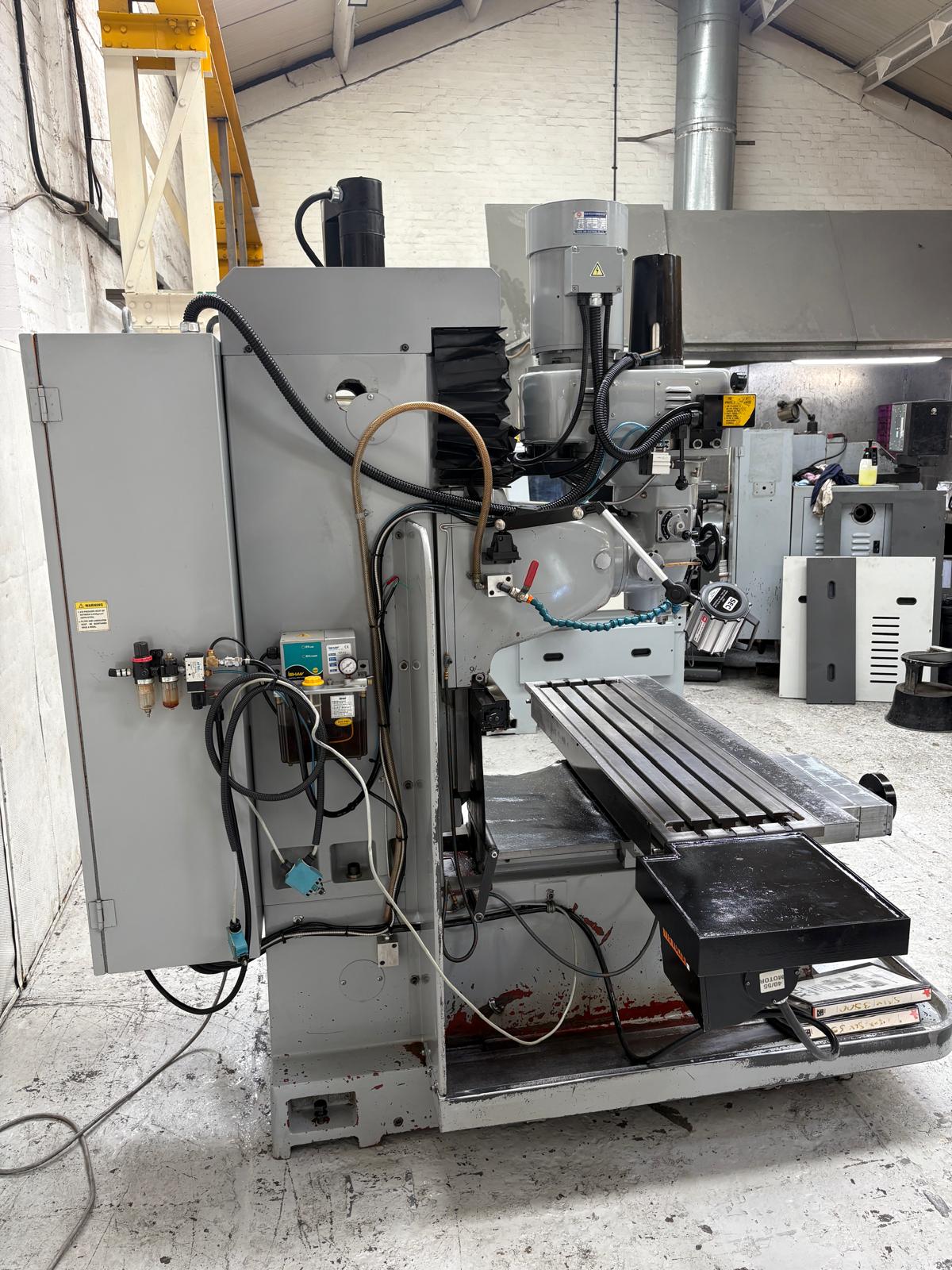

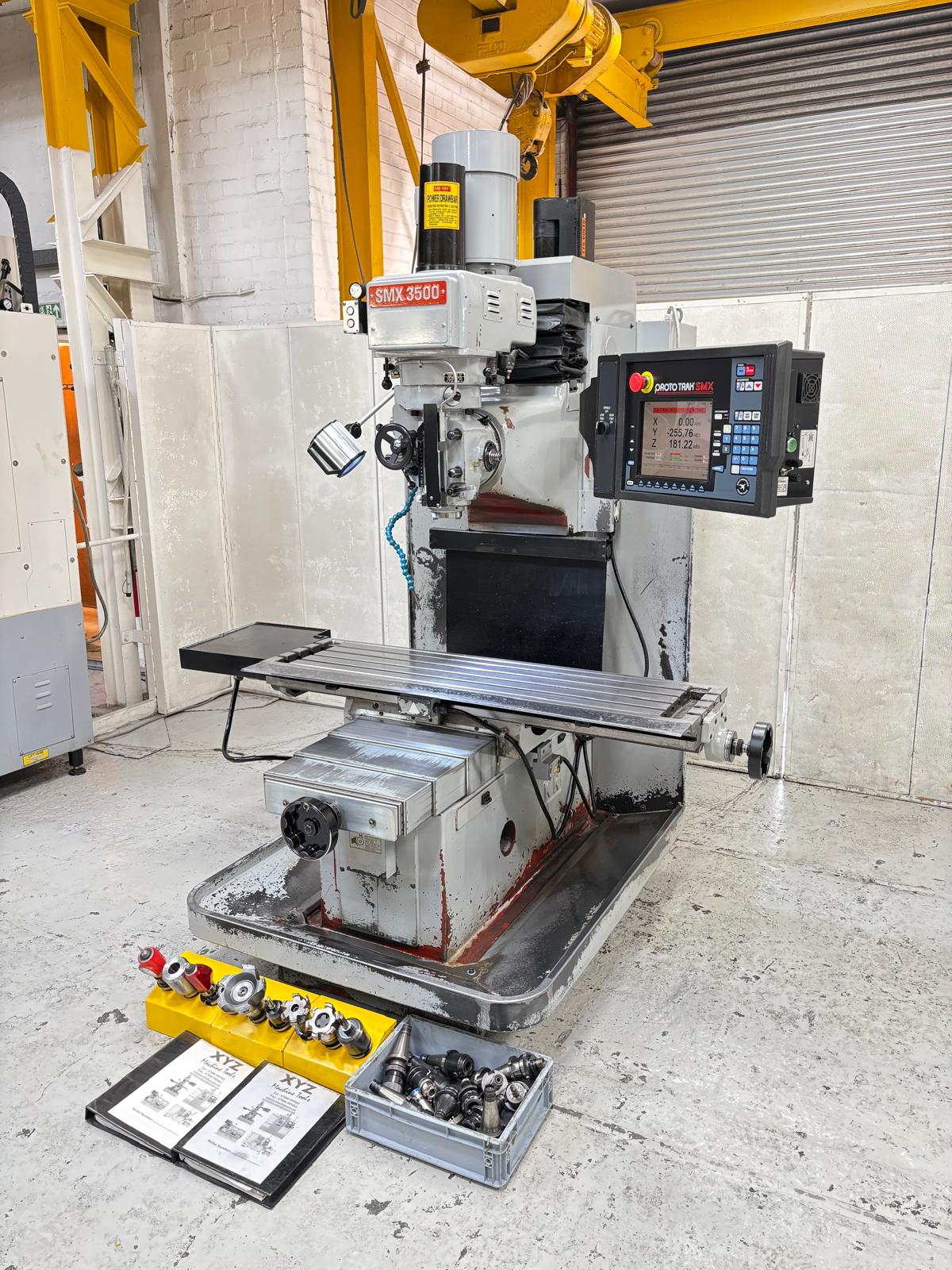

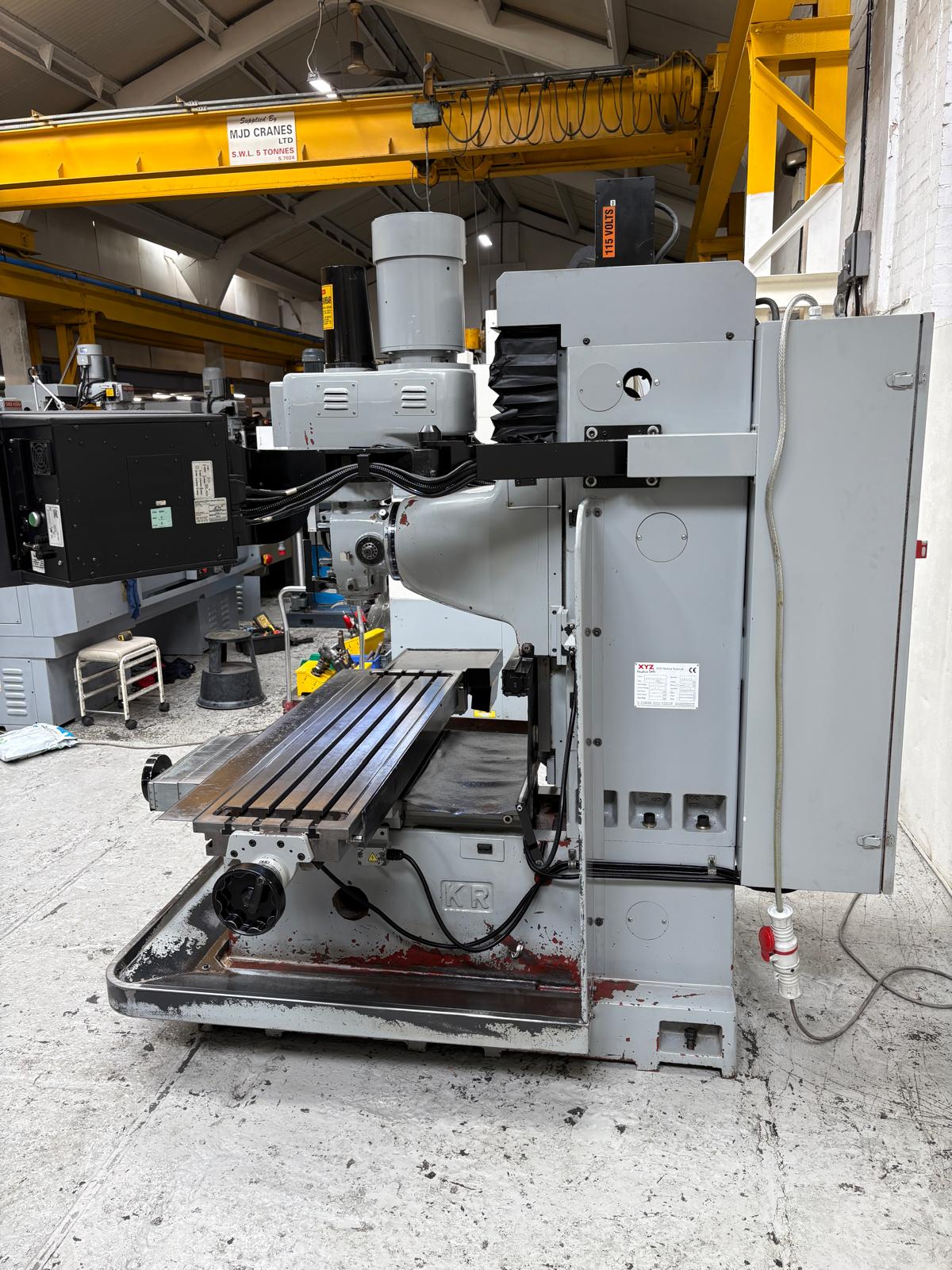

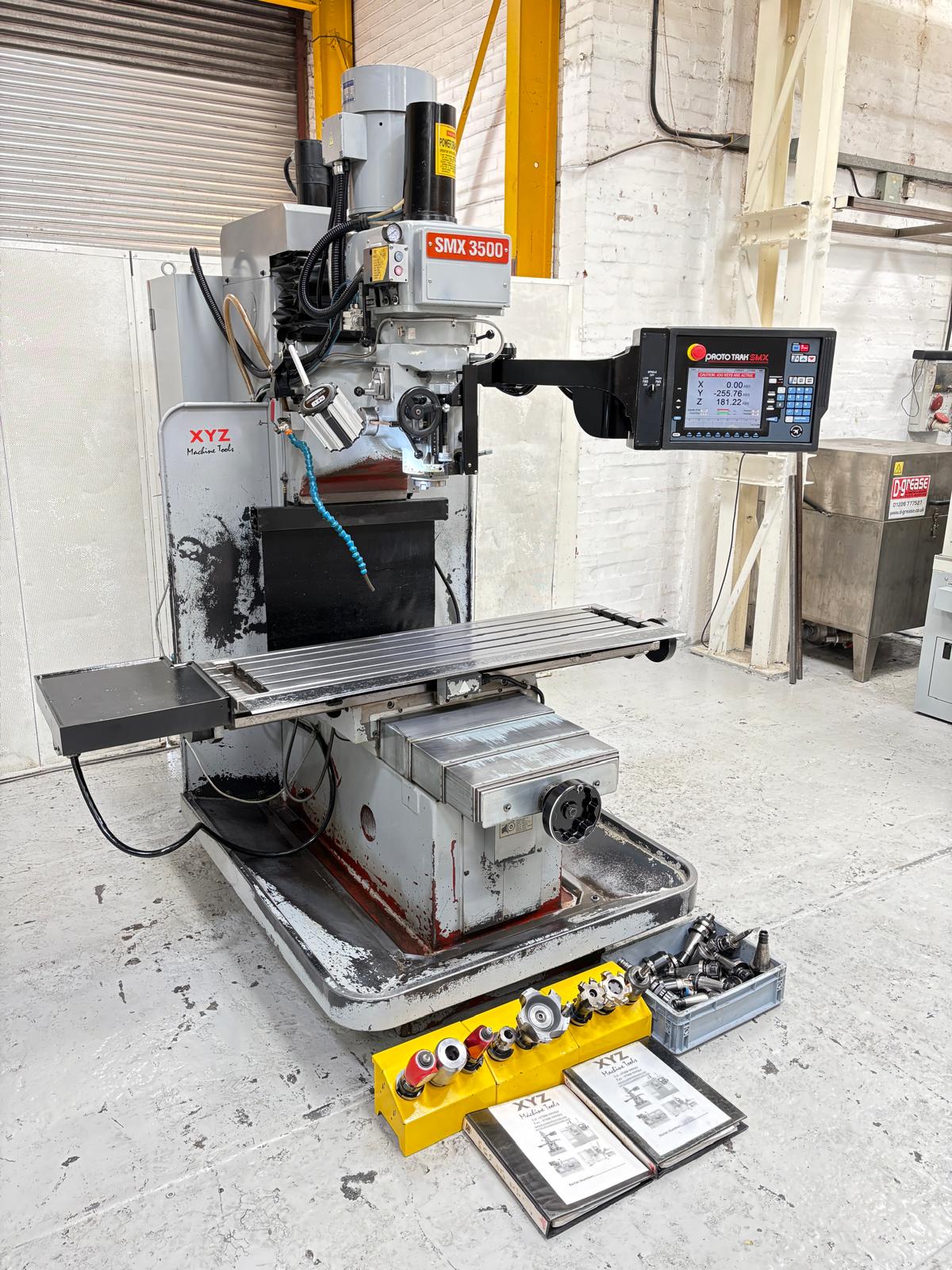

XYZ SMX 3500 3 Axis CNC Bed Milling Machine

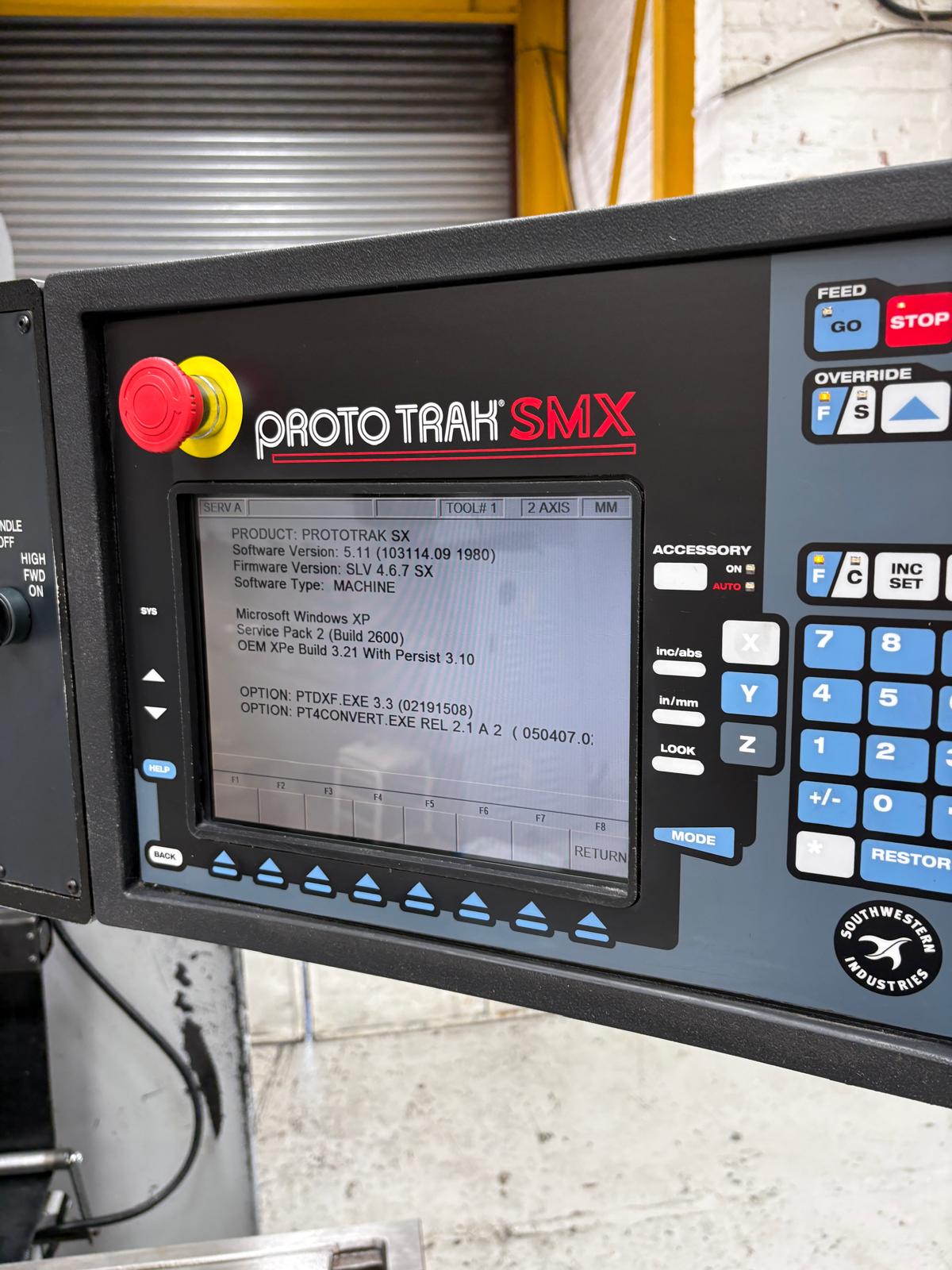

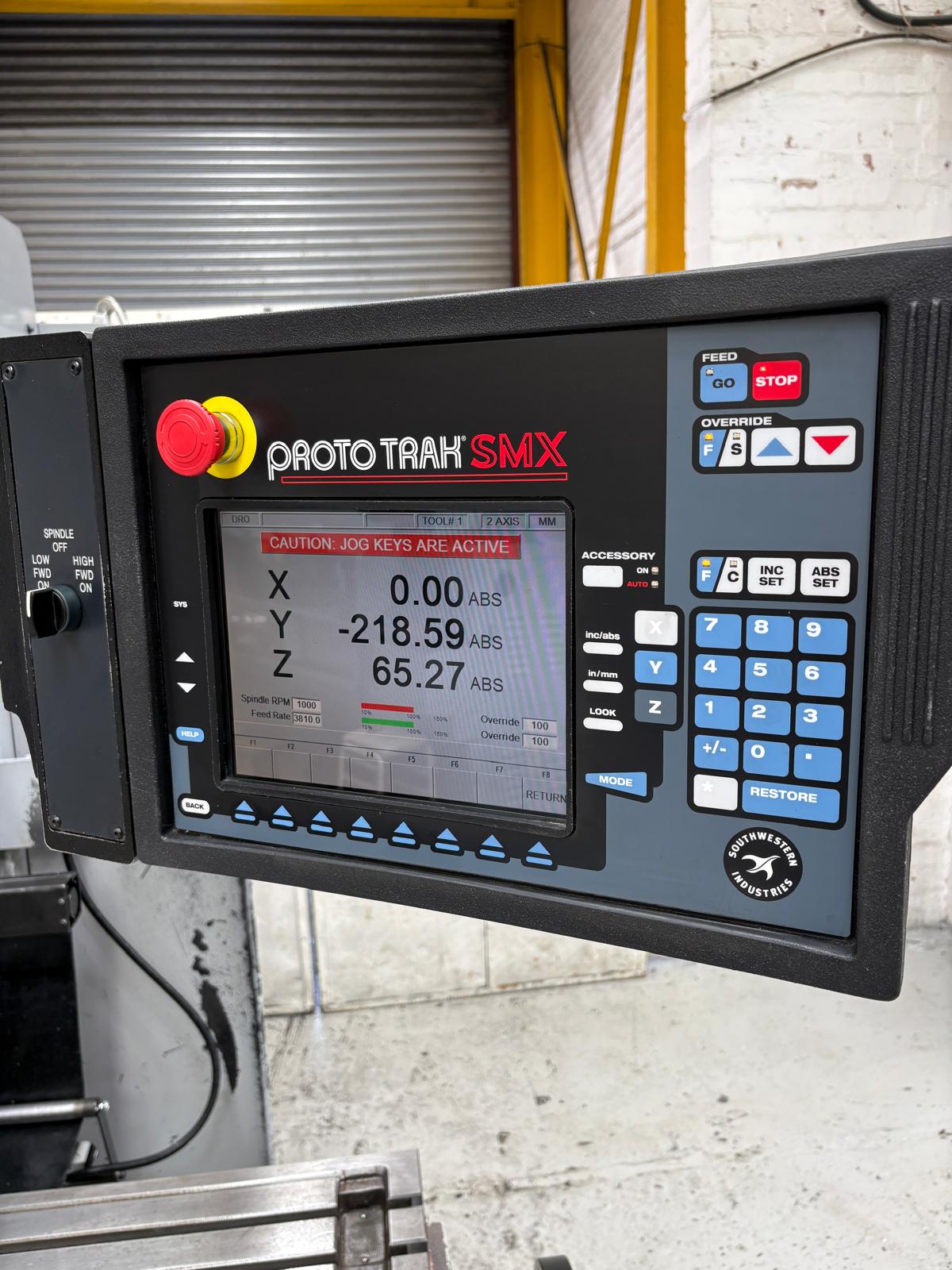

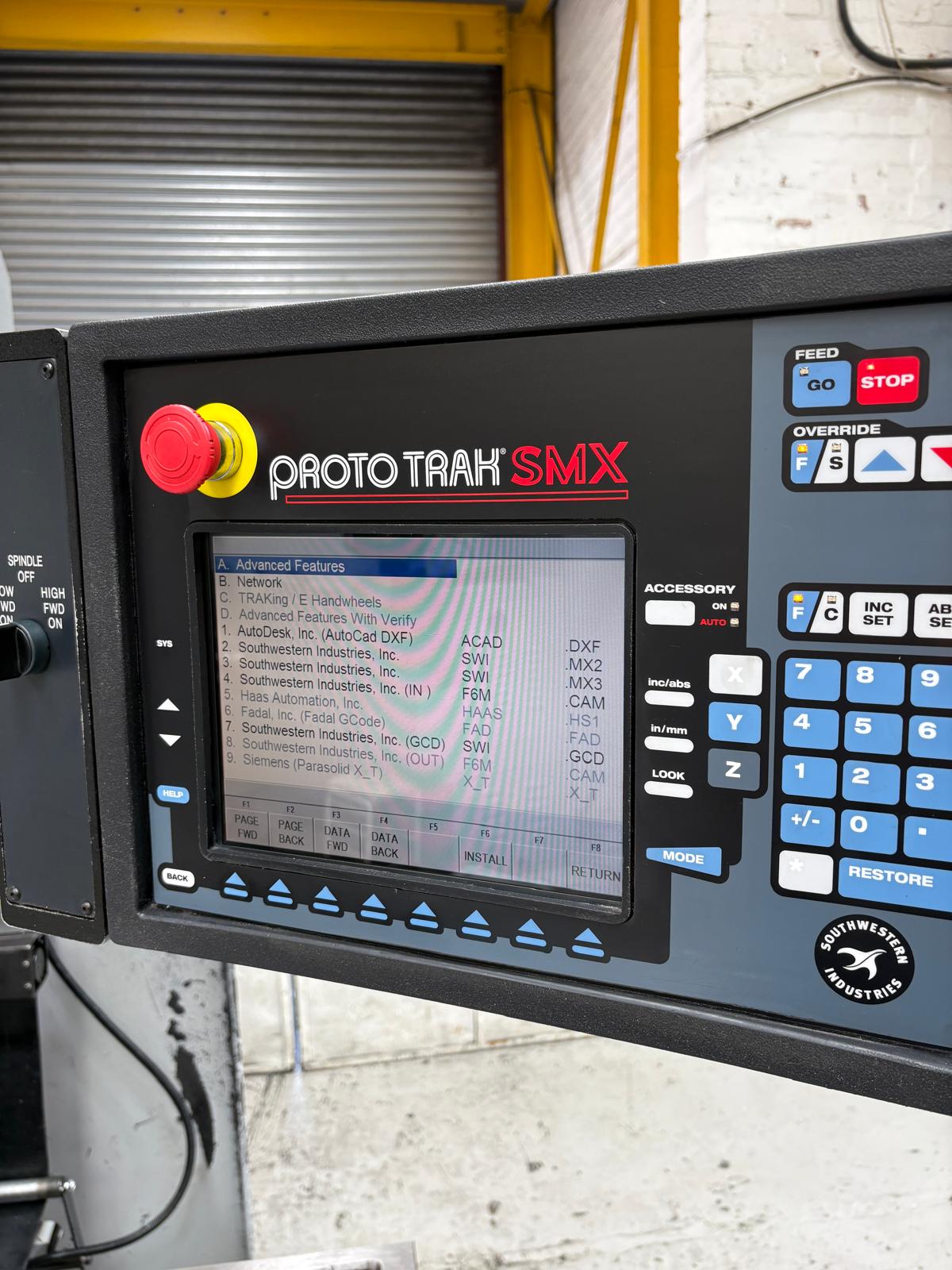

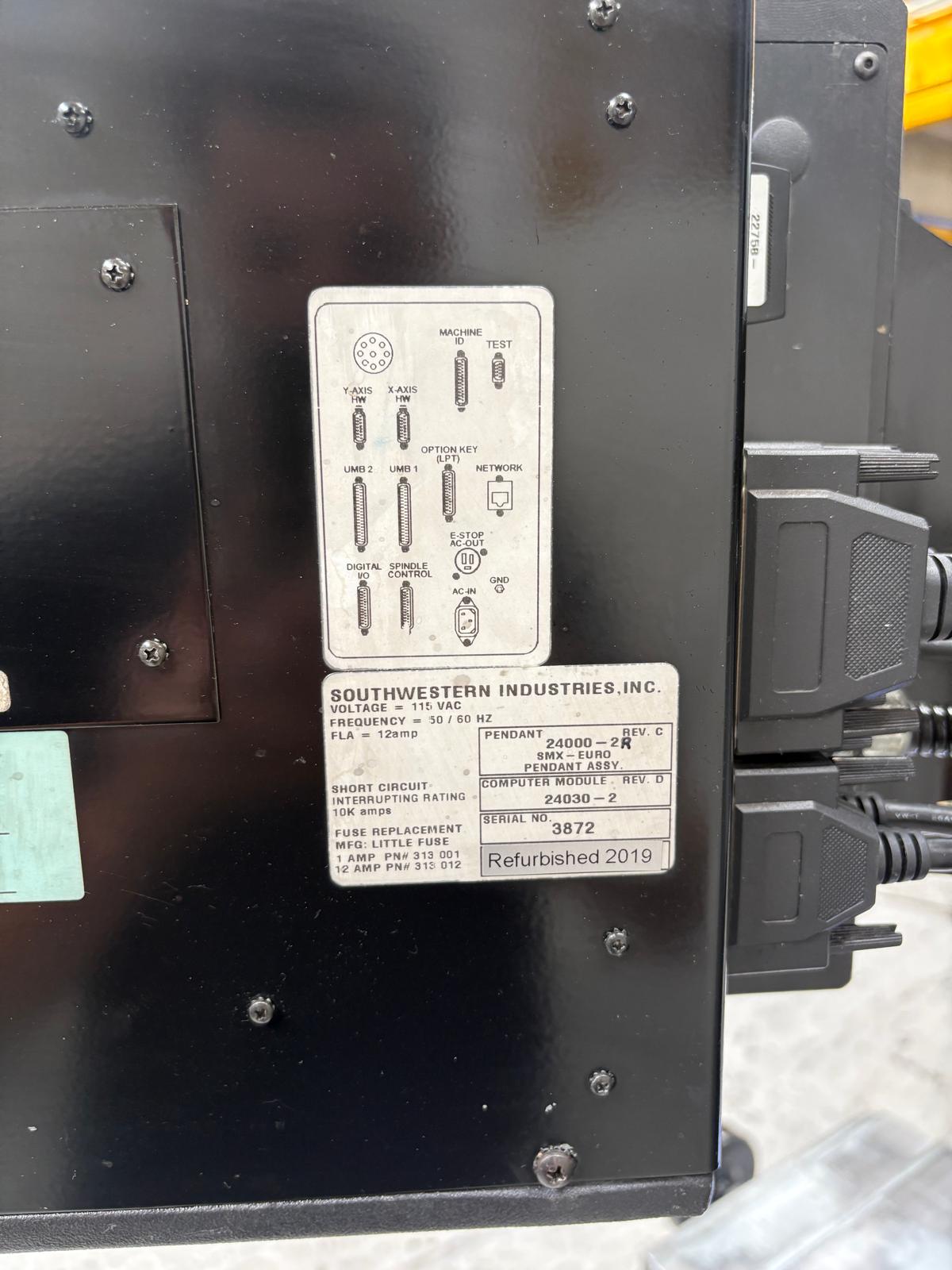

ProtoTRAK SMX Control

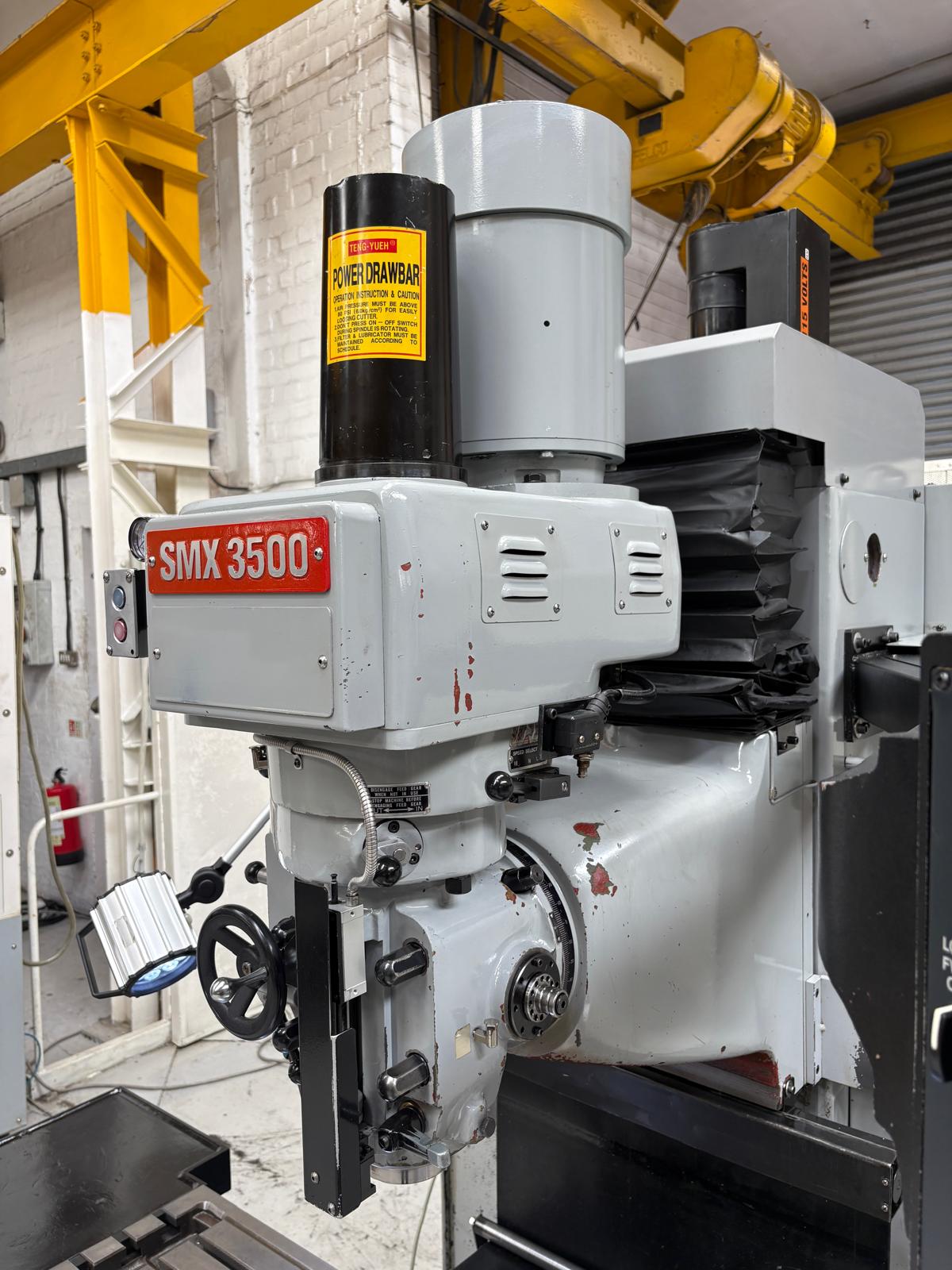

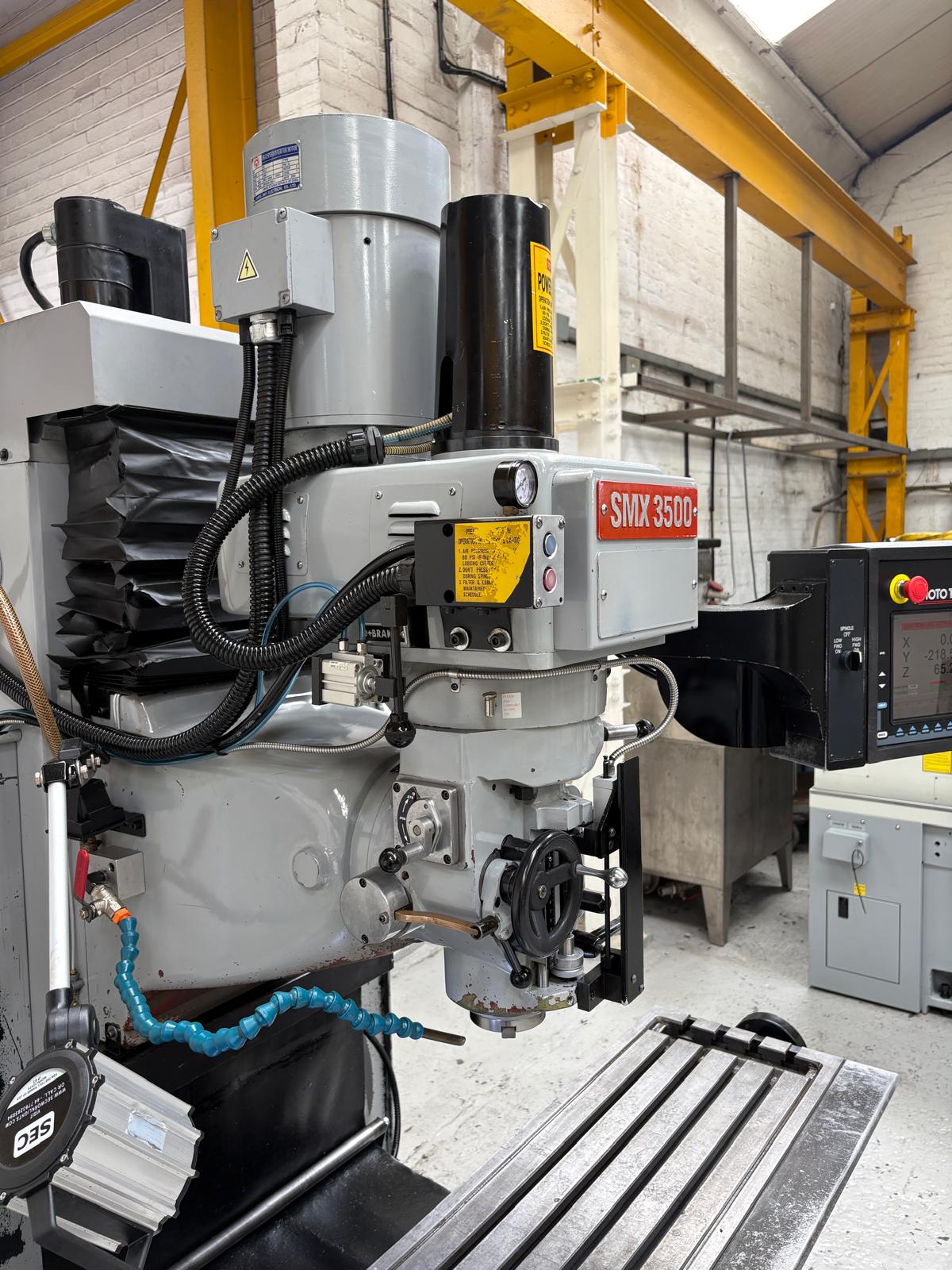

Spindle:
5HP – Programmable
40 – 5000rpm
2 Ranges 40 – 600 & 300 – 5000rpm

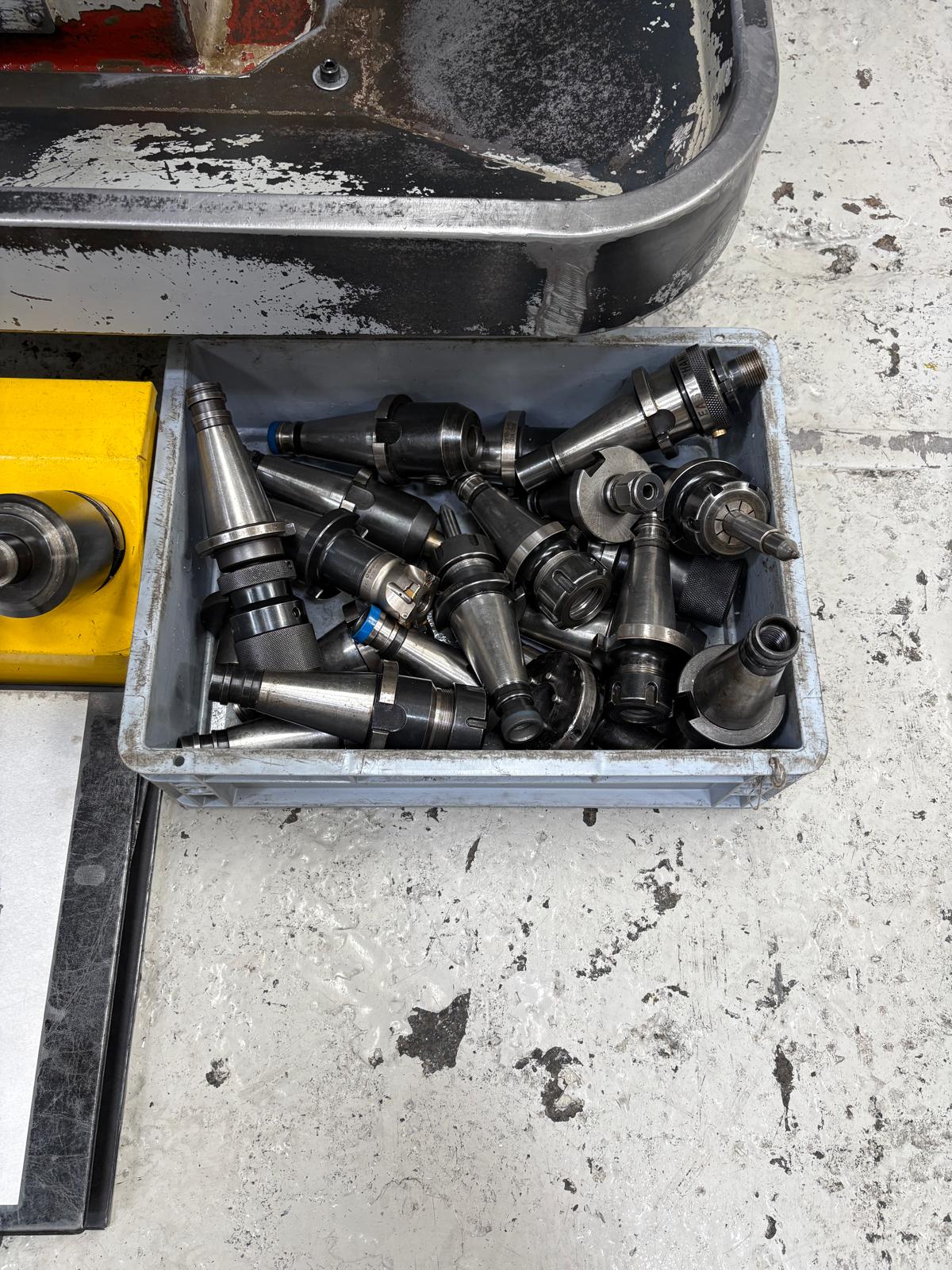

ISO40
Quill Dia 105mm
Year of Manufacture 2008

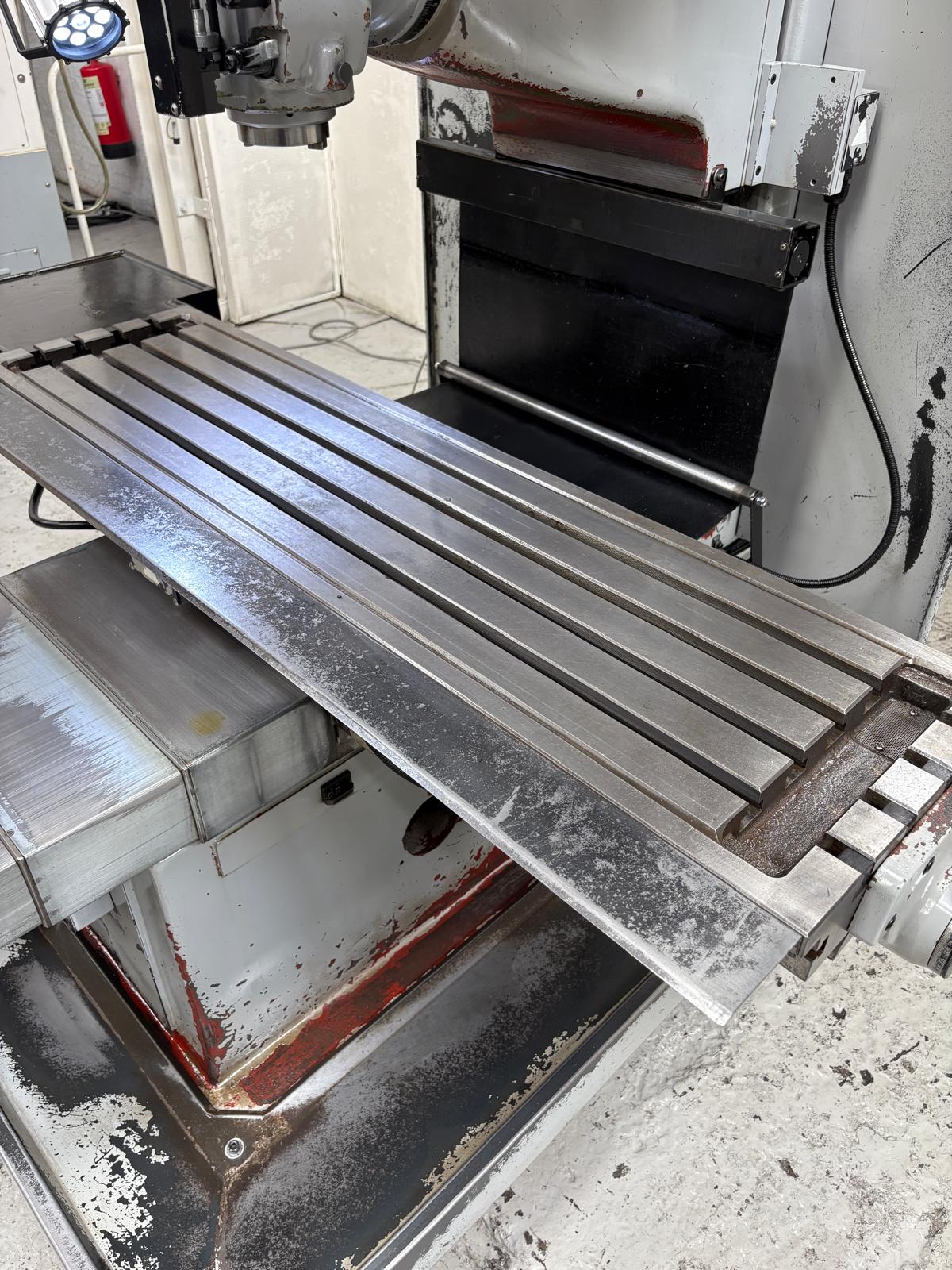

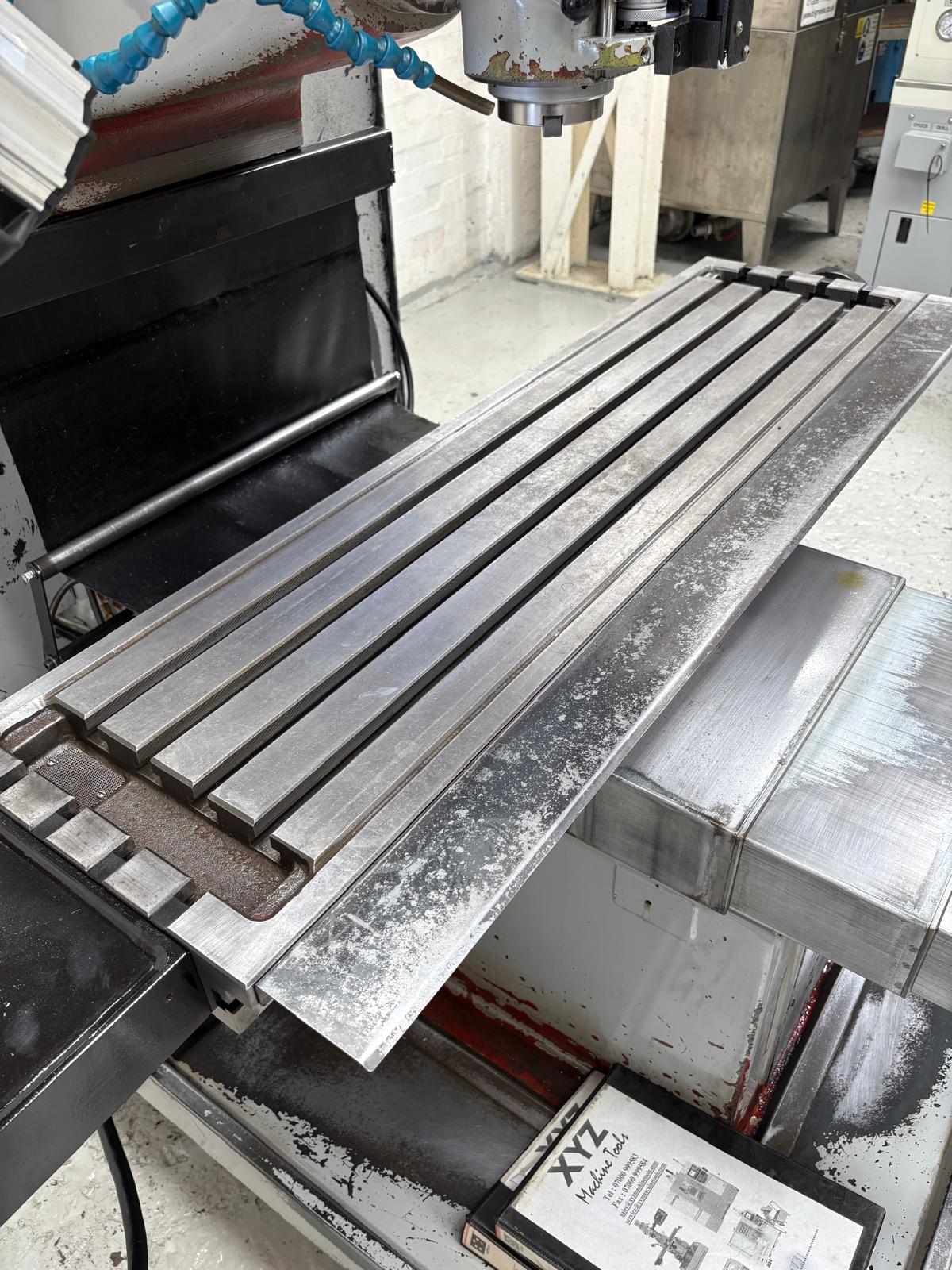

Table:
1370 x 355mm
4 0ff T Slots
T Slot size 15.9mm
Max load 600kgs
Travel:
X – 787mm
Y – 508mm
Head Vertical (Z) – 500mm
Quill (Z) 127mm
Dims without travel – 1905 x 2069 x 2225mm
Dim with travel – 2758 x 2869 x 2490mm
Weight 2430Kgs

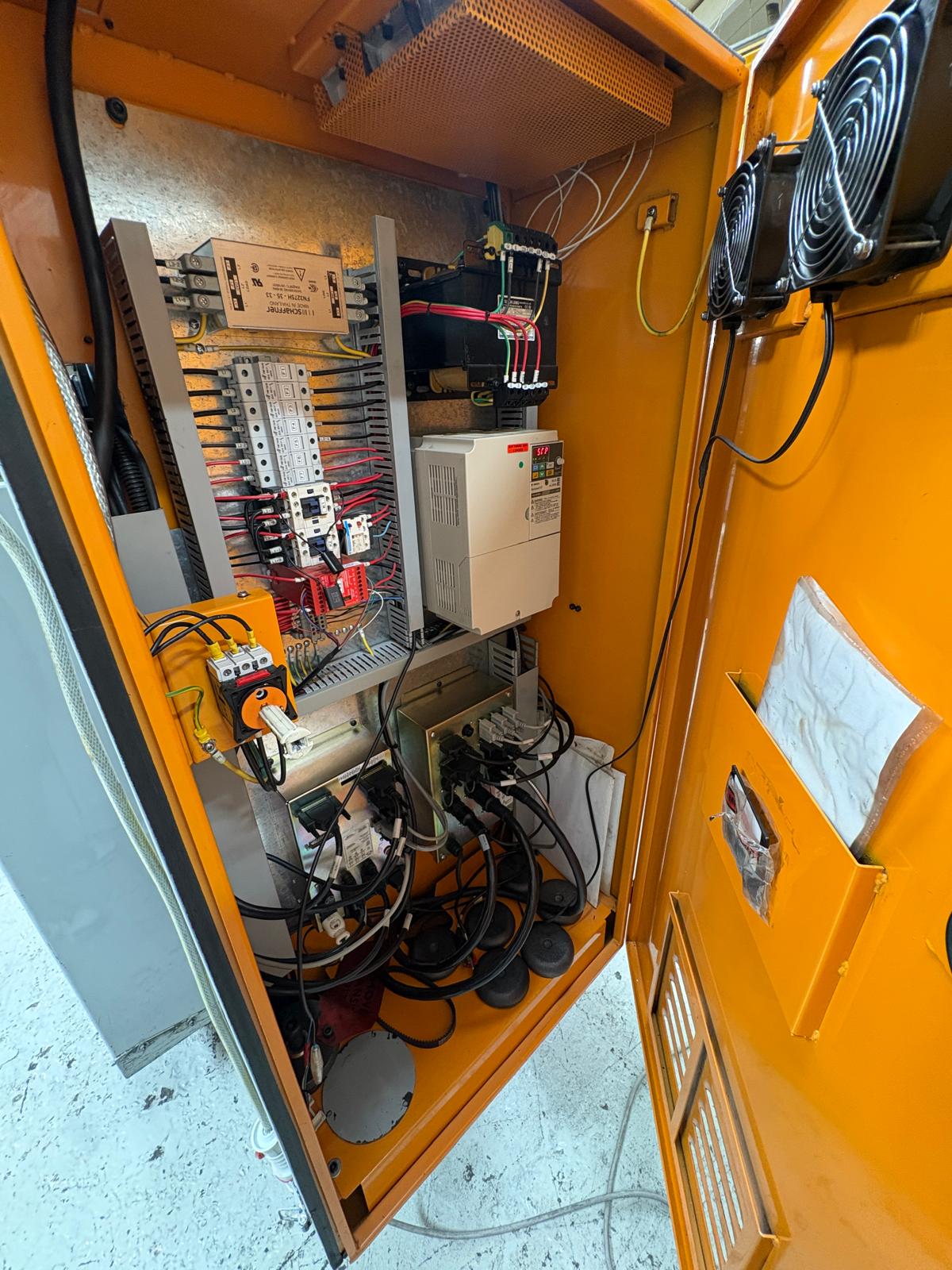

Power Requirements 22A
Air Requirements 6bar
For sale with Jet Machinery Ltd
Jet Machinery Stock No: #79245

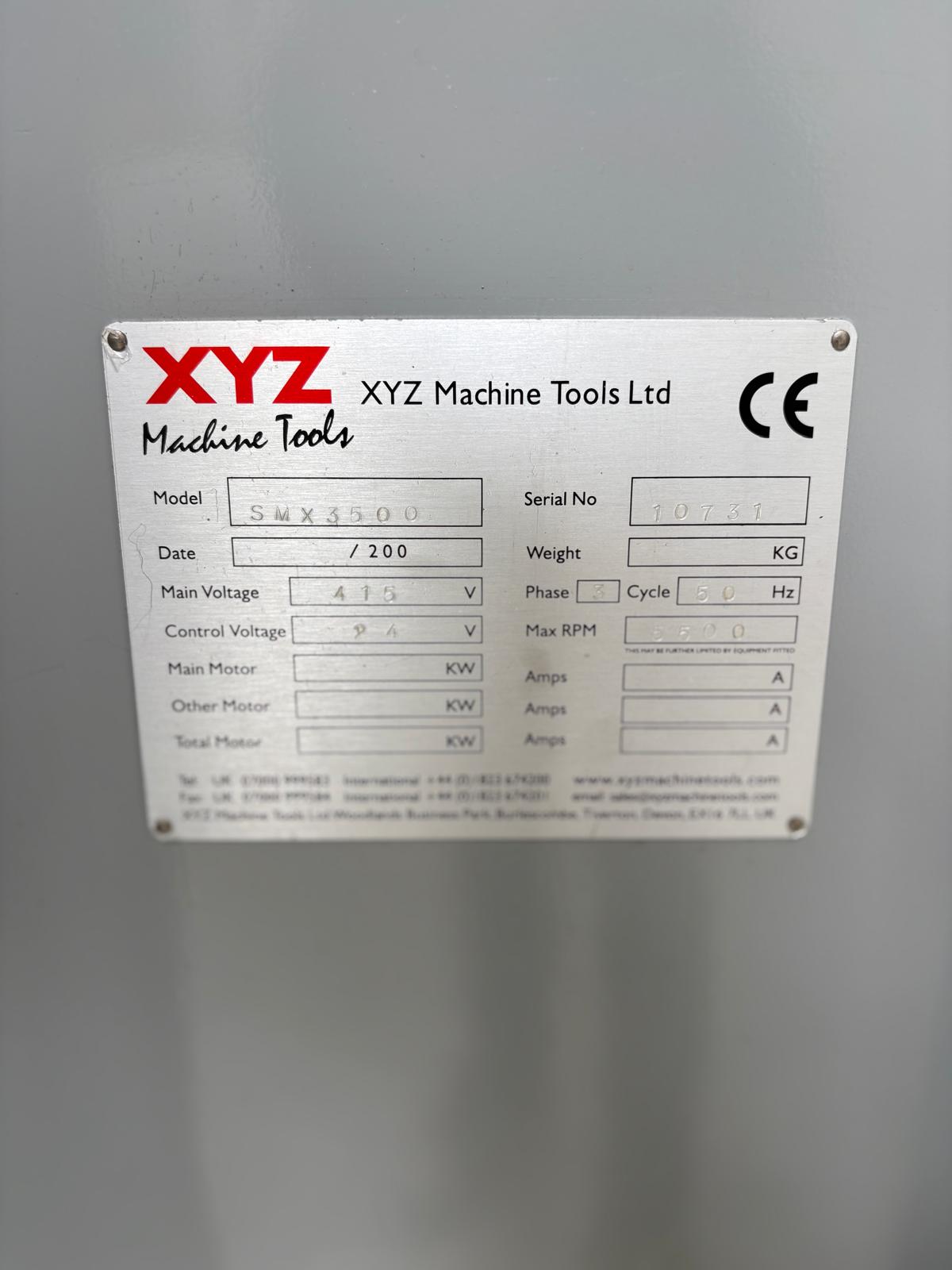

Machine Serial Number: 10731
Cost: £17,950.00 + VAT
