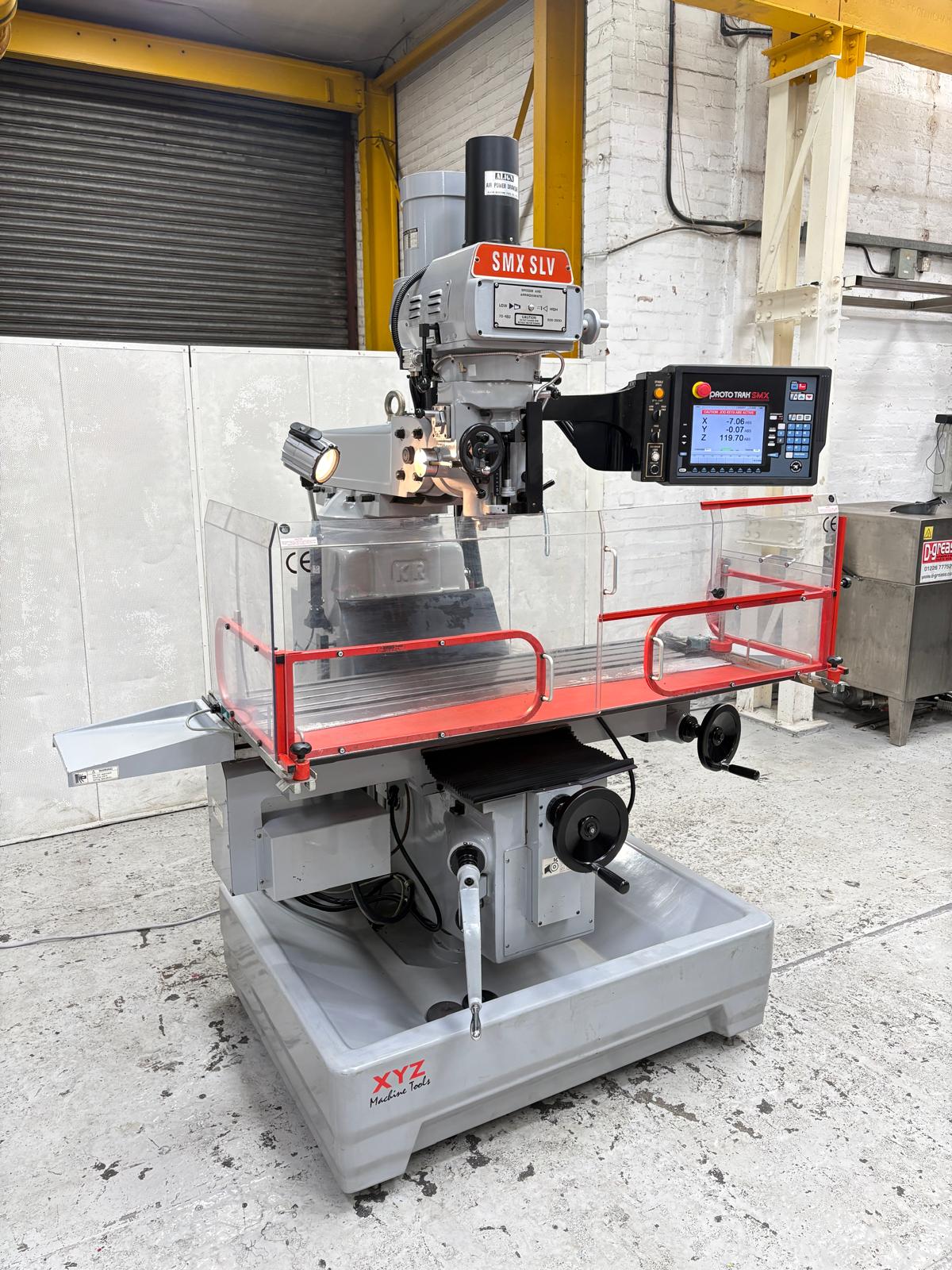

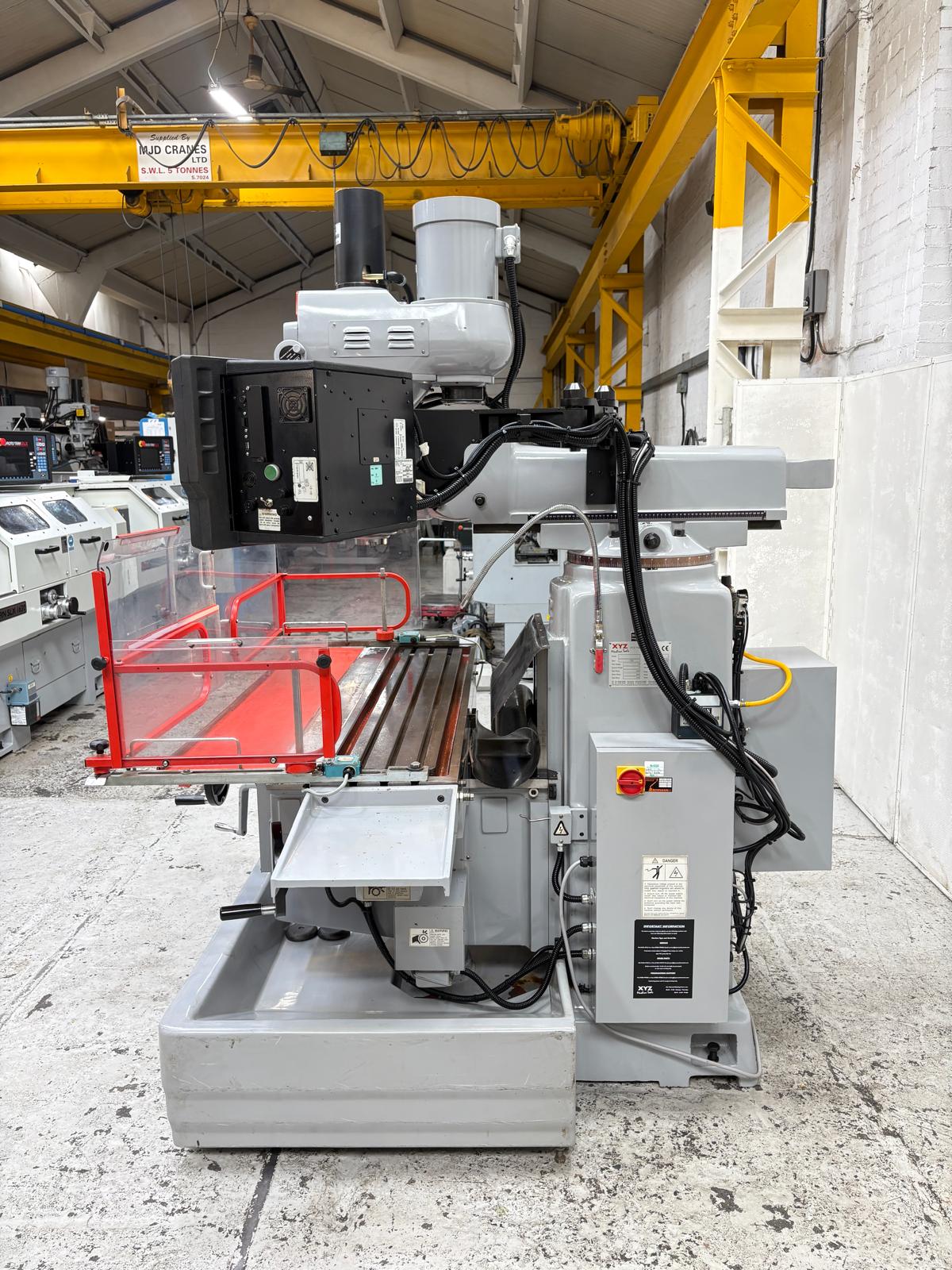

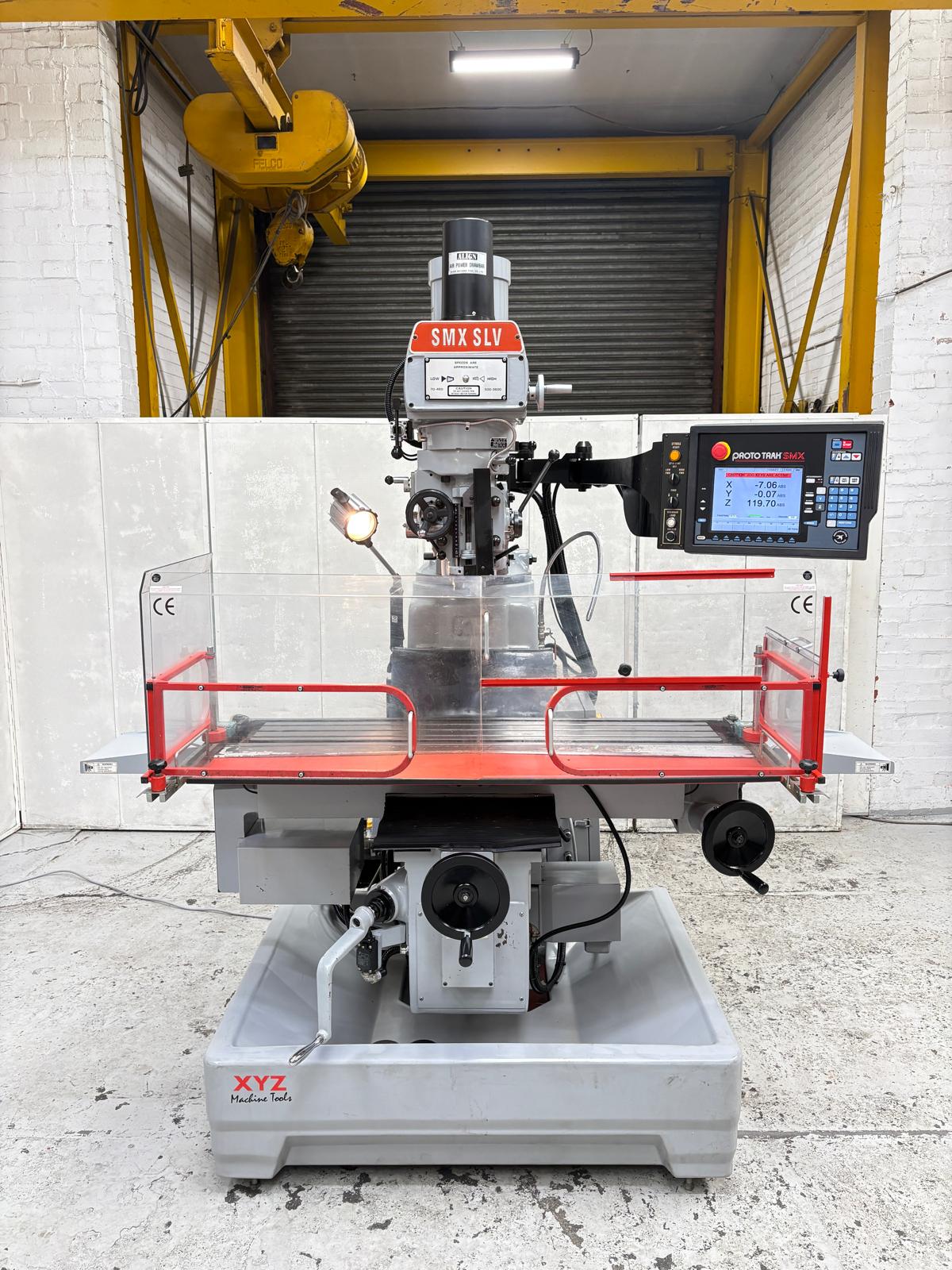

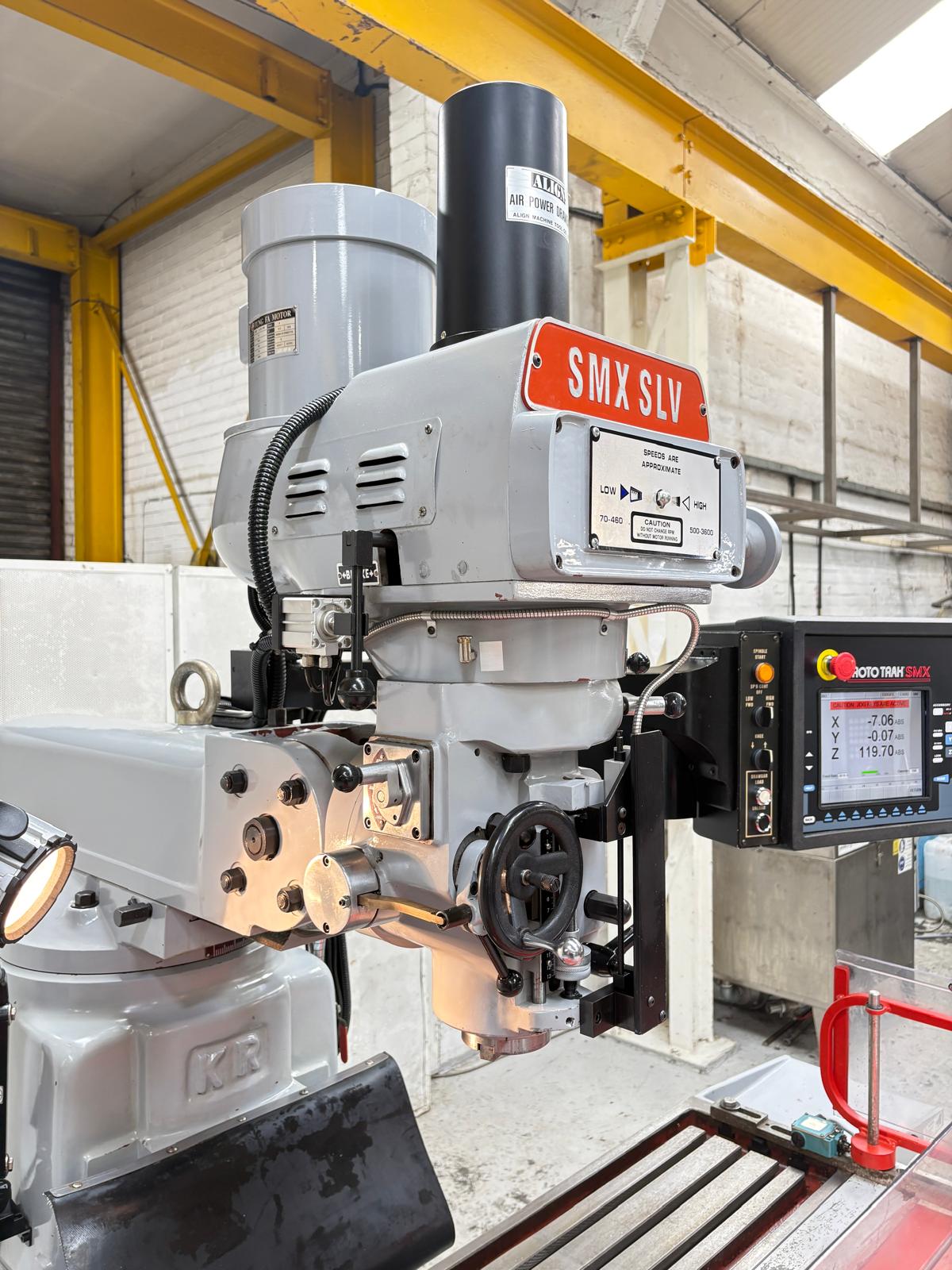

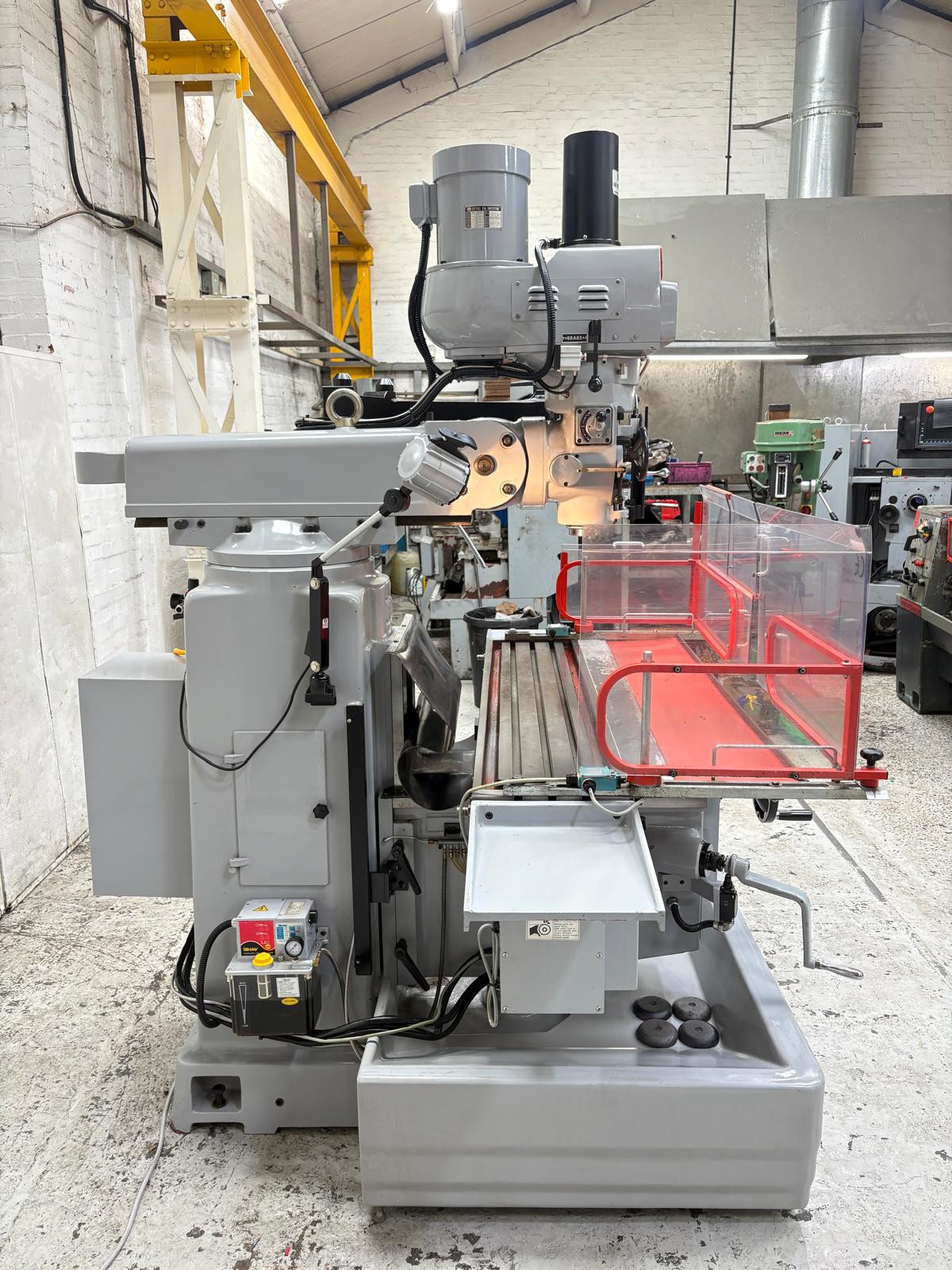

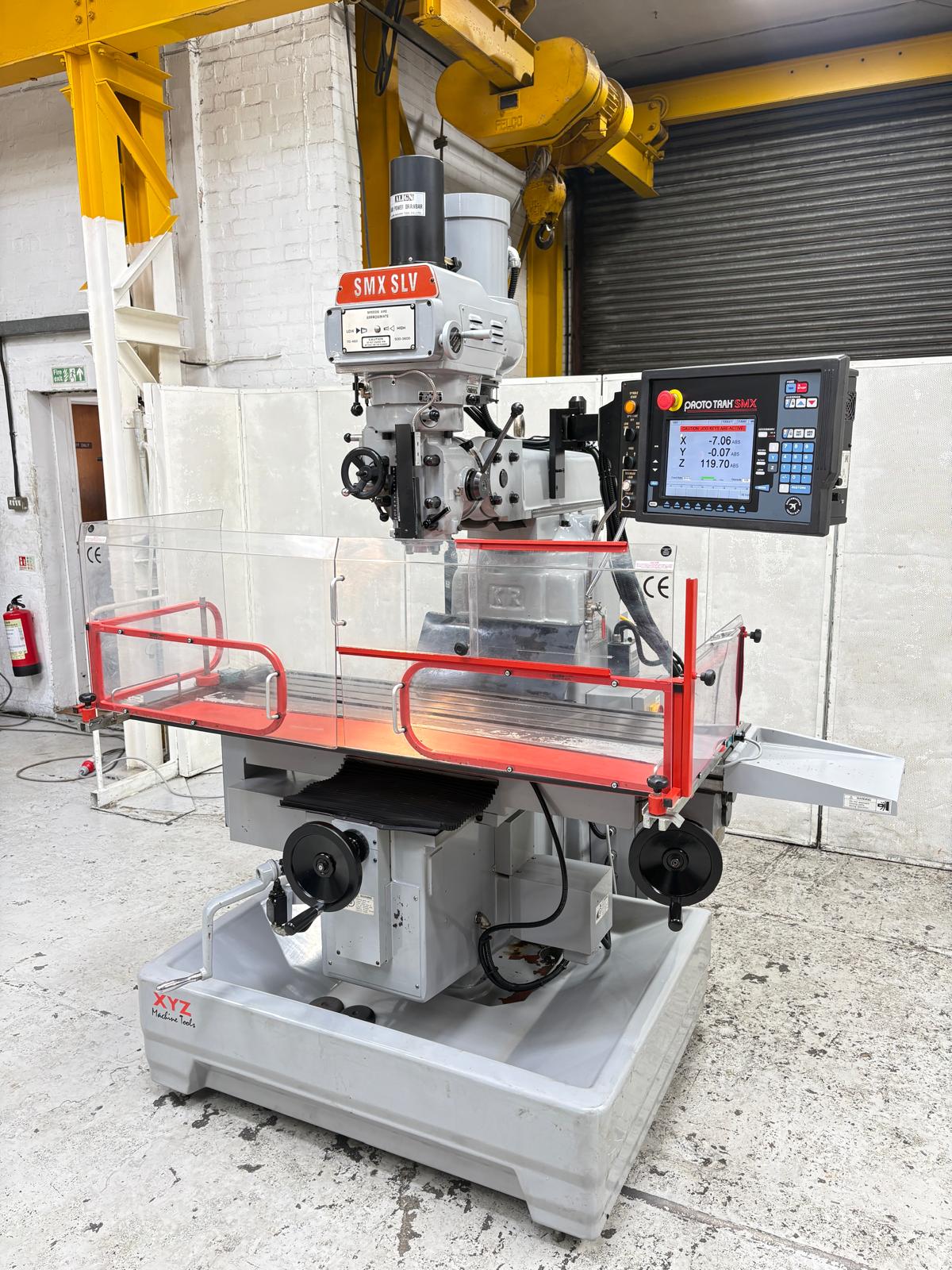

XYZ SMX SLV CNC Turret Milling Machine
ProtoTRAK SMX CNC Control
Year: 2006
Table size: 1,473 × 305 mm
Longitudinal travel – X: 1,000 mm
Cross travel – Y: 410 mm
Vertical travel – Z: 400 mm
Quill travel: 127 mm
Quill diameter: 105 mm
Spindle taper ISO 40 / BT40
Spindle-speed range: 70–3,600 rpm
Spindle motor: 3.75 kW
Maximum table load: 580 kg
Electrical supply: 415 V, three-phase, 50 Hz
Control voltage: 24 V
Supplied With:

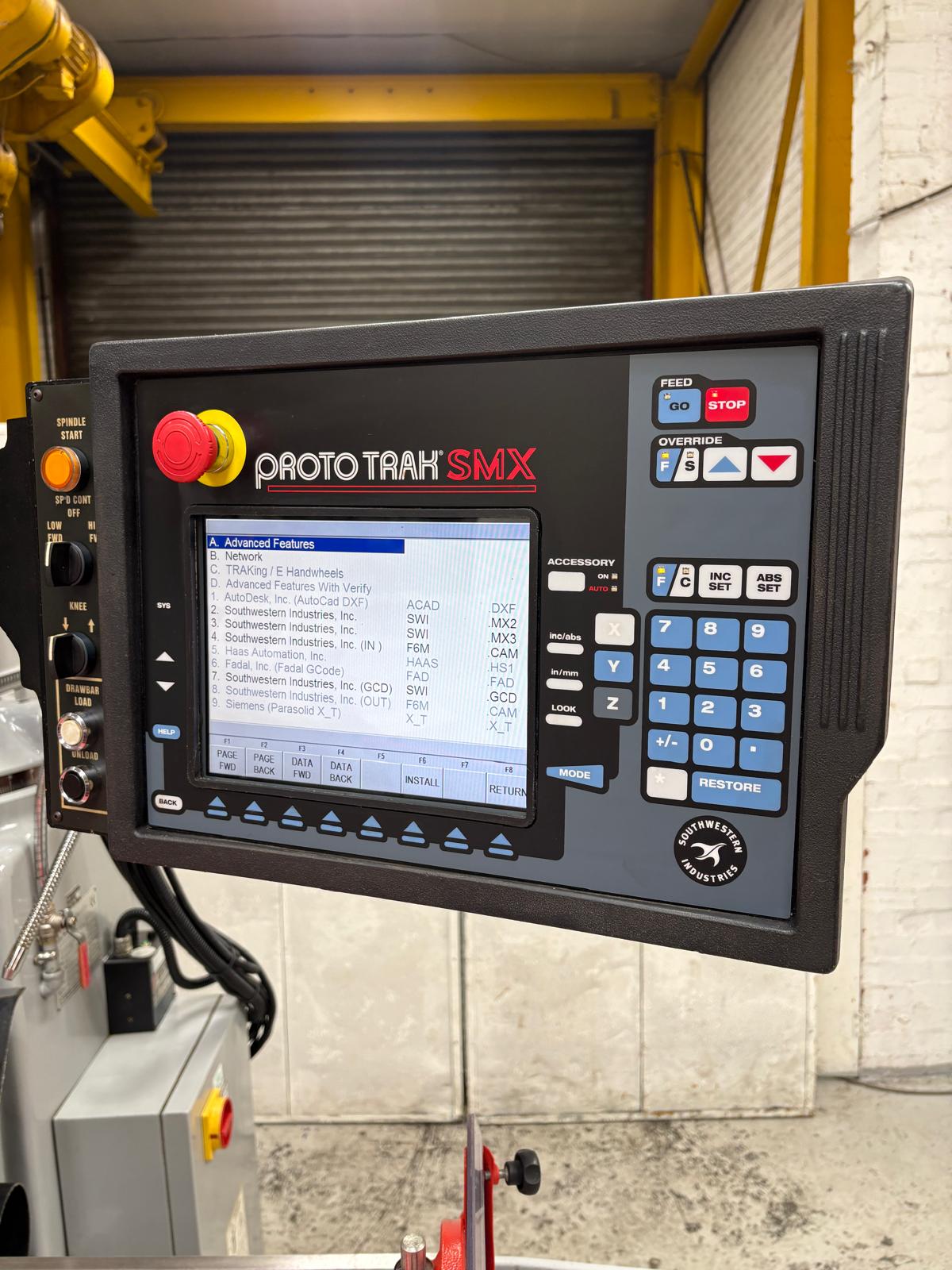

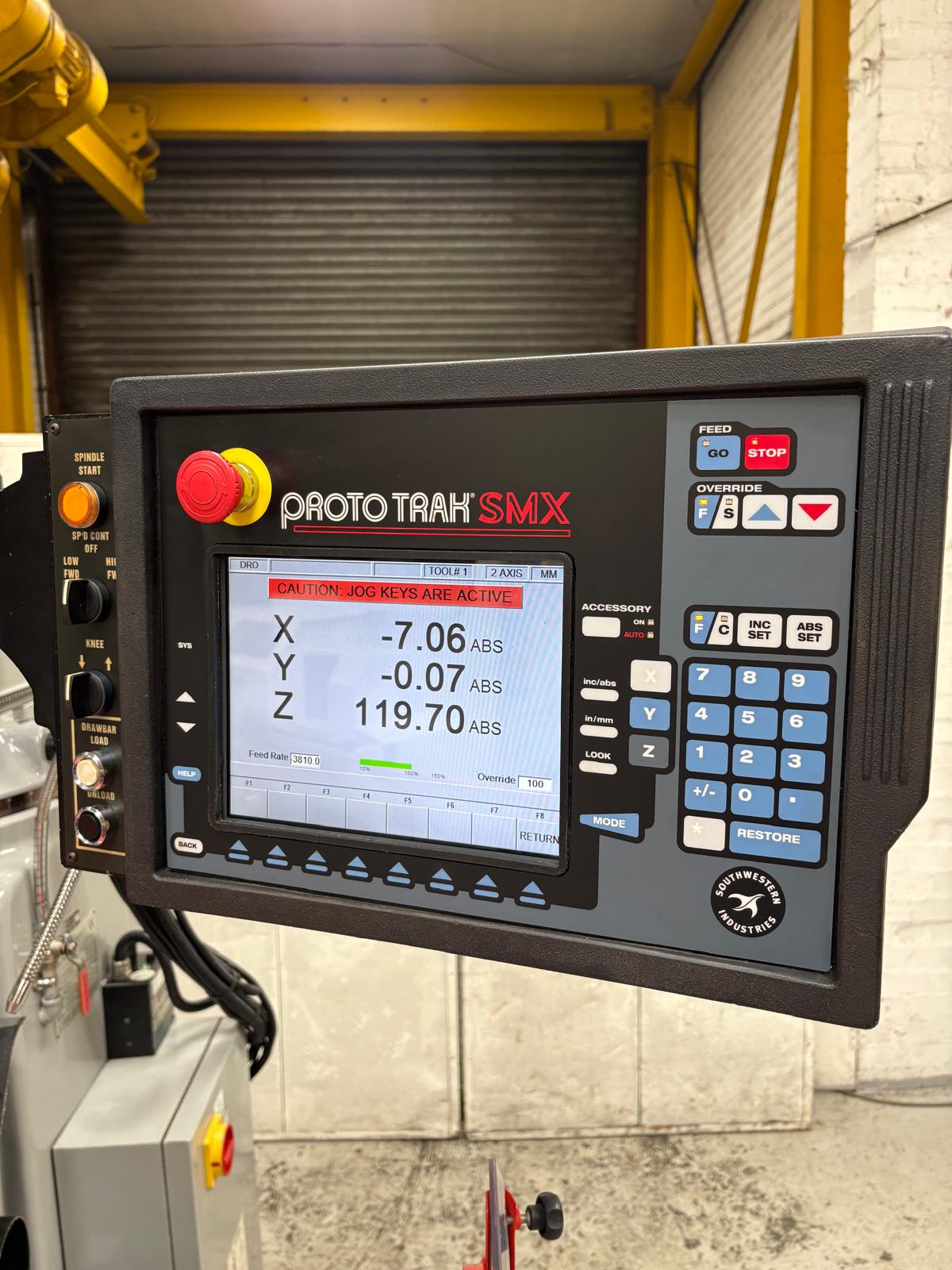

ProtoTRAK SMX conversational CNC control
Power-operated X and Y axes
Digital quill-position display

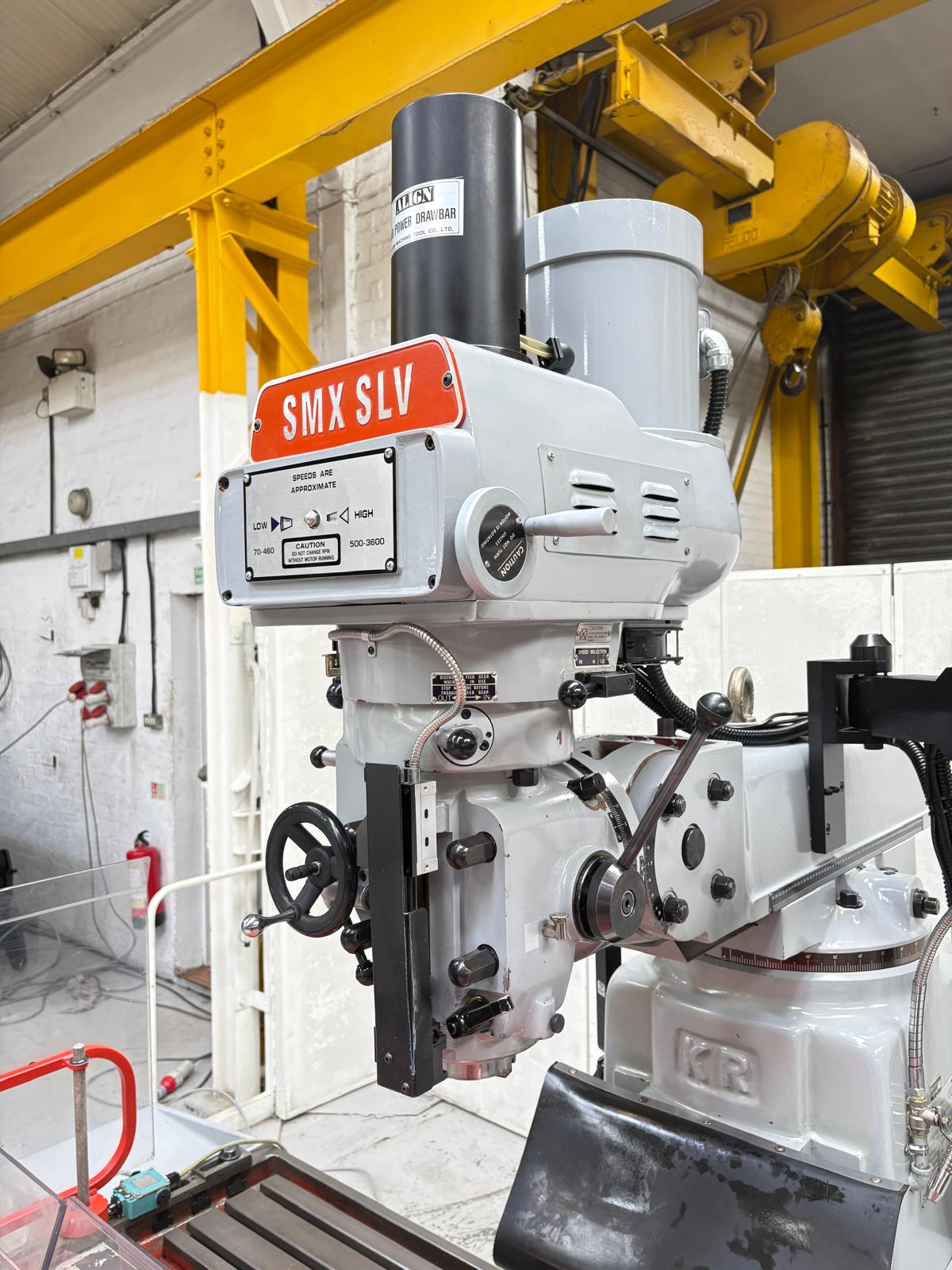

Infinitely variable spindle-speed head
Power knee elevation

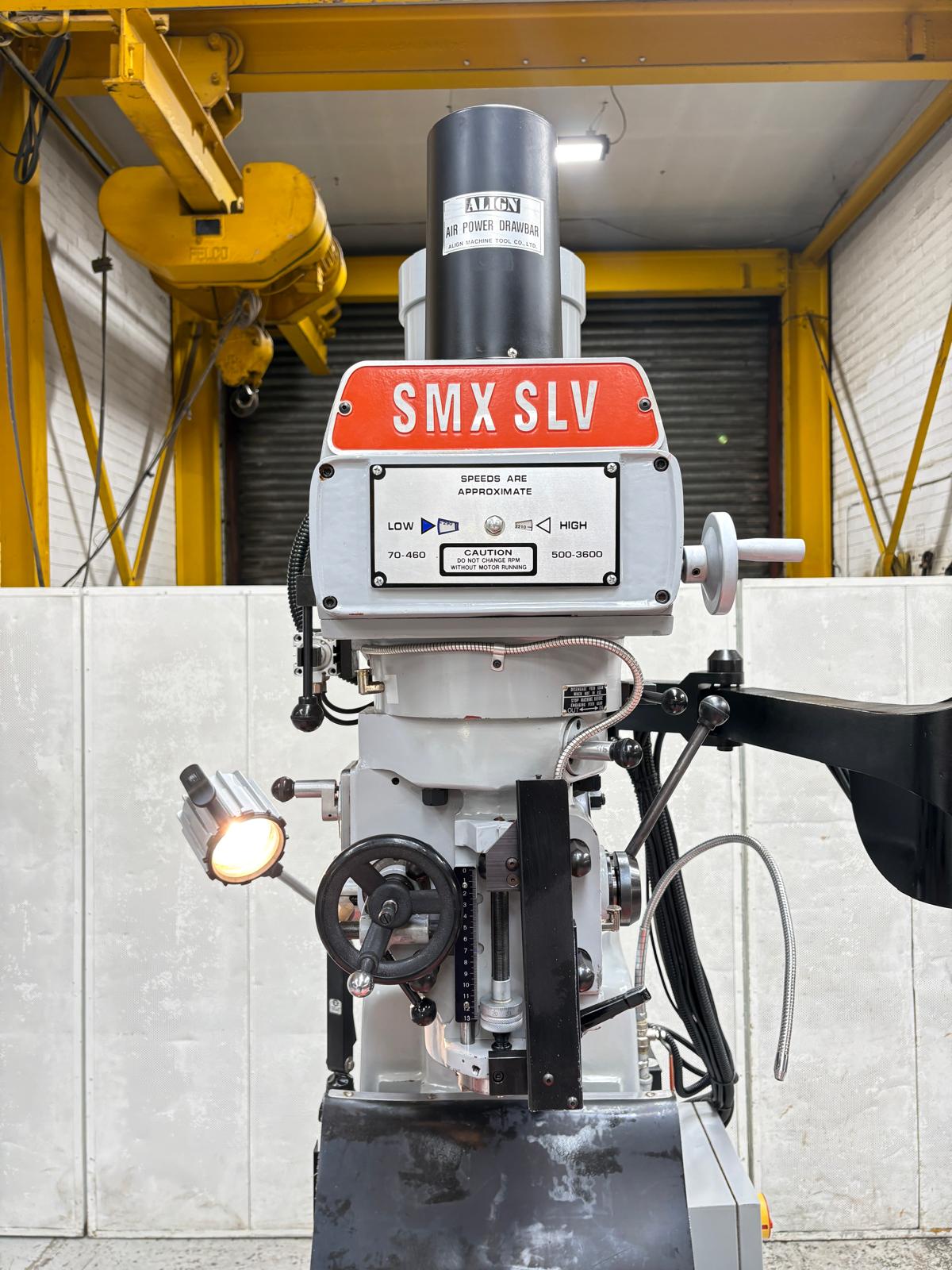

Air-operated power drawbar
Coolant equipment
Low-voltage work light

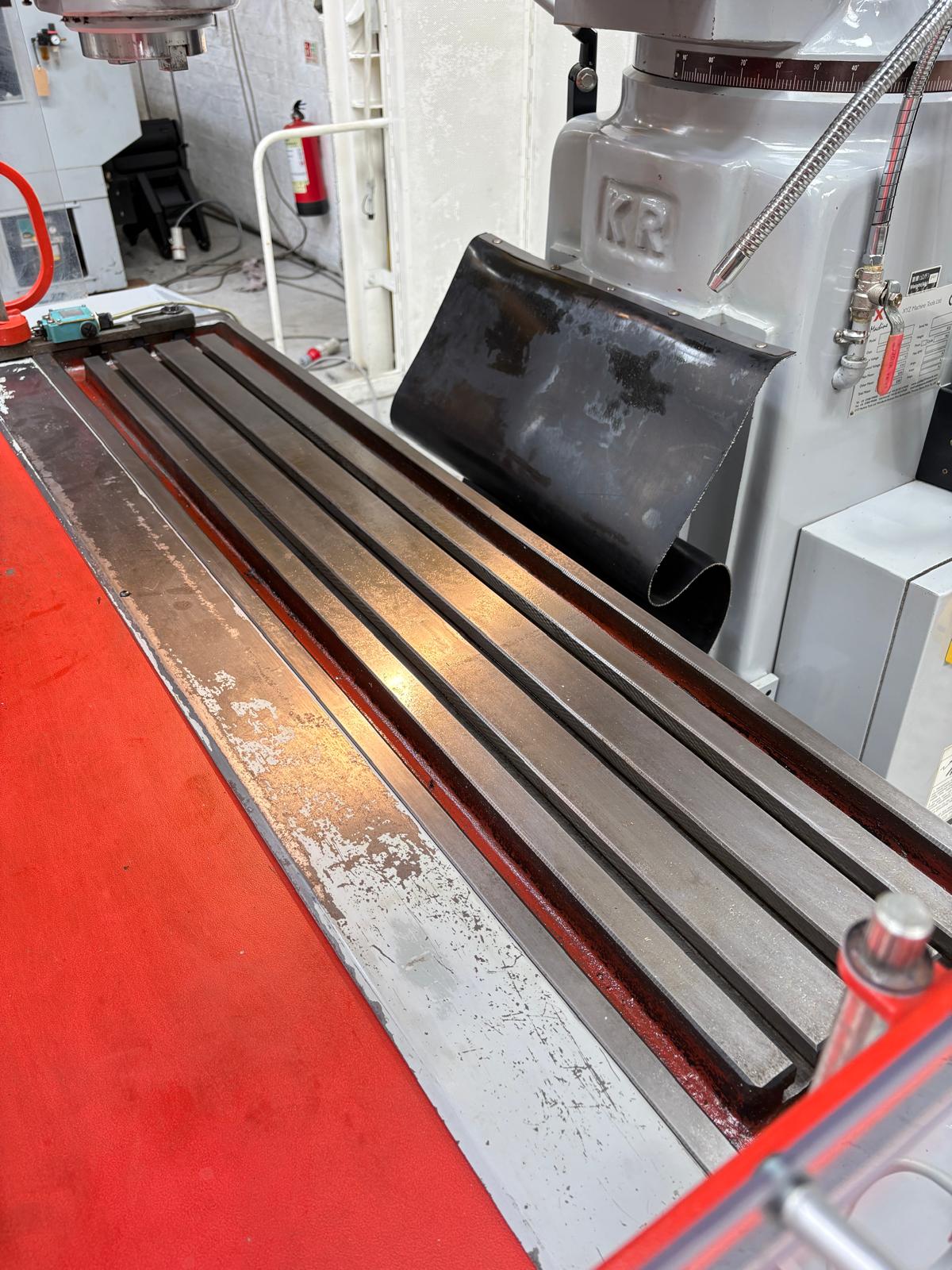

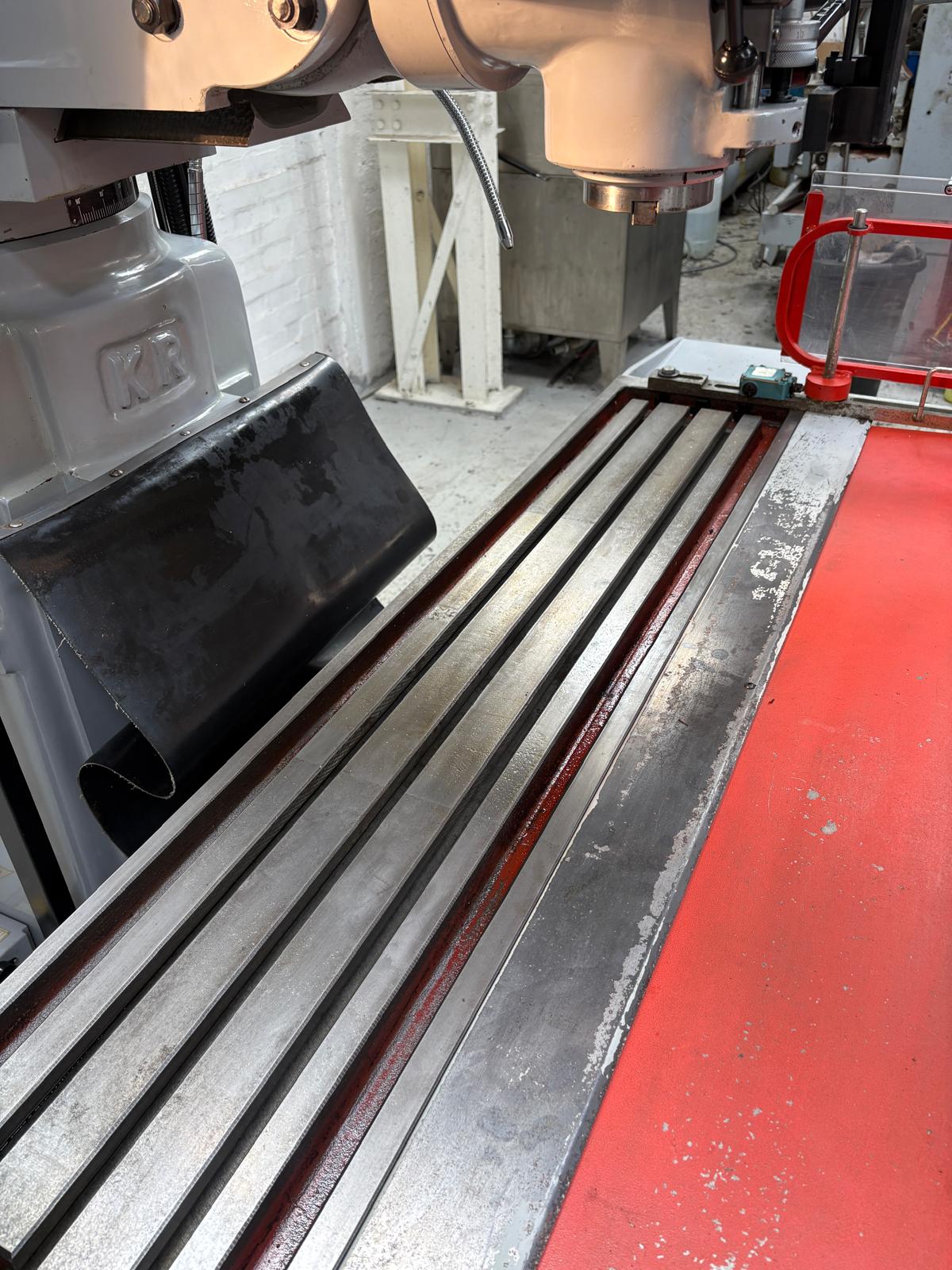

Hardened and ground table
For sale with *Jet Machinery Ltd*
Jet Machinery Stock No: #79283

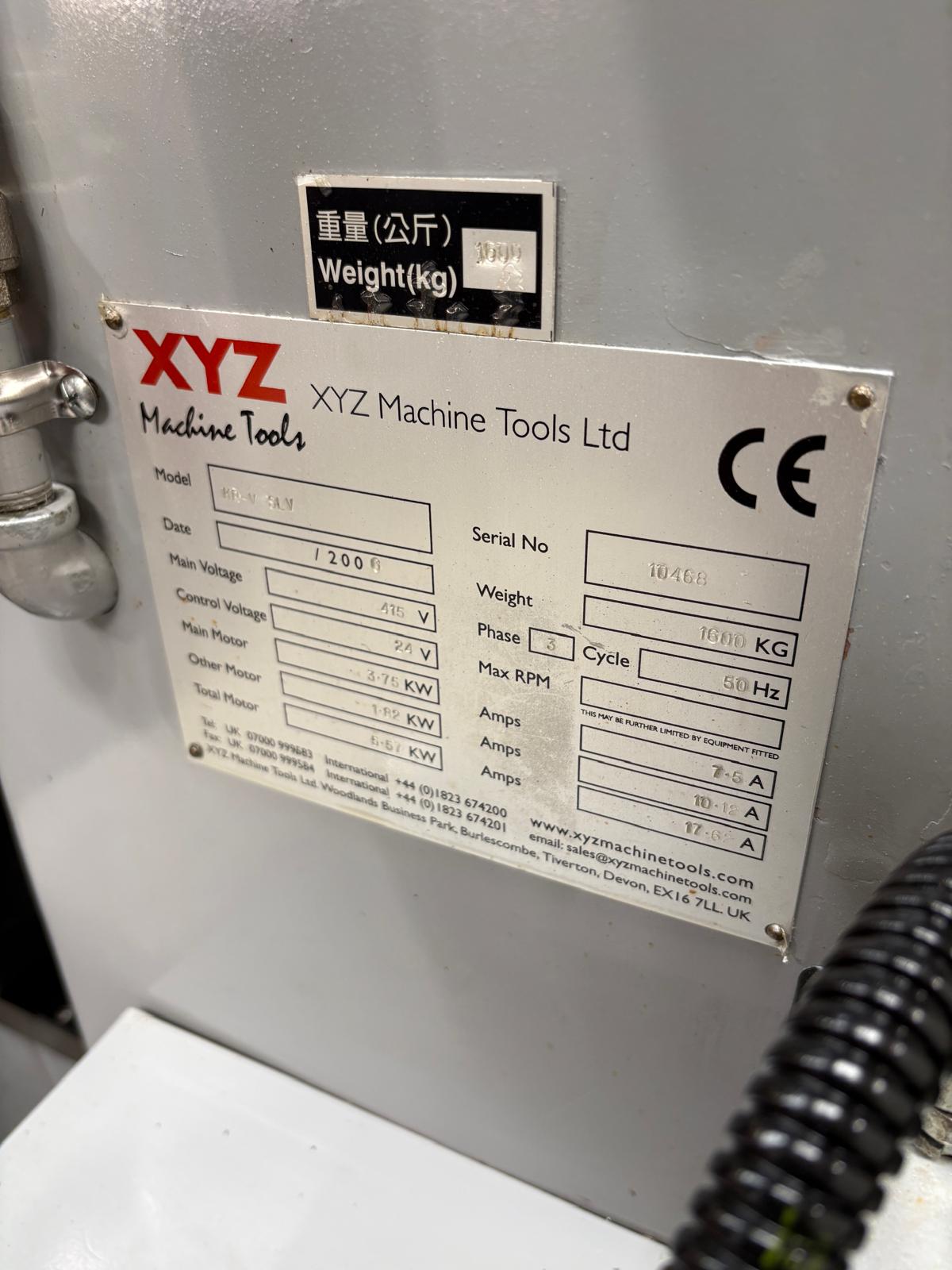

Machine Serial Number: 10468
Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details.
Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.
