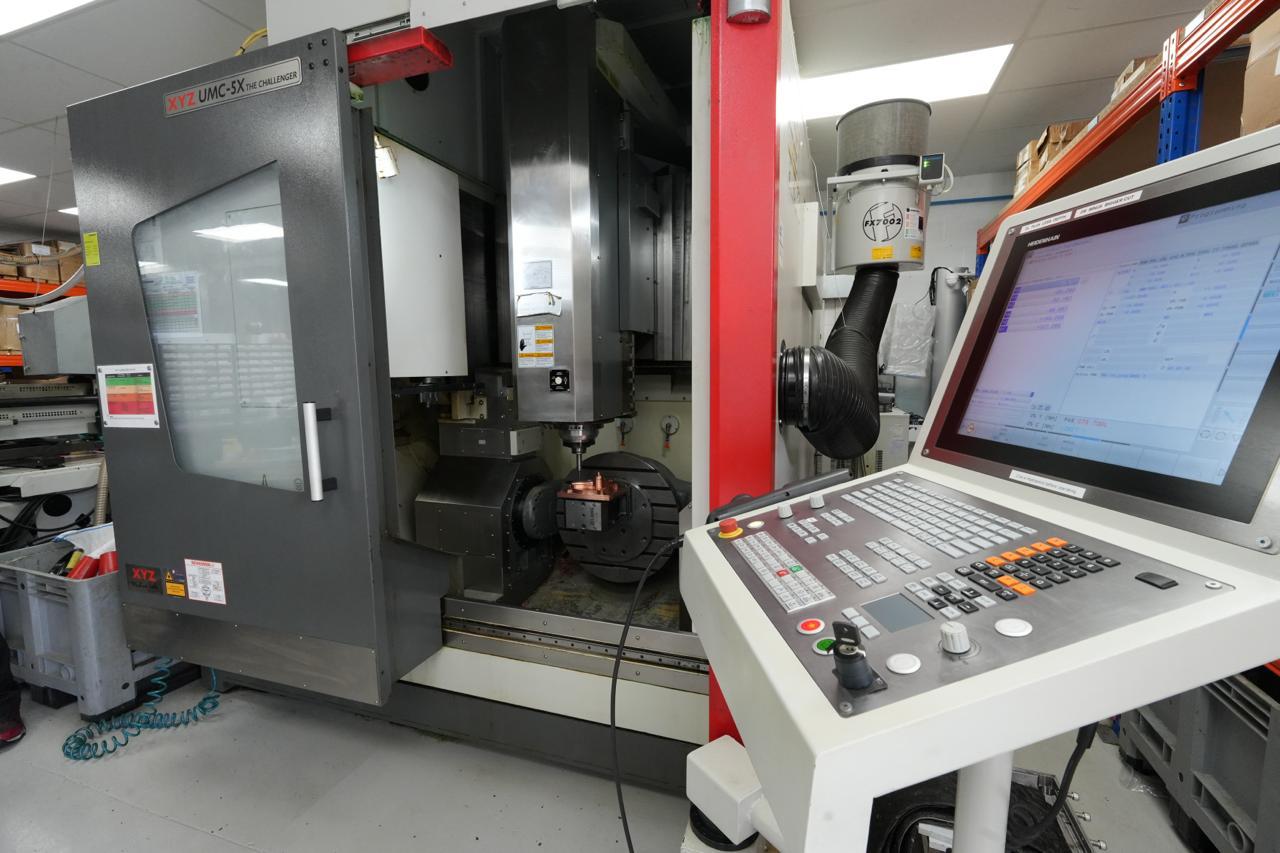

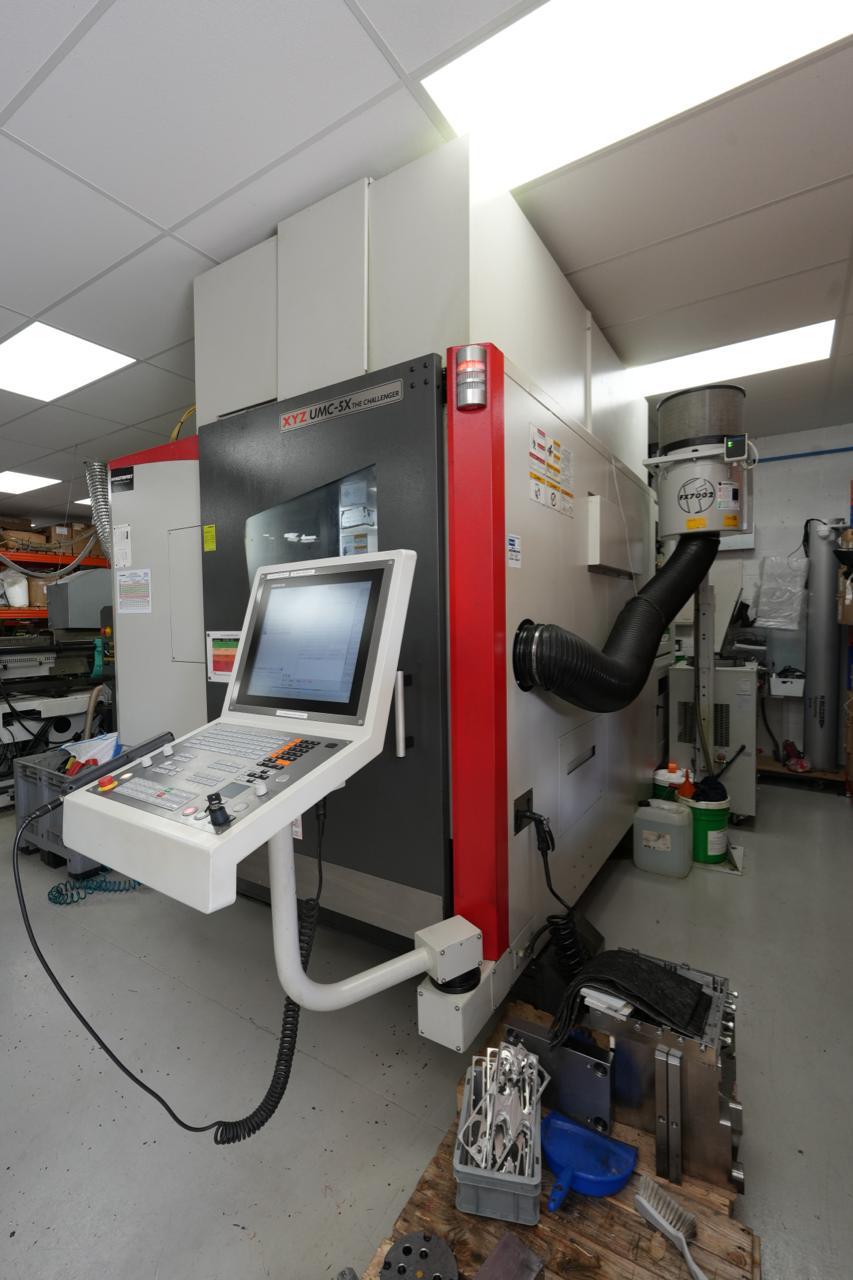

XYZ UMC-5X 5 Axis CNC Vertical Machining Centre (2019)
Heidenhain iTNC 640 HSCI Control
Model UMC-5X
Control Heidenhain iTNC 640 HSCI
X Axis Travel 600 mm
Y Axis Travel 600 mm
Z Axis Travel 500 mm
A Axis Travel +120° / -120°
C Axis Travel 360°
Table Size 600 mm Diameter
Maximum Table Load 600 kg
Spindle Speed 24,000 rpm Direct Drive
Spindle Taper BBT40
Rapid Traverse 36 m/min
Feed Rate 1 - 36,000 mm/min

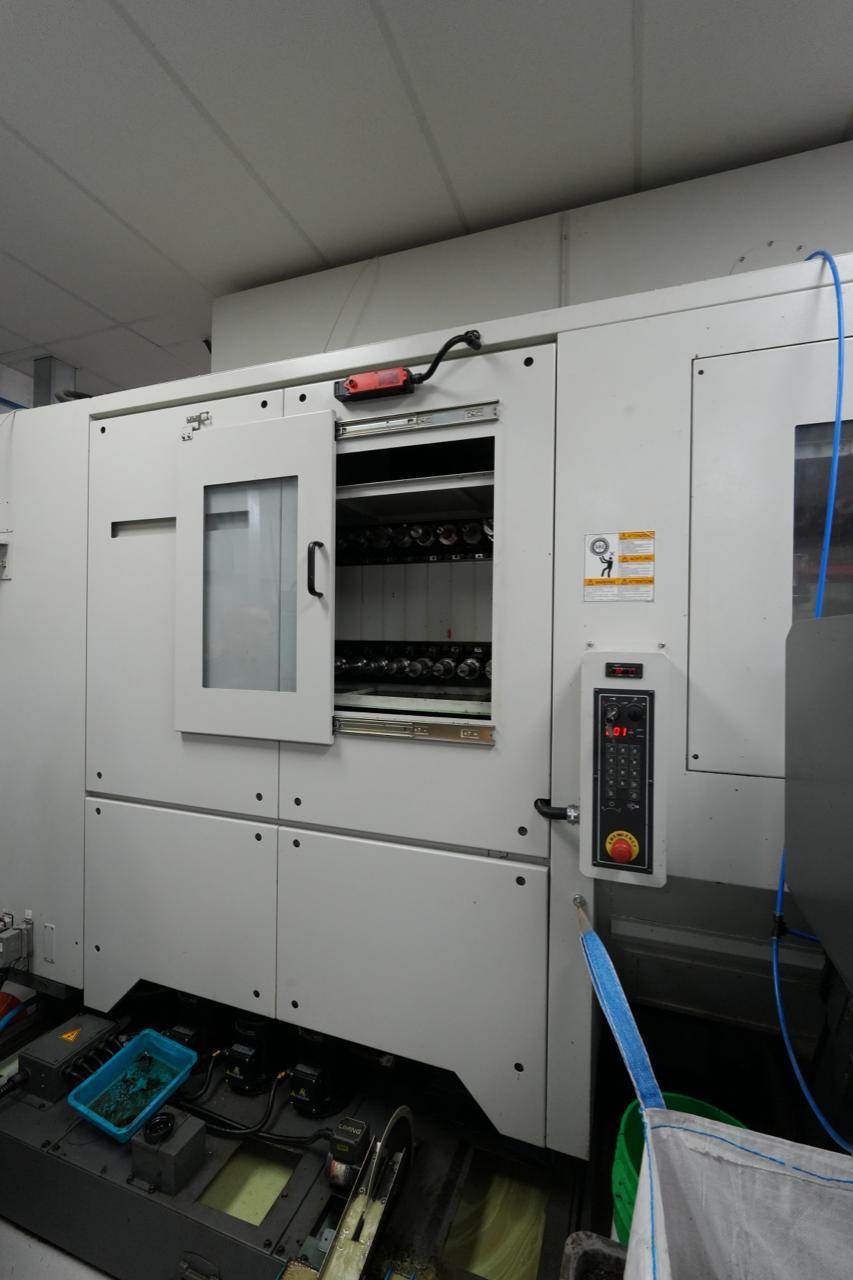

Tool Changer 60 Station Automatic
Maximum Tool Length 300 mm
Through Spindle Coolant 70 Bar
Machine Weight 9,500 kg
Machine Fitted With:
Heidenhain iTNC 640 HSCI CNC Control, 24,000 rpm Direct Drive High Speed Spindle (20kW S6 Rated), 60 Station Automatic Tool Changer, 70 Bar Through Spindle Coolant, Fixed Roof for High Pressure Coolant System, Renishaw RMP600 Strain Gauge Wireless Workpiece Probe, Laser Tool Setting System, Kinematic High Accuracy Machine Setup, Kinematic Reference Ball, Thermal Spindle Compensation, Linear Scales on X, Y & Z Axes, Direct Drive C Axis Rotary Table, Swarf Conveyor & Bin.
Features:
Simultaneous 5 Axis Machining Centre, Gantry Frame Construction, Direct Drive High Torque Rotary Table, High Precision Linear Roller Guideways, Dynamic Collision Monitoring, High Accuracy Machine with Linear Scales, Ideal for Aerospace, Medical, Precision Engineering & Complex Multi-Sided Components.
For sale with Jet Machinery Ltd
Jet Machinery Stock No: TBC
Machine Serial Number: TBC
Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to inspect the machine prior to purchase.
Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details.
Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.
